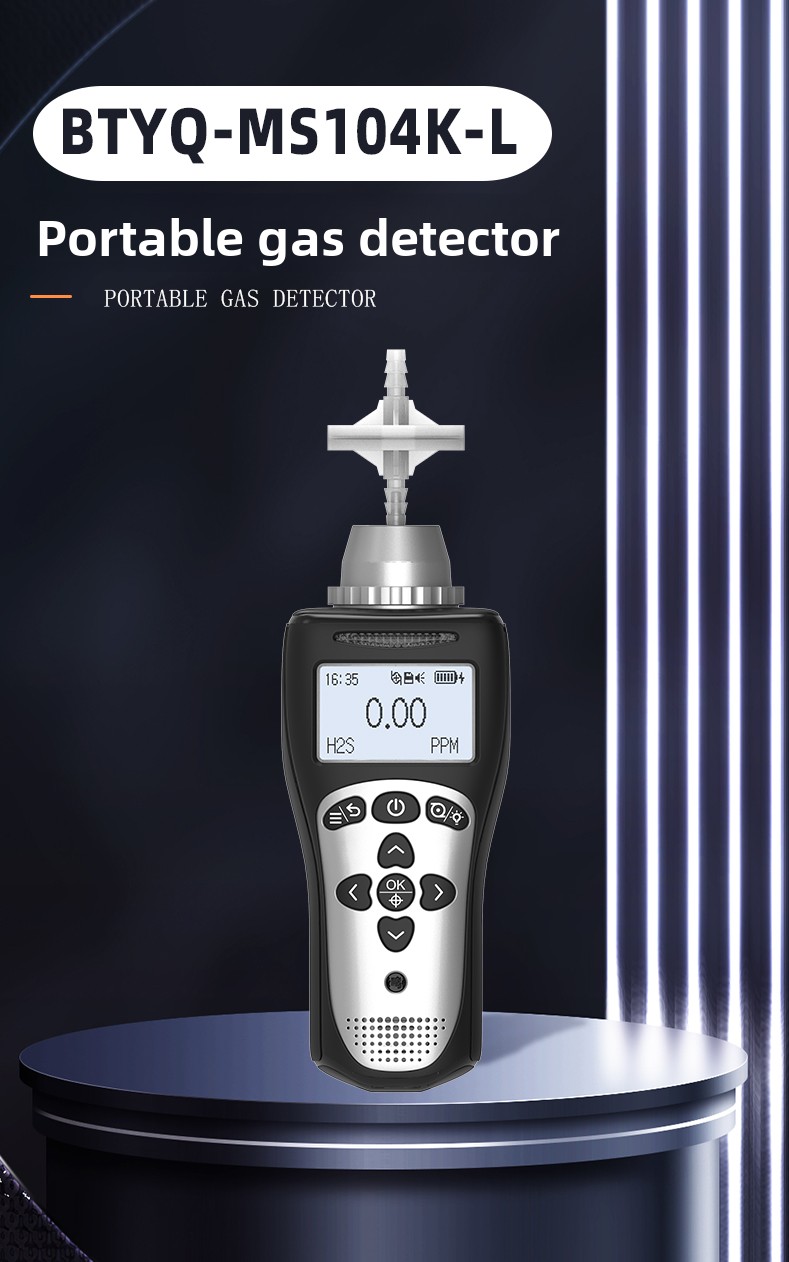

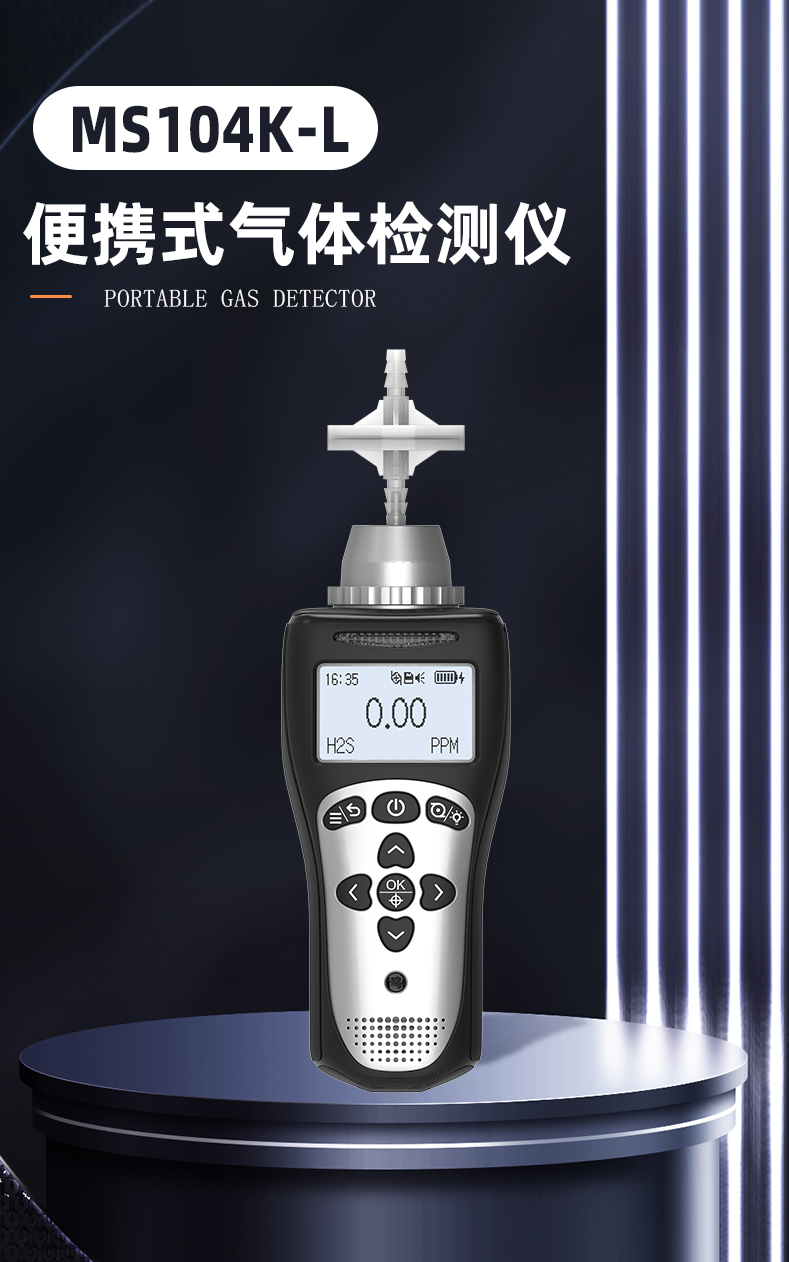

Portable single gas detector BTYQ-MS104K-L

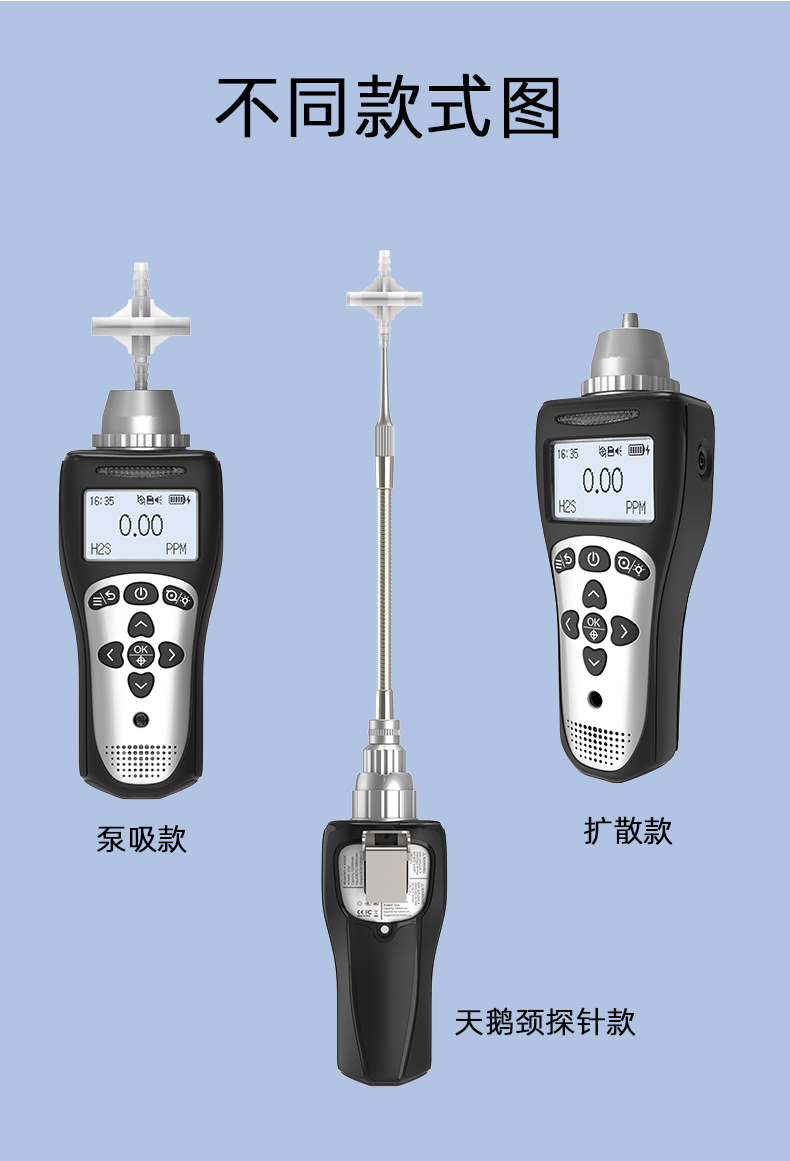

Detection Method: Built-in pump suction measurement, can be switched: diffusion, diffusion + pump suction

Detection Gas: Carbon dioxide (infrared) CO2 Flammable gas detector Ex Flammable gas (infrared) Ex METHane CH4 Methane (infrared) CH4 Methane (laser TDLAS) CH4 Ethane (infrared) C2H6 Propane (infrared) C3H8 Non-methane total hydrocarbons CxHy Carbon monoxide COHydrogen sulfide H2S Oxygen O2 Nitrogen N2 Ammonia NH3 Chlorine CL2 Hydrogen H2 Helium He Argon Ar Formaldehyde CH2O Ozone O3 Nitric oxide NO Nitrogen dioxide NO2 Nitrogen oxides NOX Sulfur dioxide SO2 Ethylene oxide ETO Ethylene oxide (infrared) C2H4O Phosphine PH3Hydrogen chloride HCl Hydrogen cyanide HCN Phosgene COCl2 Chlorine dioxide ClO2 Silane SiH4 Bromomethane (infrared) CH3Br Bromomethane (PID) CH3Br Fluorine gas F2 Hydrogen fluoride HF Hydrogen bromide HBr Boron hydride B2H6 Arsenic hydride AsH3 Germanium hydrage GeH4Hydrazine N2H4 Hydrazine N2H4 Dicyandiamide C2H8N2 Nitrous oxide N2O4 Nitrogen trichloride NCl3 tert-Butyl mercaptan TBM Phosphorus pentafluoride PF5 Boron trichloride BCl3 Phosphorus trichloride PCl3 Phosphorus oxychloride POCl3 Phosphorus trifluoride PF3Boron trifluoride BF3 Azide HN3 Methyl sulfide C2H6S Dimethyl sulfate C2H6O4S Acetonitrile CH3CN Acetic acid C2H4O2 Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyl disulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2Chlorosilane SiH3Cl Tetrahydrothiophene THT Bromine gas Br2 Acetylene (infrared) C2H2 Acetylene C2H2 Carbon disulfide CS2 Acrylonitrile C3H3N Methyl ethyl ketone (MEK) Methyl ethyl ketone (MDK) Acetone (infrared) C3H6O Ethylene C2H4 Ethylene (infrared) C2H4Isopropyl alcohol (infrared) C3H8O Ethanol C2H6O Ethanol (infrared) C2H6O Methyl alcohol CH4O Methyl alcohol (infrared) CH4O Methylamine CH5N Methyl mercaptan CH3SH Chlorovinyl C2H3Cl Chlorovinyl (infrared) C2H3Cl Trichlorovinyl C2HCl3 Tetrachlorovinyl C2Cl4Nitrous oxide (infrared) N2O Nitrogen trifluoride NF3 Hydrogen peroxide H2O2 Styrene (PID) C8H8 Tetrahydrofuran (PID) THF TVOC (PID) TVOC VOC (PID) Benzene (PID) C6H6 Toluene (PID) C7H8 Toluene (infrared) C7H8 Xylene (PID) C8H10 Xylene (infrared) C8H10 PID gasOdor(OU) Diesel (infrared) diesel Jet fuel (infrared) JET Butane (infrared) C4H10 Isobutane (infrared) C4H10 Pentane(IR)C5H12 Cyclopentane(IR)C5H10 n-Hexane (IR) C6H14 Propylene (IR) C3H6 Methyl ethyl ketone (IR) C4H8O Carbonyl sulfide (IR) COS Freon CFCRefrigerant CFC

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range: It can be determined according to the on-site environment and user needs.

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Download Manual Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	1 kind
Product Features	1. Single gas 2. Two detection methods of diffusion + pump suction 3. IP67 protection level 4. With LED lighting 5. Pump blockage alarm 6. Type-C fast charging 7. Voice alarm 8. Can connect the swan neck sampling probe
Detection Range	0-1, 10, 100, 1000, 5000, 10000, 50000ppm, 0-100%LEL, 0-5%Vol, 30%Vol, 100%Vol, other measuring ranges are optional, and the measuring range is determined by the usage scenario and the purpose of testing.
Resolution	0.001ppm (0-10ppm high precision)/0.01ppm (0~10 ppm); 0.01ppm (0~100 ppm), 0.1ppm (0~1000 ppm), 1ppm (0~1000 ppm or more); 0.1% LEL; 0.1%, 0.01%Vol
Typical Accuracy	≤±3% FS
Detection Method	Built-in pump suction measurement, can be switched: diffusion, diffusion + pump suction
Display	2-inch LCD black and white dot matrix screen
Power Supply	DC3.7V*2, 2500mAH Type-C charging (fully charged in 2 hours)
Maximum Power Consumption	Not have
Operating Environment	Temperature: -20℃~+50℃ Customizable-40℃~+70℃ Humidity: 10-95%RH
Data Storage	100,000 pieces as standard, and the larger capacity can be customized
Printing Function	Optional external Bluetooth printer
Signal Output	Standard Type-C
Alarm Method	Sound and light, vibration, visual alarm
Fall Alarm	Optional
Wireless Transmission	Optional: Bluetooth

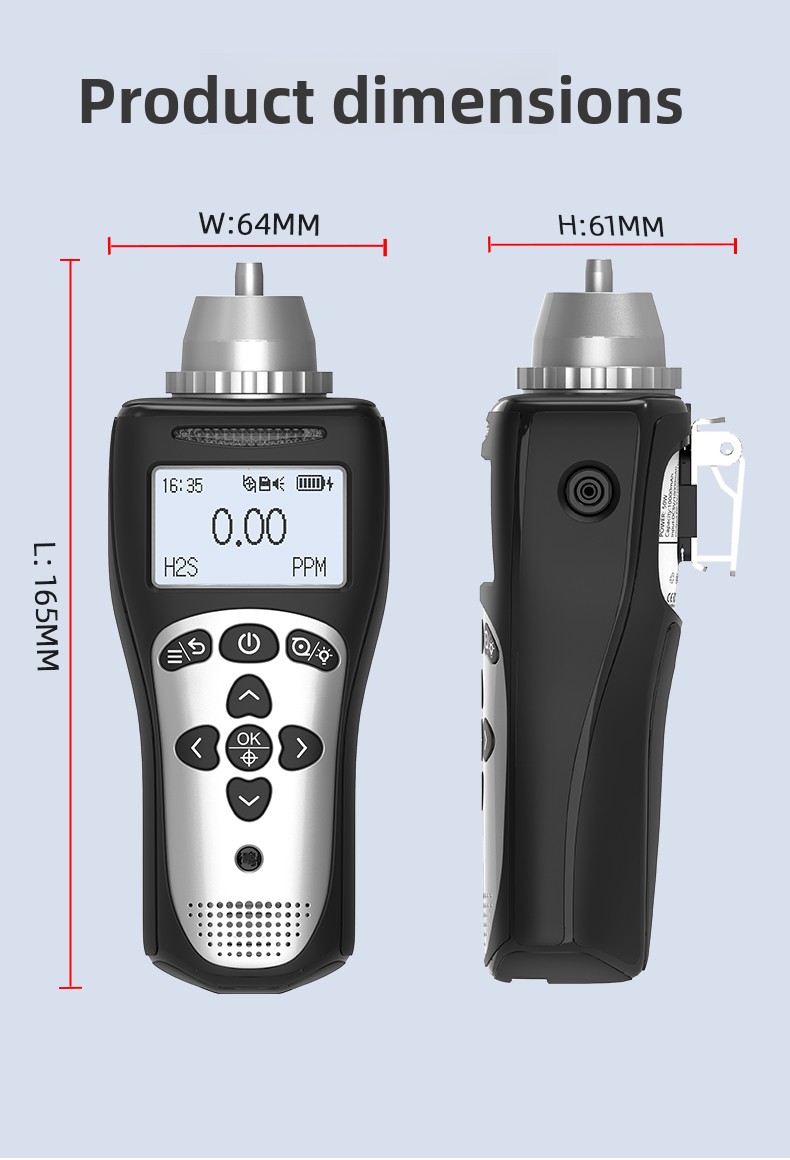

Dimensions: LWH	The maximum size is 165×64×61mm (L×W×H) including the thickness of the back clamp
Weight	About 280g
Protection Level	IP67, rainproof and soaking, dustproof, anti-corrosion
Standard Accessories	Pump-suction air nozzle, diffusion calibration cover, instruction manual, qualification certificate, warranty card, USB charger (including data cable) color packaging box
Optional Accessories	1 0.2-meter swan neck sampling probe; 2 Activated carbon filter; 3 0.4m stainless steel sampling handle (including 1m hose); 4 0.9-meter retractable sampling handle (including 1-meter hose); 5 External Bluetooth printers, etc.

List of Detectable Gases:
Gas Detected	Range	Max Allowable Error	Min Resolution	Response Time T90
Combustible Gas (EX)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10s
Combustible Gas (EX)	0-100%Vol	＜±2%(F.S)	0.1%Vol	≤10s
Methane (CH4)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10s
Methane (CH4)	0-100%Vol	＜±2%(F.S)	0.1%Vol	≤10s
Oxygen (O2)	0-30%Vol	＜±2%(F.S)	0.01%Vol	≤10s
Oxygen (O2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤10s
Oxygen (O2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30s
Nitrogen (N2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤10s
Carbon Monoxide (CO)	0-100ppm	＜±2%(F.S)	0.1ppm	≤25s
Carbon Monoxide (CO)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤25s
Carbon Monoxide (CO)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤25s
Carbon Monoxide (CO)	0-20000ppm	＜±2%(F.S)	1ppm	≤25s
Carbon Monoxide (CO)	0-100000ppm	＜±2%(F.S)	1ppm	≤25s
Carbon Dioxide (CO2)	0-500ppm	＜±2%(F.S)	1ppm	≤20s
Carbon Dioxide (CO2)	0-2000ppm	＜±2%(F.S)	1ppm	≤20s
Carbon Dioxide (CO2)	0-5000ppm	＜±2%(F.S)	1ppm	≤20s
Carbon Dioxide (CO2)	0-50000ppm	＜±2%(F.S)	1ppm	≤30s
Carbon Dioxide (CO2)	0-20%Vol	＜±2%(F.S)	0.01%Vol	≤30s
Carbon Dioxide (CO2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤30s
Formaldehyde (CH2O)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30s
Formaldehyde (CH2O)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30s
Formaldehyde (CH2O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Formaldehyde (CH2O)	0-5000ppm	＜±2%(F.S)	1ppm	≤50s
Ozone (O3)	0-1ppm	＜±2%(F.S)	0.001ppm	≤20s
Ozone (O3)	0-5ppm	＜±2%(F.S)	0.001ppm	≤20s
Ozone (O3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤20s
Ozone (O3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤20s
Ozone (O3)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30s
Ozone (O3)	0-30000ppm	＜±2%(F.S)	1ppm	≤30s
Hydrogen Sulfide (H2S)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30s
Hydrogen Sulfide (H2S)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Hydrogen Sulfide (H2S)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Hydrogen Sulfide (H2S)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30s
Hydrogen Sulfide (H2S)	0-10000ppm	＜±2%(F.S)	1ppm	≤45s
Sulfur Dioxide (SO2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30s
Sulfur Dioxide (SO2)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30s
Sulfur Dioxide (SO2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Sulfur Dioxide (SO2)	0-500ppm	＜±2%(F.S)	0.1ppm	≤30s
Sulfur Dioxide (SO2)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30s
Sulfur Dioxide (SO2)	0-10000ppm	＜±2%(F.S)	1ppm	≤30s
Nitric Oxide (NO)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30s
Nitric Oxide (NO)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Nitric Oxide (NO)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30s
Nitric Oxide (NO)	0-5000ppm	＜±2%(F.S)	1ppm	≤30s
Nitrogen Dioxide (NO2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤25s
Nitrogen Dioxide (NO2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤25s
Nitrogen Dioxide (NO2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30s
Nitrogen Dioxide (NO2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30s
Nitrogen Oxides (NOX)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30s
Nitrogen Oxides (NOX)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Nitrogen Oxides (NOX)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30s
Nitrogen Oxides (NOX)	0-5000ppm	＜±2%(F.S)	1ppm	≤30s
Chlorine (CL2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30s
Chlorine (CL2)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30s
Chlorine (CL2)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30s
Chlorine (CL2)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30s
Ammonia (NH3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Ammonia (NH3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Ammonia (NH3)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30s
Ammonia (NH3)	0-5000ppm	＜±2%(F.S)	1ppm	≤30s
Ammonia (NH3)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10s
Hydrogen (H2)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10s
Hydrogen (H2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30s
Hydrogen (H2)	0-20000ppm	＜±2%(F.S)	1ppm	≤30s
Hydrogen (H2)	0-40000ppm	＜±2%(F.S)	1ppm	≤30s
Hydrogen (H2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20s
Helium (He)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20s
Argon (Ar)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20s
Xenon (Xe)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20s
Hydrogen Cyanide (HCN)	0-30ppm	＜±2%(F.S)	0.01ppm	≤30s
Hydrogen Cyanide (HCN)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Hydrogen Chloride (HCL)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30s
Hydrogen Chloride (HCL)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30s
Phosphine (PH3)	0-5ppm	＜±2%(F.S)	0.001ppm	≤30s
Phosphine (PH3)	0-25ppm	＜±2%(F.S)	0.01ppm	≤30s
Phosphine (PH3)	0-2000ppm	＜±2%(F.S)	1ppm	≤30s
Chlorine Dioxide (CLO2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30s
Chlorine Dioxide (CLO2)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30s
Chlorine Dioxide (CLO2)	0-200ppm	＜±2%(F.S)	0.01ppm	≤30s
Ethylene Oxide (ETO)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Ethylene Oxide (ETO)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30s
Ethylene Oxide (ETO)	0-100%LEL	＜±2%(F.S)	1%LEL	≤30s
Phosgene (COCL2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤20s
Phosgene (COCL2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤20s
Silane (SiH4)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30s
Silane (SiH4)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Fluorine (F2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30s
Fluorine (F2)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30s
Fluorine (F2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Hydrogen Fluoride (HF)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30s
Hydrogen Fluoride (HF)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Hydrogen Bromide (HBr)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Diborane (B2H6)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30s
Arsine (AsH3)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30s
Arsine (AsH3)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30s
Arsine (AsH3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Germane (GeH4)	0-2ppm	＜±2%(F.S)	0.001ppm	≤30s
Germane (GeH4)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30s
Hydrazine (N2H4)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30s
Hydrazine (N2H4)	0-300ppm	＜±2%(F.S)	0.1ppm	≤30s
Tetrahydrothiophene (THT)	0-100mg/m³	＜±2%(F.S)	0.01mg/m³	≤60s
Bromine (Br2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30s
Bromine (Br2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Bromine (Br2)	0-2000ppm	＜±2%(F.S)	1ppm	≤30s
Acetylene (C2H2)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤30s
Acetylene (C2H2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Acetylene (C2H2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30s
Ethylene (C2H4)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤30s
Ethylene (C2H4)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Ethylene (C2H4)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30s
Acetaldehyde	0-10ppm	＜±2%(F.S)	0.01ppm	≤30s
Ethanol (C2H6O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Ethanol (C2H6O)	0-2000ppm	＜±2%(F.S)	1ppm	≤30s
Methanol (CH4O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Methanol (CH4O)	0-2000ppm	＜±2%(F.S)	1ppm	≤30s
Carbon Disulfide (CS2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Carbon Disulfide (CS2)	0-5000ppm	＜±2%(F.S)	0.01ppm	≤30s
Acrylonitrile (C3H3N)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Acrylonitrile (C3H3N)	0-2000ppm	＜±2%(F.S)	1ppm	≤30s
Methylamine (CH5N)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Iodine (I2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30s
Styrene (C8H8)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30s
Styrene (C8H8)	0-5000ppm	＜±2%(F.S)	1ppm	≤30s
Vinyl Chloride (C2H3CL)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Trichloroethylene (C2HCL3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Tetrachloroethylene (C2CL4)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Nitrous Oxide (N2O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Nitrogen Trifluoride (NF3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Hydrogen Peroxide (H2O2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Methyl Bromide (CH3Br)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Methyl Bromide (CH3Br)	0-30000ppm	＜±2%(F.S)	1ppm	≤30s
Methyl Bromide (CH3Br)	0-200g/m³	＜±2%(F.S)	0.1g/m³	≤30s
Sulfuryl Fluoride (SO2F2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Sulfuryl Fluoride (SO2F2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30s
Sulfuryl Fluoride (SO2F2)	0-10000ppm	＜±2%(F.S)	1ppm	≤30s
Benzene (C6H6)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30s
Benzene (C6H6)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30s
Benzene (C6H6)	0-2000ppm	＜±2%(F.S)	1ppm	≤30s

Portable single gas detector BTYQ-MS104K-L General description:

MS104K-L portable gas detector is mainly used to quickly and accurately detect gas leakage or gas concentration over-standard alarms. The main detection principles of gas detection are: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photoelectric separation, etc. It is widely used in fire fighting, emergency rescue, confined space, petroleum, chemical industry, metallurgy, refining and chemical industry, gas, warehousing, medicine, environmental protection, air management and other occasions.

Portable single gas detector BTYQ-MS104K-L functional features:

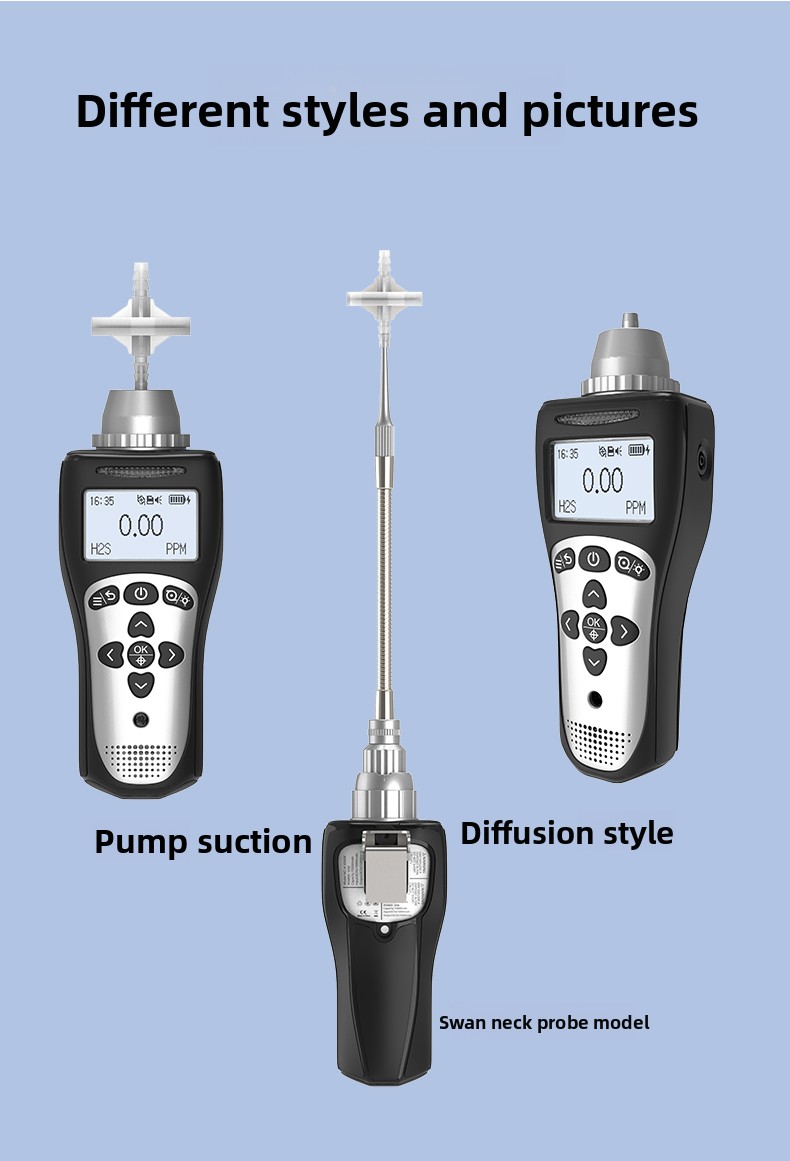

★ Built-in pump suction measurement, which can be switched to diffusion, diffusion + pump suction detection mode.

★Pump blockage alarm

★LED lighting (optional)

★Unit free switching, unit optional: umol/mol, ppm, pphm, ppb, mg/m3, ug/m3, %Vol, %LEL< /P>

★8-button operation, quick one-click calibration function

★Data storage, storage capacity not less than 100,000

★Communication interface: TYPE-C, optional: Bluetooth

★Fall alarm

★ Data recovery function, partial or fullMinistry restores factory data

★ Maximum value, minimum value, weighted average display

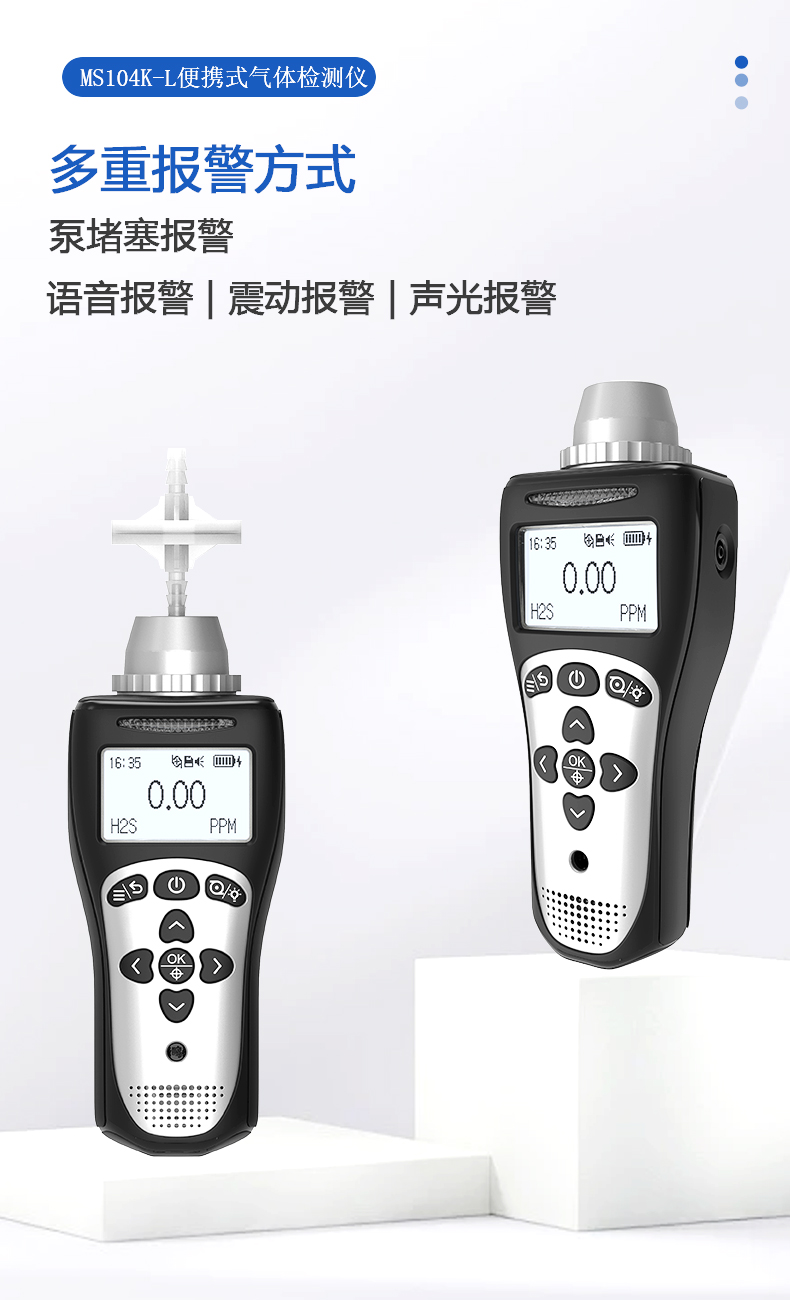

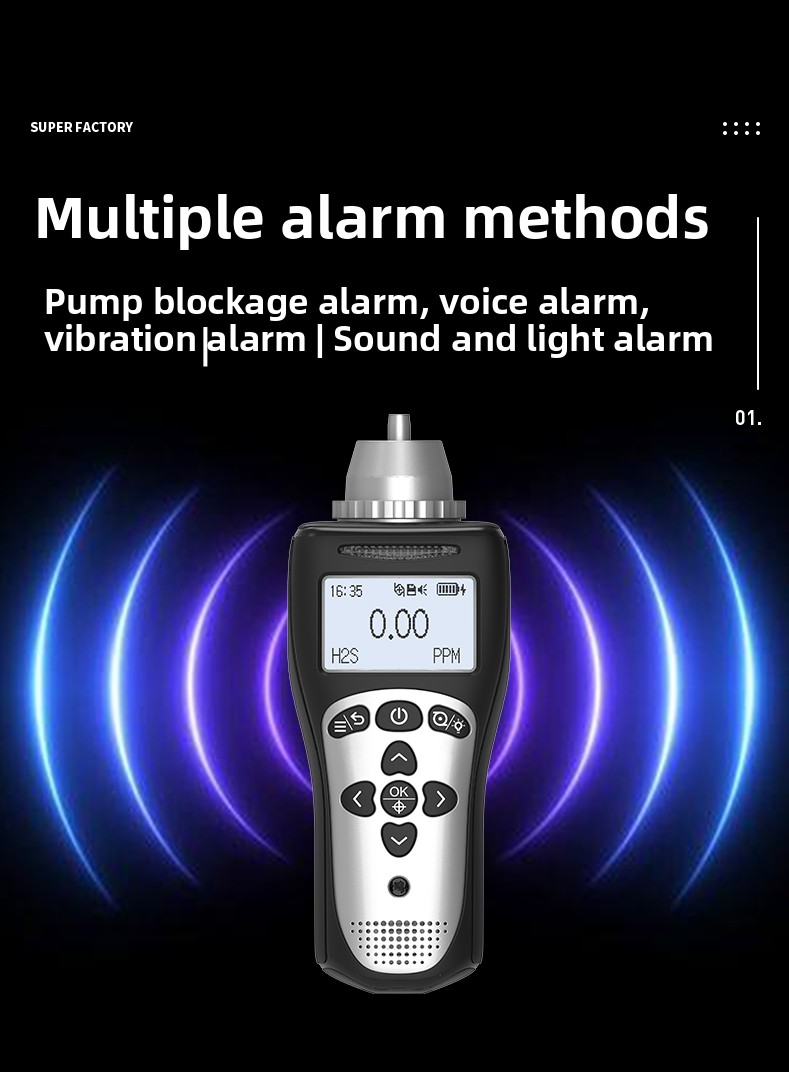

★Multiple alarm mode alarm mode setting

Alarm mode: sound and light alarm, vibration alarm, voice alarm

Alarm type: concentration alarm , undervoltage alarm, fault alarm, pump blockage alarm

Alarm mode: low alarm, high alarm, interval alarm, TWA/STEL alarm

★ Misoperation identification function, concentration calibration misoperation automatic identification and prevention

★ Zero automatic follow-up Trace, avoid zero drift

★ Target point multi-level calibration

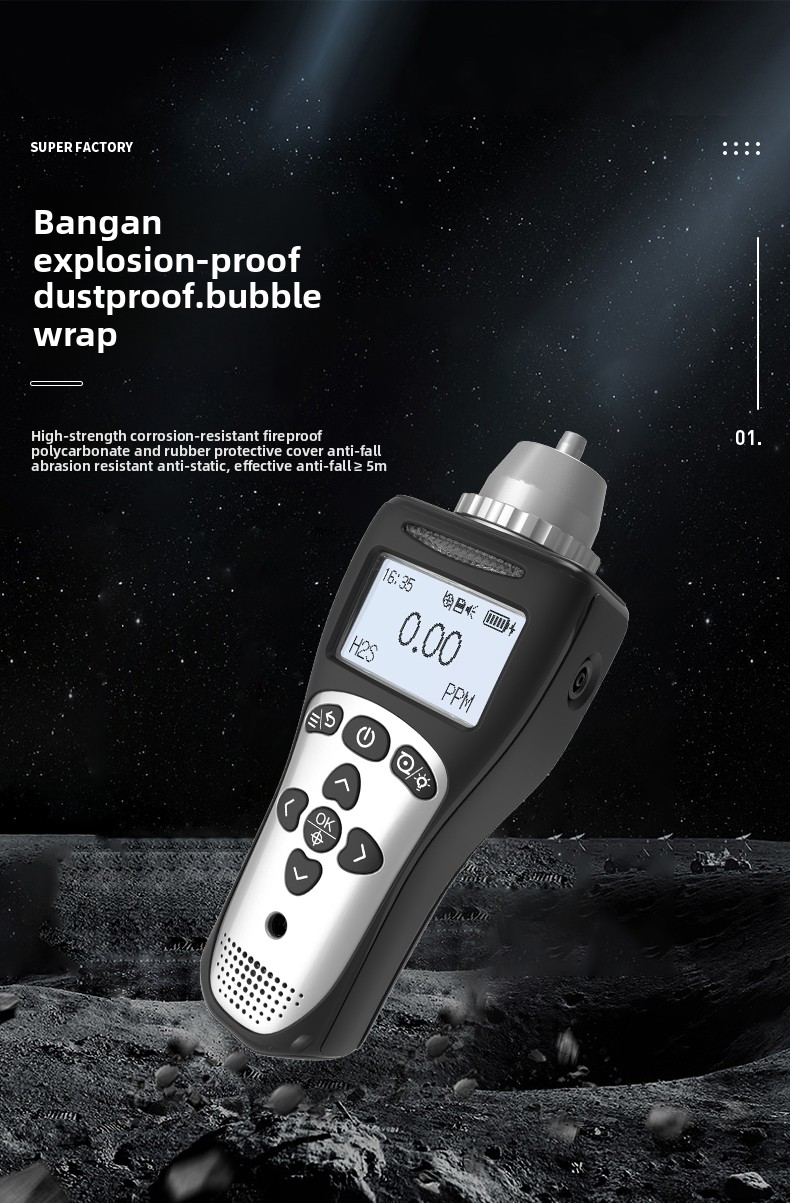

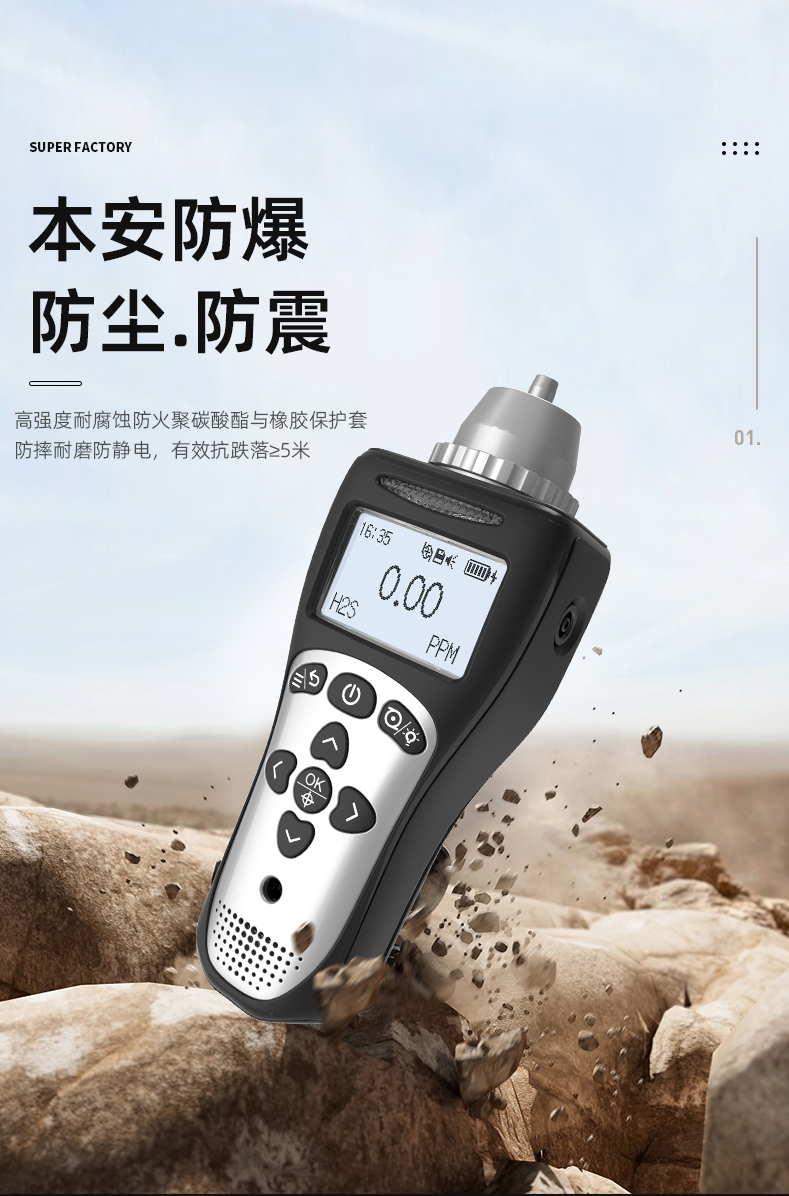

★ Benan circuit design, explosion-proof, shockproof, anti-static, anti-radiation

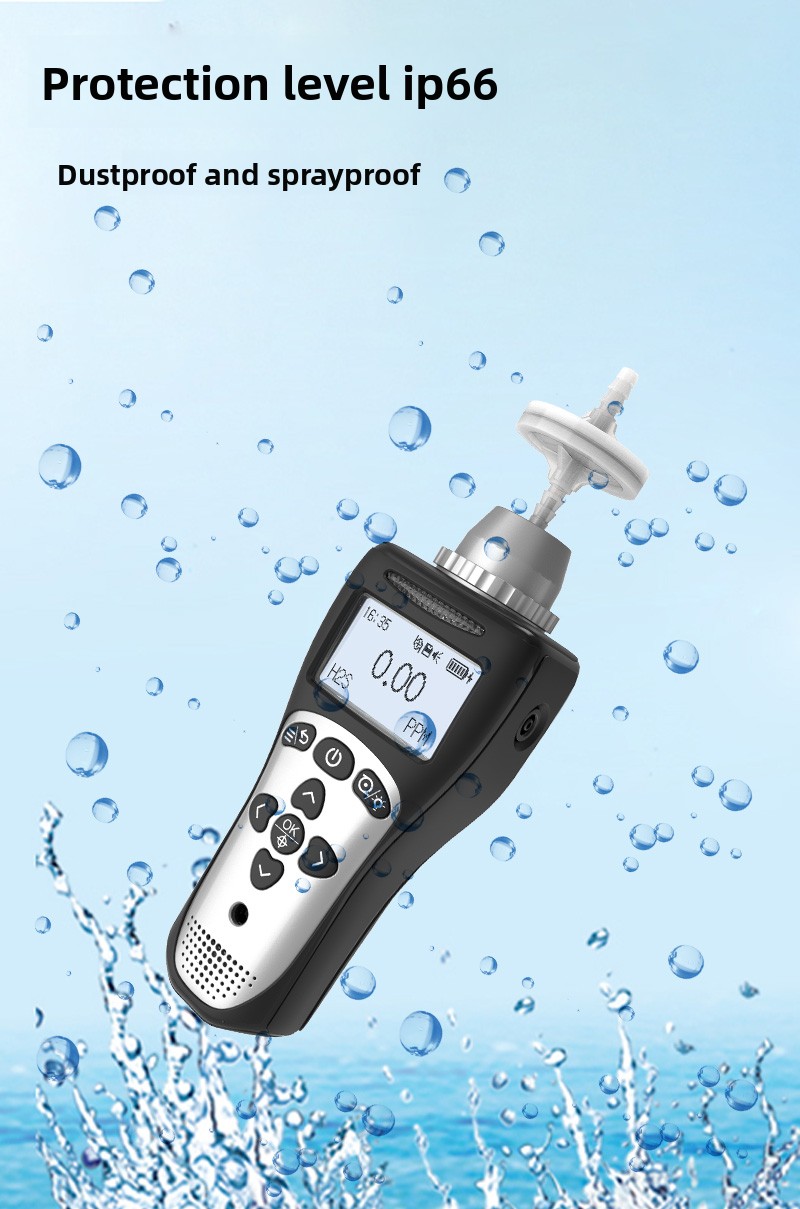

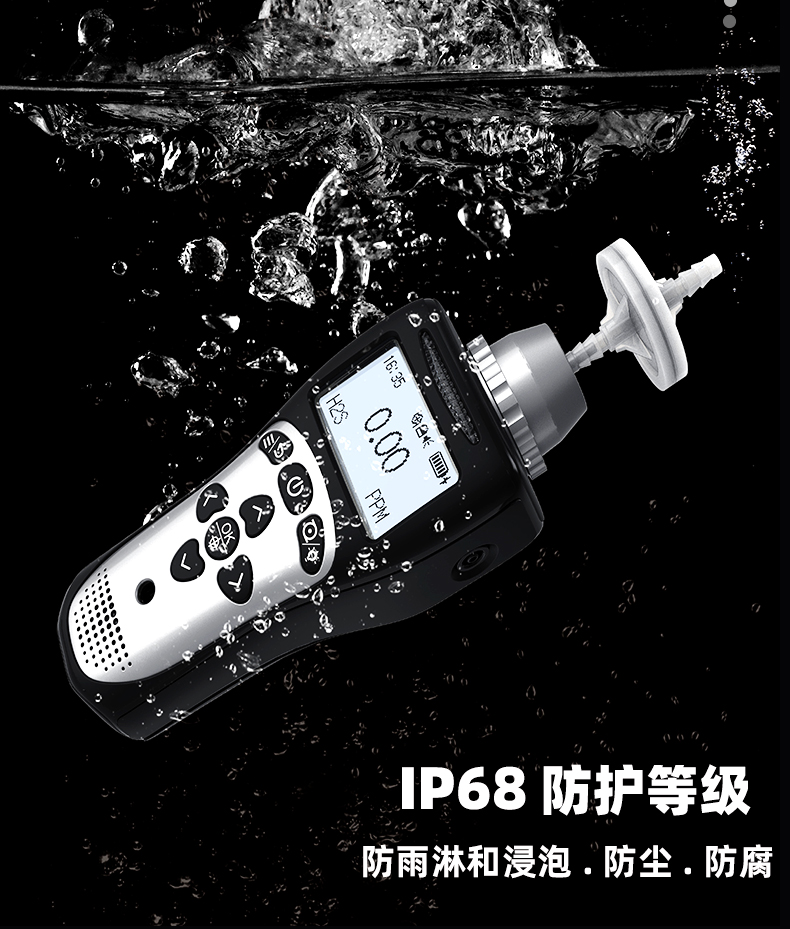

★ Protection level IP67, rainproof and immersion, dustproof, anti-corrosion

★Execution standard:

GBT 3836.1-2021 General Requirements for Electrical Equipment for Explosive Gas Environments

GB T 3836.4-2021 "Explosive Gas Environmental Electrical Equipment Intrinsic Safety Type "i""

GBT 50493-2019 "Petrochemical Flammable Gas and Toxic Gas Detection Alarm Design Standards"

GB 1532 2.3-2019 Combustible Gas Detector Part 3: Portable Combustible Gas Detector for Industrial and Commercial Use

MS104K-L Portable Gas Detector Technical Parameters:

< Td width="821" valign="middle" colspan="3" align="left">

LCD

< /Tr>

Detection factor	singlegas (one oxygenCarbon CO, hydrogen sulfide H2S, oxygen O2, flammable gas Ex, carbon dioxide CO2, VOC, etc.), depending on the on-site environment and user needs
Testing range	Depending on the on-site environment and user needs
point 辨 rate	0.001ppm (0-10ppm high precision)/0.01ppm (0~10 ppm); 0.01ppm (0~100 ppm), 0.1ppm (0～1000 ppm), 1ppm (0～1000 ppm or more); 0.1%LEL; 0.1%, 0.01%Vol
Unit display	Units can be selected: umol/mol, ppm, pphm, ppb, mg/m3, uG/m3, %Vol, %LEL
Detection principle	Ectrochemistry, catalytic combustion, infrared, thermal conductivity, semiconductor, PI D photoions, etc., depending on the range, on-site environment and user needs
sensor life	Electrochemical 2-3 years, catalytic combustion 2-3 years, infrared 5 years, thermal conduction 2-5 years, PID 2 years
test method	Built-in pump suction type, which can be switched to diffusion type, diffusion + pump suction type detection mode
Display
Display content	Real-time concentration, unit, gas name, alarm status, time, storage Status, communication status, power, charging status, etc.
test accuracy	typical accuracy: ≤±3% FS (more accurate sensor can be selected)	< span>Uncertainty	≤±2%
line sex degree	≤±3%	heavy comple sexual		≤±2%
Response time	T90≤20 seconds (general)	recovery time	≤30 seconds (general)
working power	DC3.7V*2
Battery capacity	2500mAH rechargeable high-molecular polymer battery, with overcharge, overvoltage, short circuit, overheating protection functions
environment	Temperature: -20℃~+60℃, customizable -40℃~+70℃;Relative humidity: 10-95%RH
communication interface	Standard Type-C (2 hours full charge)
Data storage	The standard capacity is not less than 100,000; support local viewing, deletion or data export, and the storage time interval can be set arbitrarily
interface language	Chinese, English and other languages can be customized
Explosion-proof type	Intrinsic Security ExiaIICT4Ga
protection level	IP67
Shell material	High-strength corrosion-resistant fireproof polycarbonate and rubber protective cover, anti-fall, wear-resistant, anti-static, effective anti-fall ≥ 5 meters
External size	Maximum size 165×64×61mm(L×W×H) including back clip thickness	heavy quantity	about 280g
Standard Annex	Caliblation cover, pump suction nozzle,Instruction manual, qualification certificate, USB charger (including data cable), instrument packaging box
< Span>optional accessories	1 0.2m swan neck Sampling probe; 2 activated carbon filter; 3 0.4-meter stainless steel sampling handle (including 1-meter hose); 4 0.9-meter retractable sampling handle (including 1-meter hose); 5 external Bluetooth printer.
< span>★Manufacturer qualification	Enterprise credit certificate AAA, national high-tech enterprise certificate, specialized new small and micro enterprise, ISO45001 occupational health and safety management system certification certificate, ISO9001 quality management Science system certification certificate, IS014001 environmental management system certification certificate, well-known brands, etc.
★Product qualification	Measuring instrument form approval certificate CPA, explosion-proof certificate, design patent certificate, computer software copyright registration certificate, etc.

Product HighlightsNew process formula enhances performance to meet stricter application requirements

High PrecisionUp to ±0.1%FS (varies by gas type)
Wireless ConnectivityOptional wireless communication for real-time data monitoring
Advanced ProtectionIP67+ protection level
Explosion-proof DesignHigh shock and explosion resistance
Anti-interference DesignAnti-static and electromagnetic interference
HD Color DisplayComprehensive and clear information display
Large Capacity StorageMassive data storage
Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations

← Swipe left/right to view full content →

Complete Certifications, Reliable Quality

Trusted Manufacturer

Wide Applications Across 20+ Industries

Trusted by 5000+ Industry Leaders

Service Guarantee

Selection Guidance

Recommend suitable products based on extensive technical experience
Customization

Provide customized solutions based on specific requirements
Quality Guarantee

1-year warranty and lifetime maintenance for all products
Application Support

Professional engineers provide installation, training and expansion support

19+ Years of Industry-leading Brand

Eranntian, founded in 2006, is a national high-tech enterprise integrating design, R&D, production and sales. Our R&D team includes over 30 senior engineers with strong development capabilities, investing over 17% of annual revenue in technological innovation. We maintain long-term collaborations with 14 universities including Tsinghua University, Sichuan University, Xi'an Jiaotong University, Qingdao University of Technology, and Central South University.
