Portable gas detector BTYQ-MS104K-S1 -Portable Series-Shenzhen Eranntex Electronics Co., Ltd

←

→

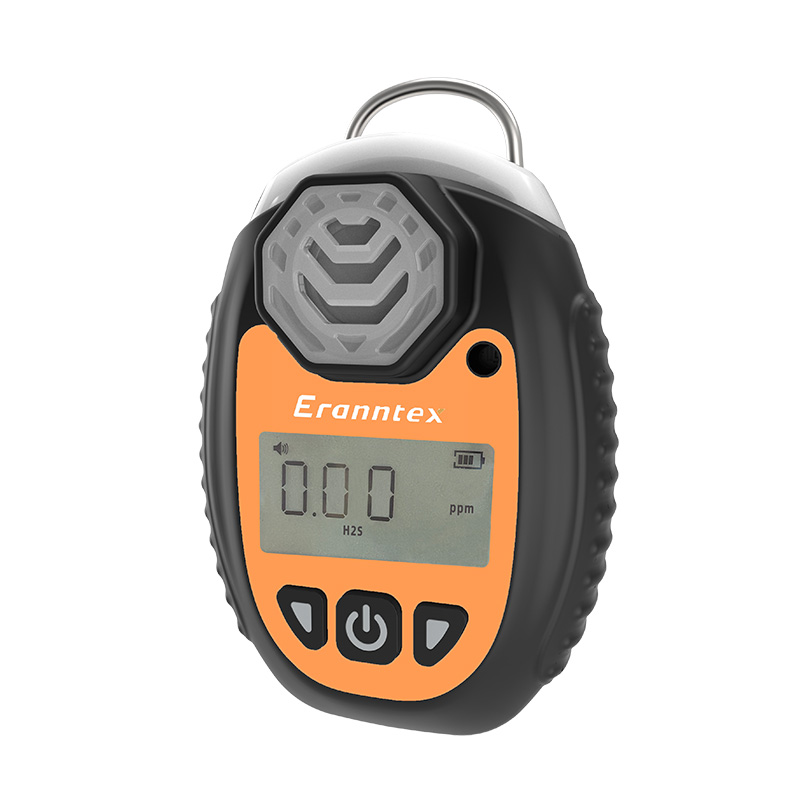

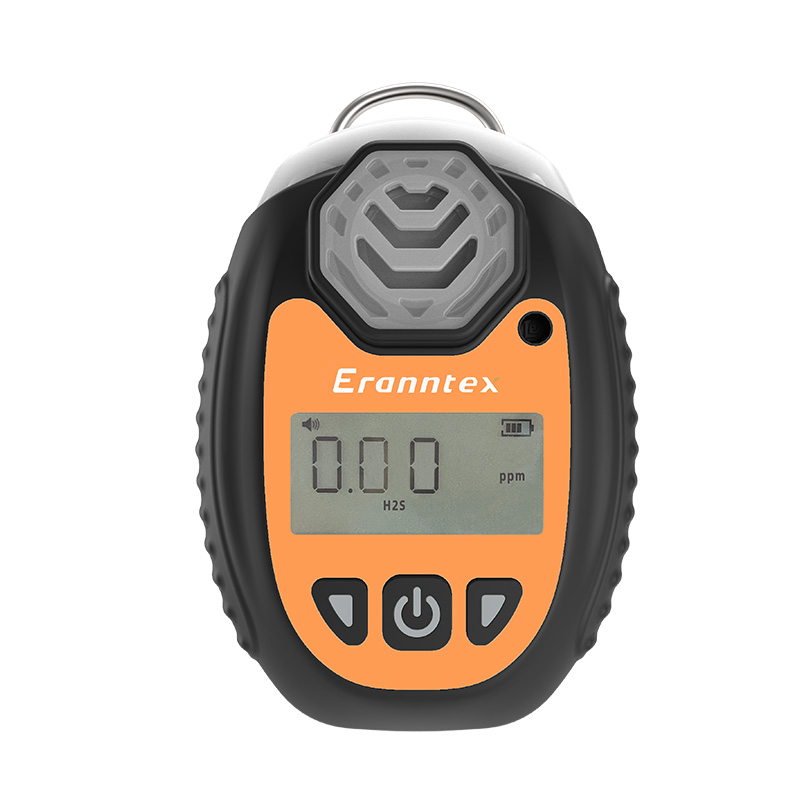

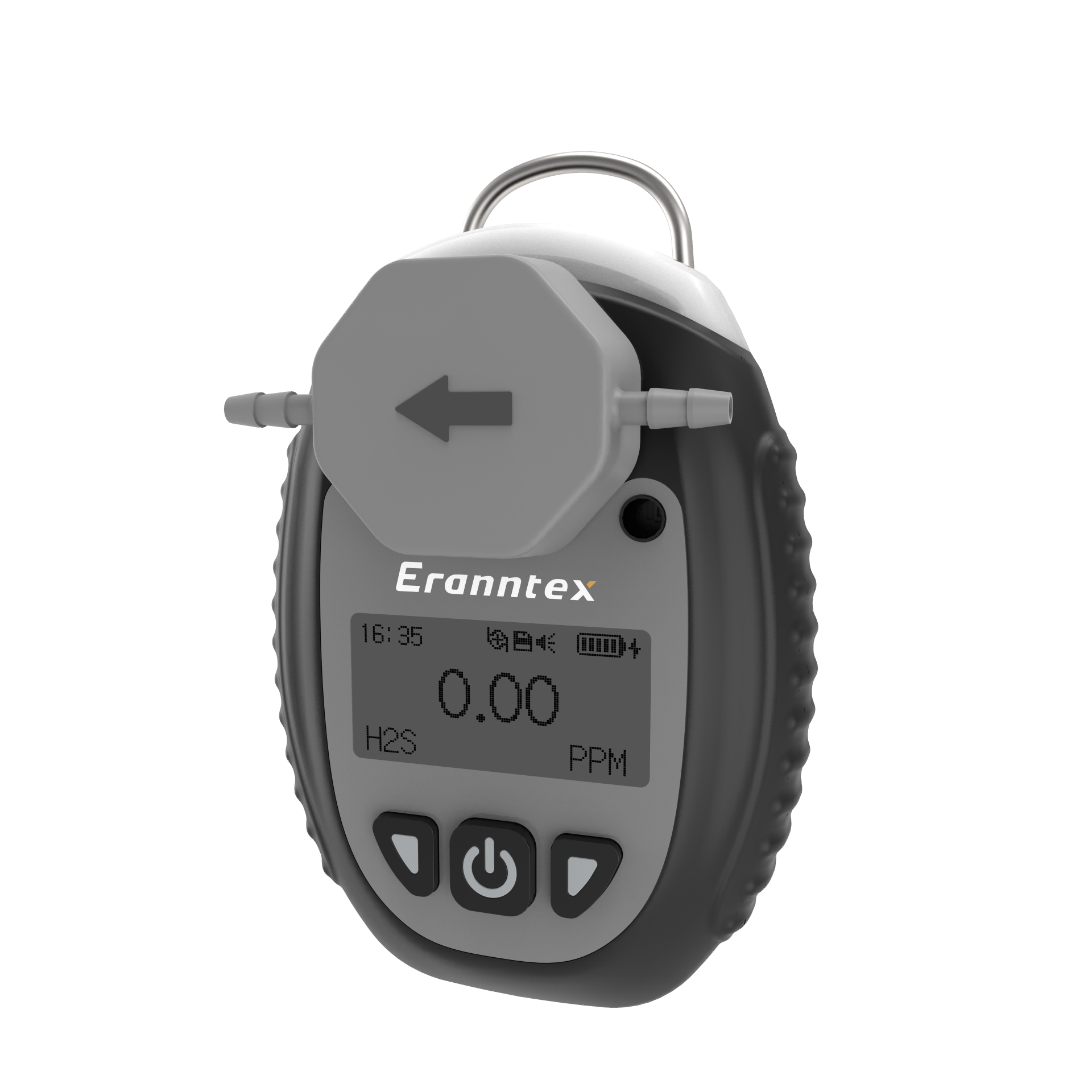

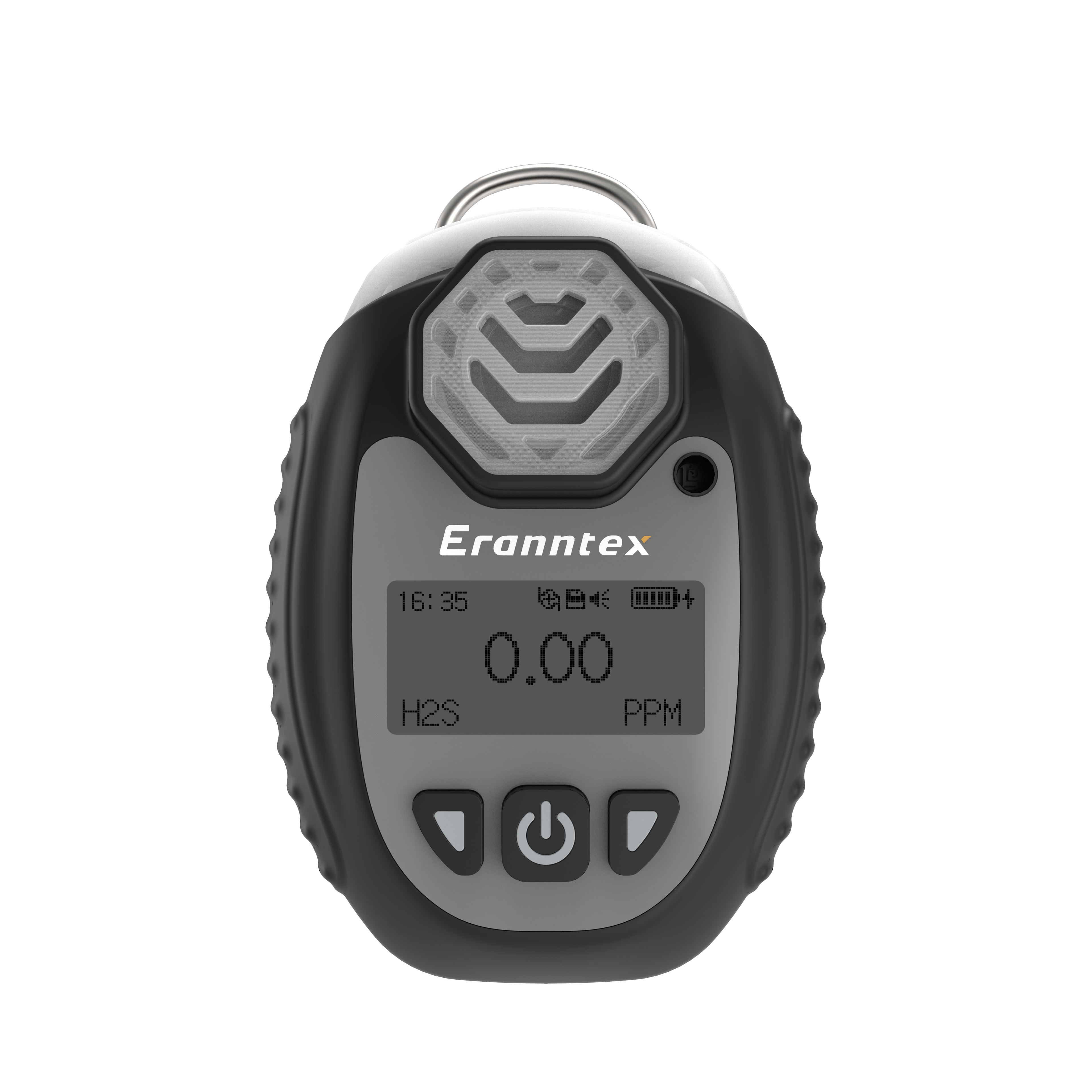

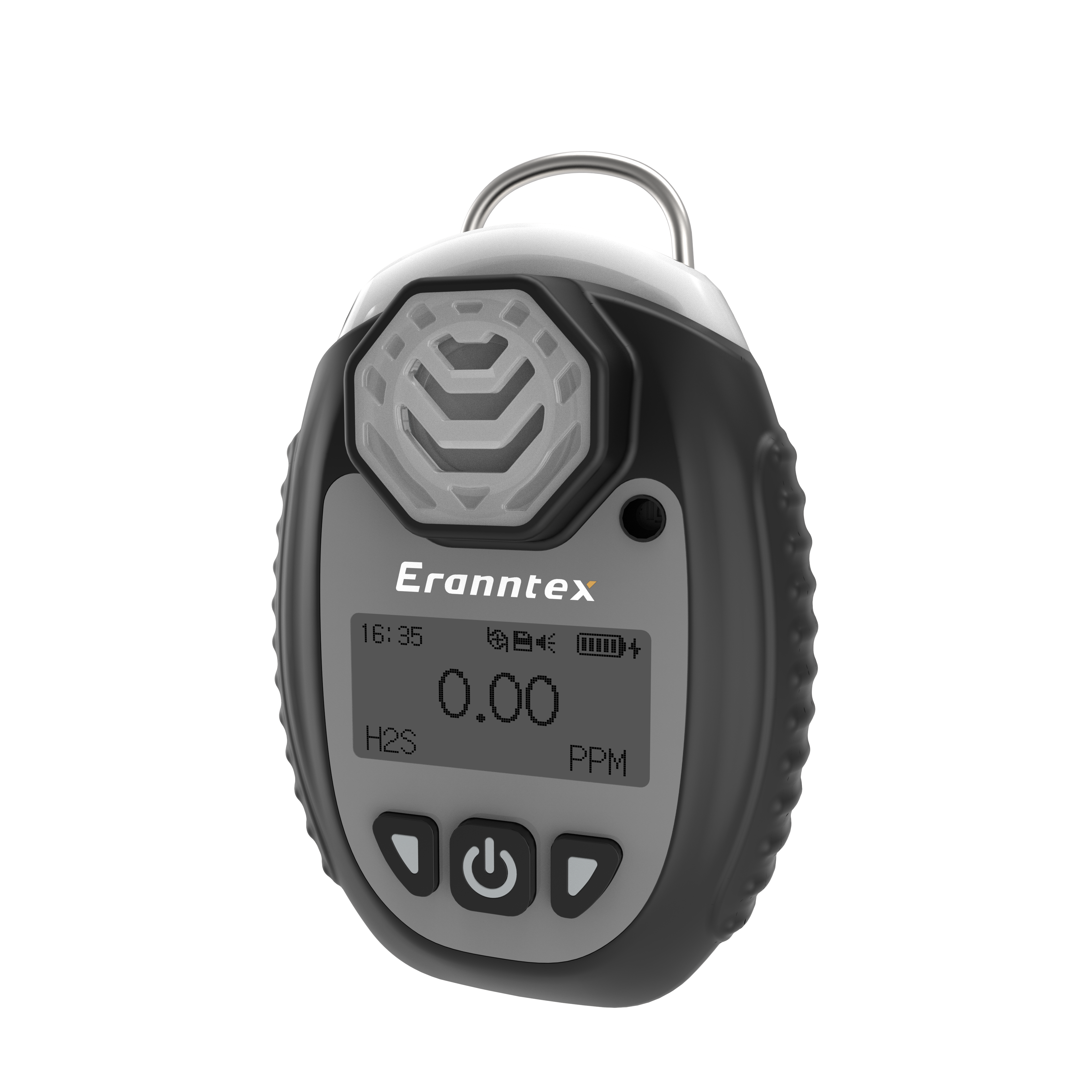

Portable gas detector BTYQ-MS104K-S1

Detection Method: Diffusion type

Detection Gas: Carbon dioxide (infrared) CO2 Flammable (infrared) Ex Methane (infrared) CH4 Ethane (infrared) C2H6 Propane (infrared) C3H8 Non-methane total hydrocarbons CxHy Carbon monoxide COHydrogen sulfide H2S Oxygen O2 Ammonia NH3 Chlorine CL2 Hydrogen H2 Formaldehyde CH2O Ozone O3 Nitrogen monoxide NO Nitrogen dioxide NO2 Nitrogen oxides NOX Sulfur dioxide SO2 Ethylene oxide ETO Phosphine PH3 Hydrogen chloride HCl Hydrogen cyanide HCN Phosgene COCl2Chlorine dioxide (CLO2) Silane (SiH4) Fluorine(F2) Hydrogen fluoride (HF) Hydrogen bromide (HBr) Boron hydride (B2H6) Arsenic hydride (AsH3) Germanium hydrate (GeH4) Hydrazine(N2H4) Hydrazine(N2H4) Nitrous oxide (N2O4) Nitrogen trichloride NCl3 tert-Butyl mercaptan TBMPhosphorus pentafluoride PF5 Boron trichloride BCl3 Phosphorus trichloride PCl3 Phosphorus oxychloride POCl3 Phosphorus trifluoride PF3 Boron trifluoride BF3 Azide HN3 Methyl sulfide C2H6S Dimethyl sulfate C2H6O4S Acetonitrile CH3CN Acetic acid C2H4O2 Acetic acid C2H4O2Methyl acrylate MA Ethyl acrylate EA Dimethyl disulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2 Chlorosilane SiH3Cl Tetrahydrothiophene THT Bromine gas Br2 Acetylene C2H2 Carbon disulfide CS2 Acrylonitrile C3H3N Ethylene C2H4Ethanol C2H6O Methyl alcohol CH4O Methylamine CH5N Methyl mercaptan CH3SH Chlorovinyl C2H3Cl Trichlorovinyl C2HCl3 Tetrachlorovinyl C2Cl4

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range:

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	1 kind
Product Features	1. Single gas 2. Diffusion type 3. Ultra-low power consumption, working time 1-2 years, no charging 4. IP68 protection level 5. Call the police if you fall 6. Optional communication base
Detection Range	0-1, 10, 100, 1000, 5000, 10000, 50000ppm, 0-100%LEL, 0-5%Vol, 30%Vol, 100%Vol, other measuring ranges are optional, and the measuring range is determined by the usage scenario and the purpose of testing.
Resolution	0.001ppm (0-10ppm high precision)/0.01ppm (0~10 ppm); 0.01ppm (0~100 ppm), 0.1ppm (0~1000 ppm), 1ppm (0~5000 ppm or more); 0.1% LEL; 0.01%Vol
Typical Accuracy	±3% (F.S)
Detection Method	Diffusion type
Display	1.7-inch LCD
Power Supply	DC3.6V, 1600mAh Optional communication base (TYPE-C interface)
Maximum Power Consumption	Not have
Operating Environment	Conventional value: -20～+50℃ Customizable: -40℃～+70℃ Humidity: 10-95%RH
Data Storage	100 alarm records, optional: 100,000 storage records
Printing Function	Not have
Signal Output	Infrared, optional communication base for communication
Alarm Method	Sound and light alarm, vibration alarm
Fall Alarm	Standard configuration
Wireless Transmission	Not have
Dimensions: LWH	87×63×32mm(L×W×H)
Weight	About 200g
Protection Level	IP68, rainproof and soaking, dustproof, anti-corrosion

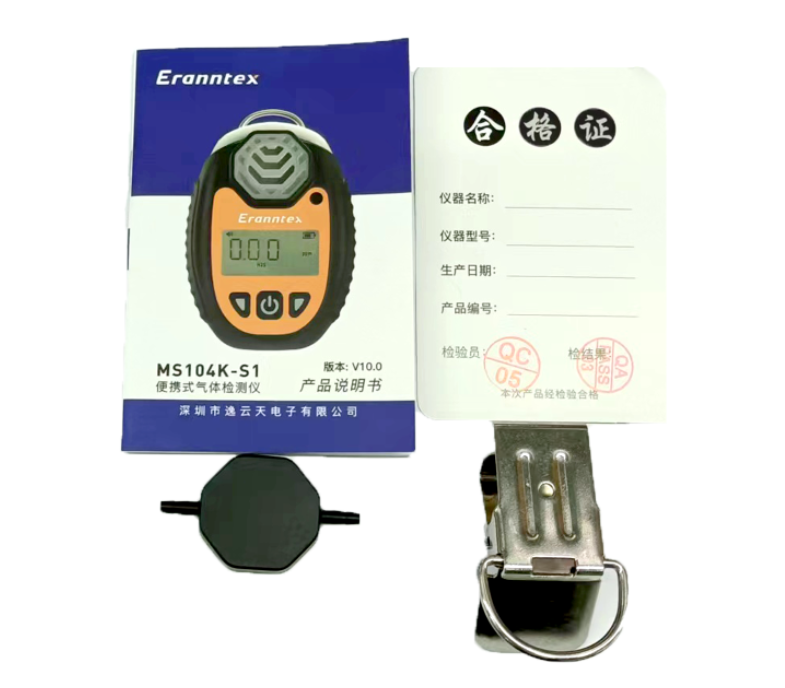

Standard Accessories	Calibration cover (diffusion type), instruction manual, qualification certificate, packaging box
Optional Accessories	Communication base (TYPE-C interface)

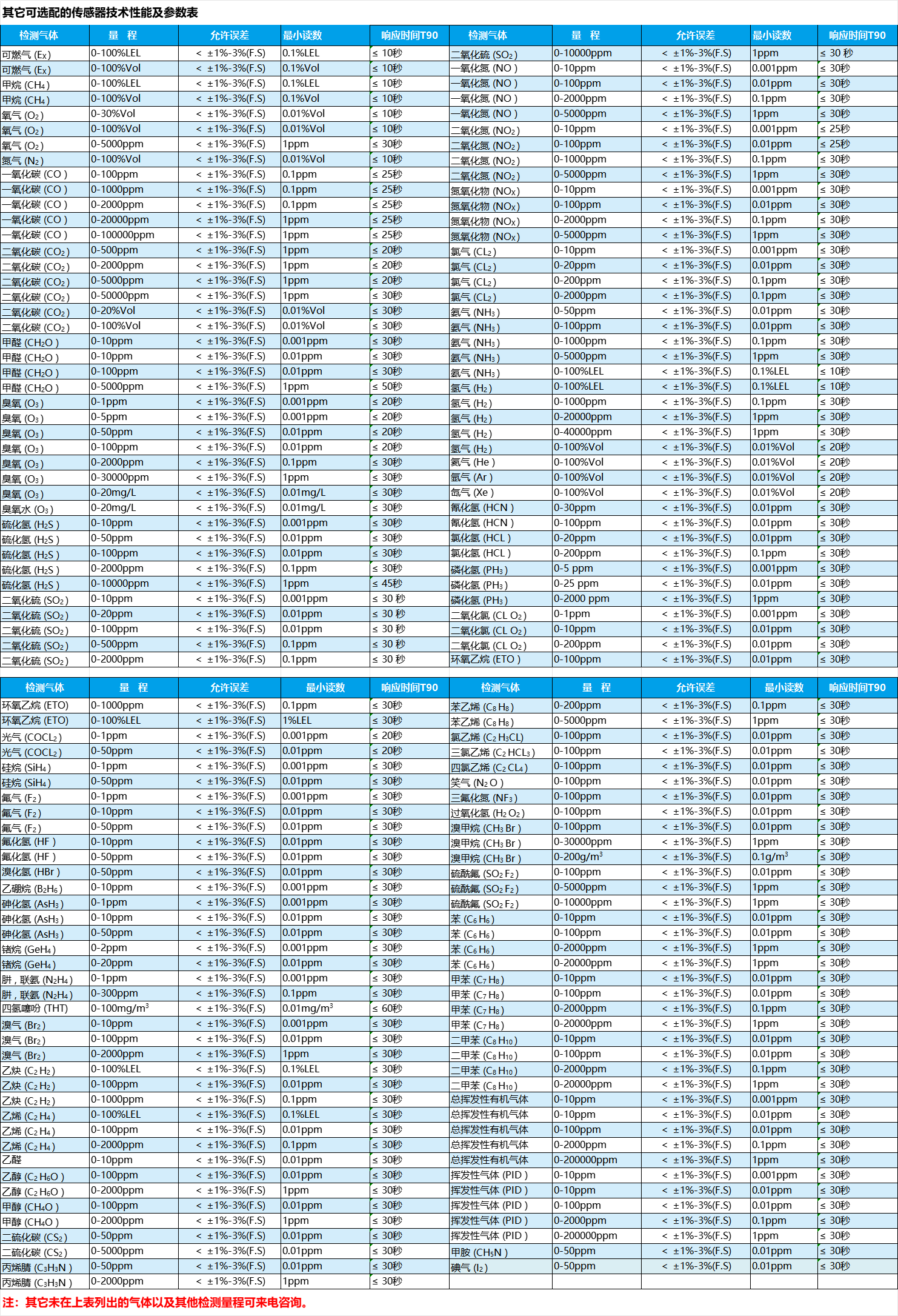

Partial list of detectable gases:
Detect gases	Range	Maximum allowable error value	Minimum reading	Response time T90
Combustible Gas (EX)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Combustible Gas (EX)	0-100%Vol	＜±2%(F.S)	0.1%Vol	≤10 seconds
Methane (CH4)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Methane (CH4)	0-100%Vol	＜±2%(F.S)	0.1%Vol	≤10 seconds
Oxygen (O2)	0-30%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Oxygen (O2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Oxygen (O2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitrogen (N2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Carbon monoxide (CO)	0-100ppm	＜±2%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide (CO)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide (CO)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide (CO)	0-20000ppm	＜±2%(F.S)	1ppm	≤25 seconds
Carbon monoxide (CO)	0-100000ppm	＜±2%(F.S)	1ppm	≤25 seconds
Carbon dioxide (CO2)	0-500ppm	＜±2%(F.S)	1ppm	≤20 seconds
Carbon dioxide (CO2)	0-2000ppm	＜±2%(F.S)	1ppm	≤20 seconds
Carbon dioxide (CO2)	0-5000ppm	＜±2%(F.S)	1ppm	≤20 seconds
Carbon dioxide (CO2)	0-50000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Carbon dioxide (CO2)	0-20%Vol	＜±2%(F.S)	0.01%Vol	≤30 seconds
Carbon dioxide (CO2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤30 seconds
Formaldehyde (CH2O)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Formaldehyde (CH2O)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Formaldehyde (CH2O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Formaldehyde (CH2O)	0-5000ppm	＜±2%(F.S)	1ppm	≤50 seconds
Ozone (O3)	0-1ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Ozone (O3)	0-5ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Ozone (O3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤20 seconds
Ozone (O3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤20 seconds
Ozone (O3)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ozone (O3)	0-30000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-10000ppm	＜±2%(F.S)	1ppm	≤45 seconds
Sulfur dioxide (SO2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Sulfur dioxide (SO2)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide (SO2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide (SO2)	0-500ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Sulfur dioxide (SO2)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Sulfur dioxide (SO2)	0-10000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitric oxide (NO)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Nitric oxide (NO)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitric oxide (NO)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Nitric oxide (NO)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitrogen dioxide (NO2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤25 seconds
Nitrogen dioxide (NO2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤25 seconds
Nitrogen dioxide (NO2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Nitrogen dioxide (NO2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitrogen oxides (NOX)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Nitrogen oxides (NOX)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitrogen oxides (NOX)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Nitrogen oxides (NOX)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Chlorine (CL2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Chlorine (CL2)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Chlorine (CL2)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Chlorine (CL2)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ammonia (NH3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ammonia (NH3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ammonia (NH3)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ammonia (NH3)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Ammonia (NH3)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Hydrogen (H2)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Hydrogen (H2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Hydrogen (H2)	0-20000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Hydrogen (H2)	0-40000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Hydrogen (H2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Helium (He)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Argon (Ar)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Xenon (Xe)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Hydrogen cyanide (HCN)	0-30ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen cyanide (HCN)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen chloride (HCL)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen chloride (HCL)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Phosphine (PH3)	0-5 ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Phosphine (PH3)	0-25 ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Phosphine (PH3)	0-2000 ppm	＜±2%(F.S)	1ppm	≤30 seconds
Chlorine dioxide (CLO2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Chlorine dioxide (CLO2)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Chlorine dioxide (CLO2)	0-200ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethylene oxide (ETO)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethylene oxide (ETO)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ethylene oxide (ETO)	0-100%LEL	＜±2%(F.S)	1%LEL	≤30 seconds
Phosgene (COCL2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Phosgene (COCL2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤20 seconds
Silane (SiH4)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Silane (SiH4)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Fluorine (F2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Fluorine (F2)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Fluorine (F2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen fluoride (HF)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen fluoride (HF)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen bromide (HBr)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Diborane (B2H6)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Arsine (AsH3)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Arsine (AsH3)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Arsine (AsH3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Germane (GeH4)	0-2ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Germane (GeH4)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrazine (N2H4)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Hydrazine (N2H4)	0-300ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Tetrahydrothiophene (THT)	0-100mg/m3	＜±2%(F.S)	0.01 mg/m3	≤60 seconds
Bromine (Br2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Bromine (Br2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Bromine (Br2)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Acetylene (C2H2)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤30 seconds
Acetylene (C2H2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Acetylene (C2H2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ethylene (C2H4)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤30 seconds
Ethylene (C2H4)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethylene (C2H4)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Acetaldehyde	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethanol (C2H6O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethanol (C2H6O)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Methanol (CH4O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Methanol (CH4O)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Carbon disulfide (CS2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Carbon disulfide (CS2)	0-5000ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Acrylonitrile (C3H3N)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Acrylonitrile (C3H3N)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Methylamine (CH5N)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Iodine (I2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Styrene (C8H8)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Styrene (C8H8)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Vinyl chloride (C2H3Cl)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Trichloroethylene (C2HCl3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Tetrachloroethylene (C2Cl4)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitrous oxide (N2O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitrogen trifluoride (NF3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen peroxide (H2O2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Methyl bromide (CH3Br)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Methyl bromide (CH3Br)	0-30000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Methyl bromide (CH3Br)	0-200g/m3	＜±2%(F.S)	0.1g/m3	≤30 seconds
Sulfuryl fluoride (SO2F2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfuryl fluoride (SO2F2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Sulfuryl fluoride (SO2F2)	0-10000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Benzene (C6H6)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Benzene (C6H6)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Benzene (C6H6)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds

Portable Gas Detector BTYQ-MS104K-S1 Introduction:

The main function of BTYQ-MS104K-S1 portable gas detector is to accurately detect gas leakage or gas concentration over-standard alarm. The main detection principles of gas detection are: electrochemistry, low-power infrared, etc. BTYQ-MS104K-S1 is widely used in firefighting, emergency rescue, restricted space, petroleum, chemical industry, metallurgy, refining and chemical, gas, warehousing, medicine and other occasions.

Portable gas detector BTYQ-MS104K-S1 functional features:

★ Ultra-low power consumption design, charging-free, working time 1-2 years

< P> ★Diffusion measurement

★Fireproof, anti-static and anti-highFrequency radiation

★ Unit switching, units can be selected: umol/mol, ppm, mg/m3, %Vol, %LEL.

★Support data storage

★3-button convenient operation

★Communication interface: infrared

★Battery capacity 1600mAh,

★Fall alarm

★Data recovery Function, which can partially or fully restore the factory data.

★1.7-inch LCD backlight display

★Multiple alarm mode alarm mode settings, multi-way stereo indication alarm status

Alarm mode: sound and light alarm, vibration alarm.

Alarm types: concentration alarm, undervoltage alarm, fault alarm.

Alarm mode: low alarm, high alarm, interval alarm, weighted average alarm.

★ Misoperation identification function, concentration calibration misoperation is automatically recognized and blocked.

★Zero point automatic tracking to avoid zero point drift

★ Target point multi-level calibration to ensure the linearity and accuracy of measurement.

★ Security circuit design, explosion-proof, shockproof

★ Protection level IP68, rainproof and immersion, dustproof

★Execution standard:

GBT 3836.1-2021 "For explosive gas environment General Requirements for Electrical Equipment

GBT 3836.4—2021"Intrinsic Safety "i" of Electrical Equipment for Explosive Gas Environment"

GB T50493-2019 "Design Standards for Detection and Alarm of Petrochemical Flammable Gases and Toxic Gases"

GB 1532.3-2019 "Combustible Gas Detector Part 3: Portable Combustible Gas Detector for Industrial and Commercial Use

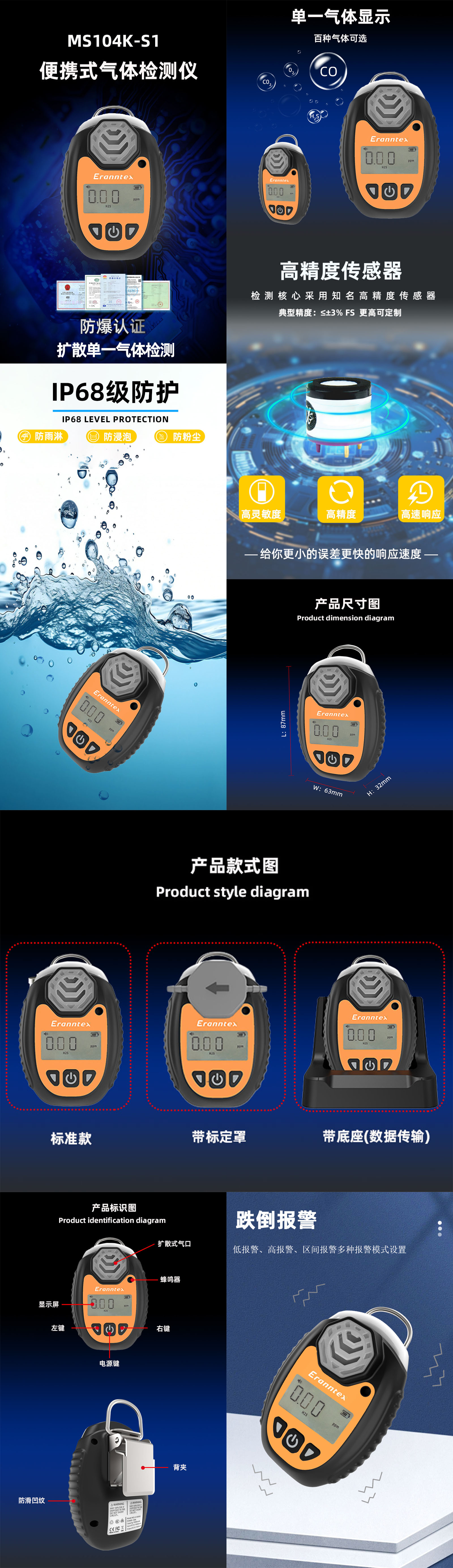

1765422217793 855.Jpg

Product HighlightsNew process formula enhances performance to meet stricter application requirements

High PrecisionUp to ±0.1%FS (varies by gas type)
Wireless ConnectivityOptional wireless communication for real-time data monitoring
Advanced ProtectionIP67+ protection level
Explosion-proof DesignHigh shock and explosion resistance
Anti-interference DesignAnti-static and electromagnetic interference
HD Color DisplayComprehensive and clear information display
Large Capacity StorageMassive data storage
Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations

← Swipe left/right to view full content →

Complete Certifications, Reliable Quality

Trusted Manufacturer

Wide Applications Across 20+ Industries

Trusted by 5000+ Industry Leaders

Service Guarantee

Selection Guidance

Recommend suitable products based on extensive technical experience
Customization

Provide customized solutions based on specific requirements
Quality Guarantee

1-year warranty and lifetime maintenance for all products
Application Support

Professional engineers provide installation, training and expansion support

19+ Years of Industry-leading Brand

Eranntian, founded in 2006, is a national high-tech enterprise integrating design, R&D, production and sales. Our R&D team includes over 30 senior engineers with strong development capabilities, investing over 17% of annual revenue in technological innovation. We maintain long-term collaborations with 14 universities including Tsinghua University, Sichuan University, Xi'an Jiaotong University, Qingdao University of Technology, and Central South University.
