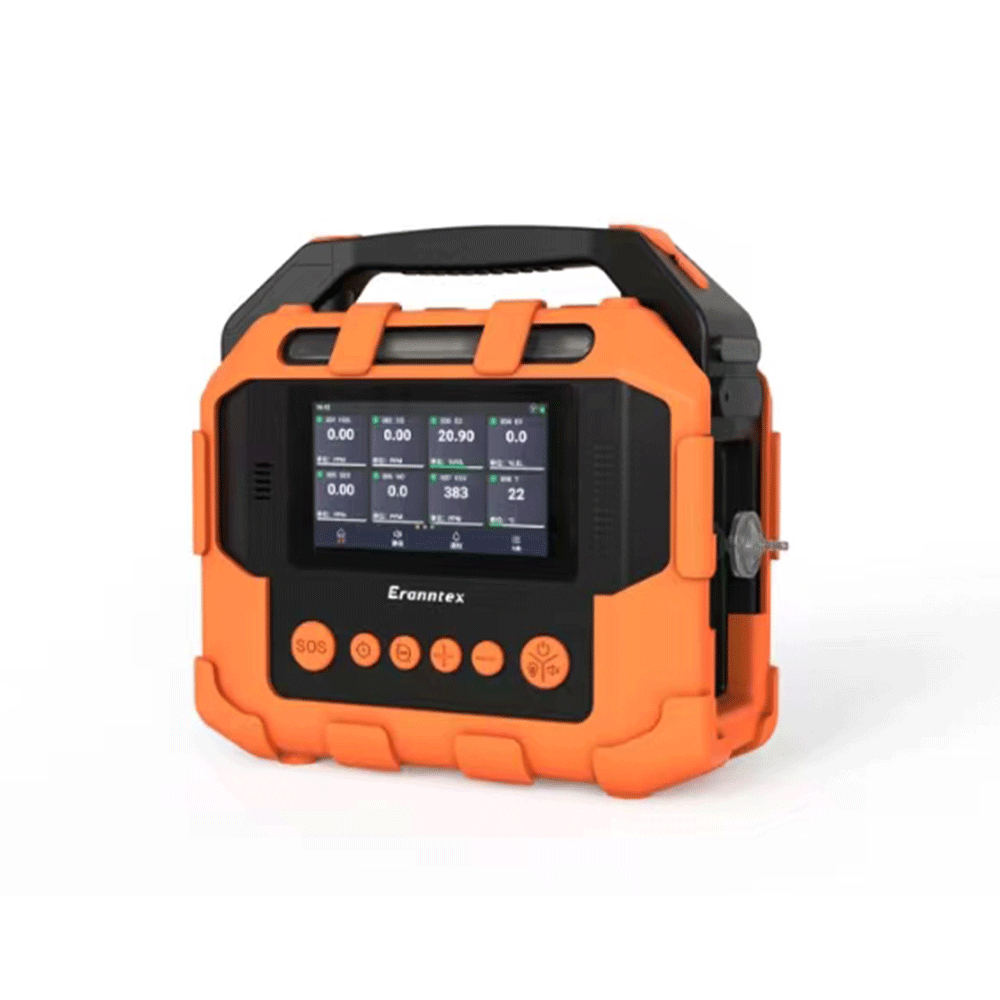

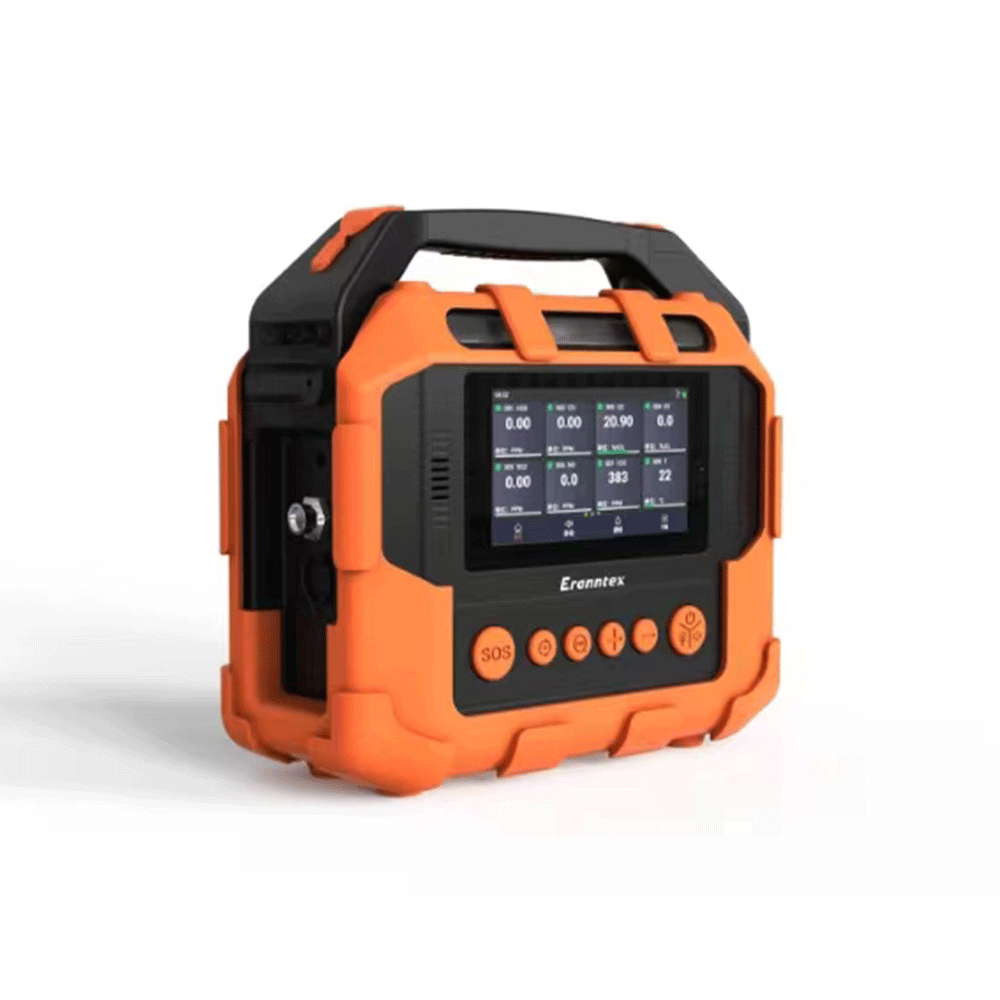

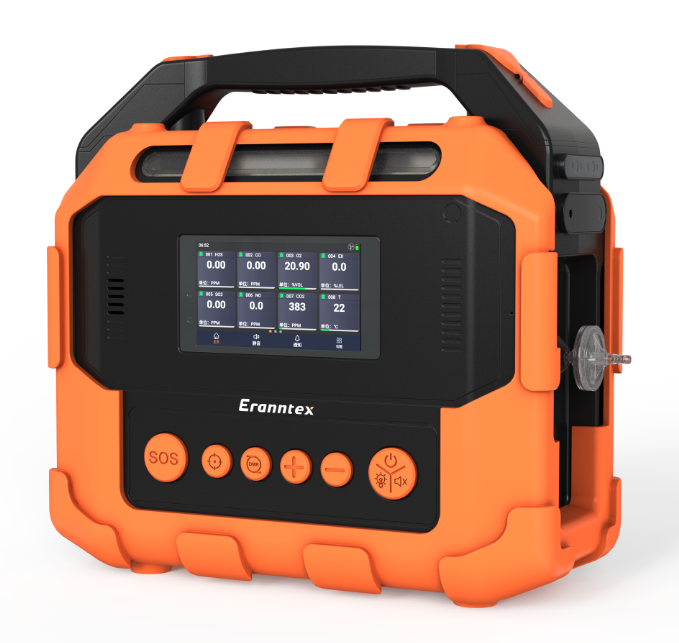

Portable multi-function gas analyzer PTM600-S

Detection Method: Built-in pump suction type, automatic alarm when the pump is blocked

Detection Gas: Two-in-one gas detector Four-in-one gas detector Four-in-one detectorFour-in-one gas detector Multi-gas detector Multi-in-one gas detector Multi-functional gas detector Laser dust PM2.5 Carbon dioxide (infrared) CO2 Flammable detector Ex Flammable (infrared) Ex METHane CH4 Methane (infrared) CH4 Methane (Laser TDLAS) CH4 Ethane (Infrared) C2H6Ethane Identifier (Laser) C2H6 Propane (Infrared) C3H8 Non-Methane Hydrocarbons CxHy Carbon Monoxide CO Carbon Monoxide (Infrared) CO Hydrogen Sulfide H2S Hydrogen sulfide (TDLAS tunable diode laser) H2S Oxygen O2 Nitrogen N2 Ammonia NH3 Chlorine CL2 Hydrogen H2Helium He Argon Ar Formaldehyde CH2O Ozone O3 Nitric oxide NO Nitrogen dioxide NO2 Nitrogen oxides NOX Sulfur dioxide SO2 Ethylene oxide ETO Ethylene oxide (infrared) C2H4O Phosphine PH3 Hydrogen chloride HCl Hydrogen cyanide HCN Phosgene COCl2 Chlorine dioxide CLO2Silane SiH4 Methyl bromide (infrared) CH3Br Methyl bromide (PID) CH3Br Sulphuryl fluoride (infrared) SO2F2 Fluorine gas F2 Hydrogen fluoride HF Hydrogen bromide HBr Boron hydride B2H6 Arsenic hydride AsH3 Germanium hydrage GeH4 Hydrazine N2H4 Hydrazine N2H4Dicyandiamide C2H8N2 Nitrous oxide N2O4 Nitrogen trichloride NCl3 Tert-butyl mercaptan TBM Phosphorus pentafluoride PF5 Boron trichloride BCl3 Phosphorus trichloride PCL3 Phosphorus oxychloride POCL3 Phosphorus trifluoride PF3 Boron trifluoride BF3 Azide HN3Methyl sulfide C2H6S Dimethyl sulfate C2H6O4S Acetonitrile CH3CN Acetic acid C2H4O2 Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyl disulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2 Chlorosilane SiH3ClTetrahydrothiophene (THT) Bromine gas (Br2) Acetylene (infrared) (C2H2) Acetylene (C2H2) Carbon disulfide (CS2) Carbon disulfide (infrared) (CS2) Acrylonitrile (C3H3N) Methyl ethyl ketone (MEK) Acetone (MDK) Acetone (infrared) (C3H6O) Sulfur hexafluoride (infrared) SF6Ethylene C2H4 Ethylene (infrared) C2H4 Isopropyl alcohol (infrared) C3H8O Ethanol C2H6O Ethanol (infrared) C2H6O Methanol CH4 Methanol (infrared) CH4O Methylamine CH5N Methyl mercaptan CH3SH Vinyl chloride C2H3Cl Vinyl chloride (infrared) C2H3Cl Trichloroethylene C2HCl3Tetrachloroethylene C2Cl4 Chloromethane (infrared) CH3Cl Dichloroethane (infrared) C2H4Cl2 Dichloromethane (infrared) CH2Cl2 Trichloromethane (IR) CHCl3 Nitrous oxide (IR) N2O Nitrogen trifluoride NF3 Nitrogen trifluoride (IR) NF3 Hydrogen peroxide H2O2 Styrene (PID) C8H8Tetrahydrofuran (PID) THF TVOC (PID) TVOC TVOC (Infrared) TVOC VOC (PID) VOC (Infrared) Benzene (PID) C6H6 Toluene (PID) C7H8 Toluene (Infrared) C7H8 Xylene (PID) C8H10 Xylene (Infrared) C8H10 PID gas Odor OU Diesel (infrared) diesel Jet fuel (infrared) JETButane (infrared) C4H10 Isobutane (infrared) C4H10 Pentane (infrared) C5H12 Cyclopentane (infrared) C5H10 Hexane (infrared) C6H14 Propylene (infrared) C3H6 Methyl ethyl ketone (infrared) C4H8O Carbonyl sulfide (infrared) COS Refrigerant (infrared) R134a HePtafluoropropane (infrared) C3HF7 Refrigerant (infrared) R116 Freon CFC Refrigerant CFC

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range: According to the on-site environment and user needs

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item Parameter
Detection Gas 1~24 kinds
Product Features 1. Multiple factors can be detected at the same time
2. Built-in pump suction measurement, 10-level flow can be adjusted.
3, 7-inch 720*1280 touch high-definition color screen, IPS full viewing angle display
4. The standard capacity is more than 10 million
5. 30AH rechargeable lithium battery
Detection Range
Resolution

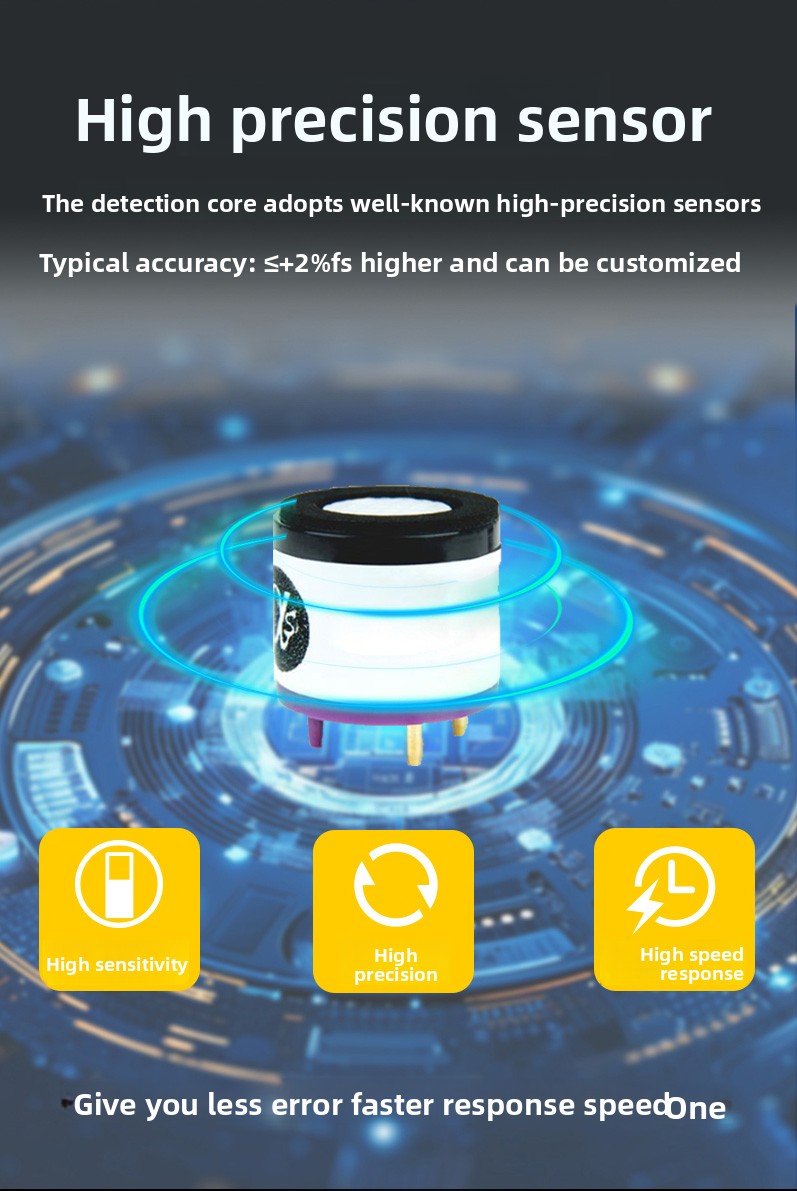

Typical Accuracy ≤±2% FS (1% high-precision sensor optional)
Detection Method Built-in pump suction type, automatic alarm when the pump is blocked
Display 7-inch 720*1280 touch high-definition color screen, IPS full viewing angle display
Power Supply DC3-5V
Maximum Power Consumption
Operating Environment Temperature: -20℃~+50℃, customizable -40℃~+70℃; Relative humidity: 10-95%RH
Data Storage The standard capacity is more than 10 million pieces; support local viewing, deletion or data export, and the storage time interval can be set arbitrarily.
Printing Function Optional Bluetooth printer
Signal Output Standard Type-C fast charging and communication (customizable RS485 output)

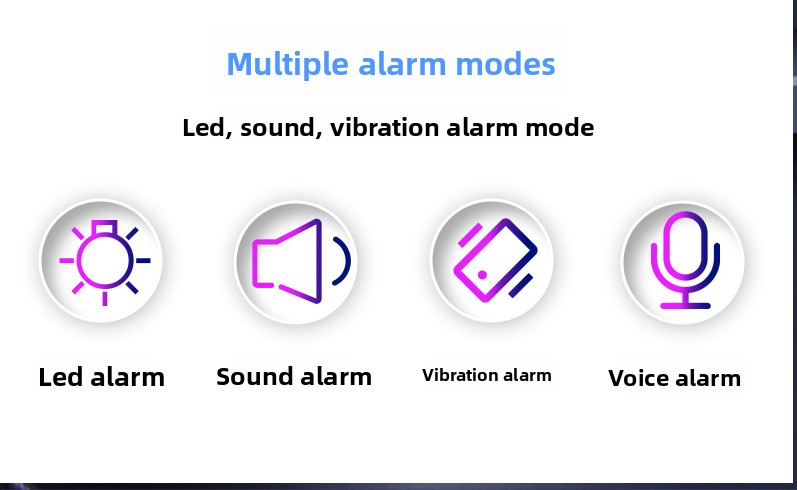

Alarm Method Sound and light alarm, sound and light + visual alarm, vibration alarm, voice (multilingual) alarm.

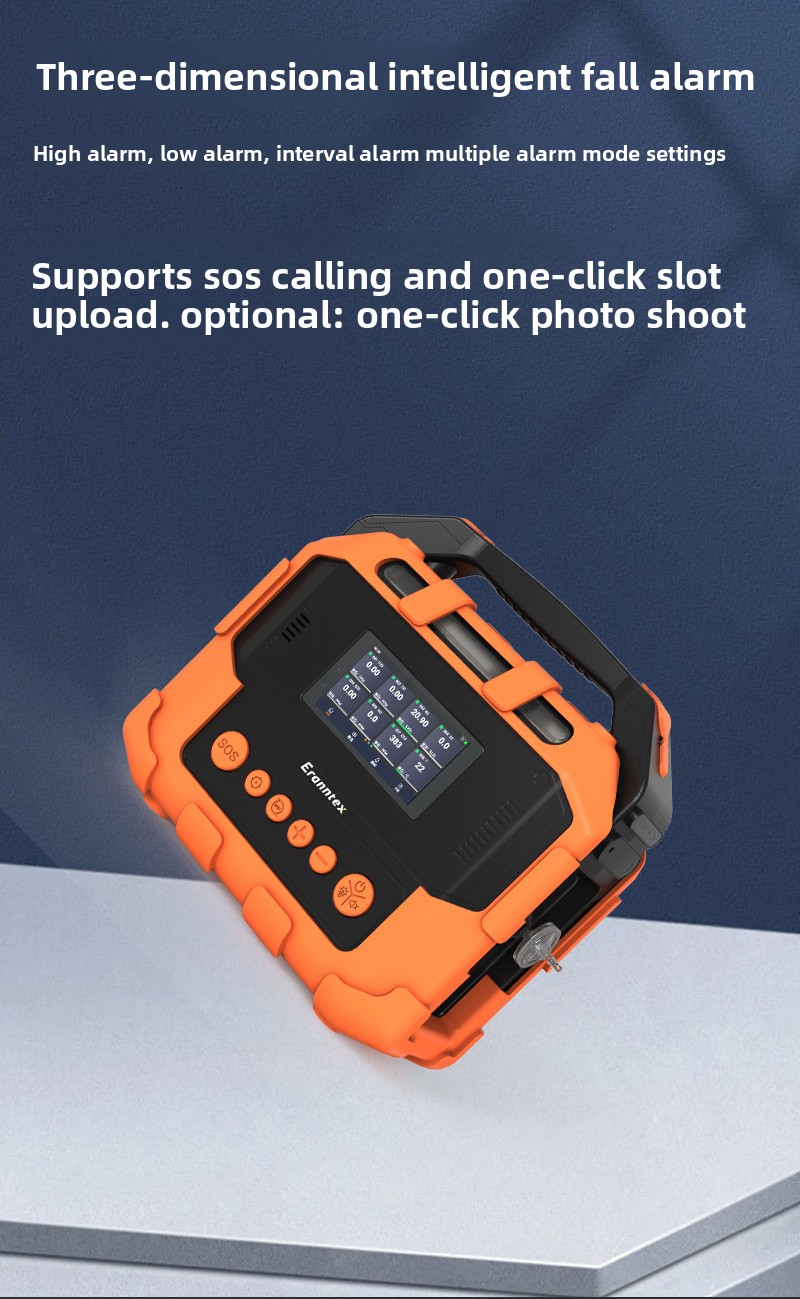

Fall Alarm Three-dimensional intelligent fall alarm

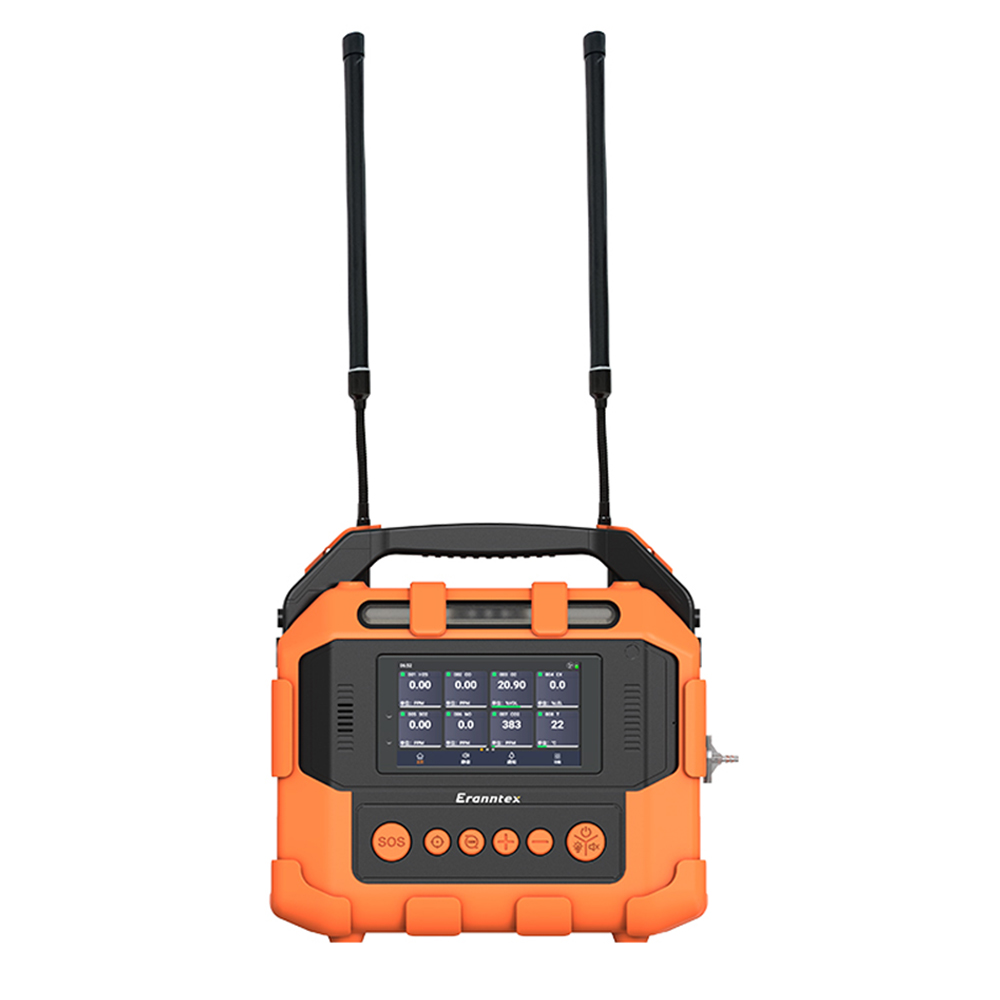

Wireless Transmission

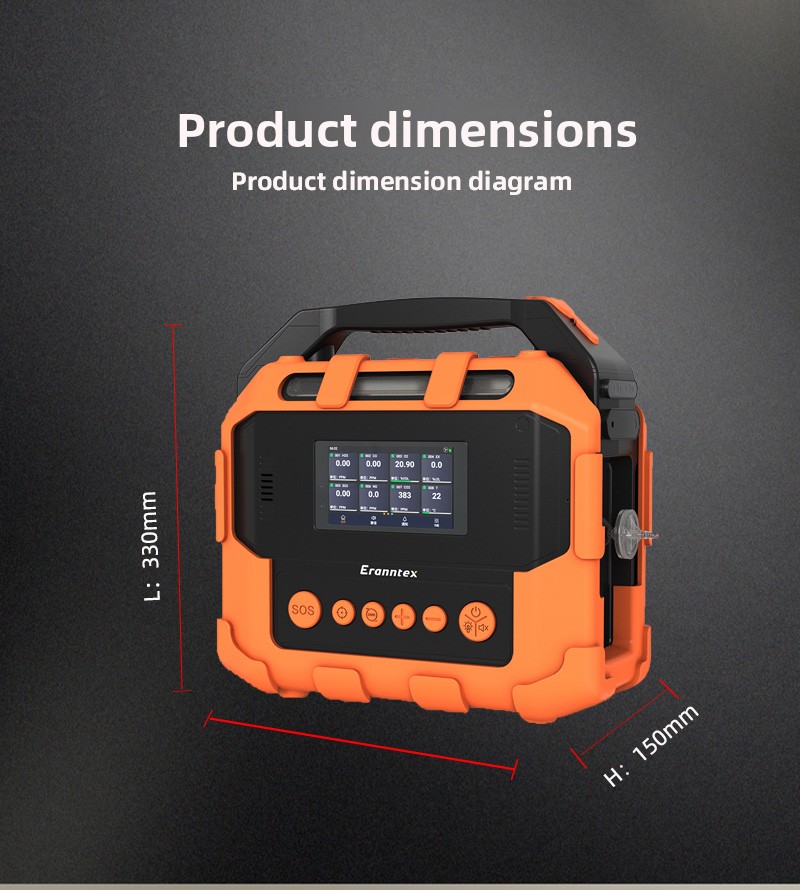

Dimensions: L*W*H Maximum size 330×320×150mm(L×W×H)
Weight About 3.5Kg

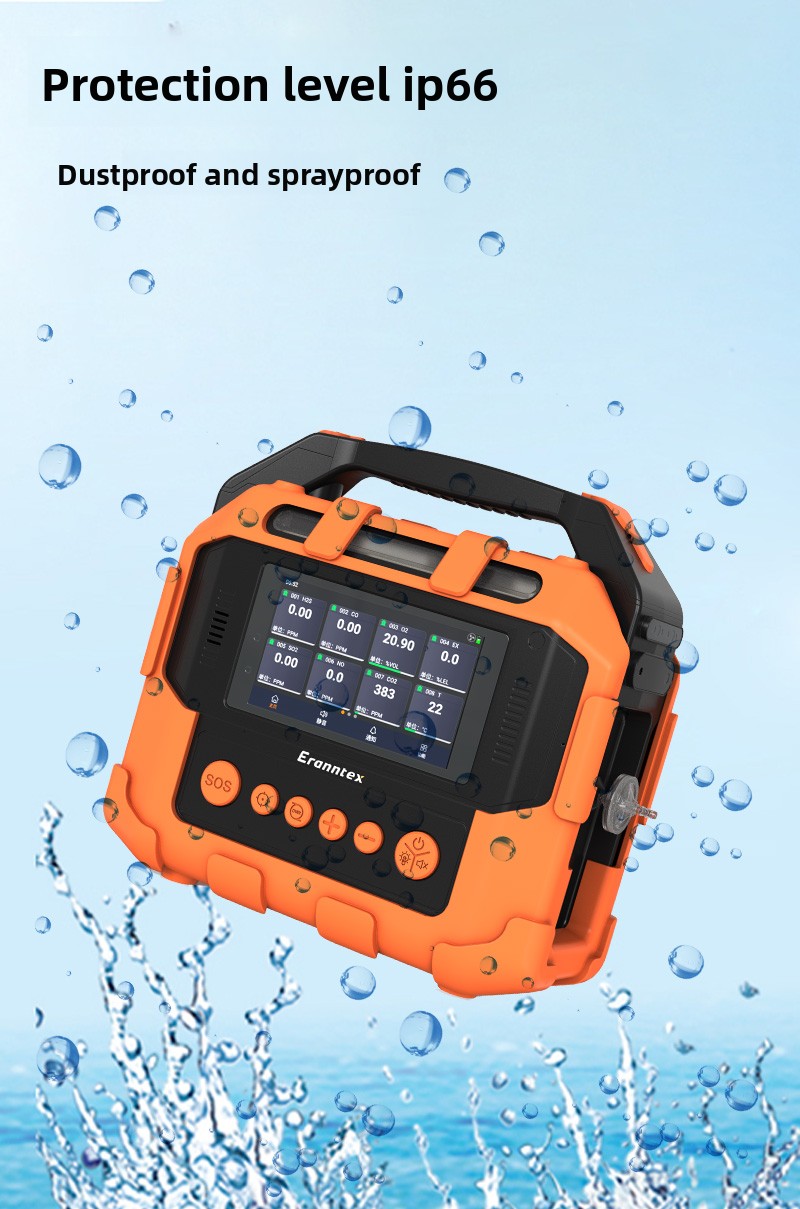

Protection Level IP66
Standard Accessories Instruction manual, qualification certificate, USB charger, 1 water vapor dust filter, high-grade waterproof anti-fall instrument safety box (pull rod box), 0.4m stainless steel sampling handle (1-10m hose, standard length 1m)
Optional Accessories 1 0.9-meter retractable sampling handle (1-10-meter hose, standard length 1 meter); 2 400℃, 800℃, 1300℃ High-temperature sampling handles of different specifications (to realize the detection of high-temperature sample gas); 3 1.2-meter soil sampling handle; 4 Multiple water vapor filters

Common Gas List (Other ranges and corresponding resolutions in the table below can be customized):


Partial list of detectable gases:
Detect gases Range Maximum allowable error value Minimum reading Response time T90
Combustible Gas (EX) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤10 seconds
Combustible Gas (EX) 0-100%Vol ＜±2%(F.S) 0.1%Vol ≤10 seconds
Methane (CH4) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤10 seconds
Methane (CH4) 0-100%Vol ＜±2%(F.S) 0.1%Vol ≤10 seconds
Oxygen (O2) 0-30%Vol ＜±2%(F.S) 0.01%Vol ≤10 seconds
Oxygen (O2) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤10 seconds
Oxygen (O2) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Nitrogen (N2) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤10 seconds
Carbon monoxide (CO) 0-100ppm ＜±2%(F.S) 0.1ppm ≤25 seconds
Carbon monoxide (CO) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤25 seconds
Carbon monoxide (CO) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤25 seconds
Carbon monoxide (CO) 0-20000ppm ＜±2%(F.S) 1ppm ≤25 seconds
Carbon monoxide (CO) 0-100000ppm ＜±2%(F.S) 1ppm ≤25 seconds
Carbon dioxide (CO2) 0-500ppm ＜±2%(F.S) 1ppm ≤20 seconds
Carbon dioxide (CO2) 0-2000ppm ＜±2%(F.S) 1ppm ≤20 seconds
Carbon dioxide (CO2) 0-5000ppm ＜±2%(F.S) 1ppm ≤20 seconds
Carbon dioxide (CO2) 0-50000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Carbon dioxide (CO2) 0-20%Vol ＜±2%(F.S) 0.01%Vol ≤30 seconds
Carbon dioxide (CO2) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤30 seconds
Formaldehyde (CH2O) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Formaldehyde (CH2O) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Formaldehyde (CH2O) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Formaldehyde (CH2O) 0-5000ppm ＜±2%(F.S) 1ppm ≤50 seconds
Ozone (O3) 0-1ppm ＜±2%(F.S) 0.001ppm ≤20 seconds
Ozone (O3) 0-5ppm ＜±2%(F.S) 0.001ppm ≤20 seconds
Ozone (O3) 0-50ppm ＜±2%(F.S) 0.01ppm ≤20 seconds
Ozone (O3) 0-100ppm ＜±2%(F.S) 0.01ppm ≤20 seconds
Ozone (O3) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Ozone (O3) 0-30000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Hydrogen sulfide (H2S) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Hydrogen sulfide (H2S) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen sulfide (H2S) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen sulfide (H2S) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Hydrogen sulfide (H2S) 0-10000ppm ＜±2%(F.S) 1ppm ≤45 seconds
Sulfur dioxide (SO2) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Sulfur dioxide (SO2) 0-20ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Sulfur dioxide (SO2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Sulfur dioxide (SO2) 0-500ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Sulfur dioxide (SO2) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Sulfur dioxide (SO2) 0-10000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Nitric oxide (NO) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Nitric oxide (NO) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Nitric oxide (NO) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Nitric oxide (NO) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Nitrogen dioxide (NO2) 0-10ppm ＜±2%(F.S) 0.001ppm ≤25 seconds
Nitrogen dioxide (NO2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤25 seconds
Nitrogen dioxide (NO2) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Nitrogen dioxide (NO2) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Nitrogen oxides (NOX) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Nitrogen oxides (NOX) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Nitrogen oxides (NOX) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Nitrogen oxides (NOX) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Chlorine (CL2) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Chlorine (CL2) 0-20ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Chlorine (CL2) 0-200ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Chlorine (CL2) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Ammonia (NH3) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ammonia (NH3) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ammonia (NH3) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Ammonia (NH3) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Ammonia (NH3) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤10 seconds
Hydrogen (H2) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤10 seconds
Hydrogen (H2) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Hydrogen (H2) 0-20000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Hydrogen (H2) 0-40000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Hydrogen (H2) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤20 seconds
Helium (He) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤20 seconds
Argon (Ar) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤20 seconds
Xenon (Xe) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤20 seconds
Hydrogen cyanide (HCN) 0-30ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen cyanide (HCN) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen chloride (HCL) 0-20ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen chloride (HCL) 0-200ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Phosphine (PH3) 0-5 ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Phosphine (PH3) 0-25 ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Phosphine (PH3) 0-2000 ppm ＜±2%(F.S) 1ppm ≤30 seconds
Chlorine dioxide (CLO2) 0-1ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Chlorine dioxide (CLO2) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Chlorine dioxide (CLO2) 0-200ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ethylene oxide (ETO) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ethylene oxide (ETO) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Ethylene oxide (ETO) 0-100%LEL ＜±2%(F.S) 1%LEL ≤30 seconds
Phosgene (COCL2) 0-1ppm ＜±2%(F.S) 0.001ppm ≤20 seconds
Phosgene (COCL2) 0-50ppm ＜±2%(F.S) 0.01ppm ≤20 seconds
Silane (SiH4) 0-1ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Silane (SiH4) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Fluorine (F2) 0-1ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Fluorine (F2) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Fluorine (F2) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen fluoride (HF) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen fluoride (HF) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen bromide (HBr) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Diborane (B2H6) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Arsine (AsH3) 0-1ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Arsine (AsH3) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Arsine (AsH3) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Germane (GeH4) 0-2ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Germane (GeH4) 0-20ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrazine (N2H4) 0-1ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Hydrazine (N2H4) 0-300ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Tetrahydrothiophene (THT) 0-100mg/m3 ＜±2%(F.S) 0.01 mg/m3 ≤60 seconds
Bromine (Br2) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Bromine (Br2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Bromine (Br2) 0-2000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Acetylene (C2H2) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤30 seconds
Acetylene (C2H2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Acetylene (C2H2) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Ethylene (C2H4) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤30 seconds
Ethylene (C2H4) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ethylene (C2H4) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Acetaldehyde 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ethanol (C2H6O) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ethanol (C2H6O) 0-2000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Methanol (CH4O) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Methanol (CH4O) 0-2000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Carbon disulfide (CS2) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Carbon disulfide (CS2) 0-5000ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Acrylonitrile (C3H3N) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Acrylonitrile (C3H3N) 0-2000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Methylamine (CH5N) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Iodine (I2) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Styrene (C8H8) 0-200ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Styrene (C8H8) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Vinyl chloride (C2H3Cl) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Trichloroethylene (C2HCl3) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Tetrachloroethylene (C2Cl4) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Nitrous oxide (N2O) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Nitrogen trifluoride (NF3) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen peroxide (H2O2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Methyl bromide (CH3Br) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Methyl bromide (CH3Br) 0-30000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Methyl bromide (CH3Br) 0-200g/m3 ＜±2%(F.S) 0.1g/m3 ≤30 seconds
Sulfuryl fluoride (SO2F2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Sulfuryl fluoride (SO2F2) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Sulfuryl fluoride (SO2F2) 0-10000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Benzene (C6H6) 0-10ppm ＜±2%(F.S) 0.01ppm≤30 seconds
Benzene (C6H6) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Benzene (C6H6) 0-2000ppm ＜±2%(F.S) 1ppm ≤30 seconds

Note: For other gases not listed in the table above, please call for consultation.



Portable multi-function gas analyzer PTM600-S General description:

PTM600-S portable multi-function gas analyzer is used to accurately detect and analyze a variety of gas concentrations and temperature and humidity, particulate matter, pressure difference, wind Speed, wind direction, illuminance, noise, etc. Using 7-inch high-definition color screen for real-time display, the main detection principles of gas detection are: electrochemistry, infrared, catalytic combustion, thermal conductivity, high-precision long-life PID optical electrolysis, etc. PTM600-S is widely used in firefighting, emergency rescue, confined space, petroleum, chemical industry, metallurgy, refining and chemical industry, gas, warehousing, medicine, environmental protection, flue gas analysis, air management and other occasions. The instrument has powerful functions and supports various additional functions.It can be customized to realize regional networking, interconnection, remote wireless transmission, MESH transmission (remote transmission of restricted space video), data upload cloud platform, mobile phone APP viewing, remote alarm, reminder by phone, text message, WeChat, and various software functions can be customized.


Portable multi-function gas analyzer PTM600-S functional features:

★ It can detect a variety of factors at the same time (including gas concentration, temperature and humidity, particulate matter, atmosphere Pressure, wind speed, wind direction, illuminance, noise, etc.),

The specific detection type depends on the internal sensor configuration of the instrument.

★ Sensor modular design, 4 six-in-one modules can be installed at the same time, each module can be plugged in and unplugged as a whole, and the air line and communication interface are connected in a snap.

★ Unit switching, units can be selected: umol/mol, ppm, mg/m3, ppb, ug/m3, %Vol, %LEL.

★ Built-in pump suction measurement, 10-level flow can be adjusted.

★7-inch high-definition color screen, capacitive touch screen, Android operating system, supports remote maintenance and OTA remote wireless upgrade.

★16G large-capacity data storage function, larger capacity can be customized, and supports multiple storage methods.

★ Multiple communication interfaces, TYPE-C, WIFI, Bluetooth, optional Bluetooth printer to realize on-site printing function.

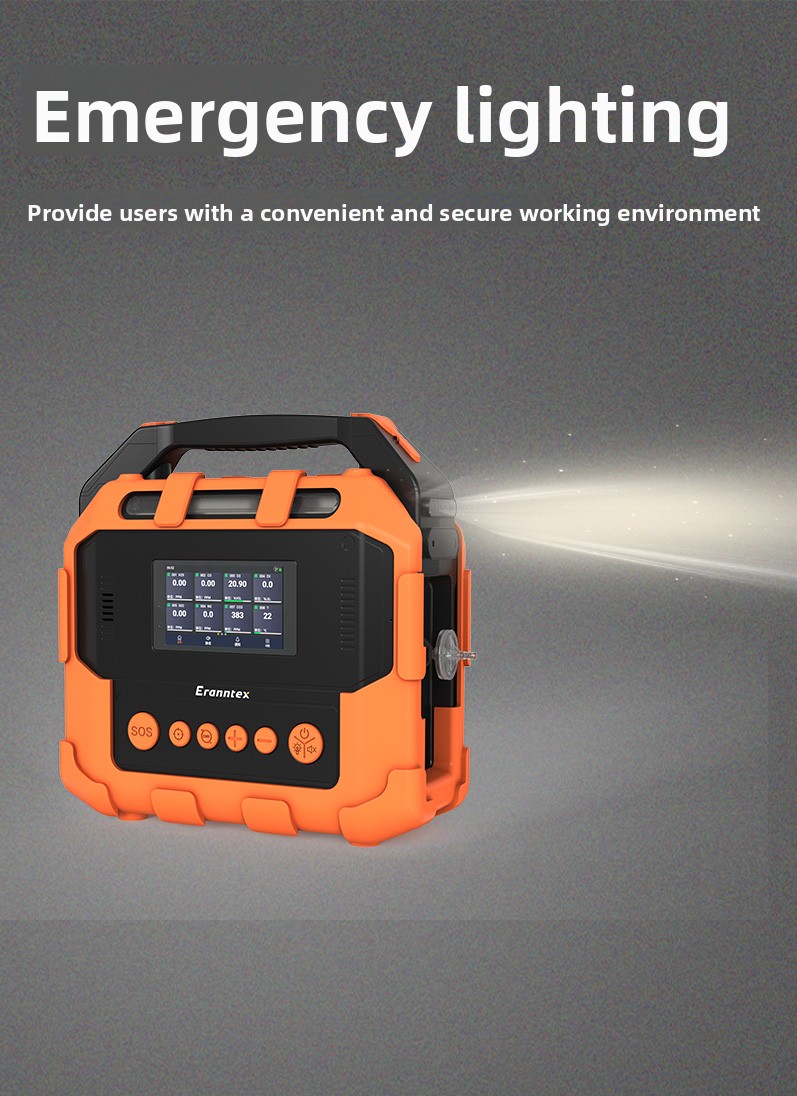

★ Standard functions: GPS/Beidou accurate positioning, LED lighting, SOS one-click call for help, three-dimensional intelligent fall alarm, one-click positioning upload, etc.

4G (can display user information, real-time location, concentration information, latitude and longitude and custom address information, trajectory query, etc. on the map), one-click photo (more than 800W pixels), video monitoring and video recording function, etc.;

★ Data statistical analysis function ;

★ Factory parameters and storage data recovery function, partial or all recovery can be selected to avoid misoperation;

★ Maximum, minimum and weighted average can be displayed.

★ Multiple alarm mode settings, multi-dimensional three-dimensional indication alarm status when alarming.

Alarm mode: sound and light alarm, sound and light + visual alarm, vibration alarm, voice (multilingual) alarm.

Alarm types: concentration alarm, undervoltage alarm, fault alarm, pump blockage alarm.

Alarm mode: low alarm, high alarm, interval alarm, weighted average alarm.

★ Misoperation identification function.

★ Automatic tracking at zero point.

★ Target point multi-level calibration.

★ Benan circuit design explosion-proof, shockproof, anti-static, anti-radiation.

★ Protection level IP66.

★Execution Standard:

GBT 3836.1-2021 General Requirements for Electrical Equipment for Explosive Gas Environments

GBT 3836.4-2021 Essence of Electrical Equipment for Explosive Gas Environment Safe type "i"

GB 15322.3-2019 "Combustible Gas Detector Part 3: Industrial and Commercial Portable Combustible Gas Detector"

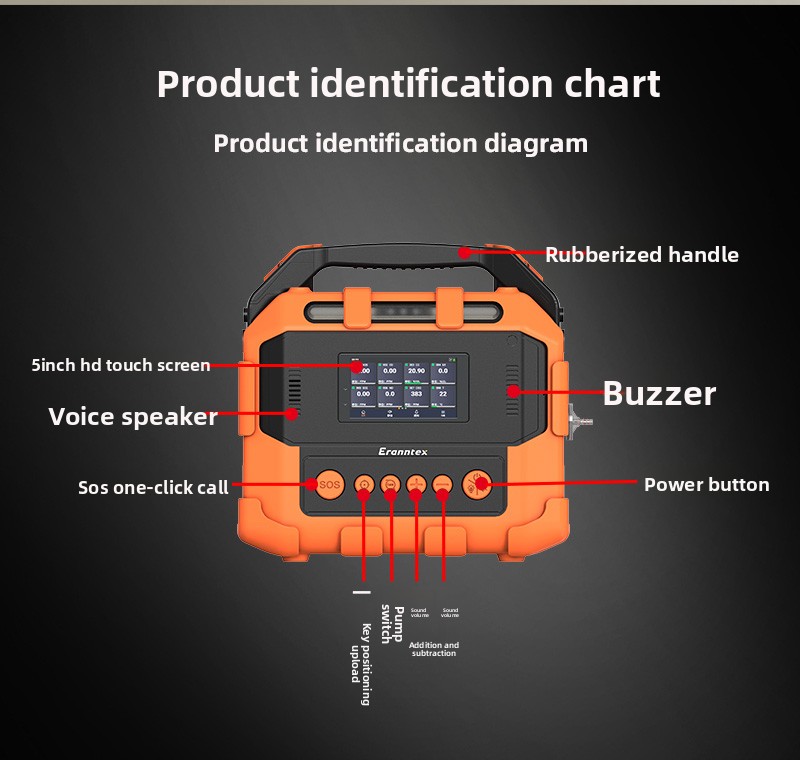

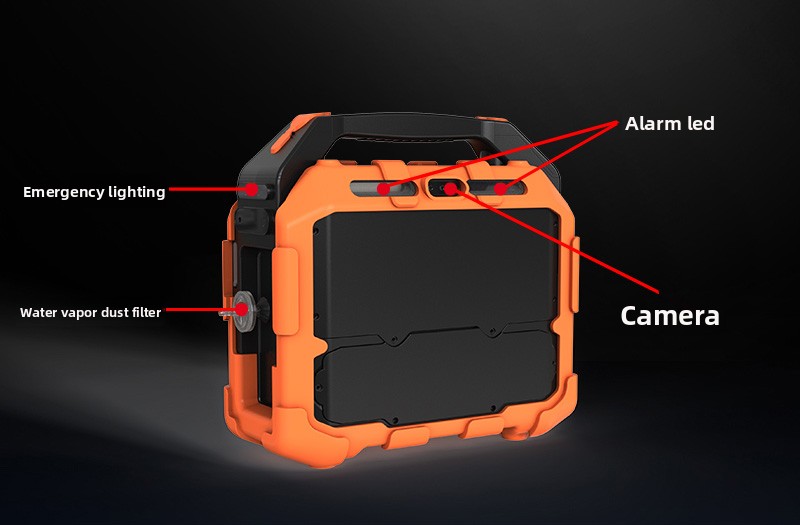

PTM600-S Portable Multifunctional Gas Analyzer Outline:

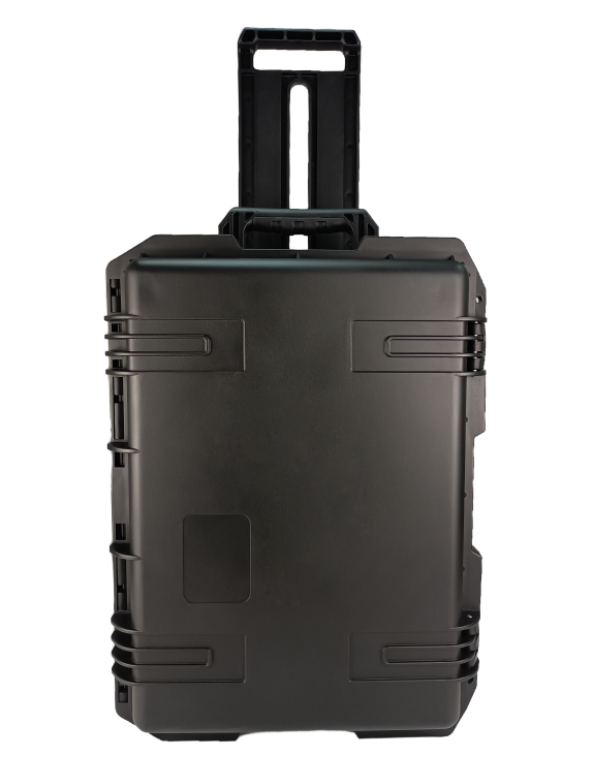

PTM600-S microclimate detection Test suit

PTM600-S microclimate detection kit


PTM600-S portable multi-function gas analyzer technical parameters:

>/tr>

Explosion-proof type

< Td width="785" valign="top" colspan="3">

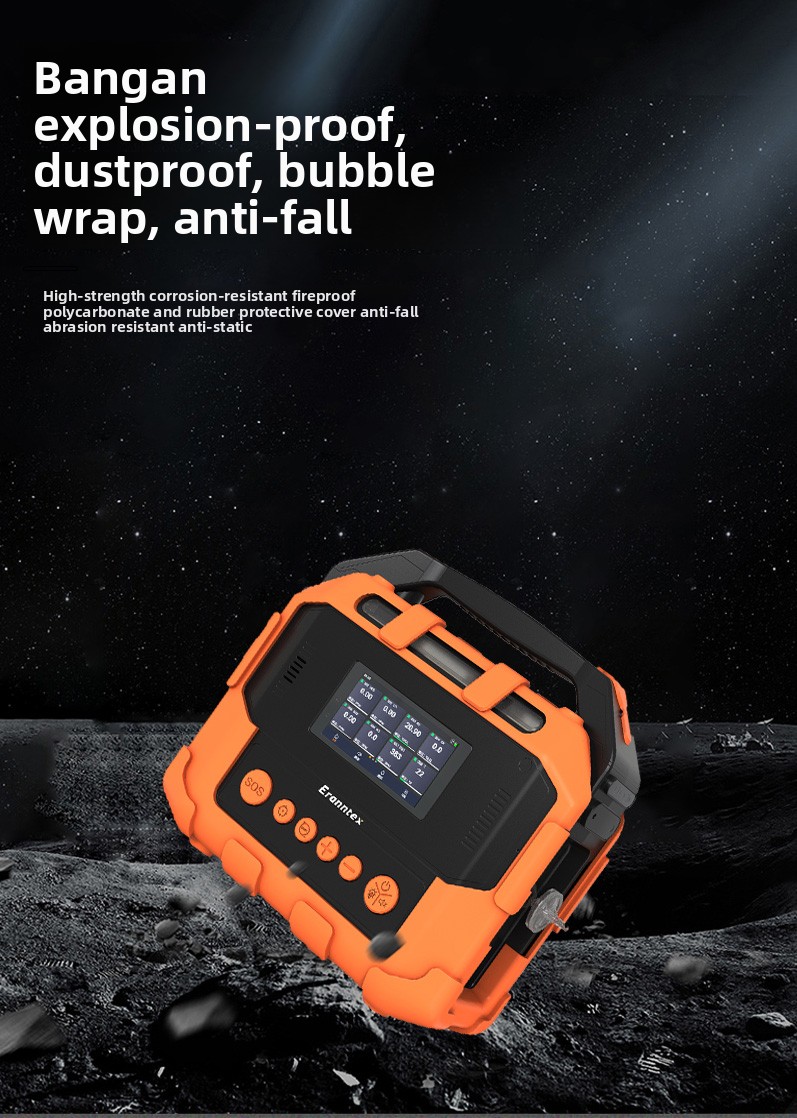

High-strength corrosion-resistant fireproof polycarbonate and rubber protective cover, fall-resistant, wear-resistant and anti-static

Detection factor

carbon monoxide CO/carbon dioxide CO2/dust PM2.5/PM10/formaldehyde CH2O/photo Degree (Lux)/noise (N)/wind speed(WS)/temperature(T)/humidity (H), up to 24 factors can be detected, depending on the on-site environment and user needs

Detection range、point 辨 rate

CO: 0-500ppm, 0.1pp M; CO2: 400-5000ppm, 1ppm; CH2O:0-2mg/m3, 0.01mg/m3;

PM2.5: 0～999.9μg/m3, 0.1μg/m3; PM10:0～1999.9μg/m3,0.1μg/m3;

illuminance(Lux)< Span>: 0-200000Lux, 1Lux; Noise (N): 40-130dB, 0.1dB;

Wind speed (WS): 0-5m/s, 0.1m/s; Temperature (T) : -40℃~+120℃, 0.1℃, humidity (H): 0-100%RH, 0.1%RH.

Unit display

Unit optional: umol/mol, ppm, mg/m3, ppb, ug/m3, %Vol, %LE L, m/s, ℃, %RH, Lux, dB

Detection principle

Electrochemistry: CO/CH2O, infrared: CO2, laser: PM2.5/PM10, digital capacitance: T/H, hot line: WS, photoelectric effect: Lux, capacitance: N

Testing method

Built-in pump suction type, automatic alarm of pump blockage

Display method

7-inch 720*1280 touch HD color screen, IPS full viewing angle display

Display content

Real-time concentration, singleBit, molecular formula, alarm status, time, storage status, communication status, signal strength, power, charging status, etc.

Detection accuracy

typical accuracy: ≤±2% FS (optional 1% high-precision sensor)

Uncertainty

≤ ±2%

line sex degree

≤±2%

replicability

≤±2%

Response time

T90≤20 seconds (universal)

recovery time

≤30 seconds

working power

DC3-5V

Battery capacity>/span>

30AH rechargeable lithium battery, with overcharge, overcharge, overvoltage, short circuit, overheating protection Protection function

Using environment

Temperature: -20℃~+50℃, customizable -40℃~+70℃; relative humidity: 10-95%RH

communication interface

Standard Type-C fast charging and communication (customizable RS485 output)

Data storage

Standard capacity of more than 10 million; support local viewing, deletion or data export, storage time interval Any setting

log

Record calibration log, repair log, fault record, sensor life expiration reminder, next concentration calibration time reminder function

interface language

Chinese, English and other languages are available

Intrinsic safety ExiaIICT4Ga



protection level

IP66

Shell material

AppearanceSize

Maximum size 330×320×150mm(L×W×H)

heavy     quantity

about 3.5Kg

Standard function

GPS/Beidou precise positioning, LED lighting, SOS one-click call for help, Three-dimensional intelligent fall alarm, one-click positioning upload, one-click photo (more than 800W pixels), video monitoring and video recording function, etc.;

data transmission

Standard configuration: wireless data transmission:4G, WIFI, Ethernet , computer software/ Cloud platform/mobile terminal APP remote monitoring data

Standard Attachment

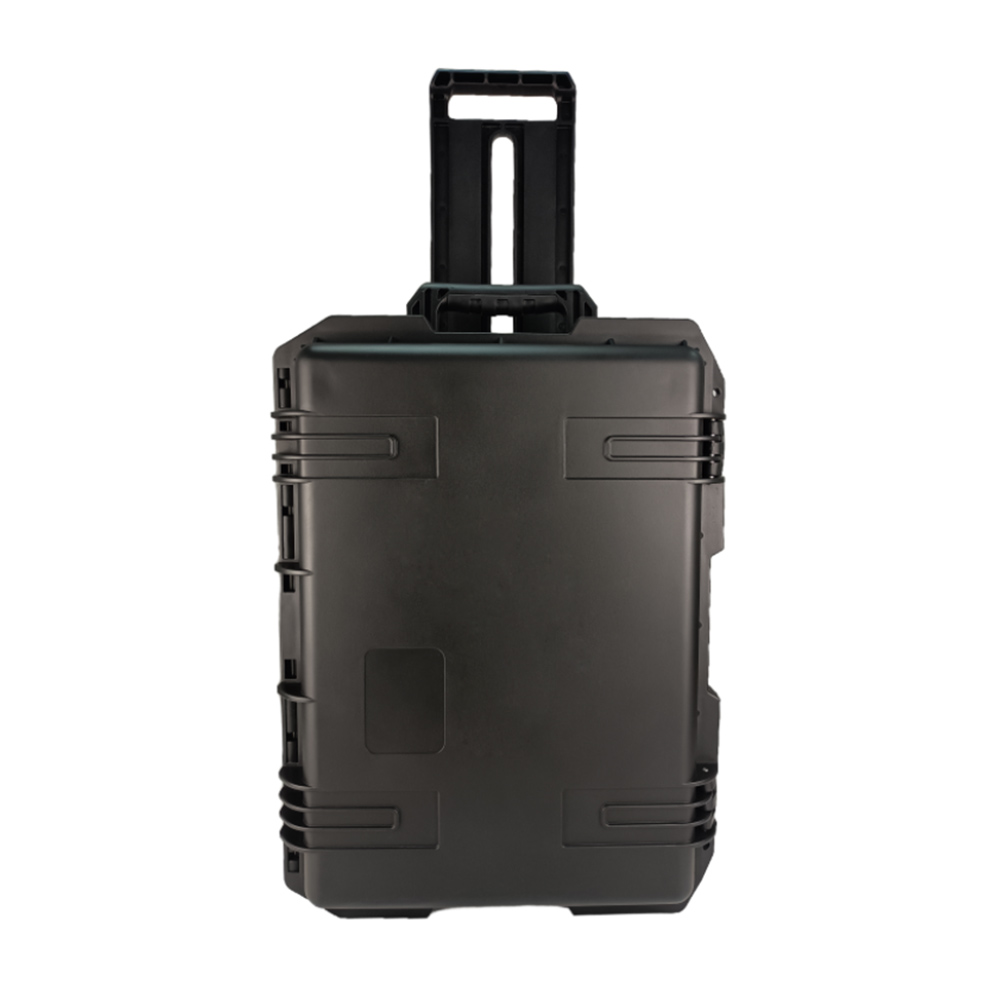

Instruction manual, qualification certificate, USB charger, 1 water vapor dust filter, high-grade waterproof anti-fall instrument safety box (pull box), 0.4m stainless steel sampling handle (1-10m hose, standard length 1 Meter)

Optional attachment

1 0.9-meter retractable sampling handle (1-10m hose, standard length 1m);

2 400℃, 800℃, 1300℃ different specifications high-temperature sampling handle (to detect high-temperature sample gas) ;

3 1.2-meter soil sampling handle;

4Multiple water vapor filters

★ Manufacturer qualification

Enterprise Credit Certificate AA A, National High-tech Enterprise Certificate, Specialized New Small and Micro Enterprises, ISO45001 Occupational Health and Safety Management System Certification Certificate, ISO9001 Quality Management System Certification Certificate, IS014001 Environmental Management System Certification Certificate, etc.

★Product qualification

Mearing instrument modelApproval certificate CPA, explosion-proof certificate, ATEX certification, CE certification, safety level certification

Appearance design patent certificate, computer software copyright registration certificate



Product HighlightsNew process formula enhances performance to meet stricter application requirements

  • High PrecisionUp to ±0.1%FS (varies by gas type)
  • Wireless ConnectivityOptional wireless communication for real-time data monitoring
  • Advanced ProtectionIP67+ protection level
  • Explosion-proof DesignHigh shock and explosion resistance
  • Anti-interference DesignAnti-static and electromagnetic interference
  • HD Color DisplayComprehensive and clear information display
  • Large Capacity StorageMassive data storage
  • Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations

← Swipe left/right to view full content →

Complete Certifications, Reliable Quality

Trusted Manufacturer

Trusted Manufacturer

Wide Applications Across 20+ Industries

Trusted by 5000+ Industry Leaders

Service Guarantee

  • Selection Guidance

    Recommend suitable products based on extensive technical experience

  • Customization

    Provide customized solutions based on specific requirements

  • Quality Guarantee

    1-year warranty and lifetime maintenance for all products

  • Application Support

    Professional engineers provide installation, training and expansion support

19+ Years of Industry-leading Brand

Eranntian, founded in 2006, is a national high-tech enterprise integrating design, R&D, production and sales. Our R&D team includes over 30 senior engineers with strong development capabilities, investing over 17% of annual revenue in technological innovation. We maintain long-term collaborations with 14 universities including Tsinghua University, Sichuan University, Xi'an Jiaotong University, Qingdao University of Technology, and Central South University.

  • 2006

    Eranntian established

  • 30+

    Senior R&D engineers

  • 14

    Partner universities

  • 100+

    Patents & achievements

Strong Production Capacity Ensures Fast Delivery

  • 4000㎡

    Production base

  • 80+

    Professional production team

  • 8000+

    Units/month capacity

  • 10000+

    Equipment parts in stock

  • 24 hours

    Fast sample delivery

  • 12 hours

    Standard product delivery

Application CasesMore+

Professional engineer

24-hour online serviceSubmit your needs and quickly recommend the right products for you

13480931872

"Personal Information and Privacy Protection Terms"
