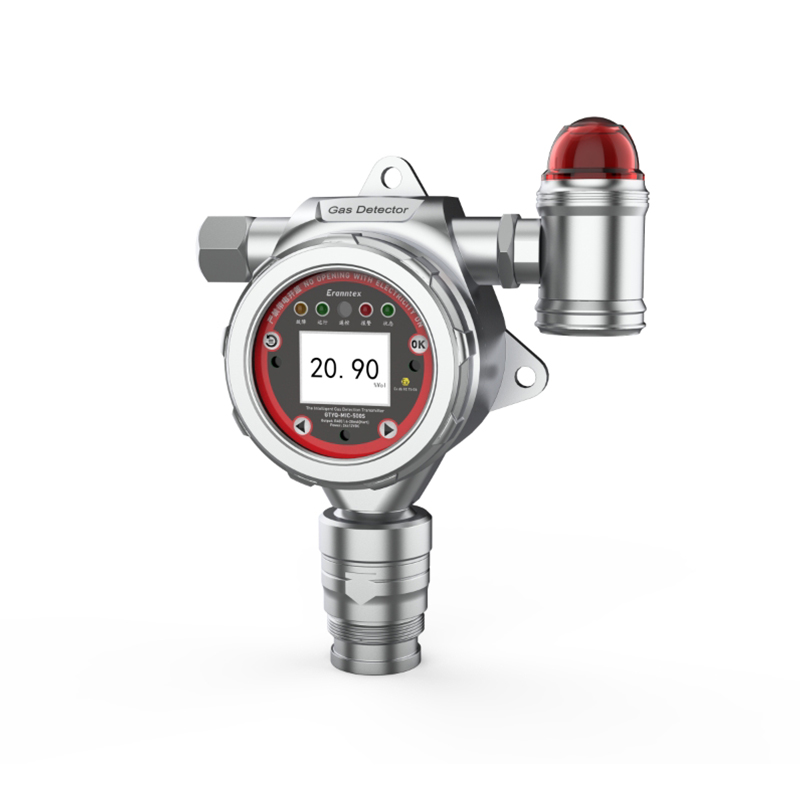

Online gas detector GTYQ-MIC-500S

Detection Method: Diffusion measurement, optional pipeline type, circulation type, pump suction type

Detection Gas: Two-in-one gas detector Four-in-one gas detector Four-in-one detector Four-in-one gas detector Multi-gas detector Multi-in-one gas detector Multi-functional gas detector Carbon dioxide (infrared) CO2 Flammable gas detector Ex Flammable gas (infrared) ExMETHane CH4 Methane (infrared) CH4 Methane (Laser TDLAS) CH4 Ethane (Infrared) C2H6 Propane (Infrared) C3H8 Non-Methane Hydrocarbons CxHy Carbon Monoxide CO Carbon Monoxide (Infrared) CO Hydrogen Sulfide H2S Oxygen O2 Nitrogen N2 Ammonia NH3 Chlorine CL2 Hydrogen H2Helium He Argon Ar Formaldehyde CH2O Ozone O3 Nitrogen Oxide NO Nitrogen Dioxide NO2 Nitrogen Oxides NO_x Sulfur Dioxide SO2 Ethylene Oxide ETO Ethylene Oxide (Infrared) C2H4O Phosphine PH3 Hydrogen Chloride HCl Hydrogen cyanide HCN Phosgene COCl2 Chlorine dioxide ClO2Silane SiH4 Bromomethane (infrared) CH3Br Bromomethane (PID) CH3Br Sulphuryl fluoride (infrared) SO2F2 Fluorine F2 Hydrogen fluoride HF Hydrogen bromide HBr Boron hydride B2H6 Arsenic hydride AsH3 Germanium hydrage GeH4 Hydrazine N2H4 Hydrazine N2H4 Dicyandiamide C2H8N2Nitrous oxide N2O4 Nitrogen trichloride NCL3 Tert-butyl mercaptan TBM Phosphorus pentafluoride PF5 Boron trichloride BCl3 Phosphorus trichloride PCL3 Phosphorus oxychloride POCL3 Phosphorus trifluoride PF3 Boron trifluoride BF3 Azide HN3 Methyl sulfide C2H6SDimethyl sulfate C2H6O4S Acetonitrile CH3CN Acetic acid C2H4O2 Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyl disulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2 Chlorosilane SiH3Cl Tetrahydrothiophene THTBromine gas Br2 Acetylene (infrared) C2H2 Acetylene C2H2 Carbon disulfide CS2 Carbon disulfide (infrared) CS2 Acrylonitrile C3H3N Methyl ethyl ketone MEK Methyl ketone MDK Methyl ketone (infrared) C3H6O Sulfur hexafluoride (infrared) SF6 Ethylene C2H4 Ethylene (infrared) C2H4Isopropyl alcohol (infrared) C3H8O Ethanol C2H6O Ethanol (infrared) C2H6O Methanol CH4 Methanol (infrared) CH4O Methylamine CH5N Methyl mercaptan CH3SH Vinyl chloride C2H3Cl Vinyl chloride (infrared) C2H3Cl Trichloroethylene C2HCl3 Tetrachloroethylene C2Cl4Chloromethane (infrared) CH3Cl Dichloroethane (infrared) C2H4Cl2 Dichloromethane (infrared) CH2Cl2 Trichloromethane (IR) CHCl3 Nitrous oxide (IR) N2O Nitrogen trifluoride NF3 Nitrogen trifluoride (IR) NF3 Hydrogen peroxide H2O2 Styrene (PID) C8H8 Tetrahydrofuran (PID) THFTVOC (PID) TVOC VOC (PID) Benzene (PID) C6H6 Toluene (PID) C7H8 Toluene (Infrared) C7H8 Xylene (PID) C8H10 Xylene (Infrared) C8H10 PID gas Odor OU Diesel (Infrared) diesel Jet fuel (infrared) JET Butane (infrared) C4H10 Isobutane (infrared) C4H10Pentane (infrared) C5H12 Cyclopentane (infrared) C5H10 Hexane (infrared) C6H14 Propylene (infrared) C3H6 Methyl ethyl ketone (infrared) C4H8O Carbonyl sulfide (infrared) COS Refrigerant (infrared) R134a Refrigerant (infrared) R125 Refrigerant (infrared) R404aRefrigerant (infrared) R407a Refrigerant (infrared) R410a Refrigerant (infrared) R410 Refrigerant (infrared) R507 Refrigerant (infrared) R1234yf Refrigerant (infrared) R32 Refrigerant (infrared) R22 Refrigerant (infrared) R1234ZE Refrigerant (infrared) R14Refrigerant (infrared) R12 Heptafluoropropane (infrared) C3HF7 Refrigerant (infrared) R116 Freon CFC Refrigerant CFC

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range:

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	Toxic gases, flammable gases, oxygen, carbon dioxide, VOC, etc. depend on the on-site environment and user needs.
Product Features	1. Adopt digital sensors, plug-in and unplug, intelligent identification, plug and play, free of calibration. 2. Data storage, the storage capacity is more than 100,000. 3. IP66, IP67 can be customized. 4. Multi-level alarm point setting, the alarm can be turned off, and different alarms output different alarm sounds to distinguish the alarm volume and frequency. 5. Benan circuit design, explosion-proof, anti-vibration, anti-static, anti-radiation.
Detection Range	According to the on-site environment and user needs
Resolution	0.001ppm (0-10ppm high precision)/0.01ppm (0~10 ppm); 0.01ppm (0~100 ppm), 0.1ppm (0~1000 ppm), 1ppm (0~1000 ppm or more); 0.1% LEL; 0.1%, 0.01%Vol
Typical Accuracy	≤±3% FS (optional higher-precision sensor)
Detection Method	Diffusion measurement, optional pipeline type, circulation type, pump suction type
Display	2.0-inch LCD color screen, optional LED highlight segment code display
Power Supply	DC 12~36V
Maximum Power Consumption	≤2.5W
Operating Environment	Temperature: -20℃~+55℃, customizable -40℃~+70℃; Relative humidity: 10-95%RH
Data Storage	The storage capacity is more than 100,000
Printing Function
Signal Output
Alarm Method	Low alarm, high alarm, interval alarm, TWA/STEL alarm
Fall Alarm
Wireless Transmission	Support LORA/LoraWAN, 4G, NB-IOT and other methods

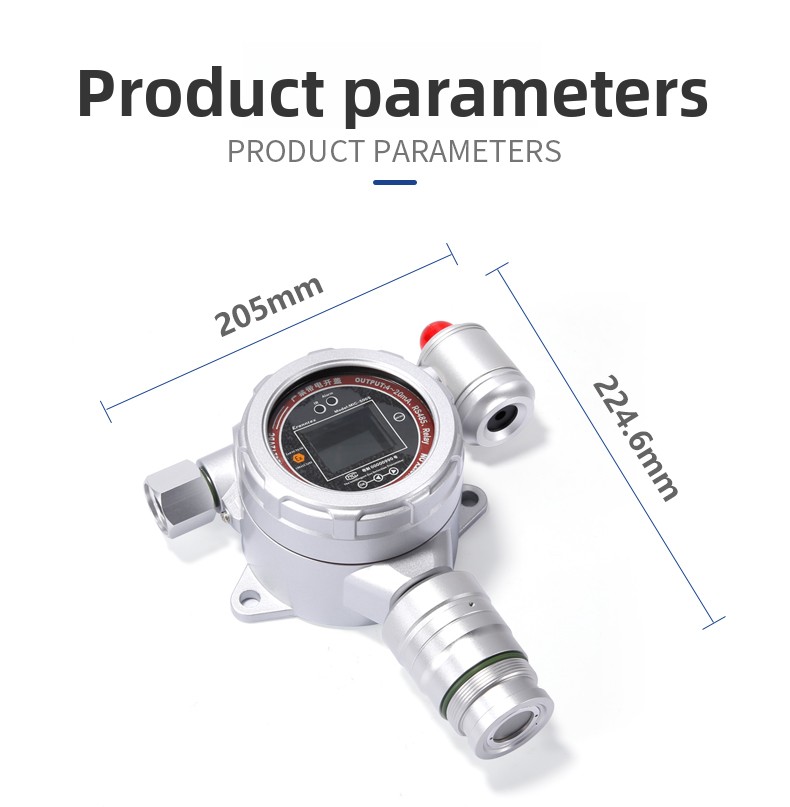

Dimensions: LWH	Housing size: 240×160×90mm or 240×220×90 (including sound and light alarm) (L×W×H)
Weight	About 1.65Kg
Protection Level	Toxic gas detector, flammable gas detector, oxygen detector, carbon dioxide detector, VOC detector
Standard Accessories	Remote control, instruction manual, qualification certificate, warranty card
Optional Accessories	Magnetic bar pen, all-in-one sound and light alarm, split sound and light alarm, 24V DC regulated voltage power supply, accessories connected to computer monitoring: upper computer software, RS485/RS232 converter, USB/RS232 conversion cable, TCP/IP converter.

Detect gas	Range	Resolution	Detect gas	Range	Resolution
VOCs (VOC)	0-20ppm	0.01ppm	Hydrogen cyanide (HCN)	0-100ppm	0.01ppm
VOCs (VOC)	0-200ppm	0.1ppm	Hydrogen chloride (HCL)	0-20ppm	0.01ppm
VOCs (VOC)	0-2000ppm	1ppm	Hydrogen chloride (HCL)	0-200ppm	0.1ppm
VOCs (VOC)	0-10000ppm	1ppm	Phosphine (PH3)	0-5ppm	0.001ppm
Combustible Gas (EX)	0-1000ppm	1ppm	Phosphine (PH3)	0-20ppm	0.01ppm
Combustible Gas (EX)	0-100%LEL	0.1%LEL	Phosphine (PH3)	0-2000ppm	1ppm
Combustible Gas (EX)	0-100%Vol	0.01%Vol	Chlorine dioxide (CLO2)	0-1ppm	0.001ppm
Methane (CH4)	0-100%LEL	0.1%LEL	Chlorine dioxide (CLO2)	0-10ppm	0.01ppm
Methane (CH4)	0-100%Vol	0.01%Vol	Chlorine dioxide (CLO2)	0-100ppm	0.01ppm
Oxygen (O2)	0-30%Vol	0.01%Vol	Ethylene oxide (ETO)	0-100ppm	0.01ppm
Oxygen (O2)	0-100%Vol	0.01%Vol	Ethylene oxide (ETO)	0-1000ppm	0.1ppm
Carbon monoxide (CO)	0-100ppm	0.01ppm	Ethylene oxide (ETO)	0-100%LEL	0.1%LEL
Carbon monoxide (CO)	0-1000ppm	0.1ppm	Phosgene (COCL2)	0-1ppm	0.001ppm
Carbon monoxide (CO)	0-2000ppm	1ppm	Phosgene (COCL2)	0-10ppm	0.01ppm
Carbon monoxide (CO)	0-5000ppm	1ppm	Silane (SiH4)	0-1ppm	0.001ppm
Carbon monoxide (CO)	0-10000ppm	1ppm	Silane (SiH4)	0-50ppm	0.01ppm
Carbon dioxide (CO2)	0-5000ppm	1ppm	Fluorine (F2)	0-1ppm	0.001ppm
Carbon dioxide (CO2)	0-50000ppm	1ppm	Fluorine (F2)	0-10ppm	0.001ppm
Carbon dioxide (CO2)	0-5%Vol	0.01%Vol	Fluorine (F2)	0-100ppm	0.01ppm
Carbon dioxide (CO2)	0-20%Vol	0.01%Vol	Hydrogen fluoride (HF)	0-10ppm	0.01ppm
Carbon dioxide (CO2)	0-100%Vol	0.01%Vol	Hydrogen fluoride (HF)	0-50ppm	0.01ppm
Formaldehyde (CH2O)	0-10ppm	0.01ppm	Hydrogen bromide (HBr)	0-50ppm	0.01ppm
Formaldehyde (CH2O)	0-50ppm	0.01ppm	Diborane (B2H6)	0-10ppm	0.001ppm
Formaldehyde (CH2O)	0-100ppm	0.01ppm	Arsine (AsH3)	0-1ppm	0.001ppm
Formaldehyde (CH2O)	0-1000ppm	1ppm	Arsine (AsH3)	0-10ppm	0.001ppm
Ozone (O3)	0-1ppm	0.001ppm	Germane (GeH4)	0-1ppm	0.001ppm
Ozone (O3)	0-10ppm	0.01ppm	Germane (GeH4)	0-10ppm	0.001ppm
Ozone (O3)	0-100ppm	0.01ppm	Germane (GeH4)	0-50ppm	0.01ppm
Ozone (O3)	0-2000ppm	1ppm	Hydrazine (N2H4)	0-1ppm	0.001ppm
Hydrogen sulfide (H2S)	0-10ppm	0.01ppm	Hydrazine (N2H4)	0-300ppm	0.1ppm
Hydrogen sulfide (H2S)	0-100ppm	0.01ppm	Tetrahydrothiophene (THT)	0-50mg/m3	0.01mg/m3
Hydrogen sulfide (H2S)	0-500ppm	0.1ppm	Bromine (Br2)	0-10ppm	0.01ppm
Hydrogen sulfide (H2S)	0-2000ppm	1ppm	Bromine (Br2)	0-50ppm	0.01ppm
Sulfur dioxide (SO2)	0-20ppm	0.01ppm	Acetylene (C2H2)	0-100%LEL	0.1%LEL
Sulfur dioxide (SO2)	0-100ppm	0.01ppm	Acetylene (C2H2)	0-100ppm	0.1ppm
Sulfur dioxide (SO2)	0-1000ppm	0.1ppm	Acetylene (C2H2)	0-1000ppm	1ppm
Sulfur dioxide (SO2)	0-5000ppm	1ppm	Ethylene (C2H4)	0-10ppm	0.01ppm
Nitric oxide (NO)	0-20ppm	0.01ppm	Ethylene (C2H4)	0-100ppm	0.1ppm
Nitric oxide (NO)	0-100ppm	0.01ppm	Ethylene (C2H4)	0-1000ppm	1ppm
Nitric oxide (NO)	0-1000ppm	0.1ppm	Ethanethiol (C2H5SH)	0-10mg/m3	0.01mg/m3
Nitric oxide (NO)	0-5000ppm	1ppm	Ethanol (C2H6O)	0-100%LEL

GTYQ-MIC-500S online gas detector functional features:

★ Adopt digital sensors, plug-in and unplug, intelligent identification, plug-and-play, calibration-free.

★ Sensor missing alarm, sensor life expiration warning.

★ Unit switching, units can be selected: ppm, %Vol, %LEL, pphm, ppb, mg/m3, μmol/mol, μg/m3,.

★4 key operation.

★ Open the cover-free operation device, support infrared remote control operation.

★ Optional magnetic bar touch.

★2.0-inch LCD color screen, optional LED highlight segment code display.

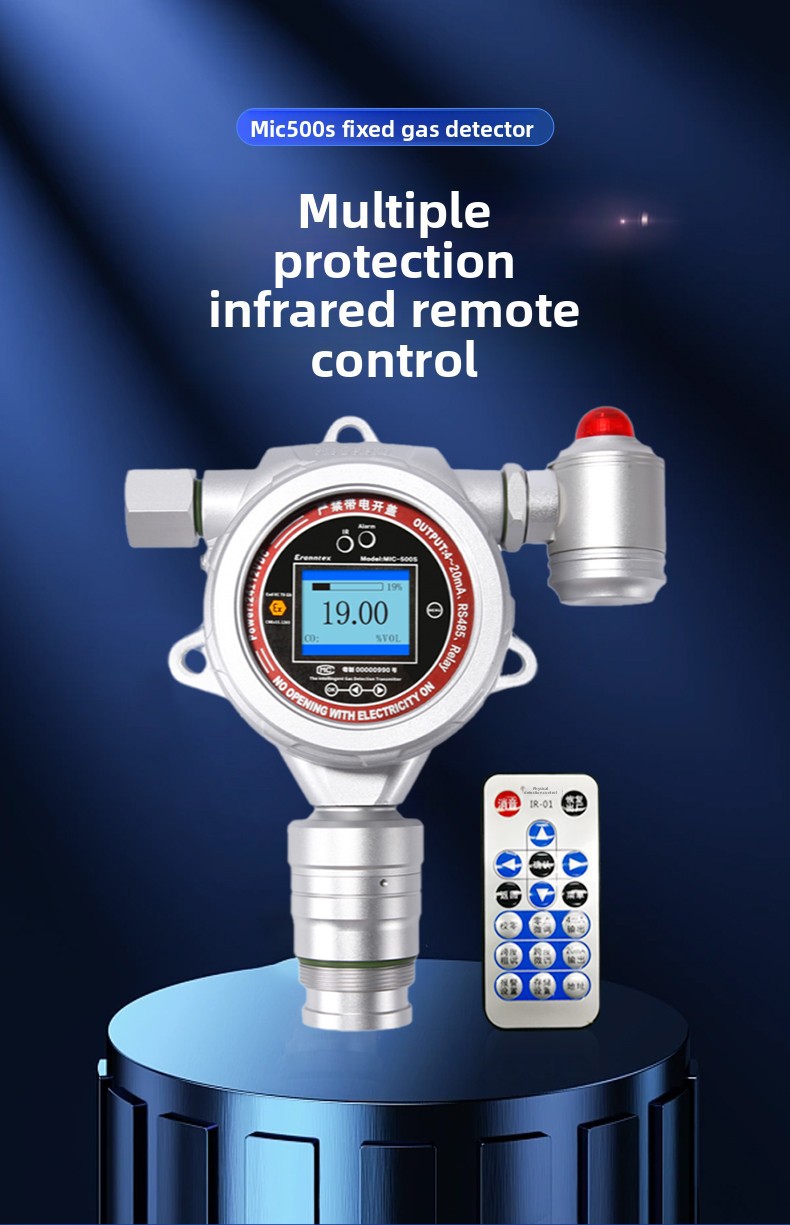

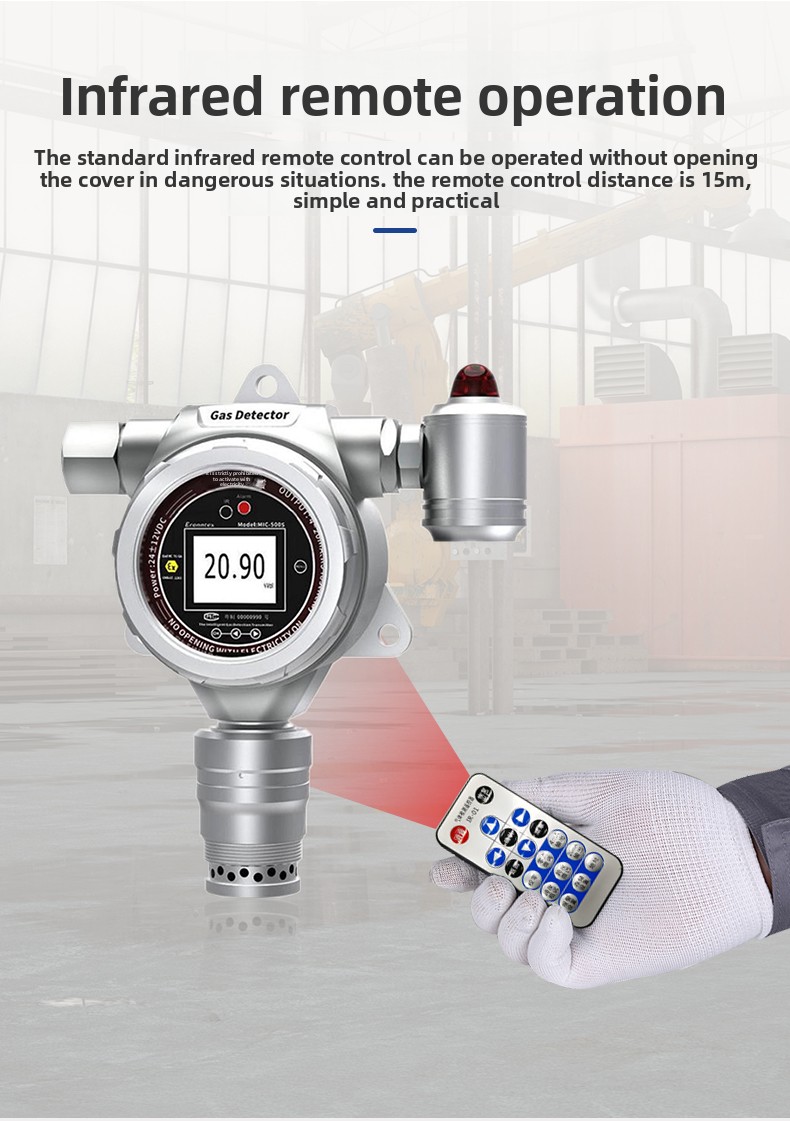

★ The standard infrared remote control can be operated without opening the cover in dangerous occasions, and the remote control distance is 15 meters.

★ Output signal: at the same time, it has a three-wire system of 4~20mA, relay (panssive switching volume), RS485.

★ Data storage, the storage capacity is more than 100,000 pieces.

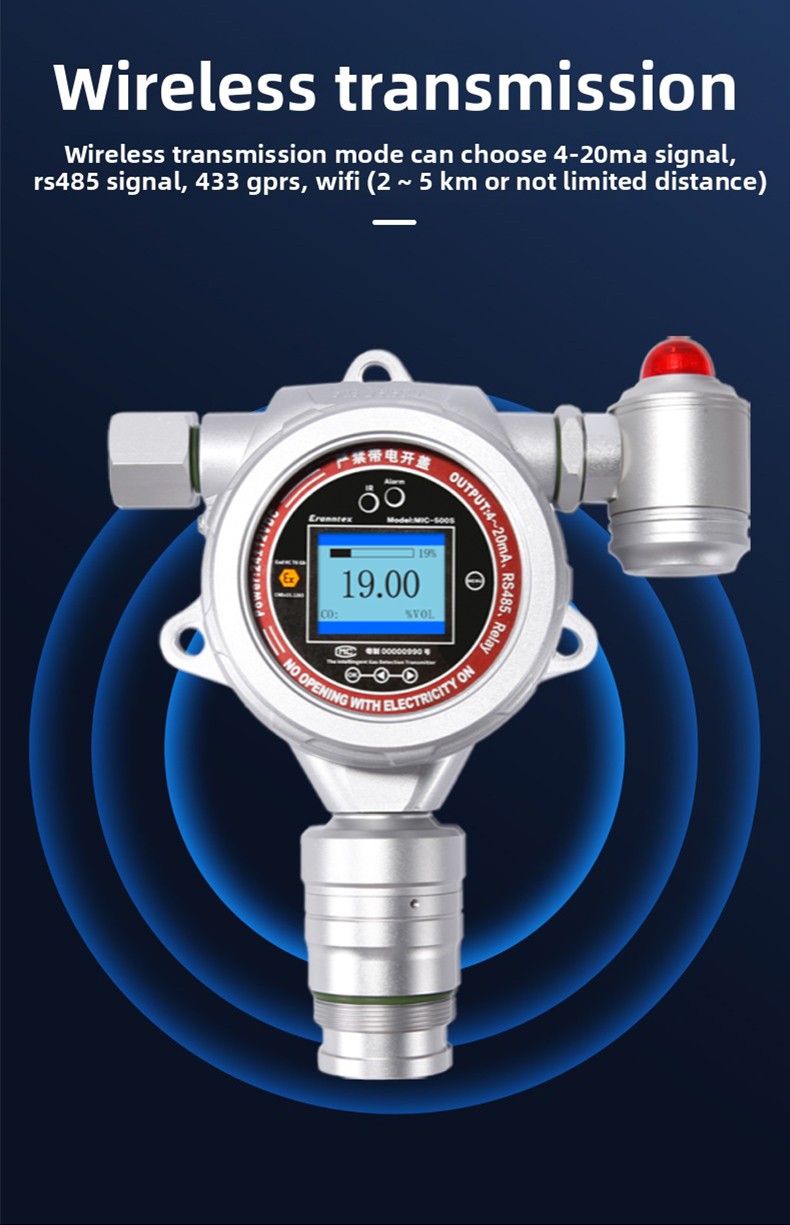

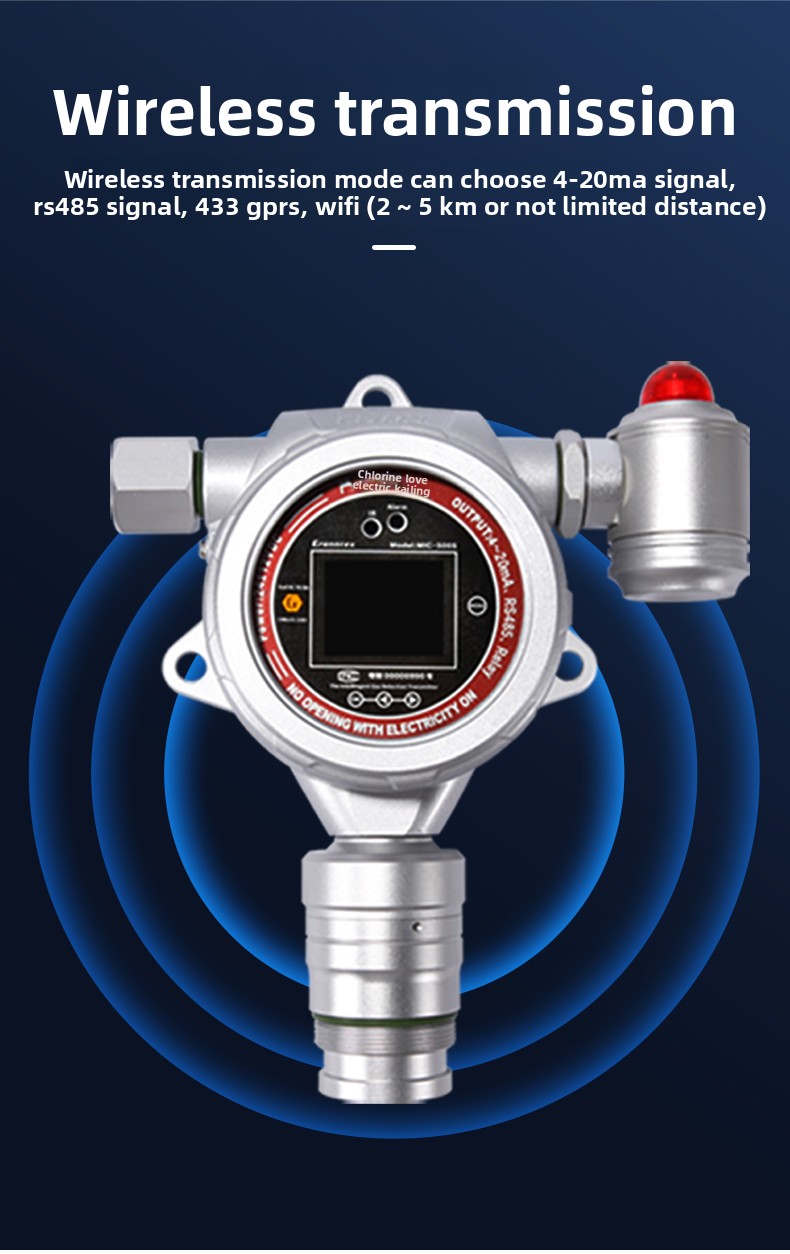

★ Optional wireless transmission: support LORA/LoraWAN, 4G, NB-IOT and other ways;

★ Optional Hart protocol communication.

★ Support remote maintenance.

★ Data recovery function, partially or all of the factory data is restored.

★LCD color screen can display: maximum value, minimum value, weighted average display, real-time curve, bar chart, list display, etc.

★ Multi-level alarm point setting, the alarm can be turned off, and different alarm outputs are notWith the same alarm sound, distinguish the alarm volume and frequency

Alarm types: concentration alarm, fault alarm.

Alarm mode: low alarm, high alarm, interval alarm, TWA/STEL alarm.

★ Misoperation recognition function.

★ Zero-point automatic tracking.

★ Target point multi-level calibration.

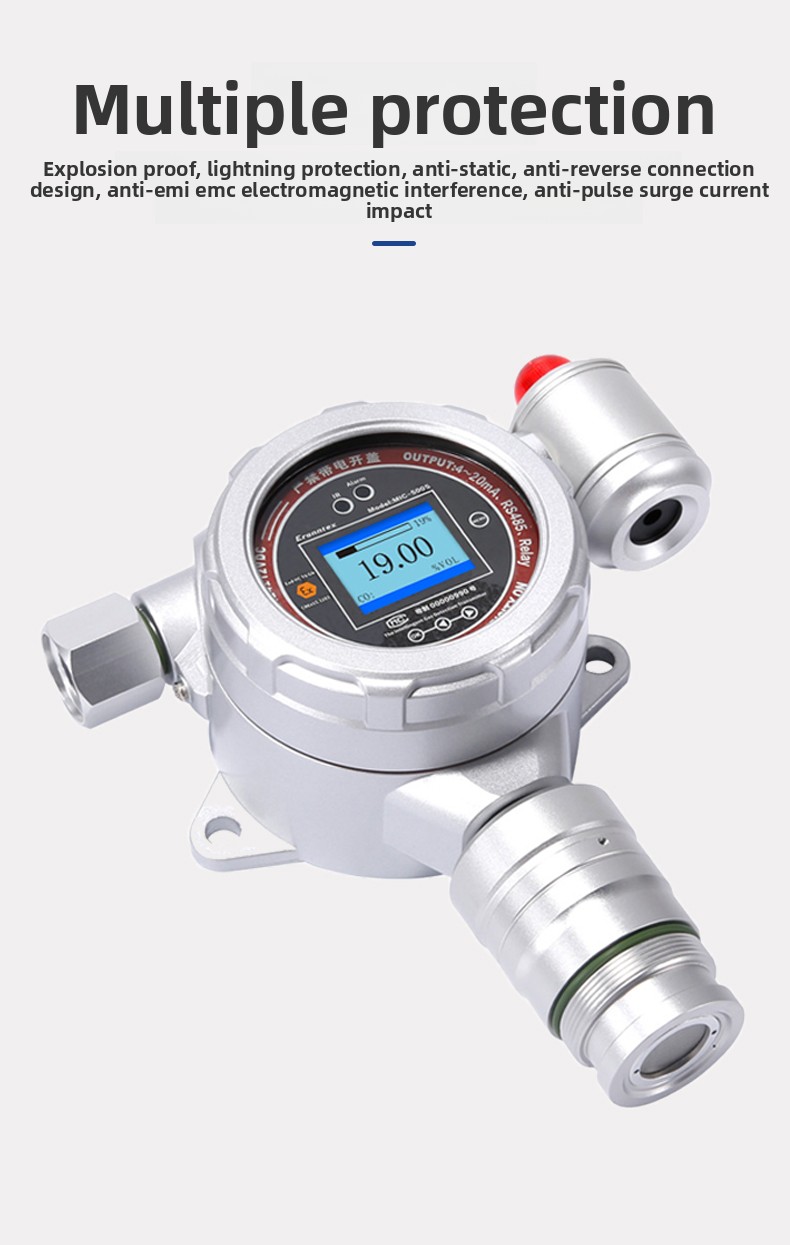

★ Benan circuit design, explosion-proof, anti-vibration, anti-static, anti-radiation.

★Executive standard:

GB 15322.1-2019 "Combustible Gas Detector Part 1: Industrial and Commercial Point-type Flammable Gas Detector"

GB 3836.1-2021 "General Requirements for Electrical Equipment for Explosive Gas Environments"

GB 3836.2-2021 "Electrical Equipment for Explosive Gas Environment Part 2: Explosion-proof "d""

GB12358-2024 "Worksite Environmental Gas Detection Alarm Use technical requirements"

Product HighlightsNew process formula enhances performance to meet stricter application requirements

High PrecisionUp to ±0.1%FS (varies by gas type)
Wireless ConnectivityOptional wireless communication for real-time data monitoring
Advanced ProtectionIP67+ protection level
Explosion-proof DesignHigh shock and explosion resistance
Anti-interference DesignAnti-static and electromagnetic interference
HD Color DisplayComprehensive and clear information display
Large Capacity StorageMassive data storage
Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations
