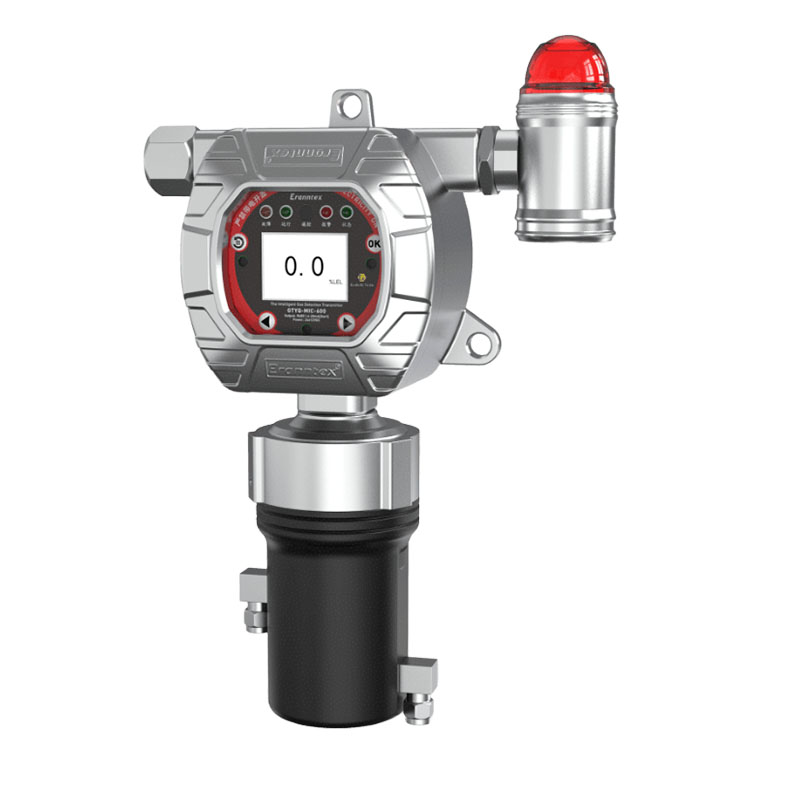

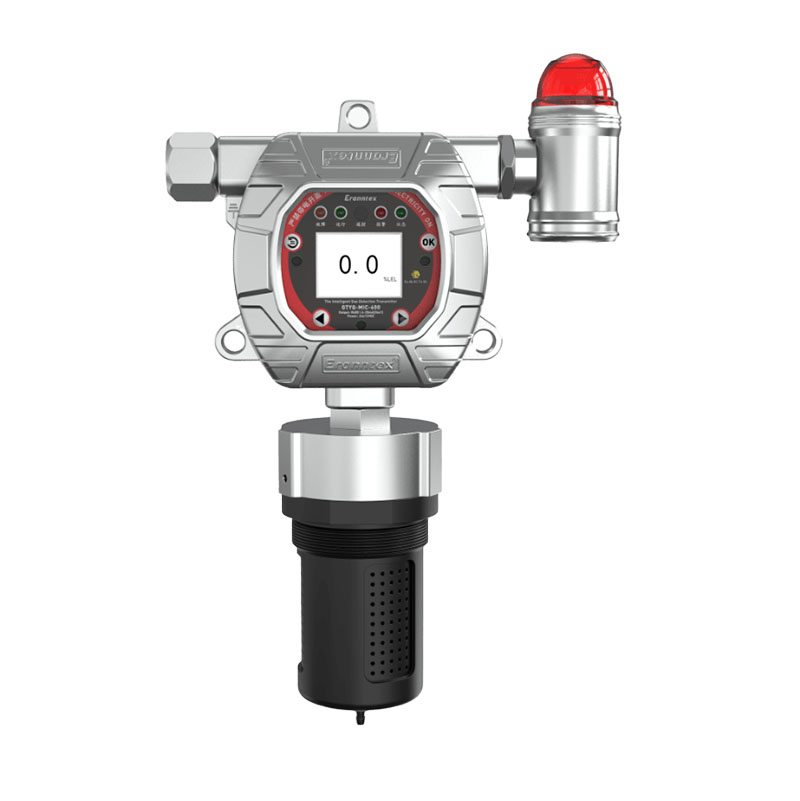

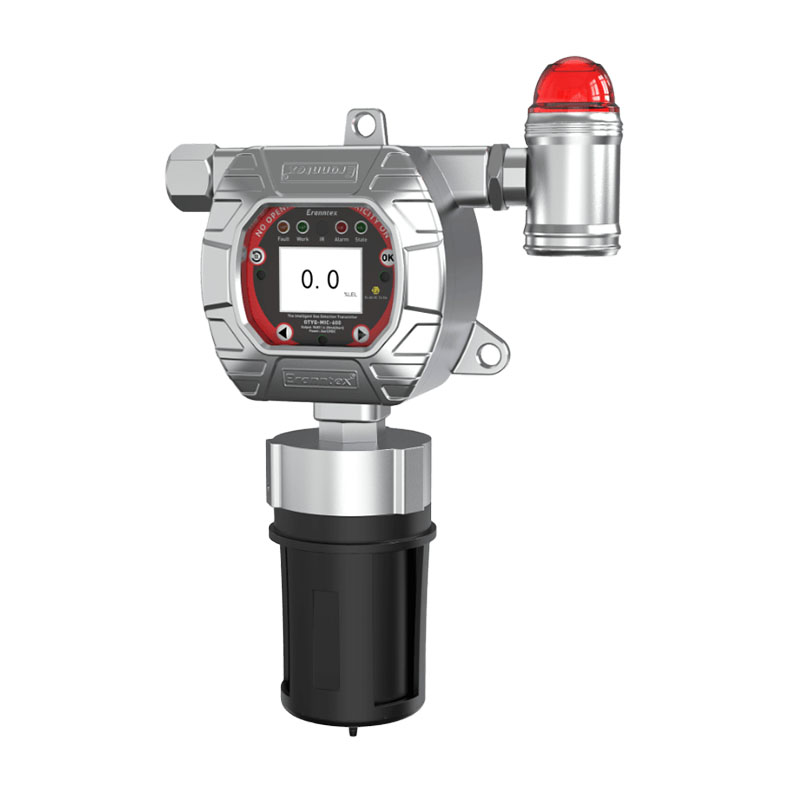

Dual-light infrared flammable gas detector GTYQ-MIC-600-IR2

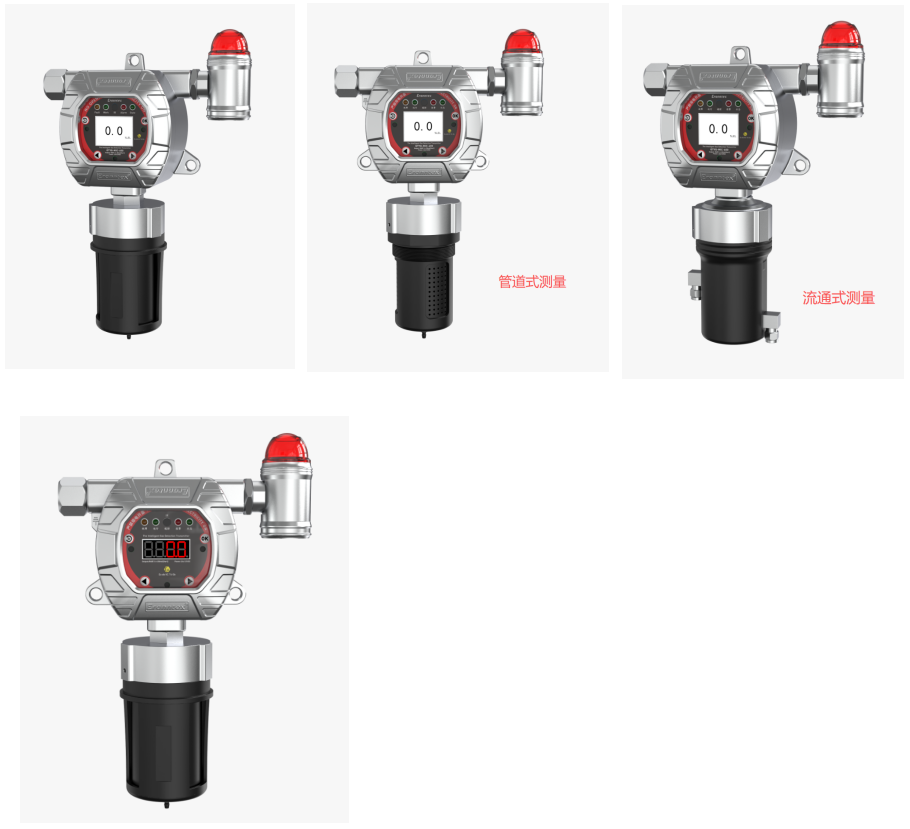

Detection Method: Diffusion measurement, optional: circulation, pipeline

Detection Gas:

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range: 0-100%LEL, 0-5%Vol, 0-10000ppm

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Download Manual Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item Parameter
Detection Gas Hydrocarbons, vapors, VOCs, etc.
Product Features The open long-light road gas chamber design effectively reduces the adhesion of dust and water vapor, and at the same time facilitates on-site maintenance. The probe material is 316L stainless steel. The dual light sources are designed to be redundant to each other, with a service life of ten years. The optical window of the detection host and sensor has a constant temperature heating function, which is suitable for extremely cold areas to avoid the impact of rain, snow and condensation.
Detection Range 0-100%LEL, 0-5%Vol, 0-10000ppm
Resolution 1%LEL, 0.01%Vol, 50ppm
Typical Accuracy ≤±2% FS (optional higher-precision sensor)
Detection Method Diffusion measurement, optional: circulation, pipeline
Display 2.0-inch LCD color screen, optional: LED highlight segment code display
Power Supply 12~36v (DC), a single standard power supply is 24V, 2A or greater than 2A DC switching power supply, regulated voltage power supply
Maximum Power Consumption
Operating Environment Temperature: -40℃~+80℃, customizable-60℃~+80℃; relative humidity: 10-95%RH
Data Storage Storage capacity of more than 100,000
Printing Function
Signal Output At the same time, it has a three-wire system of 4~20mA, relay (passive switching volume), RS485.
Alarm Method Low alarm, high alarm, interval alarm, TWA/STEL alarm
Fall Alarm
Wireless Transmission Support LORA/LoraWAN, 4G, NB-IOT and other methods
Dimensions: L*W*H Shell size: 240×170×90mm or 240×230×90 (including sound and light alarm) (L×W×H)
Weight About 2.5Kg
Protection Level IP66, customizable IP67
Standard Accessories Remote control, instruction manual, qualification certificate, warranty card
Optional Accessories Magnetic bar pen, all-in-one sound and light alarm, split sound and light alarm, 24V DC regulated voltage power supply, accessories connected to computer monitoring: upper computer software, RS485/RS232 converter, USB/RS232 conversion cable, TCP/IP converter.
≤30 seconds
Partial list of detectable gases:
Detect gases Range Maximum allowable error value Minimum reading Response time T90
Combustible Gas (EX) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤10 seconds
Combustible Gas (EX) 0-100%Vol ＜±2%(F.S) 0.1%Vol ≤10 seconds
Methane (CH4) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤10 seconds
Methane (CH4) 0-100%Vol ＜±2%(F.S) 0.1%Vol ≤10 seconds
Oxygen (O2) 0-30%Vol ＜±2%(F.S) 0.01%Vol ≤10 seconds
Oxygen (O2) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤10 seconds
Oxygen (O2) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Nitrogen (N2) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤10 seconds
Carbon monoxide (CO) 0-100ppm ＜±2%(F.S) 0.1ppm ≤25 seconds
Carbon monoxide (CO) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤25 seconds
Carbon monoxide (CO) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤25 seconds
Carbon monoxide (CO) 0-20000ppm ＜±2%(F.S) 1ppm ≤25 seconds
Carbon monoxide (CO) 0-100000ppm ＜±2%(F.S) 1ppm ≤25 seconds
Carbon dioxide (CO2) 0-500ppm ＜±2%(F.S) 1ppm ≤20 seconds
Carbon dioxide (CO2) 0-2000ppm ＜±2%(F.S) 1ppm ≤20 seconds
Carbon dioxide (CO2) 0-5000ppm ＜±2%(F.S) 1ppm ≤20 seconds
Carbon dioxide (CO2) 0-50000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Carbon dioxide (CO2) 0-20%Vol ＜±2%(F.S) 0.01%Vol ≤30 seconds
Carbon dioxide (CO2) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤30 seconds
Formaldehyde (CH2O) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Formaldehyde (CH2O) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Formaldehyde (CH2O) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Formaldehyde (CH2O) 0-5000ppm ＜±2%(F.S) 1ppm ≤50 seconds
Ozone (O3) 0-1ppm ＜±2%(F.S) 0.001ppm ≤20 seconds
Ozone (O3) 0-5ppm ＜±2%(F.S) 0.001ppm ≤20 seconds
Ozone (O3) 0-50ppm ＜±2%(F.S) 0.01ppm ≤20 seconds
Ozone (O3) 0-100ppm ＜±2%(F.S) 0.01ppm ≤20 seconds
Ozone (O3) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Ozone (O3) 0-30000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Hydrogen sulfide (H2S) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Hydrogen sulfide (H2S) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen sulfide (H2S) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen sulfide (H2S) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Hydrogen sulfide (H2S) 0-10000ppm ＜±2%(F.S) 1ppm ≤45 seconds
Sulfur dioxide (SO2) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Sulfur dioxide (SO2) 0-20ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Sulfur dioxide (SO2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Sulfur dioxide (SO2) 0-500ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Sulfur dioxide (SO2) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Sulfur dioxide (SO2) 0-10000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Nitric oxide (NO) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Nitric oxide (NO) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Nitric oxide (NO) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Nitric oxide (NO) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Nitrogen dioxide (NO2) 0-10ppm ＜±2%(F.S) 0.001ppm ≤25 seconds
Nitrogen dioxide (NO2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤25 seconds
Nitrogen dioxide (NO2) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Nitrogen dioxide (NO2) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Nitrogen oxides (NOX) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Nitrogen oxides (NOX) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Nitrogen oxides (NOX) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Nitrogen oxides (NOX) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Chlorine (CL2) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Chlorine (CL2) 0-20ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Chlorine (CL2) 0-200ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Chlorine (CL2) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Ammonia (NH3) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ammonia (NH3) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ammonia (NH3) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Ammonia (NH3) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Ammonia (NH3) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤10 seconds
Hydrogen (H2) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤10 seconds
Hydrogen (H2) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Hydrogen (H2) 0-20000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Hydrogen (H2) 0-40000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Hydrogen (H2) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤20 seconds
Helium (He) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤20 seconds
Argon (Ar) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤20 seconds
Xenon (Xe) 0-100%Vol ＜±2%(F.S) 0.01%Vol ≤20 seconds
Hydrogen cyanide (HCN) 0-30ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen cyanide (HCN) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen chloride (HCL) 0-20ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen chloride (HCL) 0-200ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Phosphine (PH3) 0-5 ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Phosphine (PH3) 0-25 ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Phosphine (PH3) 0-2000 ppm ＜±2%(F.S) 1ppm ≤30 seconds
Chlorine dioxide (CLO2) 0-1ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Chlorine dioxide (CLO2) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Chlorine dioxide (CLO2) 0-200ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ethylene oxide (ETO) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ethylene oxide (ETO) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Ethylene oxide (ETO) 0-100%LEL ＜±2%(F.S) 1%LEL ≤30 seconds
Phosgene (COCL2) 0-1ppm ＜±2%(F.S) 0.001ppm ≤20 seconds
Phosgene (COCL2) 0-50ppm ＜±2%(F.S) 0.01ppm ≤20 seconds
Silane (SiH4) 0-1ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Silane (SiH4) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Fluorine (F2) 0-1ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Fluorine (F2) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Fluorine (F2) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen fluoride (HF) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen fluoride (HF) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen bromide (HBr) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Diborane (B2H6) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Arsine (AsH3) 0-1ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Arsine (AsH3) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Arsine (AsH3) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Germane (GeH4) 0-2ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Germane (GeH4) 0-20ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrazine (N2H4) 0-1ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Hydrazine (N2H4) 0-300ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Tetrahydrothiophene (THT) 0-100mg/m3 ＜±2%(F.S) 0.01 mg/m3 ≤60 seconds
Bromine (Br2) 0-10ppm ＜±2%(F.S) 0.001ppm ≤30 seconds
Bromine (Br2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Bromine (Br2) 0-2000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Acetylene (C2H2) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤30 seconds
Acetylene (C2H2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Acetylene (C2H2) 0-1000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Ethylene (C2H4) 0-100%LEL ＜±2%(F.S) 0.1%LEL ≤30 seconds
Ethylene (C2H4) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ethylene (C2H4) 0-2000ppm ＜±2%(F.S) 0.1ppm ≤30 seconds
Acetaldehyde 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ethanol (C2H6O) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Ethanol (C2H6O) 0-2000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Methanol (CH4O) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Methanol (CH4O) 0-2000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Carbon disulfide (CS2) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Carbon disulfide (CS2) 0-5000ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Acrylonitrile (C3H3N) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Acrylonitrile (C3H3N) 0-2000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Methylamine (CH5N) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Iodine (I2) 0-50ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Styrene (C8H8) 0-200ppm ＜±2%(F.S) 0.1ppm
Styrene (C8H8) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Vinyl chloride (C2H3Cl) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Trichloroethylene (C2HCl3) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Tetrachloroethylene (C2Cl4) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Nitrous oxide (N2O) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Nitrogen trifluoride (NF3) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Hydrogen peroxide (H2O2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Methyl bromide (CH3Br) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Methyl bromide (CH3Br) 0-30000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Methyl bromide (CH3Br) 0-200g/m3 ＜±2%(F.S) 0.1g/m3 ≤30 seconds
Sulfuryl fluoride (SO2F2) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Sulfuryl fluoride (SO2F2) 0-5000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Sulfuryl fluoride (SO2F2) 0-10000ppm ＜±2%(F.S) 1ppm ≤30 seconds
Benzene (C6H6) 0-10ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Benzene (C6H6) 0-100ppm ＜±2%(F.S) 0.01ppm ≤30 seconds
Benzene (C6H6) 0-2000ppm ＜±2%(F.S) 1ppm ≤30 seconds


GTYQ-MIC-600-IR2 dual-optical infrared flammable gas detectorFunctional features:



★ The open long-light road gas chamber design effectively reduces the adhesion of dust and water vapor, and is convenient for on-site maintenance. The probe material is 316L stainless steel.

★ Dual light sources are mutually redundant design, with a service life of ten years.

★ The optical window of the detection host and sensor has a constant temperature heating function, which is suitable for extremely cold areas to avoid the influence of rain, snow and condensation.

★ Unit switching, units can be selected: %Vol, %LEL.

★4 key operation.

★Infrared remote control operation.

★ Support magnetic bar touch, operate the device without opening the lid.

★LCD color screen, optional LED highlight segment code display.

★ The standard infrared remote control can be operated without opening the cover in dangerous occasions, and the remote control distance is 15 meters.

★ Output signal: at the same time, it has three-wire system 4~20mA, relay (panssive switching volume), RS485.

★ Data storage, with a storage capacity of more than 100,000 pieces.

★ Optional wireless transmission: support LORA/LoraWAN, 4G, NB-IOT and other methods;

★ Optional Hart protocol communication.

★ Support remote maintenance and remote upgrade.

★ Data recovery function, partially or all of the factory data is restored.

★LCD color screen can display: maximum value, minimum value, weighted average display, real-time curve, bar chart, list display, etc.

★ Multi-level alarm point setting, the alarm can be turned off, different alarm output different alarm sounds can be set, distinguish the alarm volume and frequency

Alarm types: concentration alarm, fault alarm.

Alarm mode: low alarm, high alarm, interval alarm, TWA/STEL alarm.

★ Misoperation recognition function.

★ Zero-point automatic tracking.

★ Target point multi-level calibration.

★ Benan circuit design, explosion-proof, anti-vibration, anti-static, anti-radiation.

★Executive Standards:

GB 15322.1-2019  Combustible Gas Detector Part 1Division: Point-type combustible gas detector for industrial and commercial use

GB 3836.1-2021 General Requirements for Electrical Equipment in Explosive Gas Environments

GB 3836 .2-2021 "Electrical Equipment for Explosive Gas Environment Part 2: Explosion-proof "d""

GB12358-2024   "General Technical Requirements for Workplace Environmental Gas Detection Alarm"


GTYQ-MIC-600-IR2Dual-optical infrared flammable gas detectorShape diagram:



Product HighlightsNew process formula enhances performance to meet stricter application requirements

  • High PrecisionUp to ±0.1%FS (varies by gas type)
  • Wireless ConnectivityOptional wireless communication for real-time data monitoring
  • Advanced ProtectionIP67+ protection level
  • Explosion-proof DesignHigh shock and explosion resistance
  • Anti-interference DesignAnti-static and electromagnetic interference
  • HD Color DisplayComprehensive and clear information display
  • Large Capacity StorageMassive data storage
  • Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations

← Swipe left/right to view full content →

Complete Certifications, Reliable Quality

Trusted Manufacturer

Trusted Manufacturer

Wide Applications Across 20+ Industries

Trusted by 5000+ Industry Leaders

Service Guarantee

  • Selection Guidance

    Recommend suitable products based on extensive technical experience

  • Customization

    Provide customized solutions based on specific requirements

  • Quality Guarantee

    1-year warranty and lifetime maintenance for all products

  • Application Support

    Professional engineers provide installation, training and expansion support

19+ Years of Industry-leading Brand

Eranntian, founded in 2006, is a national high-tech enterprise integrating design, R&D, production and sales. Our R&D team includes over 30 senior engineers with strong development capabilities, investing over 17% of annual revenue in technological innovation. We maintain long-term collaborations with 14 universities including Tsinghua University, Sichuan University, Xi'an Jiaotong University, Qingdao University of Technology, and Central South University.

  • 2006

    Eranntian established

  • 30+

    Senior R&D engineers

  • 14

    Partner universities

  • 100+

    Patents & achievements

Strong Production Capacity Ensures Fast Delivery

  • 4000㎡

    Production base

  • 80+

    Professional production team

  • 8000+

    Units/month capacity

  • 10000+

    Equipment parts in stock

  • 24 hours

    Fast sample delivery

  • 12 hours

    Standard product delivery

Application CasesMore+

Professional engineer

24-hour online serviceSubmit your needs and quickly recommend the right products for you

13480931872

"Personal Information and Privacy Protection Terms"
