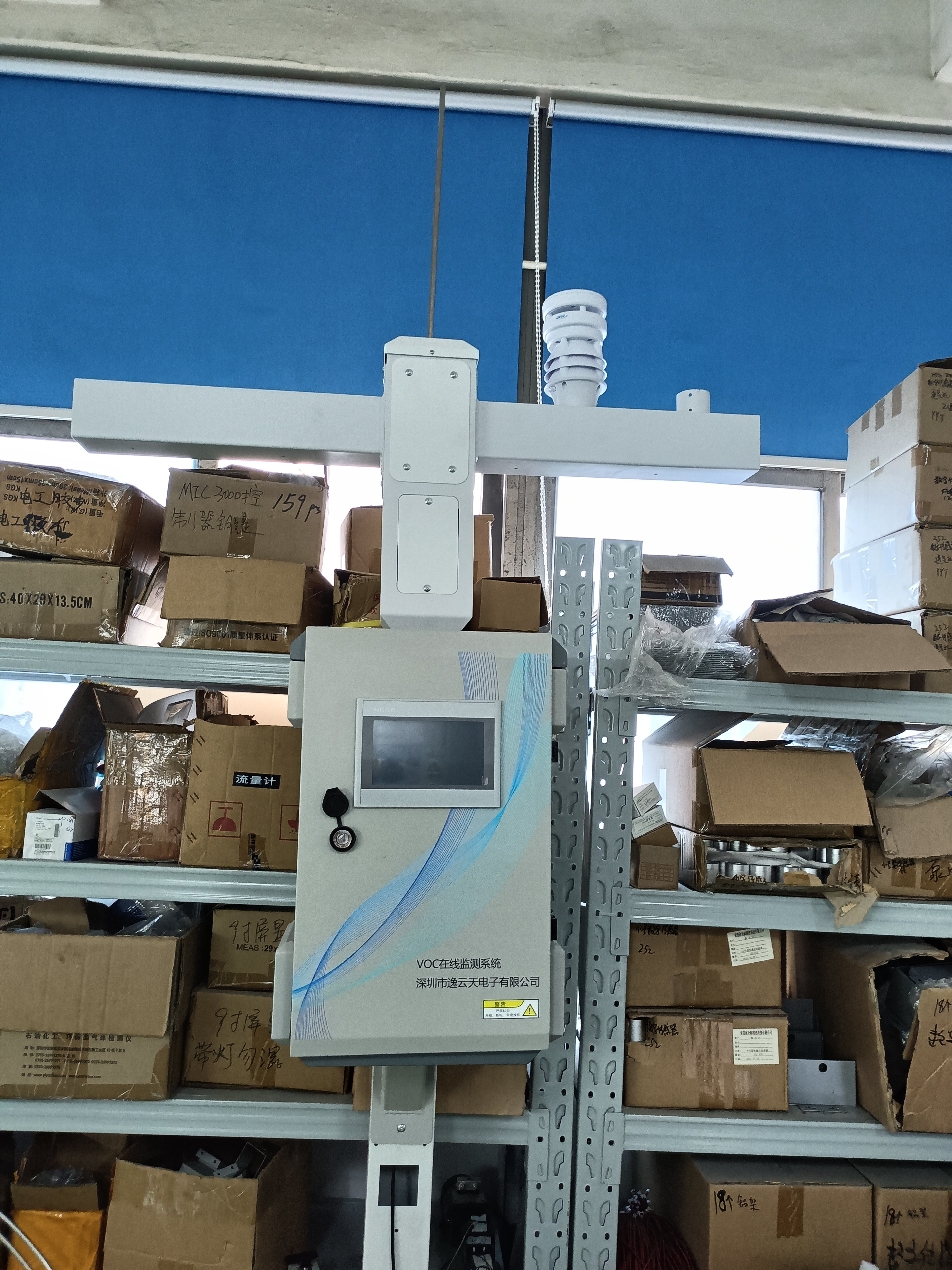

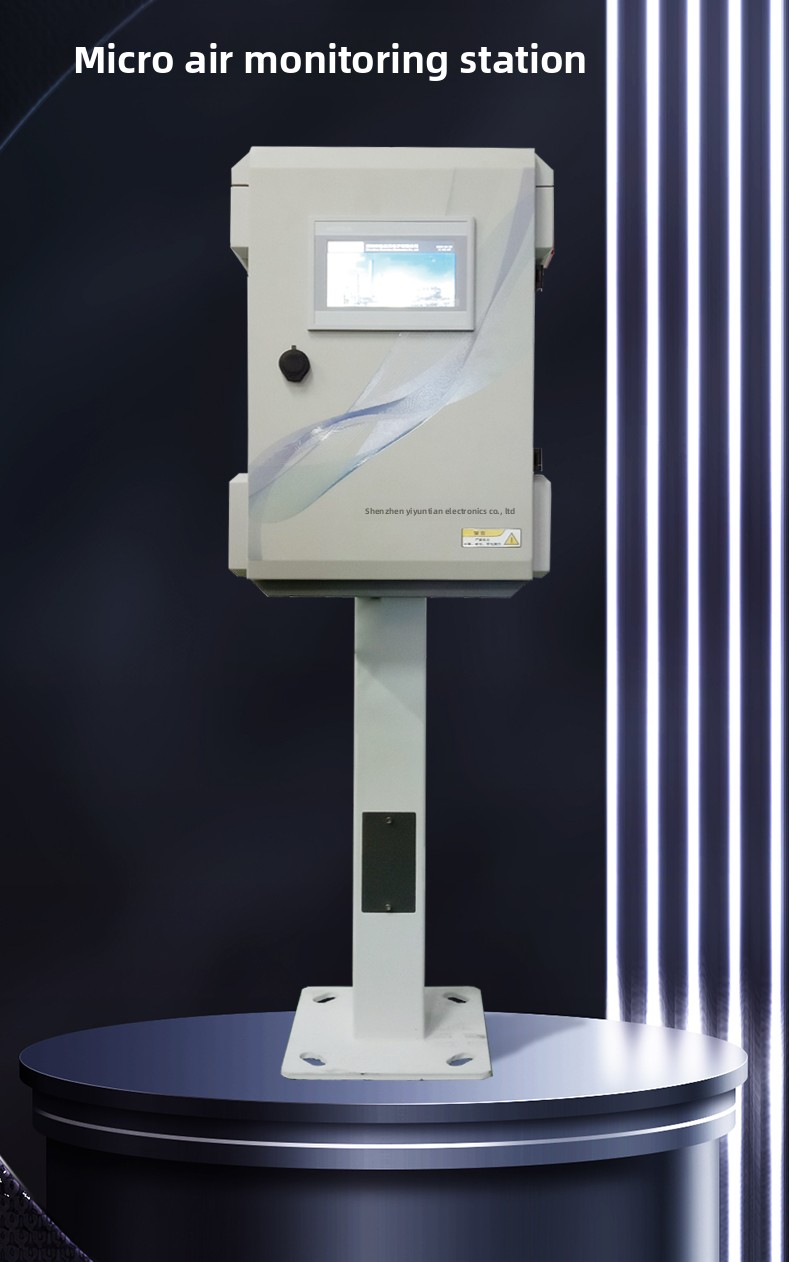

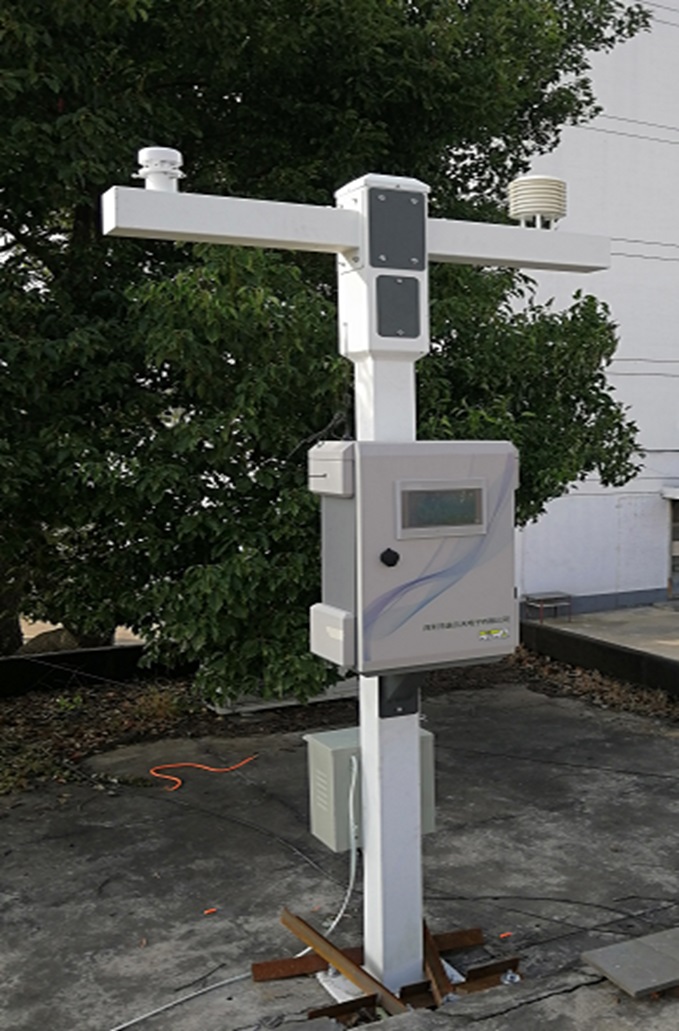

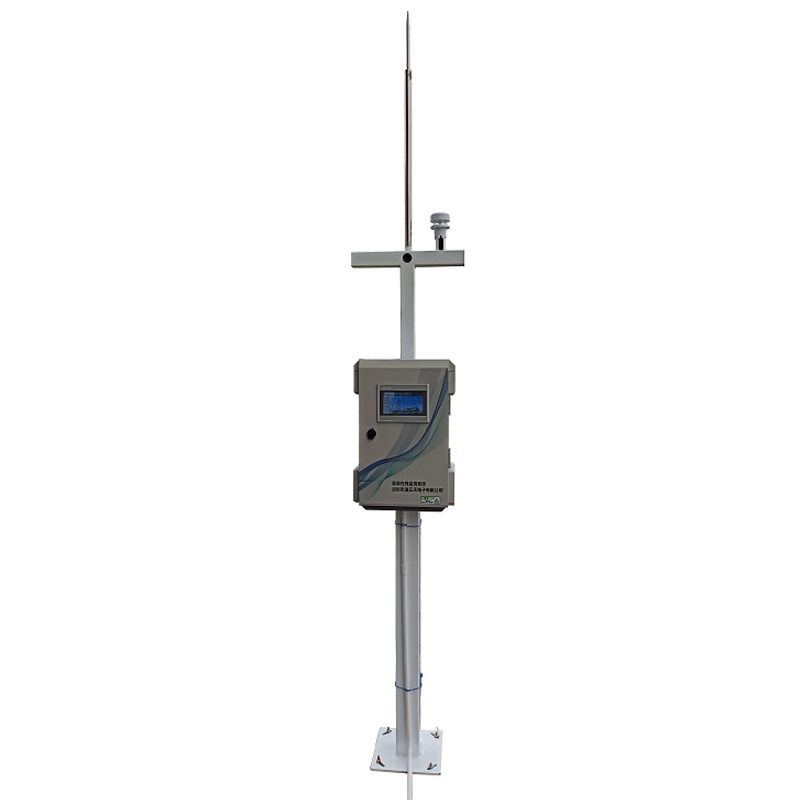

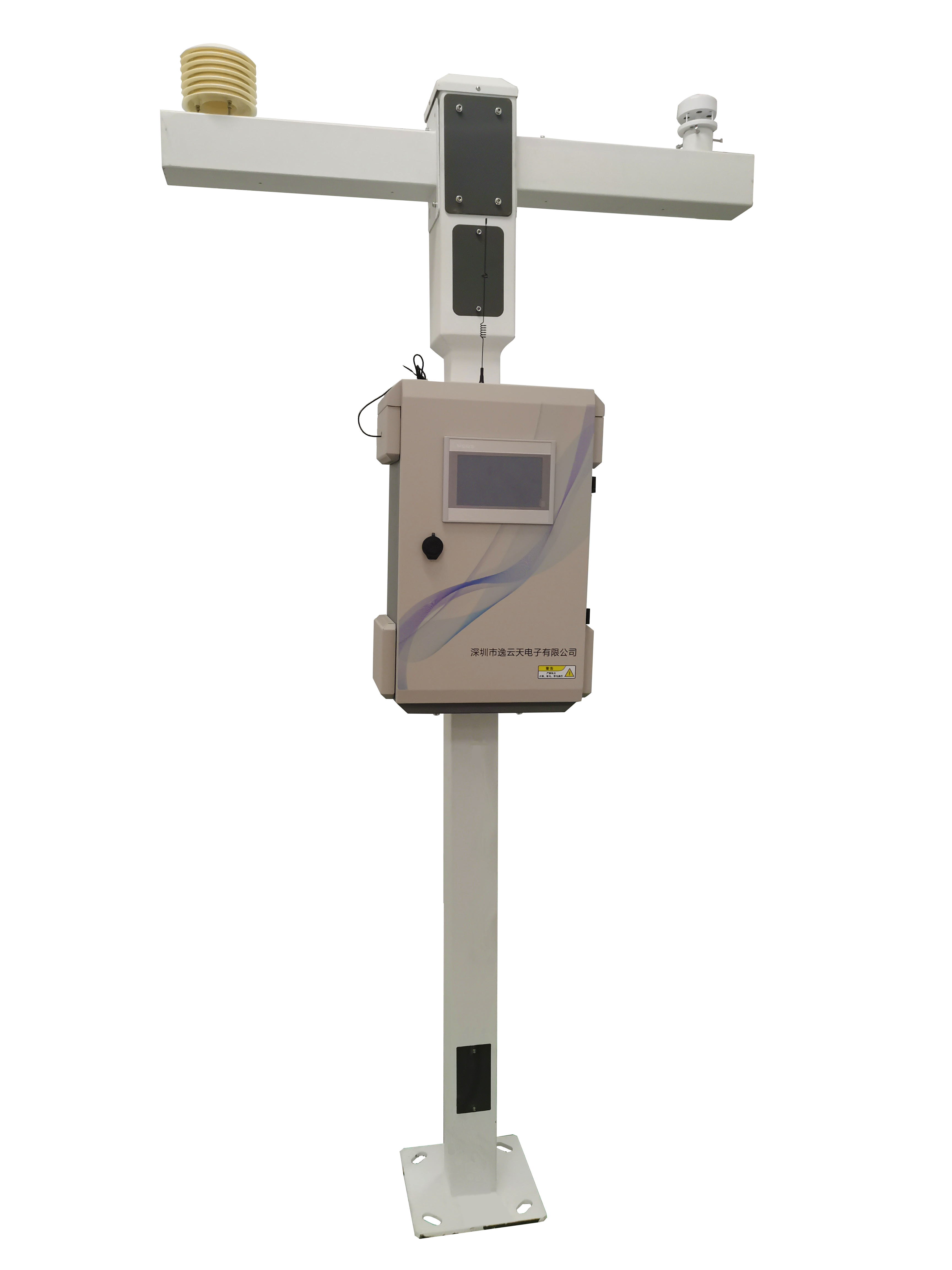

Micro Air Station Online Monitoring System TH-2000-A

Detection Method: Online continuous work, pump suction sampling (positive pressure, negative pressure environment)

Detection Gas: Laser dust PM2.5 Carbon dioxide (infrared) CO2 Flammable instrument Ex Flammable (infrared) Ex METHane CH4 Methane (infrared) CH4 Methane (Laser TDLAS) CH4 Ethane (Infrared) C2H6 Propane (Infrared) C3H8 Non-Methane Total Hydrocarbons CxHyCarbon Monoxide CO Carbon Monoxide (Infrared) CO Hydrogen Sulfide H2S Oxygen O2 Ammonia NH3 Chlorine CL2 Hydrogen H2 Formaldehyde CH2O Ozone O3 Nitrogen Oxide NO Nitrogen Dioxide NO2 Nitrogen Oxides NO_x Sulfur Dioxide SO2 Ethylene Oxide ETOPhosphine PH3 Hydrogen Chloride HCl Hydrogen Cyanide HCN Phosgene COCl2 Chlorine Dioxide ClO2 Silane SiH4 Bromomethane (PID) CH3Br Fluorine F2 Hydrogen fluoride HF Hydrogen bromide HBr Boron hydride B2H6 Arsenic hydride AsH3 Germanium hydrage GeH4Hydrazine N2H4 Hydrazine N2H4 Methyl sulfide C2H6S Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyl disulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range: Customization

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Download Manual Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item Parameter
Detection Gas SO2, NO2, O3, CO, VOC and other types of gases, other gases can be selected, such as NO, O2, CH4, CO2, NH3, H2S, etc., and can also detect PM2.5, PM10, TSP, wind speed, wind direction, atmospheric pressure, temperature and humidity, rainfall, illuminance, noise, etc. Meteorological parameters, selected according to customer requirements
Product Features 1. Micro air monitoring station
2. Support LORA, NB-IOT, 4G/5G
3. Monitor the air quality and upload the data to the Environmental Protection Bureau
Detection Range
Resolution
Typical Accuracy Not have
Detection Method Online continuous work, pump suction sampling (positive pressure, negative pressure environment)
Display 7-inch touch color screen display
Power Supply 220VAC, 50HZ
Maximum Power Consumption Not have
Operating Environment - 40℃～+70℃, ≤95%RH
Data Storage 100,000 pieces of data, optional 16G large-capacity SD memory card, USB flash drive storage
Printing Function No printing function, optional wireless Bluetooth printer for printing

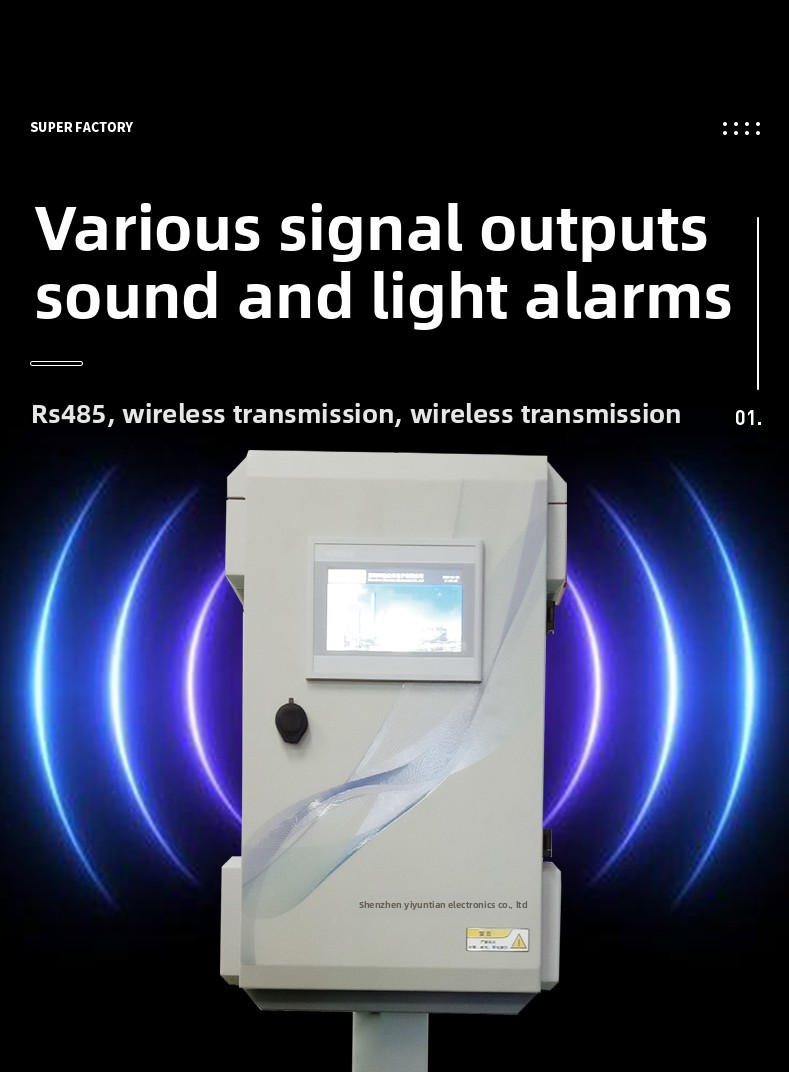

Signal Output 4~20mA, RS485, multiplex passive contacts, optional: wireless transmission 433, LORA, GPRS, NB-LOT, network transmission, etc.
Alarm Method Optional external sound and light alarm light
Fall Alarm Not have
Wireless Transmission Optional: LoRa/433M/4G/NB-IOT
Dimensions: L*W*H 500*340*800 (L*W*H)
Weight 40 kilograms
Protection Level Outdoor waterproof type, optional explosion-proof type
Standard Accessories Instruments, instructions, warranty cards, qualification certificates
Optional Accessories Match according to the situation

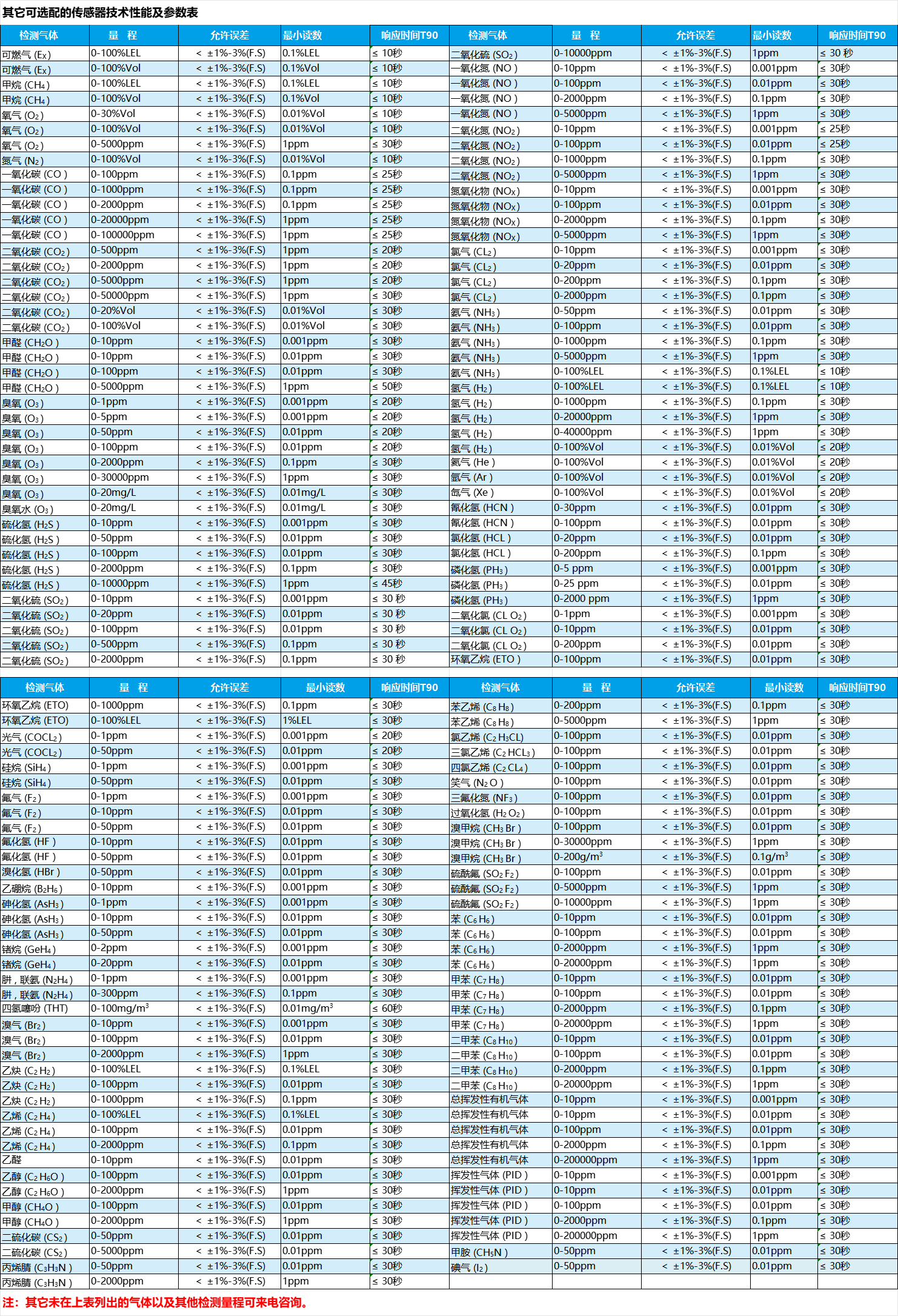

Partial list of detectable gases:
Detect gasesRangeMaximum allowable error valueMinimum readingResponse time T90
Combustible Gas (EX)0-100%LEL＜±2%(F.S)0.1%LEL≤10 seconds
Combustible Gas (EX)0-100%Vol＜±2%(F.S)0.1%Vol≤10 seconds
Methane (CH4)0-100%LEL＜±2%(F.S)0.1%LEL≤10 seconds
Methane (CH4)0-100%Vol＜±2%(F.S)0.1%Vol≤10 seconds
Oxygen (O2)0-30%Vol＜±2%(F.S)0.01%Vol≤10 seconds
Oxygen (O2)0-100%Vol＜±2%(F.S)0.01%Vol≤10 seconds
Oxygen (O2)0-5000ppm＜±2%(F.S)1ppm≤30 seconds
Nitrogen (N2)0-100%Vol＜±2%(F.S)0.01%Vol≤10 seconds
Carbon monoxide (CO)0-100ppm＜±2%(F.S)0.1ppm≤25 seconds
Carbon monoxide (CO)0-1000ppm＜±2%(F.S)0.1ppm≤25 seconds
Carbon monoxide (CO)0-2000ppm＜±2%(F.S)0.1ppm≤25 seconds
Carbon monoxide (CO)0-20000ppm＜±2%(F.S)1ppm≤25 seconds
Carbon monoxide (CO)0-100000ppm＜±2%(F.S)1ppm≤25 seconds
Carbon dioxide (CO2)0-500ppm＜±2%(F.S)1ppm≤20 seconds
Carbon dioxide (CO2)0-2000ppm＜±2%(F.S)1ppm≤20 seconds
Carbon dioxide (CO2)0-5000ppm＜±2%(F.S)1ppm≤20 seconds
Carbon dioxide (CO2)0-50000ppm＜±2%(F.S)1ppm≤30 seconds
Carbon dioxide (CO2)0-20%Vol＜±2%(F.S)0.01%Vol≤30 seconds
Carbon dioxide (CO2)0-100%Vol＜±2%(F.S)0.01%Vol≤30 seconds
Formaldehyde (CH2O)0-10ppm＜±2%(F.S)0.001ppm≤30 seconds
Formaldehyde (CH2O)0-10ppm＜±2%(F.S)0.01ppm≤30 seconds
Formaldehyde (CH2O)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Formaldehyde (CH2O)0-5000ppm＜±2%(F.S)1ppm≤50 seconds
Ozone (O3)0-1ppm＜±2%(F.S)0.001ppm≤20 seconds
Ozone (O3)0-5ppm＜±2%(F.S)0.001ppm≤20 seconds
Ozone (O3)0-50ppm＜±2%(F.S)0.01ppm≤20 seconds
Ozone (O3)0-100ppm＜±2%(F.S)0.01ppm≤20 seconds
Ozone (O3)0-2000ppm＜±2%(F.S)0.1ppm≤30 seconds
Ozone (O3)0-30000ppm＜±2%(F.S)1ppm≤30 seconds
Hydrogen sulfide (H2S)0-10ppm＜±2%(F.S)0.001ppm≤30 seconds
Hydrogen sulfide (H2S)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Hydrogen sulfide (H2S)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Hydrogen sulfide (H2S)0-2000ppm＜±2%(F.S)0.1ppm≤30 seconds
Hydrogen sulfide (H2S)0-10000ppm＜±2%(F.S)1ppm≤45 seconds
Sulfur dioxide (SO2)0-10ppm＜±2%(F.S)0.001ppm≤30 seconds
Sulfur dioxide (SO2)0-20ppm＜±2%(F.S)0.01ppm≤30 seconds
Sulfur dioxide (SO2)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Sulfur dioxide (SO2)0-500ppm＜±2%(F.S)0.1ppm≤30 seconds
Sulfur dioxide (SO2)0-2000ppm＜±2%(F.S)0.1ppm≤30 seconds
Sulfur dioxide (SO2)0-10000ppm＜±2%(F.S)1ppm≤30 seconds
Nitric oxide (NO)0-10ppm＜±2%(F.S)0.001ppm≤30 seconds
Nitric oxide (NO)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Nitric oxide (NO)0-2000ppm＜±2%(F.S)0.1ppm≤30 seconds
Nitric oxide (NO)0-5000ppm＜±2%(F.S)1ppm≤30 seconds
Nitrogen dioxide (NO2)0-10ppm＜±2%(F.S)0.001ppm≤25 seconds
Nitrogen dioxide (NO2)0-100ppm＜±2%(F.S)0.01ppm≤25 seconds
Nitrogen dioxide (NO2)0-1000ppm＜±2%(F.S)0.1ppm≤30 seconds
Nitrogen dioxide (NO2)0-5000ppm＜±2%(F.S)1ppm≤30 seconds
Nitrogen oxides (NOX)0-10ppm＜±2%(F.S)0.001ppm≤30 seconds
Nitrogen oxides (NOX)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Nitrogen oxides (NOX)0-2000ppm＜±2%(F.S)0.1ppm≤30 seconds
Nitrogen oxides (NOX)0-5000ppm＜±2%(F.S)1ppm≤30 seconds
Chlorine (CL2)0-10ppm＜±2%(F.S)0.001ppm≤30 seconds
Chlorine (CL2)0-20ppm＜±2%(F.S)0.01ppm≤30 seconds
Chlorine (CL2)0-200ppm＜±2%(F.S)0.1ppm≤30 seconds
Chlorine (CL2)0-2000ppm＜±2%(F.S)0.1ppm≤30 seconds
Ammonia (NH3)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Ammonia (NH3)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Ammonia (NH3)0-1000ppm＜±2%(F.S)0.1ppm≤30 seconds
Ammonia (NH3)0-5000ppm＜±2%(F.S)1ppm≤30 seconds
Ammonia (NH3)0-100%LEL＜±2%(F.S)0.1%LEL≤10 seconds
Hydrogen (H2)0-100%LEL＜±2%(F.S)0.1%LEL≤10 seconds
Hydrogen (H2)0-1000ppm＜±2%(F.S)0.1ppm≤30 seconds
Hydrogen (H2)0-20000ppm＜±2%(F.S)1ppm≤30 seconds
Hydrogen (H2)0-40000ppm＜±2%(F.S)1ppm≤30 seconds
Hydrogen (H2)0-100%Vol＜±2%(F.S)0.01%Vol≤20 seconds
Helium (He)0-100%Vol＜±2%(F.S)0.01%Vol≤20 seconds
Argon (Ar)0-100%Vol＜±2%(F.S)0.01%Vol≤20 seconds
Xenon (Xe)0-100%Vol＜±2%(F.S)0.01%Vol≤20 seconds
Hydrogen cyanide (HCN)0-30ppm＜±2%(F.S)0.01ppm≤30 seconds
Hydrogen cyanide (HCN)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Hydrogen chloride (HCL)0-20ppm＜±2%(F.S)0.01ppm≤30 seconds
Hydrogen chloride (HCL)0-200ppm＜±2%(F.S)0.1ppm≤30 seconds
Phosphine (PH3)0-5 ppm＜±2%(F.S)0.001ppm≤30 seconds
Phosphine (PH3)0-25 ppm＜±2%(F.S)0.01ppm≤30 seconds
Phosphine (PH3)0-2000 ppm＜±2%(F.S)1ppm≤30 seconds
Chlorine dioxide (CLO2)0-1ppm＜±2%(F.S)0.001ppm≤30 seconds
Chlorine dioxide (CLO2)0-10ppm＜±2%(F.S)0.01ppm≤30 seconds
Chlorine dioxide (CLO2)0-200ppm＜±2%(F.S)0.01ppm≤30 seconds
Ethylene oxide (ETO)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Ethylene oxide (ETO)0-1000ppm＜±2%(F.S)0.1ppm≤30 seconds
Ethylene oxide (ETO)0-100%LEL＜±2%(F.S)1%LEL≤30 seconds
Phosgene (COCL2)0-1ppm＜±2%(F.S)0.001ppm≤20 seconds
Phosgene (COCL2)0-50ppm＜±2%(F.S)0.01ppm≤20 seconds
Silane (SiH4)0-1ppm＜±2%(F.S)0.001ppm≤30 seconds
Silane (SiH4)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Fluorine (F2)0-1ppm＜±2%(F.S)0.001ppm≤30 seconds
Fluorine (F2)0-10ppm＜±2%(F.S)0.01ppm≤30 seconds
Fluorine (F2)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Hydrogen fluoride (HF)0-10ppm＜±2%(F.S)0.01ppm≤30 seconds
Hydrogen fluoride (HF)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Hydrogen bromide (HBr)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Diborane (B2H6)0-10ppm＜±2%(F.S)0.001ppm≤30 seconds
Arsine (AsH3)0-1ppm＜±2%(F.S)0.001ppm≤30 seconds
Arsine (AsH3)0-10ppm＜±2%(F.S)0.01ppm≤30 seconds
Arsine (AsH3)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Germane (GeH4)0-2ppm＜±2%(F.S)0.001ppm≤30 seconds
Germane (GeH4)0-20ppm＜±2%(F.S)0.01ppm≤30 seconds
Hydrazine (N2H4)0-1ppm＜±2%(F.S)0.001ppm≤30 seconds
Hydrazine (N2H4)0-300ppm＜±2%(F.S)0.1ppm≤30 seconds
Tetrahydrothiophene (THT)0-100mg/m3＜±2%(F.S)0.01 mg/m3≤60 seconds
Bromine (Br2)0-10ppm＜±2%(F.S)0.001ppm≤30 seconds
Bromine (Br2)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Bromine (Br2)0-2000ppm＜±2%(F.S)1ppm≤30 seconds
Acetylene (C2H2)0-100%LEL＜±2%(F.S)0.1%LEL≤30 seconds
Acetylene (C2H2)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Acetylene (C2H2)0-1000ppm＜±2%(F.S)0.1ppm≤30 seconds
Ethylene (C2H4)0-100%LEL＜±2%(F.S)0.1%LEL≤30 seconds
Ethylene (C2H4)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Ethylene (C2H4)0-2000ppm＜±2%(F.S)0.1ppm≤30 seconds
Acetaldehyde0-10ppm＜±2%(F.S)0.01ppm≤30 seconds
Ethanol (C2H6O)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Ethanol (C2H6O)0-2000ppm＜±2%(F.S)1ppm≤30 seconds
Methanol (CH4O)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Methanol (CH4O)0-2000ppm＜±2%(F.S)1ppm≤30 seconds
Carbon disulfide (CS2)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Carbon disulfide (CS2)0-5000ppm＜±2%(F.S)0.01ppm≤30 seconds
Acrylonitrile (C3H3N)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Acrylonitrile (C3H3N)0-2000ppm＜±2%(F.S)1ppm≤30 seconds
Methylamine (CH5N)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Iodine (I2)0-50ppm＜±2%(F.S)0.01ppm≤30 seconds
Styrene (C8H8)0-200ppm＜±2%(F.S)0.1ppm≤30 seconds
Styrene (C8H8)0-5000ppm＜±2%(F.S)1ppm≤30 seconds
Vinyl chloride (C2H3Cl)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Trichloroethylene (C2HCl3)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Tetrachloroethylene (C2Cl4)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Nitrous oxide (N2O)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Nitrogen trifluoride (NF3)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Hydrogen peroxide (H2O2)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Methyl bromide (CH3Br)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Methyl bromide (CH3Br)0-30000ppm＜±2%(F.S)1ppm≤30 seconds
Methyl bromide (CH3Br)0-200g/m3＜±2%(F.S)0.1g/m3≤30 seconds
Sulfuryl fluoride (SO2F2)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Sulfuryl fluoride (SO2F2)0-5000ppm＜±2%(F.S)1ppm≤30 seconds
Sulfuryl fluoride (SO2F2)0-10000ppm＜±2%(F.S)1ppm≤30 seconds
Benzene (C6H6)0-10ppm＜±2%(F.S)0.01ppm≤30 seconds
Benzene (C6H6)0-100ppm＜±2%(F.S)0.01ppm≤30 seconds
Benzene (C6H6)0-2000ppm＜±2%(F.S)1ppm≤30 seconds

Micro Air Station Online Monitoring System TH-2000-A Overview:

TH-2000-A Micro Air Station Online Monitoring System is mainly used in environmental gas and meteorological parameter detection.

Main working principle: the sampling unit collects the environmental gas on the site and displays the measured gas concentration on the display screen in real time, and transmits the data signal to terminals such as PLC or computer. It can also be transmitted to local environmental protection bureaus or cloud servers through wireless GPRS or network, and the user then from The server can read data and realize global network monitoring and analysis. The whole process is automated and does not require human intervention.


Micro air station online monitoring system TH-2000-A product characteristics:

Optional explosion-proof, waterproof design (standard non-explosion-proof, protection level IP66, outdoor Type), fast, reliable and stable detection.

Built-in gas analysis unit.

It can integrate the display of various probe parameters and control other devices.

Network transmission, 4-20mA input, RS485 input, 4-20mA output, RS485 communication.

Optional: no display window or 2.5-inch display, wireless transmission, sound and light alarm, data printing function, linux operating system, touch screen, 16G large-capacity SD memory card, USB disk storage.


Micro Air Station Online Monitoring System TH-2000-A Technical Parameters:

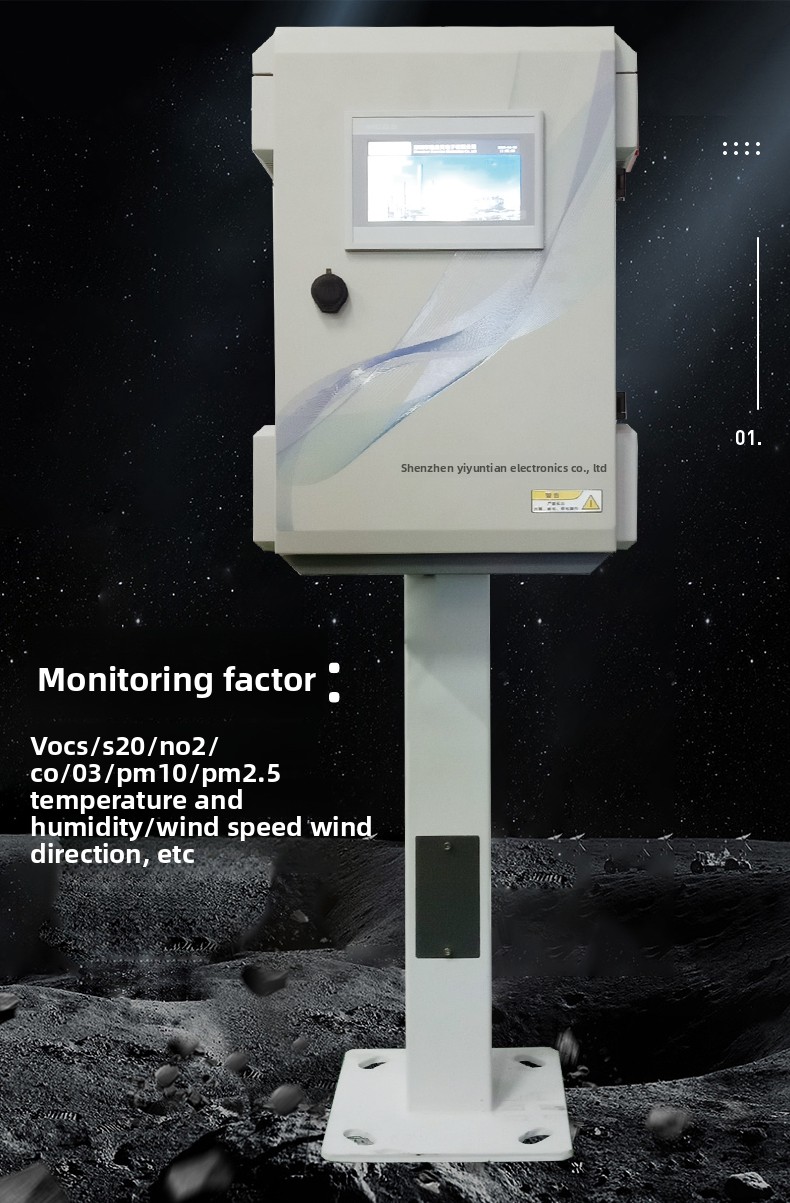

Detection Parameters: SO2, NO2, O3, CO, VOC and other gas types, Other gases can be selected, such as: NO, O2, CH4, CO2, NH3, H2S, etc., and can also detect PM2.5, PM10, TSP, wind speed, wind direction, atmospheric pressure, temperature and humidity, rainfall, illuminance, noise and other meteorological parameters, and select according to customer requirements

Measure Volume range:

CH2O: Electrochemical principle, 0-5ppm, resolution 0.01ppm

CO2: electricityChemical principle, 0-50000ppm(5%vol), resolution 1ppm

CO: Electrochemical principle, 0-1000ppm, resolution 0.1ppm

PM2.5: laser scattering principle, 0-500 micrograms/cube, Resolution 1 microgram/cubic

PM10: Laser scattering principle, 0-500 micrograms/cubic, resolution 1 microgram/cubic

Wind speed: 0-30 meters/second

Wind direction: 0-360 degrees

Temperature: -4 0-100 degrees

Humidity: 0-100%RH

Noise: 30-130dB,0.1dB

Working environment: - 40℃~70℃, ≤95%RH

Working mode: online continuous work

Working voltage: 220VAC, 50HZ, optional solar power supply scheme

Output signal: 4~20 mA, RS485, multiplex passive contacts, optional: wireless transmission 433, LORA, GPRS, NB-LOT, network transmission, etc.

External size: 800mm high * 500mm wide * 340mm thick

Protection level: I P66 outdoor waterproof type, optional explosion-proof type

Display mode: The standard product is to ignore the window display, and it can be optionally equipped with a 2.5-inch or 9-inch touch color screenDisplay, linux operating system

Data storage: 100,000 data, optional 16G large-capacity SD memory card, USB disk storage

Printing method: no printing function, optional wireless Bluetooth printer for printing

Alarm method: choose Equipped with an all-in-one sound and light alarm or external sound and light alarm


Micro air station online monitoring system TH-2000-A accessories list:

micro air station online monitoring system 1 set

1 product manual

1 infrared remote control

upper computer connection software (Free delivery by email) 1 copy

RS485 modbus (RTU) communication protocol (send by email) 1 copy



Product HighlightsNew process formula enhances performance to meet stricter application requirements

500+ Detectable Gases

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations

← Swipe left/right to view full content →

Complete Certifications, Reliable Quality

Trusted Manufacturer

Trusted Manufacturer

Wide Applications Across 20+ Industries

Trusted by 5000+ Industry Leaders

Service Guarantee

19+ Years of Industry-leading Brand

Eranntian, founded in 2006, is a national high-tech enterprise integrating design, R&D, production and sales. Our R&D team includes over 30 senior engineers with strong development capabilities, investing over 17% of annual revenue in technological innovation. We maintain long-term collaborations with 14 universities including Tsinghua University, Sichuan University, Xi'an Jiaotong University, Qingdao University of Technology, and Central South University.

  • 2006

    Eranntian established

  • 30+

    Senior R&D engineers

  • 14

    Partner universities

  • 100+

    Patents & achievements

Strong Production Capacity Ensures Fast Delivery

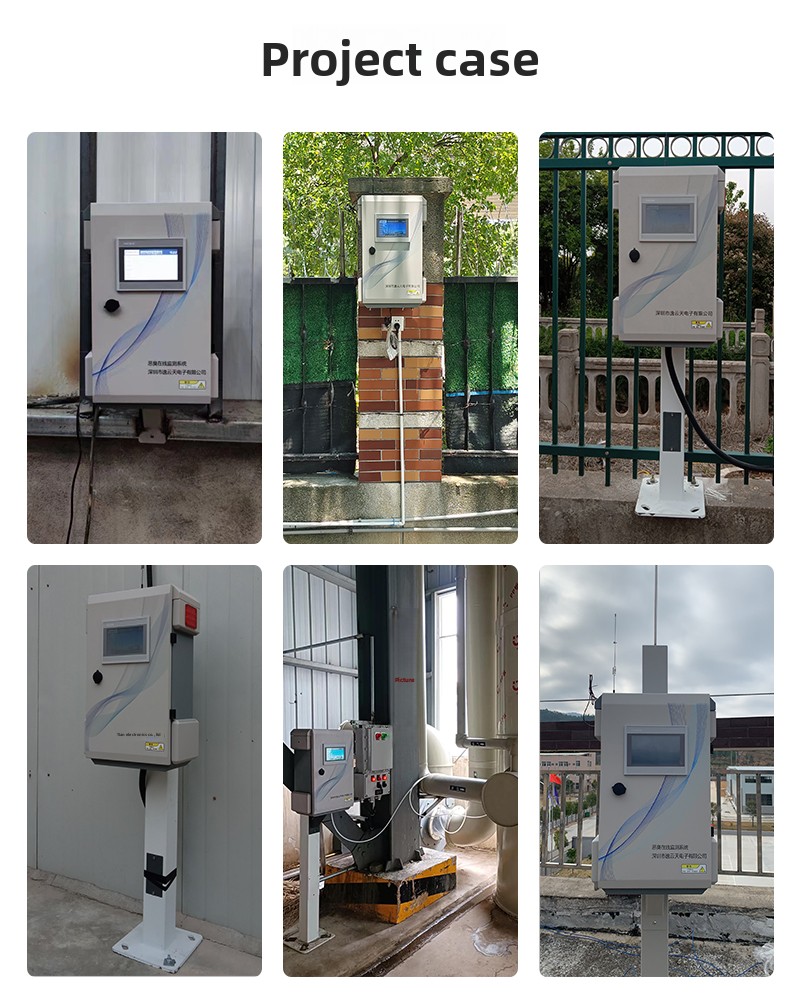

Application CasesMore+

Professional engineer

24-hour online serviceSubmit your needs and quickly recommend the right products for you

13480931872

"Personal Information and Privacy Protection Terms"
