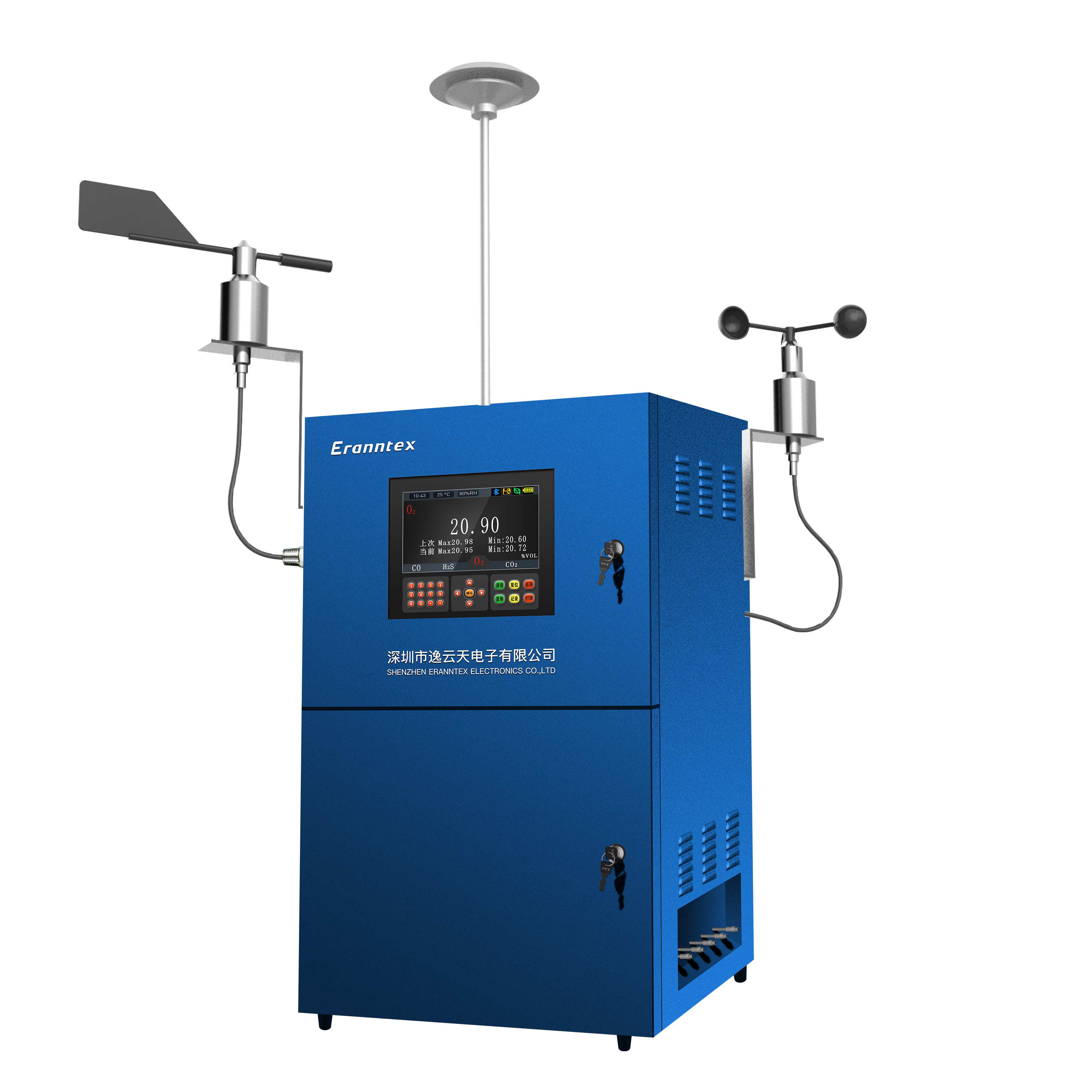

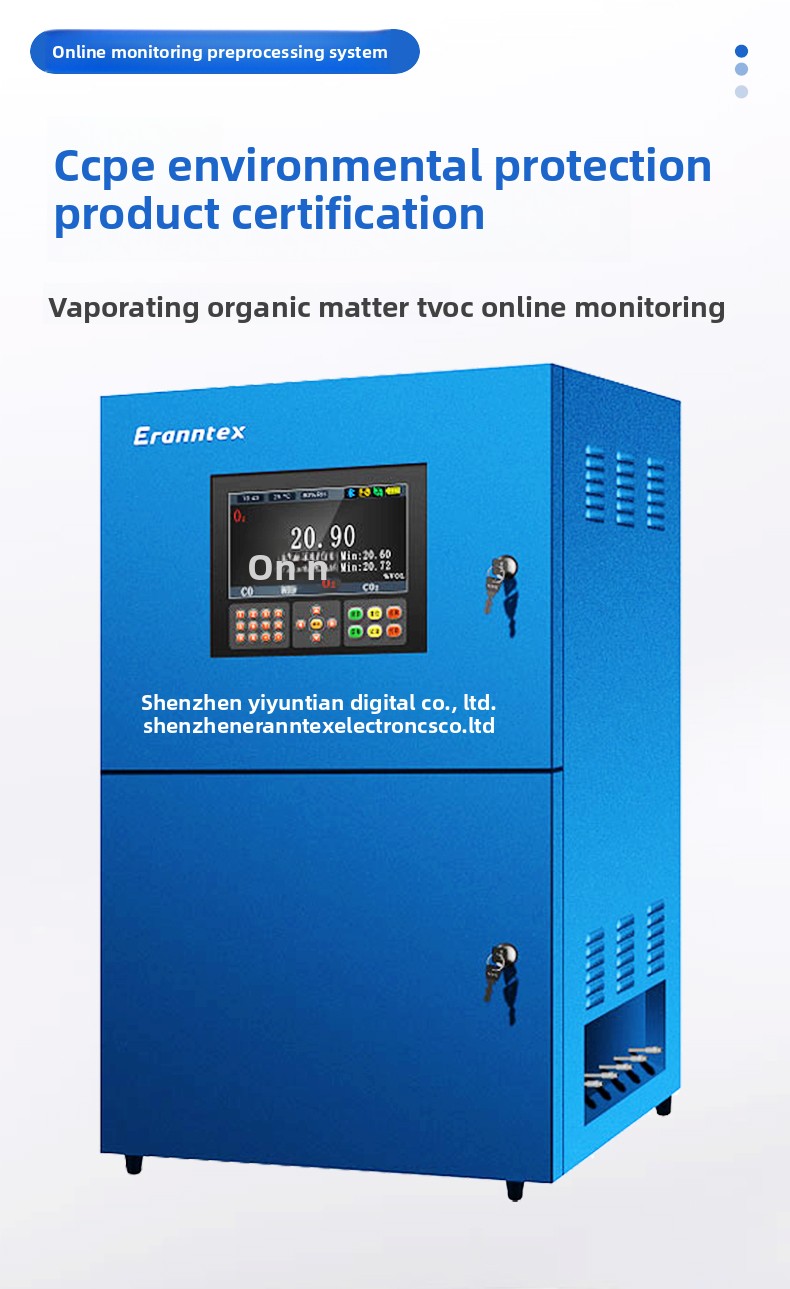

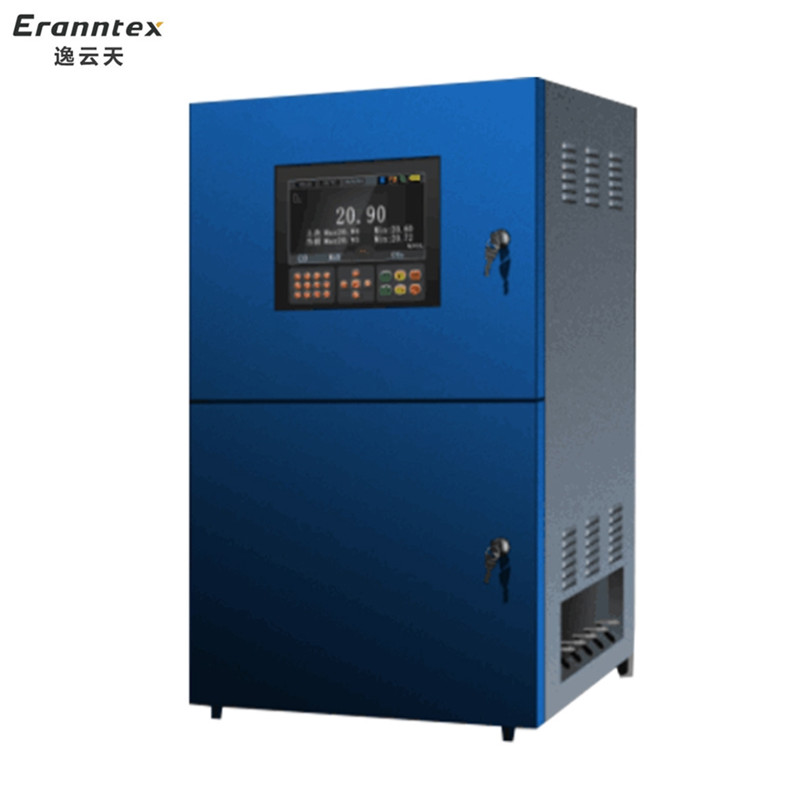

Gas online monitoring pretreatment system TH-2000-C

Detection Method: Online continuous work, pump suction sampling (positive pressure, negative pressure environment)

Detection Gas: Carbon dioxide (infrared) CO2 Carbon dioxide (laser TDLAS) CO2 Flammable detector Ex Flammable (infrared) Ex METHane CH4 Methane (infrared) CH4 Methane (laser TDLAS) CH4Ethane (infrared) C2H6 Ethane identifier (laser) C2H6 Propane (infrared) C3H8 Non-methane total hydrocarbons CxHy Carbon monoxide CO Carbon monoxide (infrared) CO Hydrogen sulfide H2S Hydrogen sulfide (TDLAS tunable diode laser) H2S Oxygen O2 Nitrogen N2 Ammonia NH3Chlorine CL2 Hydrogen H2 Helium He Argon Ar Formaldehyde CH2O Ozone O3 Nitrogen Oxide NO Nitrogen Dioxide NO2 Nitrogen Oxides NOX Sulfur Dioxide SO2 Ethylene Oxide ETO Ethylene Oxide (Infrared) C2H4O Phosphine PH3 Hydrogen chloride HCl Hydrogen cyanide HCNPhosgene COCl2 Chlorine dioxide ClO2 Silane SiH4 Bromomethane (infrared) CH3Br Bromomethane (PID) CH3Br Sulphuryl fluoride (infrared) SO2F2 Fluorine gas F2 Hydrogen fluoride HF Hydrogen bromide HBr Boron hydride B2H6 Arsenic hydride AsH3 Germanium hydrage GeH4Hydrazine N2H4 Hydrazine N2H4 Dicyandiamide C2H8N2 Nitrous oxide N2O4 Nitrogen trichloride NCl3 tert-Butyl mercaptan TBM Phosphorus pentafluoride PF5 Boron trichloride BCl3 Phosphorus trichloride PCl3 Phosphorus oxychloride POCl3 Phosphorus trifluoride PF3Boron trifluoride BF3 Azide HN3 Methyl sulfide C2H6S Dimethyl sulfate C2H6O4S Acetonitrile CH3CN Acetic acid C2H4O2 Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyl disulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2Chlorosilane SiH3Cl Tetrahydrothiophene THT Bromine gas Br2 Acetylene (infrared) C2H2

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range:

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Download Manual Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	SO2, NOX, O2, CH4, CO, CO2, NH3, H2S, VOC and other types of gases, can alsoTest wind speed, wind direction, rainfall, atmospheric pressure, pipeline pressure, temperature and humidity and other meteorological parameters, and select according to customer requirements
Product Features	1. Cost-effective 2. With touch display 3. Complex working conditions, high humidity and low dust occasions 4. The sampling temperature is within 600, and a higher temperature can be optionally equipped 5. Automatic cooling, dehumidification and drainage 6. High-dust occasions need to be used with gas cleaning back-blowing system.
Detection Range
Resolution
Typical Accuracy	Not have
Detection Method	Online continuous work, pump suction sampling (positive pressure, negative pressure environment)

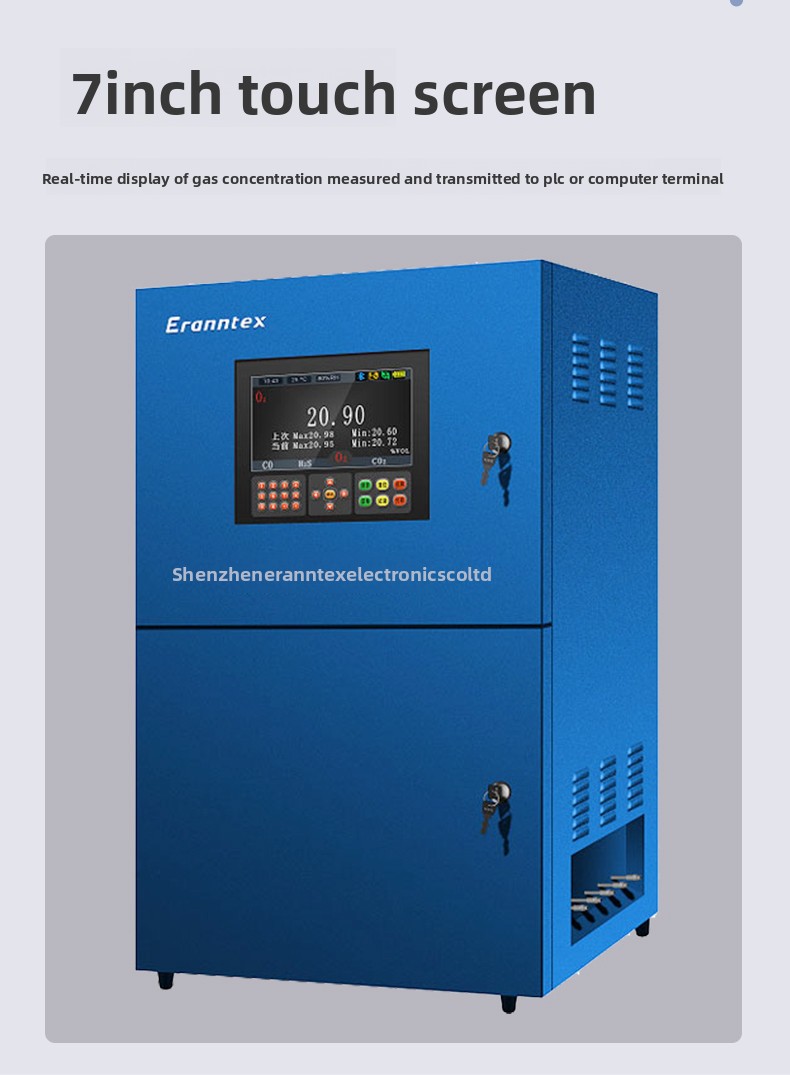

Display	7-inch touch color screen display
Power Supply	220VAC, 50HZ
Maximum Power Consumption	Not have
Operating Environment	- 40℃～+70℃, ≤95%RH
Data Storage	Not supported for the time being
Printing Function	Not have

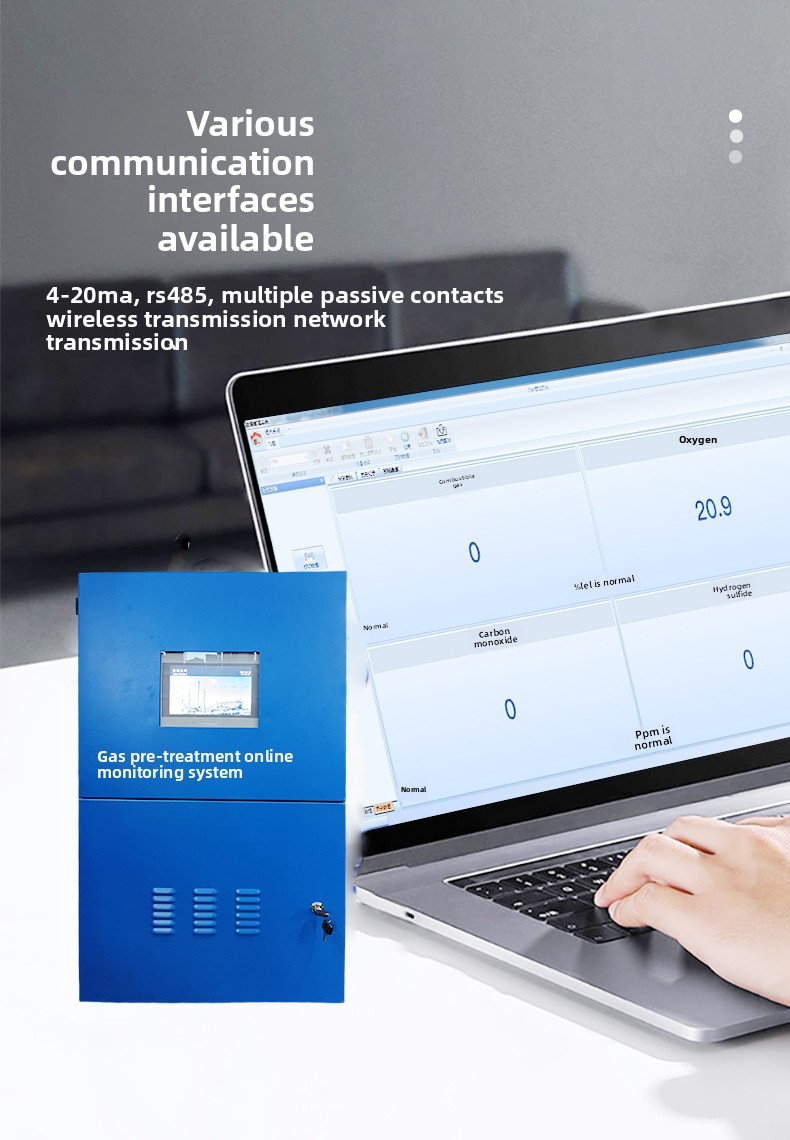

Signal Output	4~20mA, RS485, multiple passive contacts, optional: wireless transmission, network transmission
Alarm Method	Optional external sound and light alarm light
Fall Alarm	Not have
Wireless Transmission	Optional: LoRa/433M/4G/NB-IOT

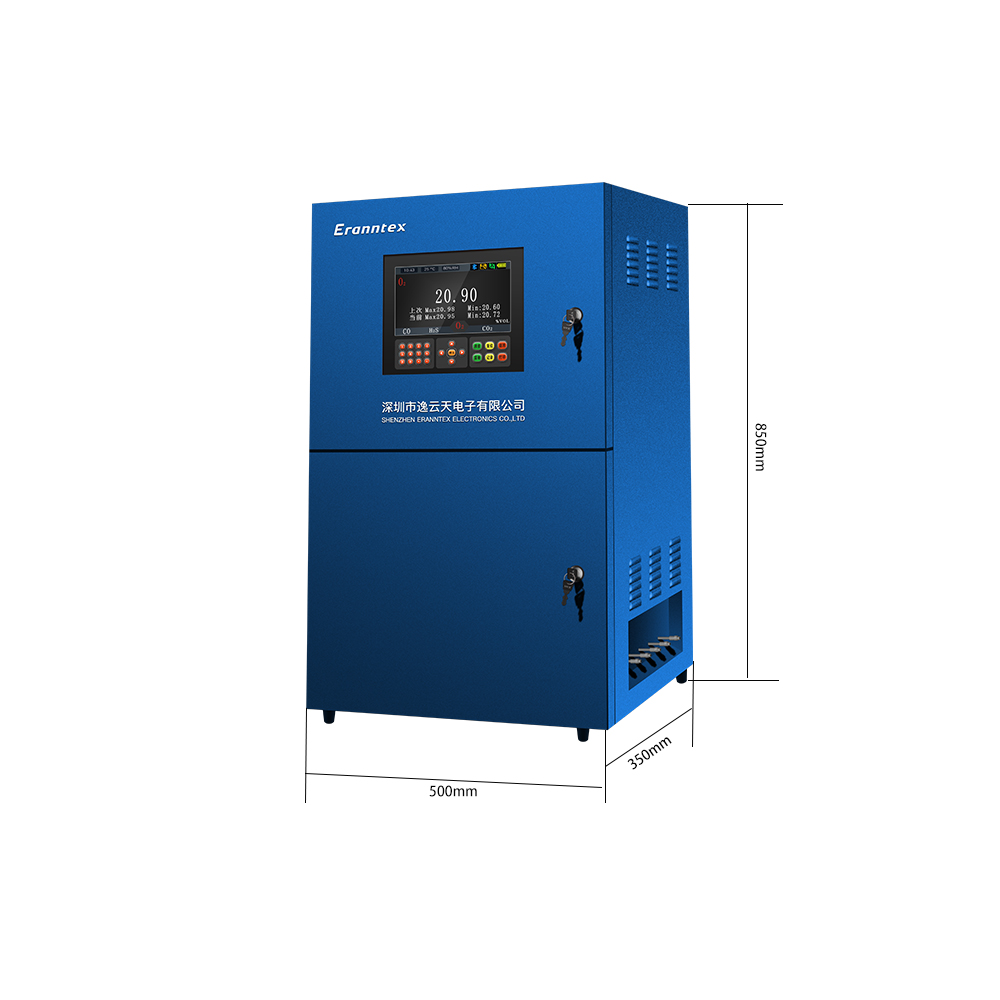

Dimensions: LWH	500350850mm (LWH)
Weight	About 40kg

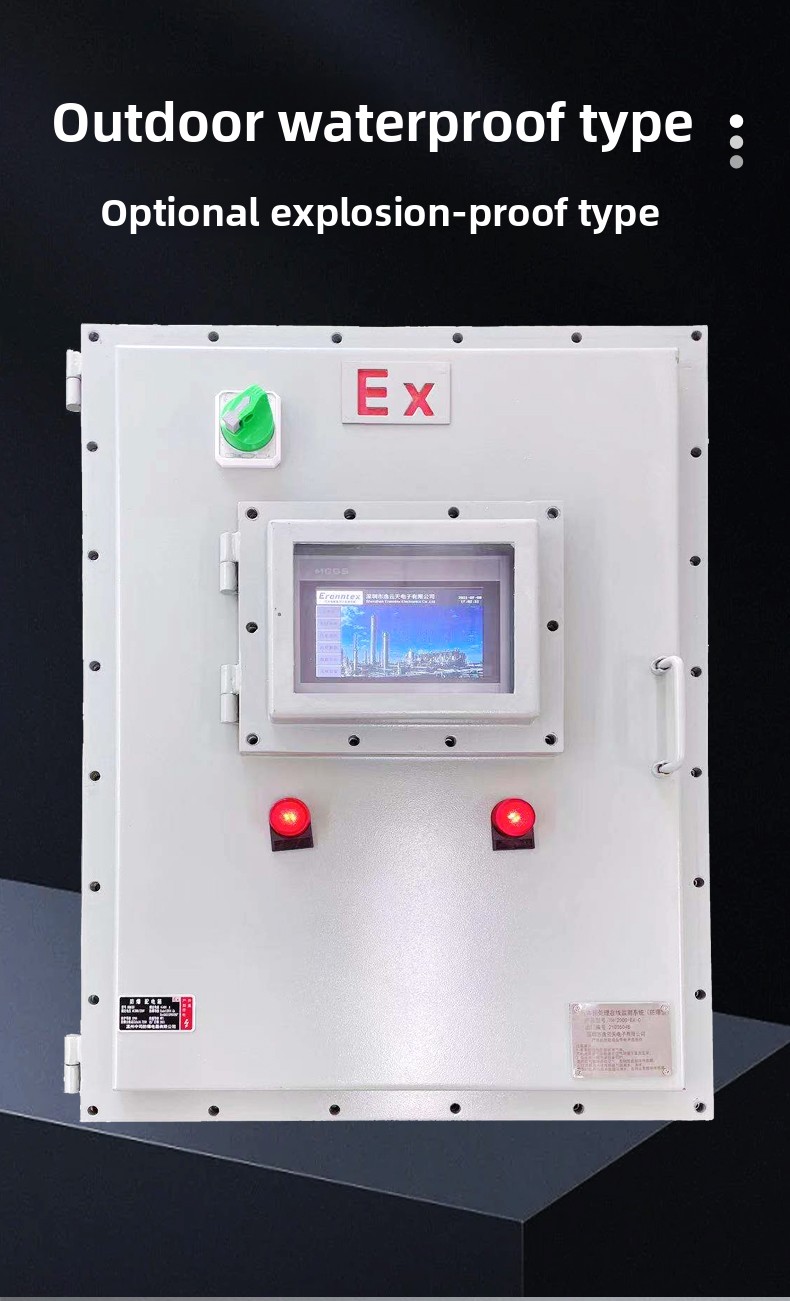

Protection Level	Outdoor waterproof type, optional explosion-proof type
Standard Accessories	Match according to the needs
Optional Accessories	Electric heat tracing system, sampling head of various specifications, exhaust booster pump

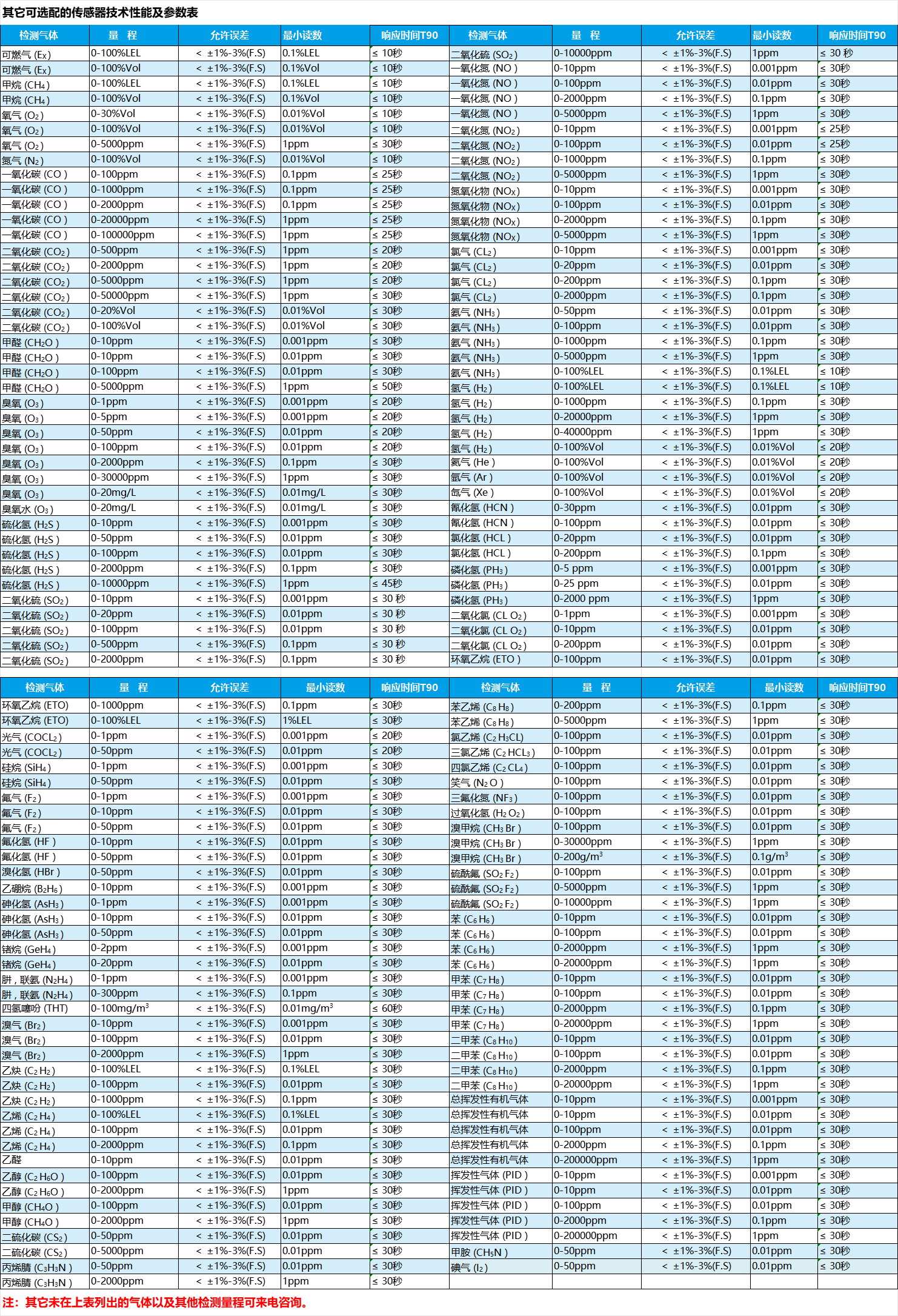

Partial list of detectable gases:
Detect gases	Range	Maximum allowable error value	Minimum reading	Response time T90
Combustible Gas (EX)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Combustible Gas (EX)	0-100%Vol	＜±2%(F.S)	0.1%Vol	≤10 seconds
Methane (CH4)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Methane (CH4)	0-100%Vol	＜±2%(F.S)	0.1%Vol	≤10 seconds
Oxygen (O2)	0-30%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Oxygen (O2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Oxygen (O2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitrogen (N2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Carbon monoxide (CO)	0-100ppm	＜±2%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide (CO)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide (CO)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide (CO)	0-20000ppm	＜±2%(F.S)	1ppm	≤25 seconds
Carbon monoxide (CO)	0-100000ppm	＜±2%(F.S)	1ppm	≤25 seconds
Carbon dioxide (CO2)	0-500ppm	＜±2%(F.S)	1ppm	≤20 seconds
Carbon dioxide (CO2)	0-2000ppm	＜±2%(F.S)	1ppm	≤20 seconds
Carbon dioxide (CO2)	0-5000ppm	＜±2%(F.S)	1ppm	≤20 seconds
Carbon dioxide (CO2)	0-50000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Carbon dioxide (CO2)	0-20%Vol	＜±2%(F.S)	0.01%Vol	≤30 seconds
Carbon dioxide (CO2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤30 seconds
Formaldehyde (CH2O)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Formaldehyde (CH2O)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Formaldehyde (CH2O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Formaldehyde (CH2O)	0-5000ppm	＜±2%(F.S)	1ppm	≤50 seconds
Ozone (O3)	0-1ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Ozone (O3)	0-5ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Ozone (O3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤20 seconds
Ozone (O3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤20 seconds
Ozone (O3)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ozone (O3)	0-30000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-10000ppm	＜±2%(F.S)	1ppm	≤45 seconds
Sulfur dioxide (SO2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Sulfur dioxide (SO2)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide (SO2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide (SO2)	0-500ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Sulfur dioxide (SO2)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Sulfur dioxide (SO2)	0-10000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitric oxide (NO)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Nitric oxide (NO)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitric oxide (NO)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Nitric oxide (NO)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitrogen dioxide (NO2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤25 seconds
Nitrogen dioxide (NO2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤25 seconds
Nitrogen dioxide (NO2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Nitrogen dioxide (NO2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitrogen oxides (NOX)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Nitrogen oxides (NOX)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitrogen oxides (NOX)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Nitrogen oxides (NOX)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Chlorine (CL2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Chlorine (CL2)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Chlorine (CL2)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Chlorine (CL2)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ammonia (NH3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ammonia (NH3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ammonia (NH3)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ammonia (NH3)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Ammonia (NH3)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Hydrogen (H2)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Hydrogen (H2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Hydrogen (H2)	0-20000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Hydrogen (H2)	0-40000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Hydrogen (H2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Helium (He)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Argon (Ar)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Xenon (Xe)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Hydrogen cyanide (HCN)	0-30ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen cyanide (HCN)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen chloride (HCL)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen chloride (HCL)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Phosphine (PH3)	0-5 ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Phosphine (PH3)	0-25 ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Phosphine (PH3)	0-2000 ppm	＜±2%(F.S)	1ppm	≤30 seconds
Chlorine dioxide (CLO2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Chlorine dioxide (CLO2)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Chlorine dioxide (CLO2)	0-200ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethylene oxide (ETO)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethylene oxide (ETO)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ethylene oxide (ETO)	0-100%LEL	＜±2%(F.S)	1%LEL	≤30 seconds
Phosgene (COCL2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Phosgene (COCL2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤20 seconds
Silane (SiH4)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Silane (SiH4)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Fluorine (F2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Fluorine (F2)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Fluorine (F2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen fluoride (HF)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen fluoride (HF)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen bromide (HBr)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Diborane (B2H6)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Arsine (AsH3)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Arsine (AsH3)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Arsine (AsH3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Germane (GeH4)	0-2ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Germane (GeH4)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrazine (N2H4)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Hydrazine (N2H4)	0-300ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Tetrahydrothiophene (THT)	0-100mg/m3	＜±2%(F.S)	0.01 mg/m3	≤60 seconds
Bromine (Br2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Bromine (Br2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Bromine (Br2)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Acetylene (C2H2)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤30 seconds
Acetylene (C2H2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Acetylene (C2H2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ethylene (C2H4)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤30 seconds
Ethylene (C2H4)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethylene (C2H4)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Acetaldehyde	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethanol (C2H6O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethanol (C2H6O)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Methanol (CH4O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Methanol (CH4O)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Carbon disulfide (CS2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Carbon disulfide (CS2)	0-5000ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Acrylonitrile (C3H3N)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Acrylonitrile (C3H3N)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Methylamine (CH5N)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Iodine (I2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Styrene (C8H8)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Styrene (C8H8)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Vinyl chloride (C2H3Cl)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Trichloroethylene (C2HCl3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Tetrachloroethylene (C2Cl4)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitrous oxide (N2O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitrogen trifluoride (NF3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen peroxide (H2O2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Methyl bromide (CH3Br)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Methyl bromide (CH3Br)	0-30000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Methyl bromide (CH3Br)	0-200g/m3	＜±2%(F.S)	0.1g/m3	≤30 seconds
Sulfuryl fluoride (SO2F2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfuryl fluoride (SO2F2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Sulfuryl fluoride (SO2F2)	0-10000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Benzene (C6H6)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Benzene (C6H6)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Benzene (C6H6)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds

Gas Online Monitoring Pretreatment System TH-2000-C Overview:

2000-C Gas Online Monitoring Pretreatment System is mainly used in the gas analysis industry. The main detection occasions: online monitoring of pollution sources, smoke Gas discharge, desulfurization and denitrification, boiler exhaust gas, sewage pipeline gas detection and analysis, high-temperature and high-humidity gas detection and analysis, etc. The main principle is: the sampling unit collects the flue gas or the measured gas at the site, the pretreatment unit cools the gas, dehumidifies, filters the dust, and constants the temperature and humidity of the measured gas within a certain range. The gas detection unit detects and analyzes the transported gas, and displays the measured gas concentration on the display screen in real time, and Transmit the data signal to PLC or computer, etc.Terminal, it can also be transmitted to local environmental protection bureaus or cloud servers through wireless GPRS or network, and then users can read data from the server to realize global network monitoring and analysis. The whole process is automated and does not require human intervention.

2000-C gas online monitoring pretreatment system is suitable for gas detection and analysis in low dust, high temperature and high humidity occasions. If the dust content of the measured gas is high, it needs to be equipped with an automatic back-blowing system, otherwise it needs to be manually maintained and cleaned the dust filter regularly. The 2000-C gas pretreatment system has a built-in two-stage electronic condensation and dehumidification system and a 0.5-meter fine dust filtration sampling head (flange installation), with a sampling distance of 40 meters, automatic cooling, automatic drainage and tar filtering. For water-soluble gas detection and analysis and outdoor icing environment in winter, to prevent the icing of sampling pipelines, it is necessary to choose the insulation and electric heat constant temperature control system.If you have high requirements for the dryness and cleanliness of the measured gas, please choose the LB3000 series, which includes insulation and electric heat tracing constant temperature control system and a two-stage high-efficiency compressor water-cooled dehumidification system, which can control the dew point of the gas at 4℃ or 5℃.

Gas Online Monitoring Pretreatment System TH-2000-C Reference Regulations:

"Emission Standards for Atmospheric Pollutants in Ther Power Plants" GB13223-96

The Law of the People's Republic of China on the Prevention and Control of Atmospheric Pollution will be implemented from September 1, 2000

Technical Specifications for Typical Equipment for Continuous Monitoring System of Flue Gas in Therm Power Plants G-HB97-01

Technical Regulations for Continuous Monitoring of Flue Gas Emissions in Therm Power Plants HJ/T-2000

Particulate Determination and Gaseous Pollutant Sampling Methods in Emissions from Fixed Pollution Sources GB/T16157-1996

Flue Gas Sampling Technical Conditions of the Instrument HJ/T47-1999

Technical Conditions of Flue Gas Sampler HJ/T48-1999

Technical Specifications for Continuous Monitoring of Flue Gas Emissions from Fixed Pollution Sources HJ/T75-2007

Requirements and Detection Methods of Continuous Monitoring System for Flue Gas from Fixed Pollution Sources HJ/T76-2007

Gas online monitoring pretreatment system TH-2000-C product characteristics:

Optional explosion-proof, waterproof design (standard non-explosion-proof, protection level IP66, outdoor type), fast, reliable and stable detection.

The gas analysis unit can be built into the chassis or externally.

The standard sampling distance is 30~40 meters, and the maximum sampling distance of the optional vacuum pump is more than 70 meters.

The standard pretreatment temperature is 400℃, the standard type of LB2000 can pre-process flue gas up to 1300 ℃, and LB3000 can pre-treatment flue gas of 2000℃.

Optional: 9-inch display, which can integrate the display of various probe parameters and control other devices.

Optional: network transmission, 4-20mA input, RS485 input, 4-20mA output, RS485 communication.

Optional: no display window or 2.5-inch display, wireless transmission, sound and light alarm, data printing function, linux operating system, touch screen, 16G large-capacity SD memory card, USB disk storage.

Gas online monitoring pretreatment system TH-2000-C Introduction:

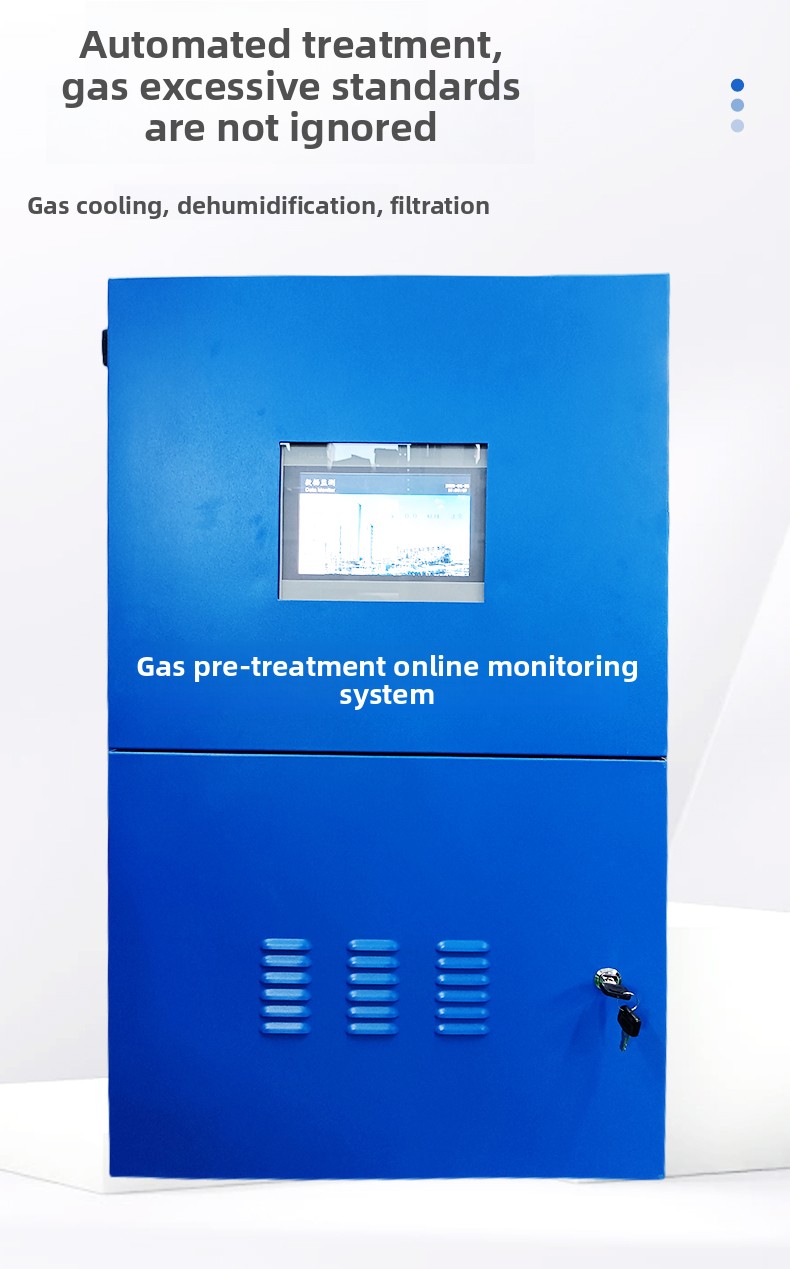

Sample gas can be accepted according to the analyzer The pressure, temperature, humidity, flow rate, (dust content), and cleanliness to complete its treatmentFunction, mainly complete the following tasks:

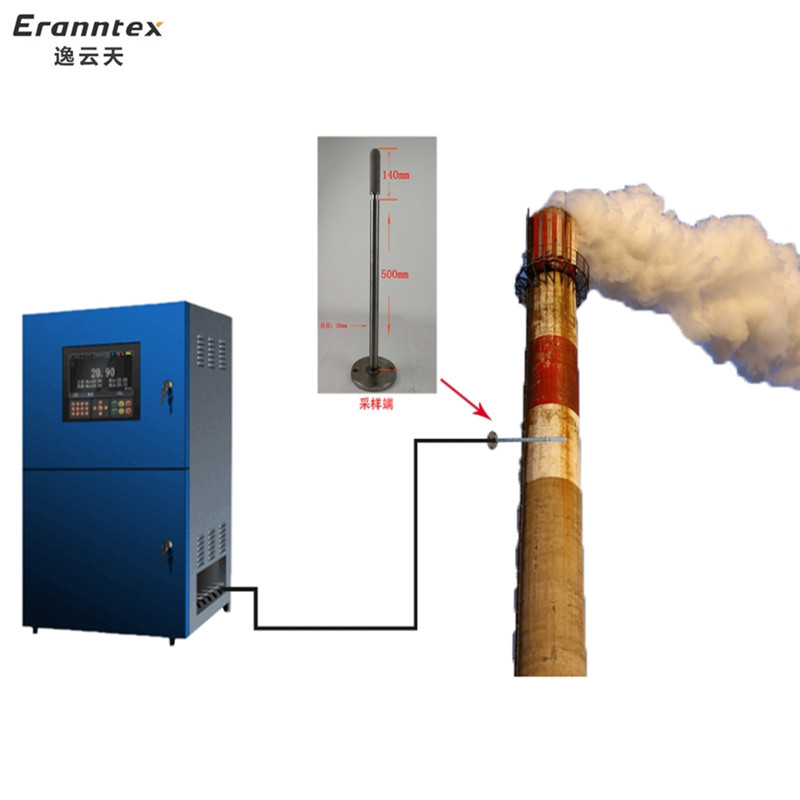

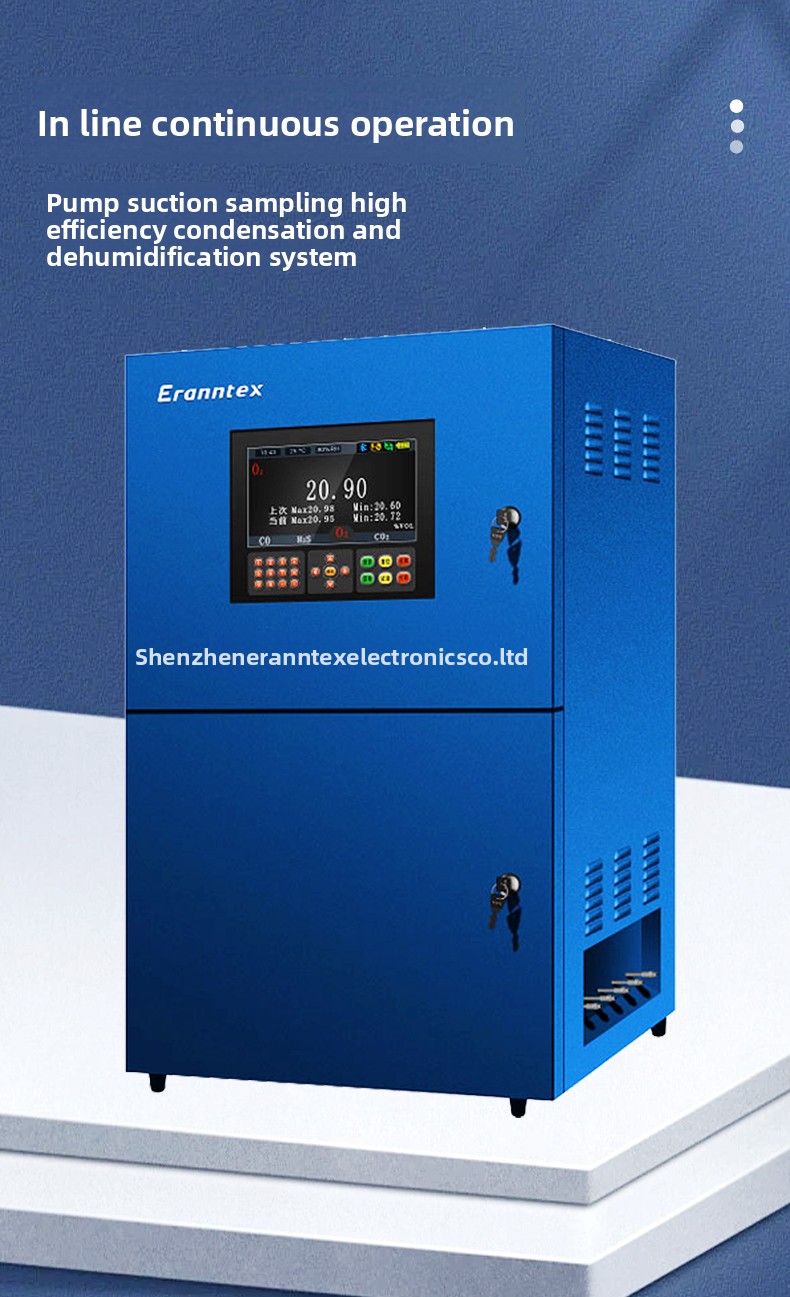

Sample sampling: use a vacuum sampling pump or a DC brushless pump to extract the sample gas from the flue and other environments

Dust filtration: the measured gas passes through the precision dust filter and then enters the sampling pipeline. If it is a high-dust environment, it can be optional Dynamic reverse blowing system

cooling treatment: through the sampling probe and sampling pipeline cooling, gas within 400℃ can be processed up

Optional function: two-stage electronic condensation dehumidification system, stable control the dew point of the gas at 4℃ or 5℃

tar Treatment: After the sample gas passes through the tar filter, the tar and residual dust are removed

Gas-water separation: After the sample gas is cooled down through the sampling pipeline, free water, gas waterThe separator separates gas, water and residual dust and automatically drains

Secondary filtration: according to the size of the on-site humidity, secondary water vapor separation is carried out

Heat tracing function: This function is optional, heating, heat preservation, prevent water vapor condensation and some gases from being dissolved in water, and prevent sampling in winter Pipeline freezing

Detection and analysis: real-time detection and display of concentration, and transmission of data by 4-20mA/RS485 and other signals, which can also be transmitted to remote servers or environmental protection bureaus and monitoring stations through wireless transmission or network

Flow adjustment: control the inflow of gas Gas volume

Gas switching: switching between measured gas, standard gas or air

Application: petroleum, chemical industry, medicine,Environmental protection, flue gas analysis, air treatment and other occasions that need to detect gas concentration

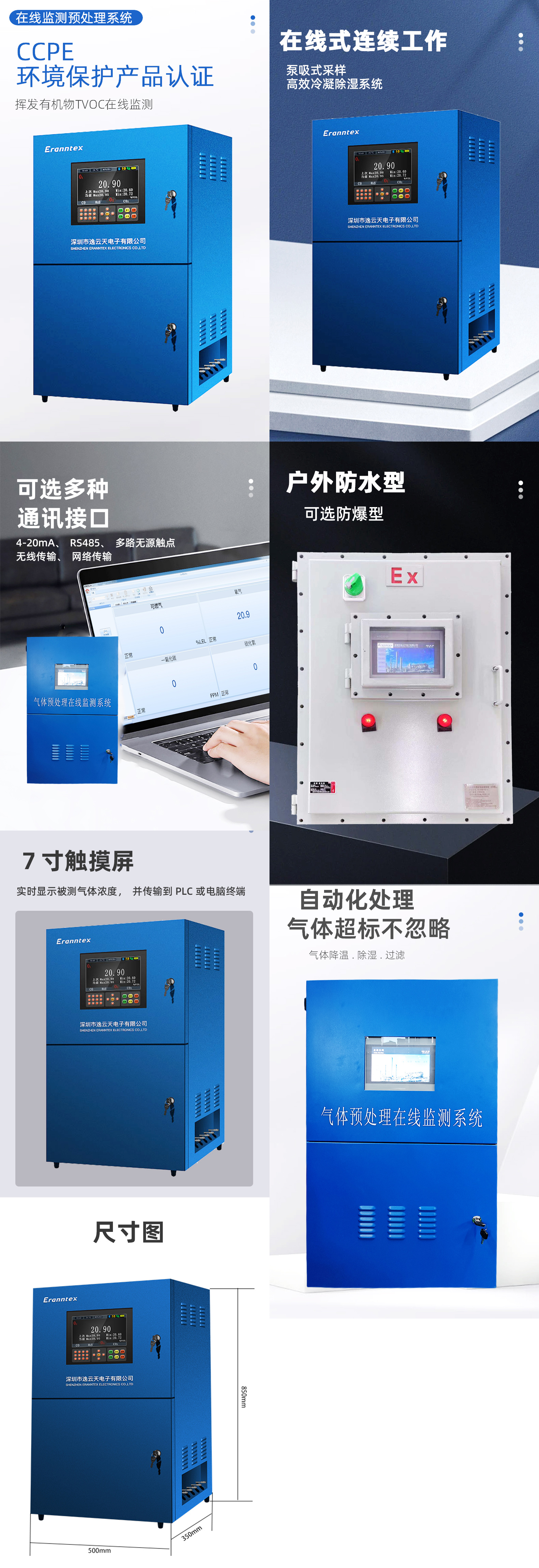

Gas online monitoring pretreatment system TH-2000-C technical parameters:

system Integrated composition: sampling unit, sample gas pretreatment unit, gas analysis unit

Detection parameters: SO2, NOX, O2, CH4, CO, CO2, NH3, H2S, VOC and other gas types, and can also detect wind speed, wind direction, rainfall, atmospheric pressure, pipeline pressure, Temperature and humidity and other meteorological parameters are selected according to customer requirements

Measurement range: depending on the actual needs of the testing site

Detection principle: According to the on-site gas composition, concentration and on-site working conditions, electrochemical, infrared, laser, ultraviolet spectrum and other principles can be selected

Sampling temperature: - 40℃~400℃ (standard)

Sampling humidity: 0~99%RH, high-humidity gas can be pretreated

Mainframe working environment: - 40℃~70℃, ≤95%RH

Working mode: online continuous work, pump suction sampling (positive pressure, negative pressure, vacuum environment can be used)

Sampling distance: standard 30~40 meters, optional vacuum pump The sampling distance is more than 70 meters

Sampling flow: adjustable, 2 liters/minute (standard), 4 or 10 liters/minute, optional

Working voltage: 220VAC, 50HZ

Output signal: 4~20mA, RS485, multiple passive contact, optional: wireless transmission, network transmission

Dimensions: 800mm height*500mm width*300mm thickness

Protection level: IP66 outdoor waterproof type, optional explosion-proof type

Display mode: Standard products ignore window display, optional 2.5-inch or 9-inch touch color screen display, linux operating system

Data storage: 100,000 pieces can be selected According to or 16G large-capacity SD memory card, USB flash drive storage

Printing method: no printing function, optional wireless Bluetooth printer for printing

Alarm mode: optional all-in-one sound and light alarm or external sound and light alarm

Gas online monitoring pretreatment system TH-2000-C accessories list:

1 set of online monitoring pretreatment system (including 1 corresponding gas detector)

1 product manual

1 infrared remote control

1 copy of the upper computer connection software (free of charge by email)

RS485 modbus (RTU) communication protocol (sent by email) 1 copy

Product HighlightsNew process formula enhances performance to meet stricter application requirements

High PrecisionUp to ±0.1%FS (varies by gas type)
Wireless ConnectivityOptional wireless communication for real-time data monitoring
Advanced ProtectionIP67+ protection level
Explosion-proof DesignHigh shock and explosion resistance
Anti-interference DesignAnti-static and electromagnetic interference
HD Color DisplayComprehensive and clear information display
Large Capacity StorageMassive data storage
Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations

← Swipe left/right to view full content →

Complete Certifications, Reliable Quality

Trusted Manufacturer

Wide Applications Across 20+ Industries

Trusted by 5000+ Industry Leaders

Service Guarantee

Selection Guidance

Recommend suitable products based on extensive technical experience
Customization

Provide customized solutions based on specific requirements
Quality Guarantee

1-year warranty and lifetime maintenance for all products
Application Support

Professional engineers provide installation, training and expansion support

19+ Years of Industry-leading Brand

Eranntian, founded in 2006, is a national high-tech enterprise integrating design, R&D, production and sales. Our R&D team includes over 30 senior engineers with strong development capabilities, investing over 17% of annual revenue in technological innovation. We maintain long-term collaborations with 14 universities including Tsinghua University, Sichuan University, Xi'an Jiaotong University, Qingdao University of Technology, and Central South University.
