便携式六合一气体检测仪 BTYQ-MS600-S

Detection Method: 内置泵吸式，泵吸采样流量0.5-1升/分钟，流量≥10级可调

Detection Gas: Two-in-one gas detector Four-in-one gas detector Four-in-one detector Four-in-one gas detector Multi-gas detector Multi-in-one gas detector Multi-functional gas detector Carbon dioxide (infrared) CO2 Flammable gas detector Ex Flammable gas (infrared) Ex Methane CH4 Methane (infrared) CH4 Methane (Laser TDLAS) CH4 Ethane (Infrared) C2H6 Propane (Infrared) C3H8 Non-Methane Hydrocarbons CxHy Carbon Monoxide CO Carbon Monoxide (Infrared) CO Hydrogen Sulfide H2S Oxygen O2 Nitrogen N2 Ammonia NH3 Chlorine CL2 Hydrogen H₂ Helium He Argon Ar Formaldehyde CH₂O Ozone O₃ Nitrogen Oxide NO Nitrogen Dioxide NO₂ Nitrogen Oxides NO_x Sulfur Dioxide SO₂ Ethylene Oxide ETO Ethylene Oxide (Infrared) C₂H₄O Phosphine PH₃ Hydrogen Chloride HCl Hydrogen cyanide HCN Phosgene COCl₂ Chlorine dioxide ClO₂ Silane SiH₄ Bromomethane (infrared) CH₃Br Bromomethane (PID) CH₃Br Sulphuryl fluoride (infrared) SO₂F₂ Fluorine F₂ Hydrogen fluoride HF Hydrogen bromide HBr Boron hydride B2H6 Arsenic hydride AsH3 Germanium hydride GeH4 Hydrazine N2H4 Hydrazine N2H4 Dicyandiamide C2H8N2 Nitrous oxide N2O4 Nitrogen trichloride NCL3 Tert-butyl mercaptan TBM Phosphorus pentafluoride PF5 Boron trichloride BCl₃ Phosphorus trichloride PCL₃ Phosphorus oxychloride POCL₃ Phosphorus trifluoride PF₃ Boron trifluoride BF₃ Azide HN₃ Methyl sulfide C₂H₆S Dimethyl sulfate C₂H₆O₄S Acetonitrile CH₃CN Acetic acid C2H4O2 Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyl disulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2 Chlorosilane SiH3Cl Tetrahydrothiophene THT Bromine gas Br2 Acetylene (infrared) C2H2 Acetylene C2H2 Carbon disulfide CS2 Carbon disulfide (infrared) CS2 Acrylonitrile C3H3N Methyl ethyl ketone MEK Methyl ketone MDK Methyl ketone (infrared) C3H6O Sulfur hexafluoride (infrared) SF6 Ethylene C2H4 Ethylene (infrared) C2H4 Isopropyl alcohol (infrared) C3H8O Ethanol C2H6O Ethanol (infrared) C2H6O Methanol CH4O Methanol (infrared) CH4O Methylamine CH5N Methyl mercaptan CH3SH Vinyl chloride C2H3Cl Vinyl chloride (infrared) C2H3Cl Trichloroethylene C2HCl3 Tetrachloroethylene C2Cl4 Chloromethane (infrared) CH3Cl Dichloroethane (infrared) C2H4Cl2 Dichloromethane (infrared) CH2Cl2 Trichloromethane (IR) CHCl3 Nitrous oxide (IR) N2O Nitrogen trifluoride NF3 Nitrogen trifluoride (IR) NF3 Hydrogen peroxide H2O2 Styrene (PID) C8H8 Tetrahydrofuran (PID) THF TVOC (PID) TVOC VOC (PID) Benzene (PID) C6H6 Toluene (PID) C7H8 Toluene (Infrared) C7H8 Xylene (PID) C8H10 Xylene (Infrared) C8H10 PID Gas Odor OU Diesel (Infrared) diesel Jet fuel (infrared) JET Butane (infrared) C4H10 Isobutane (infrared) C4H10 Pentane (infrared) C5H12 Cyclopentane (infrared) C5H10 Hexane (infrared) C6H14 Propylene (infrared) C3H6 Methyl ethyl ketone (infrared) C4H8O Carbonyl sulfide (infrared) COS Refrigerant (infrared) R134a Refrigerant (infrared) R125 Refrigerant (infrared) R404a Refrigerant (infrared) R407a Refrigerant (infrared) R410a Refrigerant (infrared) R410 Refrigerant (infrared) R507 Refrigerant (infrared) R1234yf Refrigerant (infrared) R32 Refrigerant (infrared) R22 Refrigerant (infrared) R1234ZE Refrigerant (infrared) R14 Refrigerant (infrared) R12 Heptafluoropropane (infrared) C3HF7 Refrigerant (infrared) R116 Freon CFC Refrigerant CFC

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range: 救援、受限空间、石油化工、冶盘二、存储、医药、环保

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	6种
Product Features	1、6种气体+温湿度 2、高精度 1% 3、可选配蓝牙打印机 4、内置泵吸式 5、可选配无线传输，无线互联
Detection Range	根据现场环境和用户需求而定
Resolution	0.001ppm（0-10ppm高精度）/0.01ppm（0～10 ppm）；0.01ppm（0～100 ppm），0.1ppm（0～1000 ppm），1ppm（0～1000 ppm以上）；0.1%LEL；0.1%、0.01%Vol
Typical Accuracy	≤±2% FS（可选更高精度传感器）
Detection Method	内置泵吸式，泵吸采样流量0.5-1升/分钟，流量≥10级可调
Display	3.5英寸高清触摸彩屏，IPS全视角，电容触摸屏
Power Supply	DC7.4V
Maximum Power Consumption	无
Operating Environment	典型值：-20℃～+55℃ 极限值：-40℃～+70℃ 相对湿度：≤95%RH（非凝露场合）
Data Storage	存储容量100万条以上，可选配大容量存储卡，存储数据大于1000万条。
Printing Function	选配蓝牙打印机
Signal Output	同时支持蓝牙、WIFI、LORA、MESH、4G、NB-IOT等方式，具有信号强度显示。
Alarm Method	声光报警、震动报警、语音报警
Fall Alarm	选配
Wireless Transmission	选配蓝牙/WIFI/LORA/4G/5G

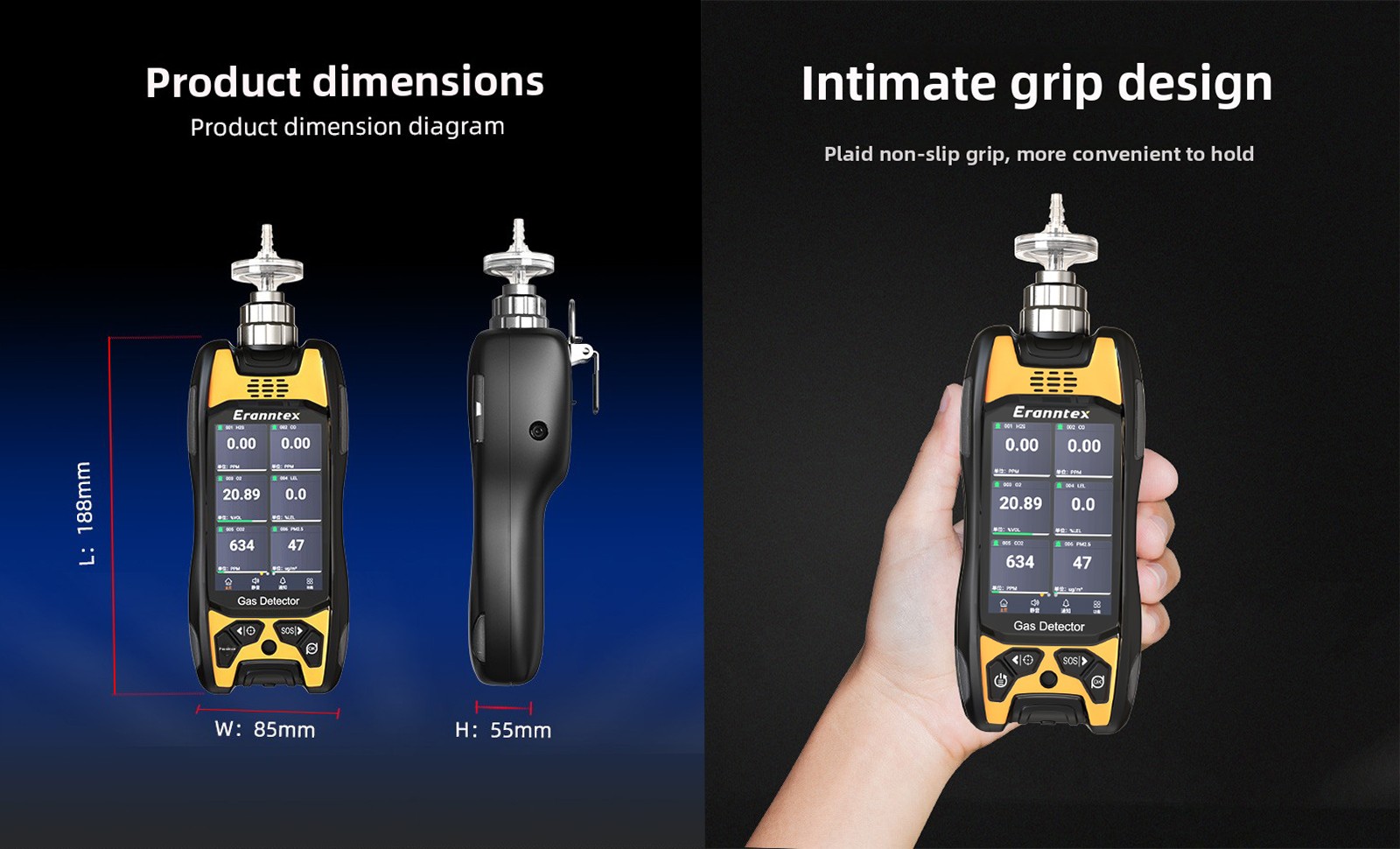

Dimensions: LWH	最大尺寸188×85×55mm(L×W×H)不含背夹厚度
Weight	约450g
Protection Level

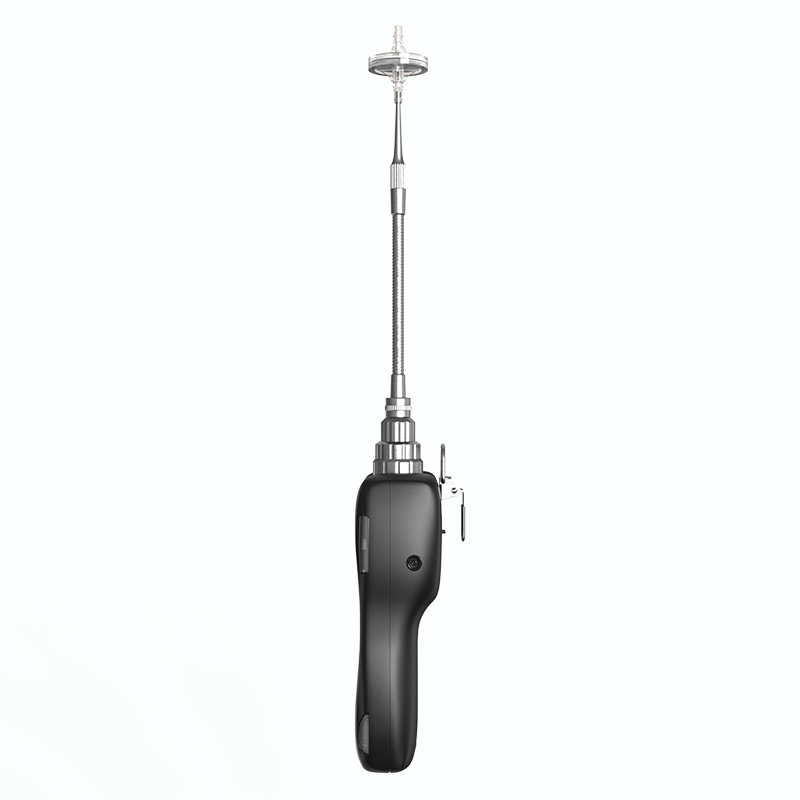

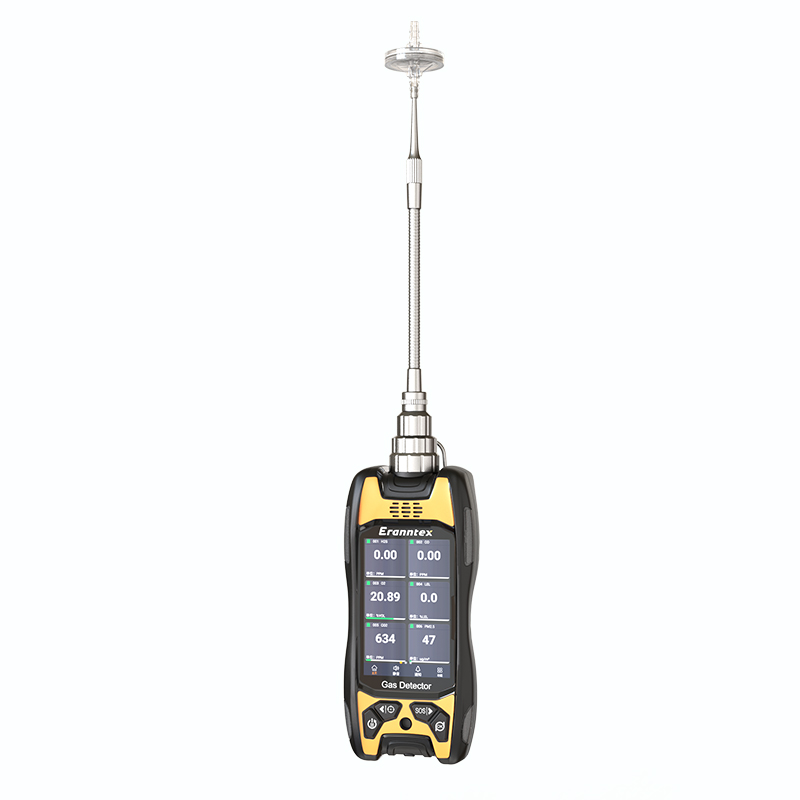

Standard Accessories	三通配件、过滤器、0.2米天鹅颈采样探针、说明书、合格证、USB充电器（含数据线）、仪器安全箱
Optional Accessories	1、多个过滤器； 2、活性炭过滤器； 3、0.4米不锈钢采样手柄（含1米软管）、高温采样手柄； 4、0.9米可伸缩采样手柄（含1米软管）； 5、外置蓝牙打印机。

常见气体附表（其他量程和对应分辨率可定制）：

检测气体	量程	分辨率	检测气体	量程	分辨率
VOCs(VOC)	0-20ppm	0.01ppm	氰化氢(HCN)	0-100ppm	0.01ppm
VOCs(VOC)	0-200ppm	0.1ppm	氯化氢(HCL)	0-20ppm	0.01ppm
VOCs(VOC)	0-2000ppm	1ppm	氯化氢(HCL)	0-200ppm	0.1ppm
VOCs(VOC)	0-10000ppm	1ppm	磷化氢(PH3)	0-5ppm	0.001ppm
可燃气(EX)	0-1000ppm	1ppm	磷化氢(PH3)	0-20ppm	0.01ppm
可燃气(EX)	0-100%LEL	0.1%LEL	磷化氢(PH3)	0-2000ppm	1ppm
可燃气(EX)	0-100%Vol	0.01%Vol	二氧化氯(CLO2)	0-1ppm	0.001ppm
甲烷(CH4)	0-100%LEL	0.1%LEL	二氧化氯(CLO2)	0-10ppm	0.01ppm
甲烷(CH4)	0-100%Vol	0.01%Vol	二氧化氯(CLO2)	0-100ppm	0.01ppm
氧气(O2)	0-30%Vol	0.01%Vol	环氧乙烷(ETO)	0-100ppm	0.01ppm
氧气(O2)	0-100%Vol	0.01%Vol	环氧乙烷(ETO)	0-1000ppm	0.1ppm
一氧化碳(CO)	0-100ppm	0.01ppm	环氧乙烷(ETO)	0-100%LEL	0.1%LEL
一氧化碳(CO)	0-1000ppm	0.1ppm	光气(COCL2)	0-1ppm	0.001ppm
一氧化碳(CO)	0-2000ppm	1ppm	光气(COCL2)	0-10ppm	0.01ppm
一氧化碳(CO)	0-5000ppm	1ppm	硅烷(SiH4)	0-1ppm	0.001ppm
一氧化碳(CO)	0-10000ppm	1ppm	硅烷(SiH4)	0-50ppm	0.01ppm
二氧化碳(CO2)	0-5000ppm	1ppm	氟气(F2)	0-1ppm	0.001ppm
二氧化碳(CO2)	0-50000ppm	1ppm	氟气(F2)	0-10ppm	0.001ppm
二氧化碳(CO2)	0-5%Vol	0.01%Vol	氟气(F2)	0-100ppm	0.01ppm
二氧化碳(CO2)	0-20%Vol	0.01%Vol	氟化氢(HF)	0-10ppm	0.01ppm
二氧化碳(CO2)	0-100%Vol	0.01%Vol	氟化氢(HF)	0-50ppm	0.01ppm
甲醛(CH2O)	0-10ppm	0.01ppm	溴化氢(HBr)	0-50ppm	0.01ppm
甲醛(CH2O)	0-50ppm	0.01ppm	乙硼烷(B2H6)	0-10ppm	0.001ppm
甲醛(CH2O)	0-100ppm	0.01ppm	砷化氢(AsH3)	0-1ppm	0.001ppm
甲醛(CH2O)	0-1000ppm	1ppm	砷化氢(AsH3)	0-10ppm	0.001ppm
臭氧(O3)	0-1ppm	0.001ppm	锗烷(GeH4)	0-1ppm	0.001ppm
臭氧(O3)	0-10ppm	0.01ppm	锗烷(GeH4)	0-10ppm	0.001ppm
臭氧(O3)	0-100ppm	0.01ppm	锗烷(GeH4)	0-50ppm	0.01ppm
臭氧(O3)	0-2000ppm	1ppm	肼, 联氨(N2H4)	0-1ppm	0.001ppm
硫化氢(H2S)	0-10ppm	0.01ppm	肼, 联氨(N2H4)	0-300ppm	0.1ppm
硫化氢(H2S)	0-100ppm	0.01ppm	四氢噻吩(THT)	0-50mg/m3	0.01mg/m3
硫化氢(H2S)	0-500ppm	0.1ppm	溴气(Br2)	0-10ppm	0.01ppm
硫化氢(H2S)	0-2000ppm	1ppm	溴气(Br2)	0-50ppm	0.01ppm
二氧化硫(SO2)	0-20ppm	0.01ppm	乙炔(C2H2)	0-100%LEL	0.1%LEL
二氧化硫(SO2)	0-100ppm	0.01ppm	乙炔(C2H2)	0-100ppm	0.1ppm
二氧化硫(SO2)	0-1000ppm	0.1ppm	乙炔(C2H2)	0-1000ppm	1ppm
二氧化硫(SO2)	0-5000ppm	1ppm	乙烯(C2H4)	0-10ppm	0.01ppm
一氧化氮(NO)	0-20ppm	0.01ppm	乙烯(C2H4)	0-100ppm	0.1ppm
一氧化氮(NO)	0-100ppm	0.01ppm	乙烯(C2H4)	0-1000ppm	1ppm
一氧化氮(NO)	0-1000ppm	0.1ppm	乙硫醇（C2H5SH）	0-10mg/m3	0.01mg/m3
一氧化氮(NO)	0-5000ppm	1ppm	乙醇(C2H6O)	0-100%LEL	0.1%LEL
二氧化氮(NO2)	0-20ppm	0.01ppm	乙醇(C2H6O)	0-100ppm	0.1ppm
二氧化氮(NO2)	0-100ppm	0.01ppm	乙醇(C2H6O)	0-2000ppm	1ppm
二氧化氮(NO2)	0-1000ppm	0.1ppm	甲醇(CH6O)	0-100%LEL	0.1%LEL
二氧化氮(NO2)	0-2000ppm	1ppm	甲醇(CH6O)	0-100ppm	0.1ppm
氮氧化物(NOX)	0-100ppm	0.01ppm	甲醇(CH6O)	0-2000ppm	1ppm
氮氧化物(NOX)	0-500ppm	0.1ppm	二硫化碳(CS2)	0-50ppm	0.01ppm
氮氧化物(NOX)	0-2000ppm	1ppm	丙烯腈（C3H3N）	0-100ppm	0.01ppm
氯气(CL2)	0-20ppm	0.01ppm	四氧化二氮（N2O4）	0-100ppm	0.01ppm
氯气(CL2)	0-200ppm	0.1ppm	笑气（N2O）	0-1000ppm	1ppm
氨气(NH3)	0-10ppm	0.01ppm	甲胺（C3H9N）	0-50ppm	0.01ppm
氨气(NH3)	0-100ppm	0.01ppm	氮气(N2)	0-100%Vol	0.01%Vol
氨气(NH3)	0-1000ppm	0.1ppm	苯(C6H6)	0-200ppm	0.1ppm
氨气(NH3)	0-5000ppm	1ppm	甲苯(C7H8)	0-200ppm	0.1ppm
氨气(NH3)	0-100%LEL	0.1%LEL	二甲苯(C8H10)	0-200ppm	0.1ppm
氢气(H2)	0-100%LEL	0.1%LEL	苯乙烯(C8H8)	0-200ppm	0.1ppm
氢气(H2)	0-1000ppm	0.1ppm	氯乙烯(C2H3CL)	0-200ppm	0.1ppm
氢气(H2)	0-20000ppm	1ppm	三氯乙烯(C2HCL3)	0-200ppm	0.1ppm
氢气(H2)	0-40000ppm	1ppm	四氯乙烯PID(C2CL4)	0-200ppm	0.1ppm
氢气(H2)	0-100%Vol	0.01%Vol	溴甲烷(CH3Br)	0-100ppm	0.1ppm
氰化氢(HCN)	0-30ppm	0.01ppm	溴甲烷(CH3Br)	0-200mg/m3	0.1mg/m3

注：其它未在上表列出的气体可来电咨询。

BTYQ-MS600-S便携式六合一气体检测仪功能特点：

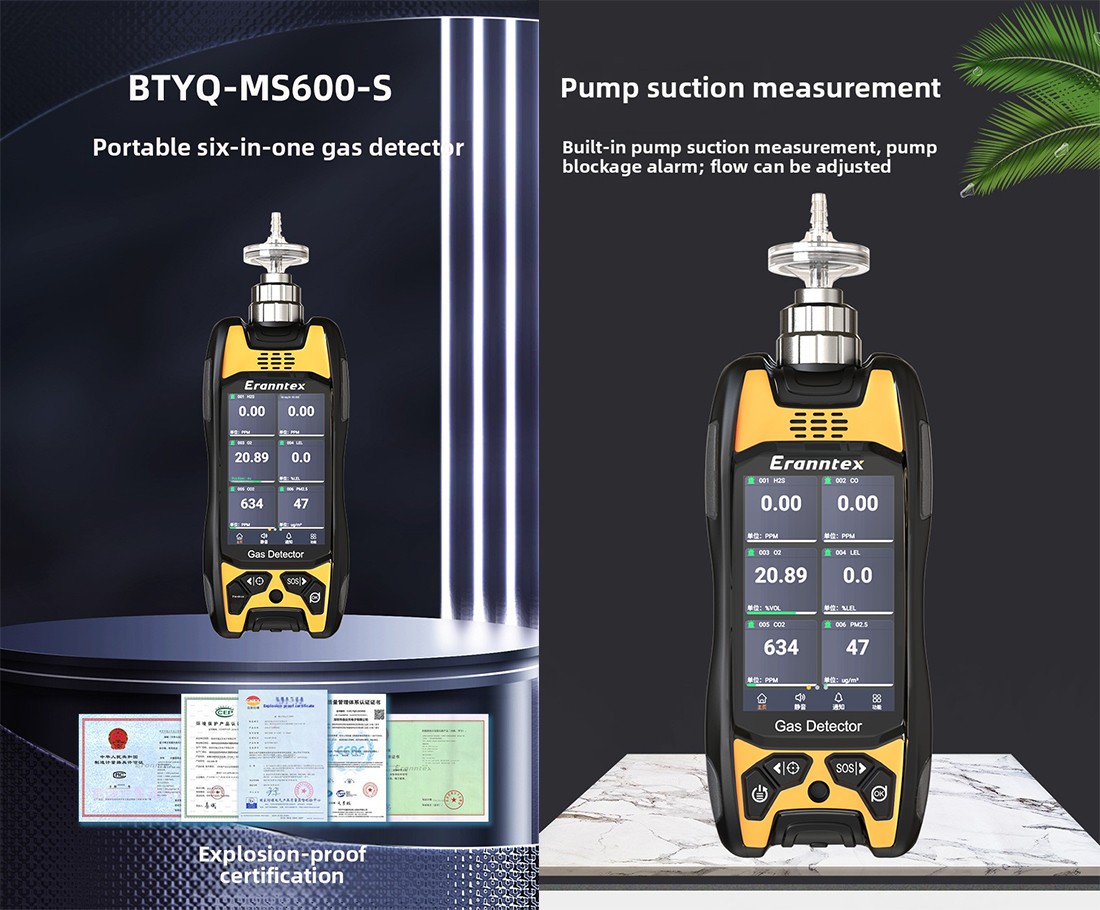

★内置泵吸式测量。

★泵堵塞报警。

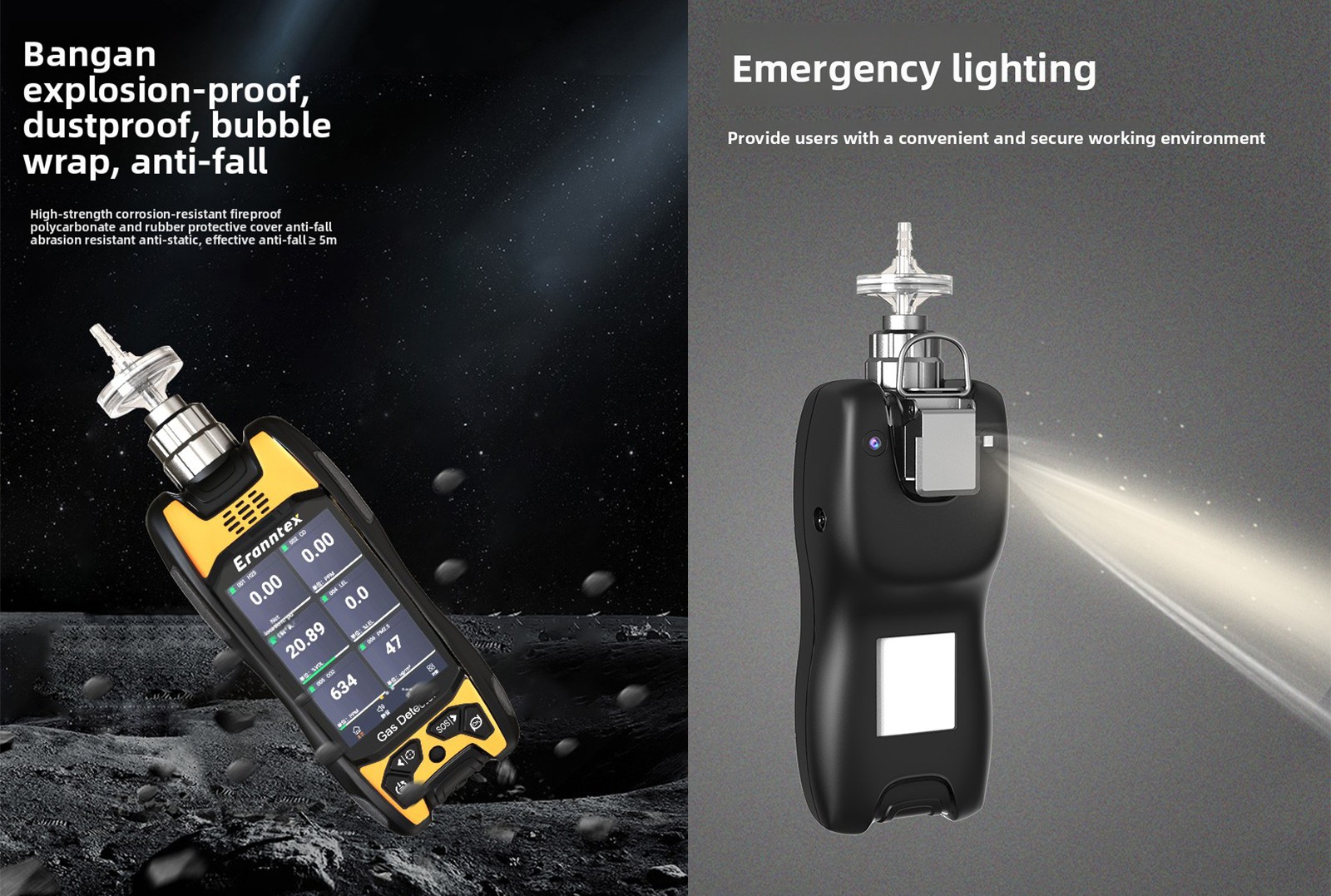

★LED照明。

★采用数字传感器，每个传感器可插拔、智能识别、即插即用，免标定，可插在任意传感器插槽位置。

★可通过仪表设置打开或关闭任意一个传感器

★传感器缺失报警，传感器寿命到期预警

★前端可安装一个免拆机更换的数字传感器，可同时配置数字传感器大于7个。

★单位自由切换，单位可选：μmol/mol、ppm、pphm、ppb、mg/m3、μg/m3、%Vol、%LEL。

★4物理按键+3触摸按键，快捷一键校准功能。

★3.5英寸高清触摸彩屏，IPS全视角，电容触摸屏。

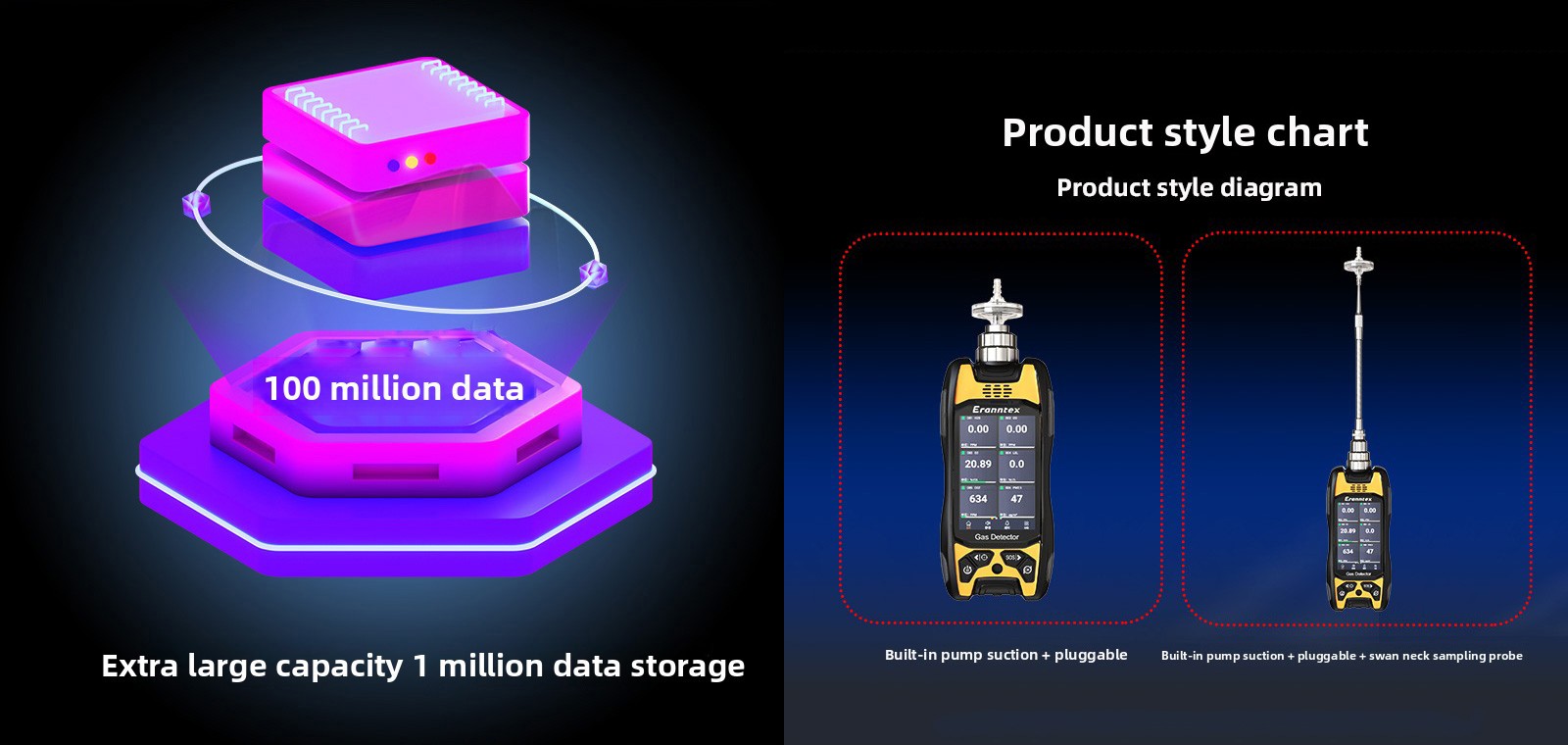

★数据存储，存储容量100万条以上，可选配大容量存储卡，存储数据大于1000万条。

★通讯接口：TYPE-C快充与通讯。

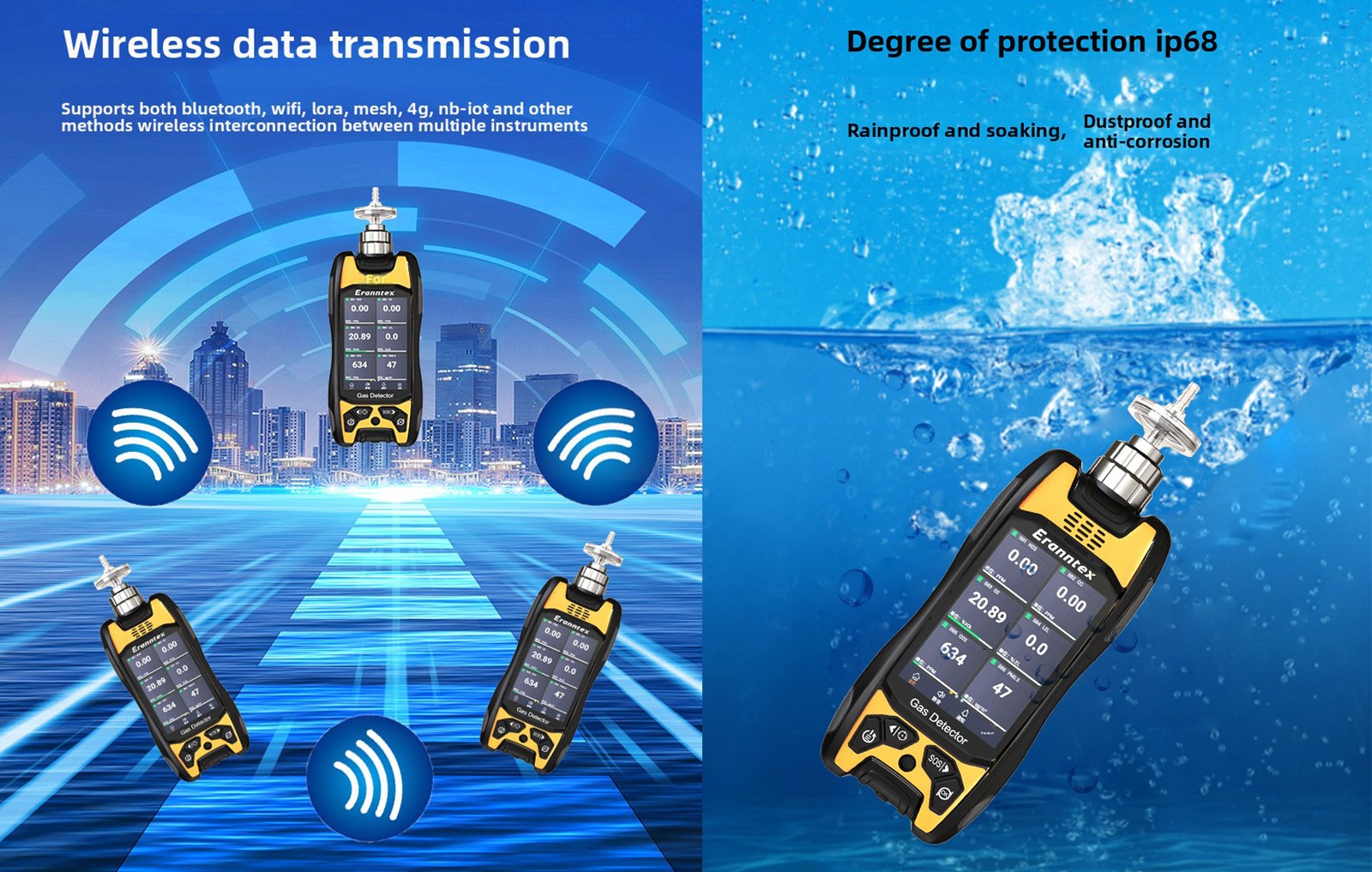

★选配无线传输：同时支持蓝牙、WIFI、LORA、MESH、4G、NB-IOT等方式，具有信号强度显示。

★选配功能：北斗定位，一键定位上传云平台，多台仪器之间无线互联，支持移动终端APP查看，远程报警，通过电话、短信、微信进行提醒。

★支持远程维护及远程升级。

★跌倒报警。

★SOS一键呼救(运动报警，主动呼救)，懒人钟功能。

★数据恢复功能，部分或全部恢复出厂数据。

★内置气体库(可燃、VOC、有毒气体)。

★最大值、最小值、加权平均值显示，实时曲线、条形图、列表显示。

★多种报警音可选，报警音可分别独立设置，报警音量大于95dB，30厘米。

★多种报警方式报警模式，多个报警点设置，可关闭报警。

报警方式：声光报警、震动报警、语音报警。

报警种类：浓度报警、欠压报警、故障报警、泵堵塞报警、跌倒报警、SOS报警(运动报警)。

报警模式：低报警、高报警、区间报警、TWA/STEL报警。

★误操作识别功能。

★零点自动跟踪。

★目标点多级校准。

★本安电路设计，防爆、防振、抗静电，抗辐射。

★防护等级IP68。

★执行标准：

GBT 3836.1-2021 《爆炸性气体环境用电气设备通用要求》

GBT 3836.4-2021 《爆炸性气体环境用电气设备本质安全型“i”》

GB 15322.3-2019 《可燃气体探测器第3部分：工业及商业用途便携式可燃气体探测器》

GB/T 20936.1-2022《爆炸性环境用气体探测器第 1 部分：可燃气体探测器性能要求》

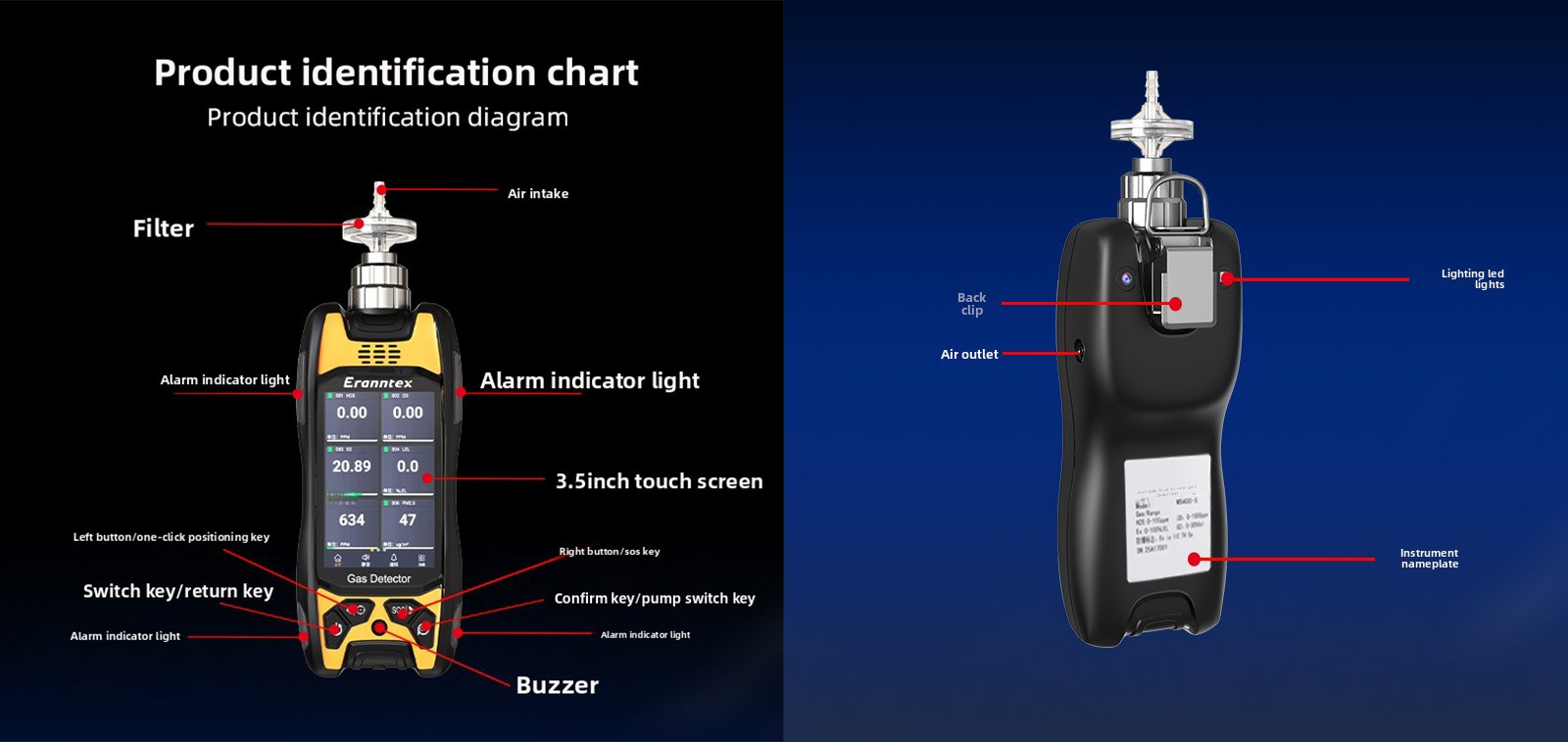

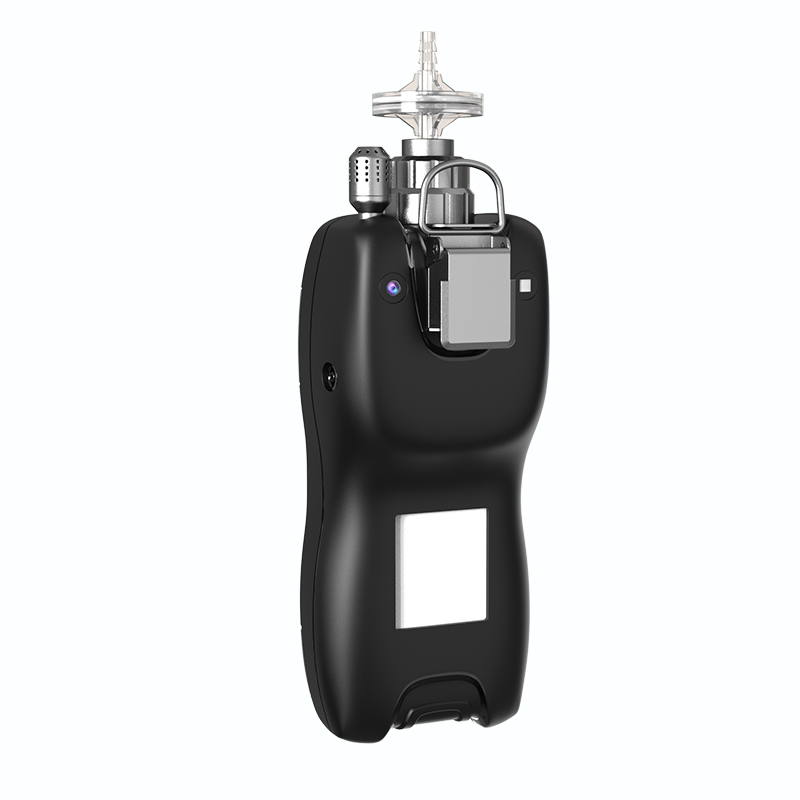

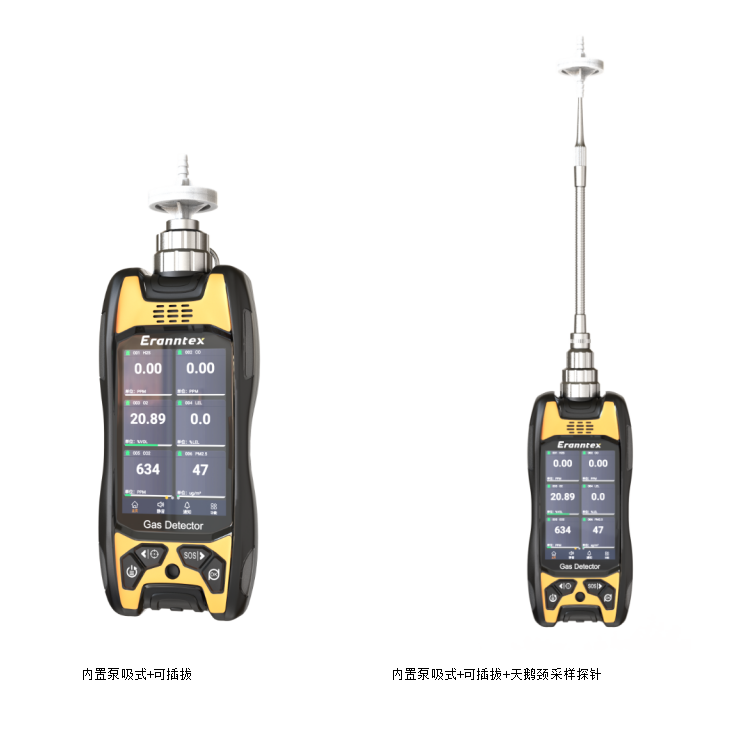

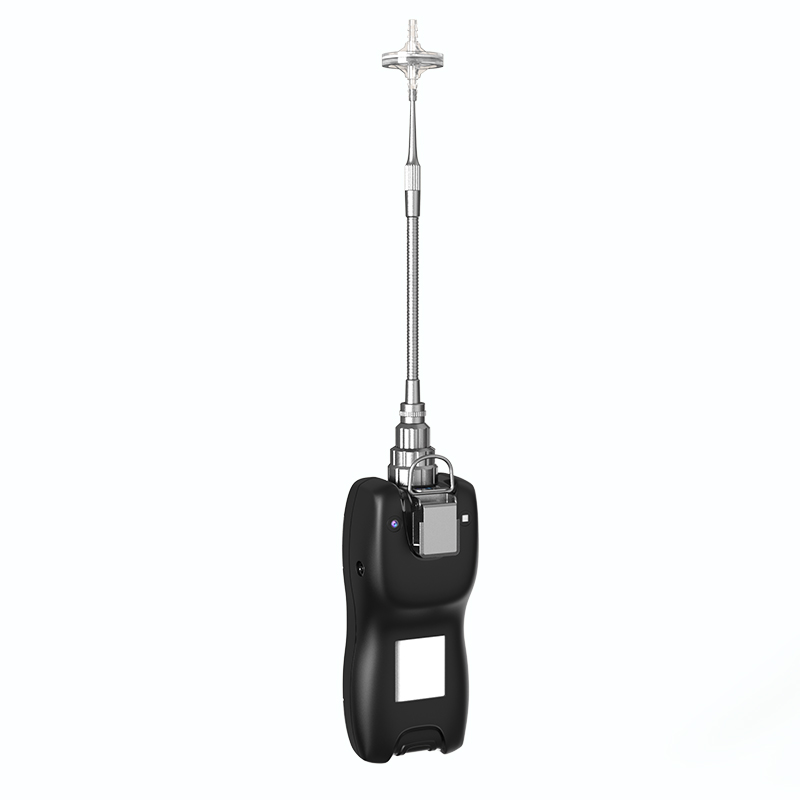

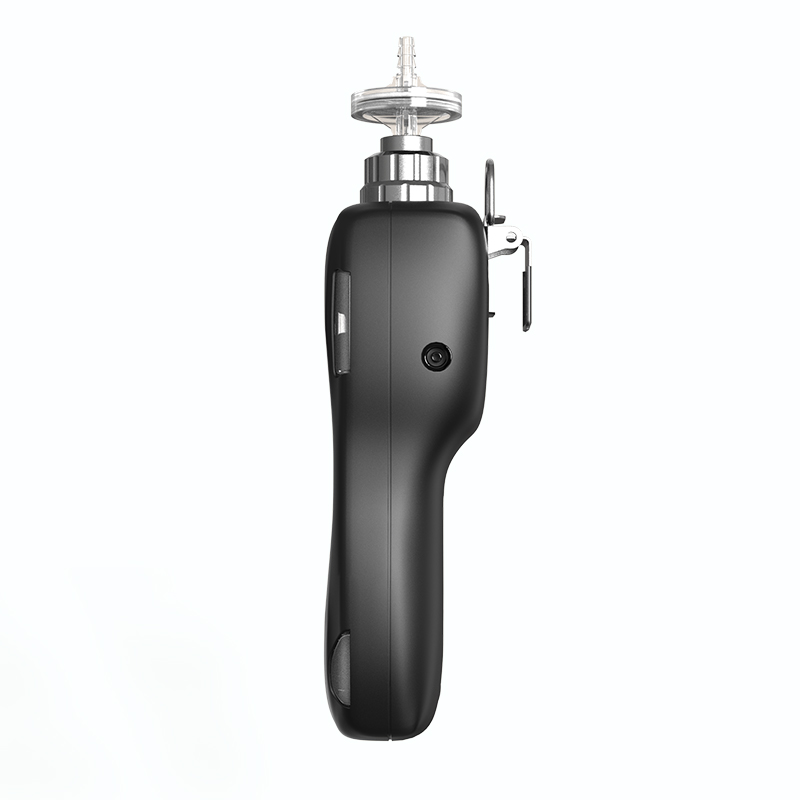

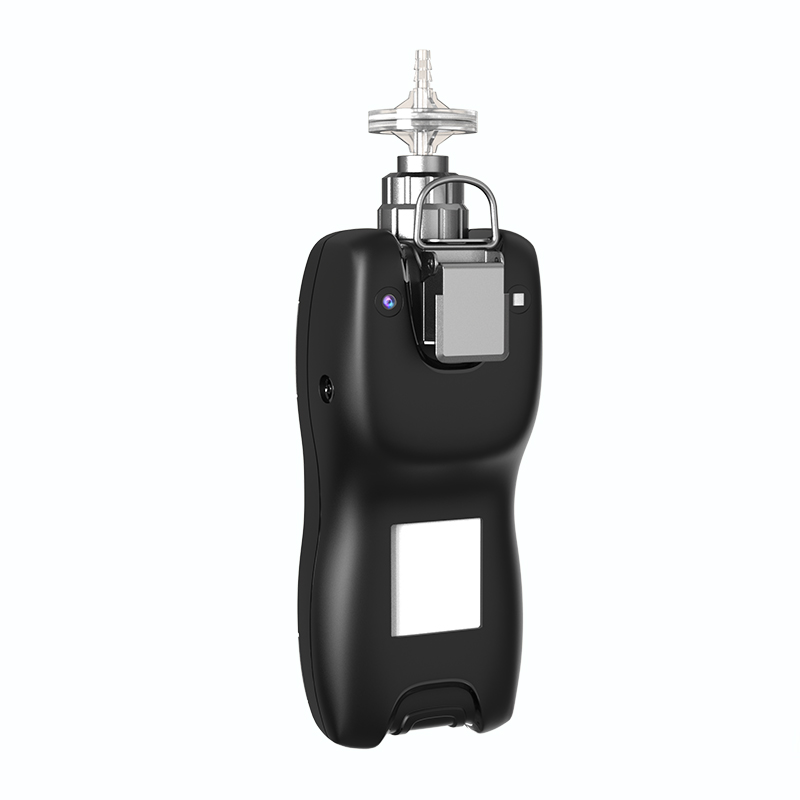

BTYQ-MS600-S便携式六合一气体检测仪外形图：

Product HighlightsNew process formula enhances performance to meet stricter application requirements

High PrecisionUp to ±0.1%FS (varies by gas type)
Wireless ConnectivityOptional wireless communication for real-time data monitoring
Advanced ProtectionIP67+ protection level
Explosion-proof DesignHigh shock and explosion resistance
Anti-interference DesignAnti-static and electromagnetic interference
HD Color DisplayComprehensive and clear information display
Large Capacity StorageMassive data storage
Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations
