1. Background:

Hospital hot water boiler (natural gas boiler). Nitrogen oxides (NOx) concentration is measured after combustion, approximately 150 mg/m³. Data needs to be uploaded to the Environmental Protection Bureau. Temperature is below 200 degrees Celsius.

2. Parameter Requirements:

Detect NOx emission concentration, range 0-150 mg/m³

3. Solution:

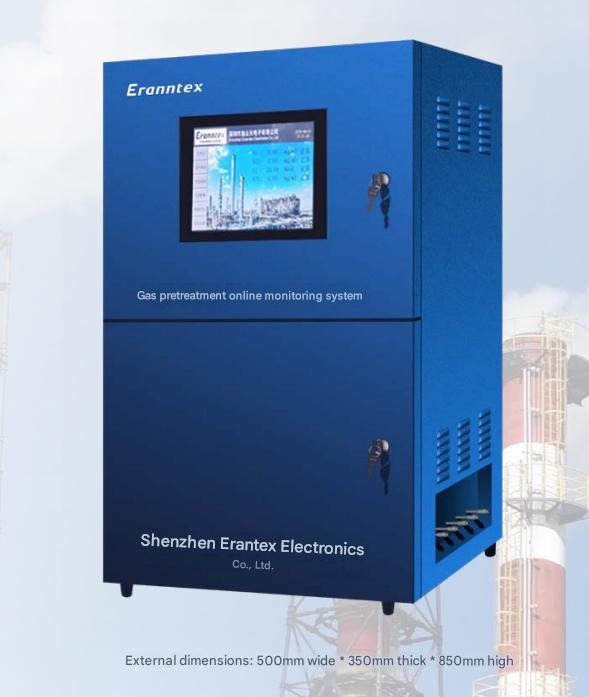

Fixed gas detector with pretreatment device

4. Matched Products:

TH2000-C+MIC-600-NOX

NO: Detection range: 0-150 mg/m³, resolution: 0.01 mg/m³

Imported electrochemical analyzer for flue gas

NO2: Detection range: 0-150 mg/m³, resolution: 0.01 mg/m³

Imported electrochemical analyzer for flue gas

O2: Detection range: 0-30% vol, resolution: 0.01% vol

Imported electrochemical principle

Includes DTU wireless module
