Boiler nitrogen oxide online monitoring system Overview

At present, the increasingly complex atmospheric pollution situation is posing new challenges to the traditional method of monitoring atmospheric pollution sources. The current number of monitoring points of the environmental air national control point monitoring system is limited and the cost is high. The method of point replacement leads to insufficient timeliness, which fails to achieve the goal of refined control, and cannot achieve the ability of spatial and temporal dynamic trend analysis, pollution emission reduction evaluation, pollution source tracking, environmental early warning and forecasting in the monitoring system. In-depth excavation.

In combination with the requirements of the General Office of the State Council on the construction of ecological environment monitoring network, Yiyuntian has developed a set of low-cost, multi-parameter integrated compact micro-environmental air monitoring system that can achieve high-density grid layout with rich experience in the field of gas detection, and the grid monitoring system can fully cover the monitoring. Measure the area, and realize atmospheric pollution monitoring with high space-time resolution. At the same time, combined with the application of information big data, it realizes the functions of pollution source tracking, early warning and forecasting, etc., providing more timely and effective decision-making support for environmental pollution prevention and control.

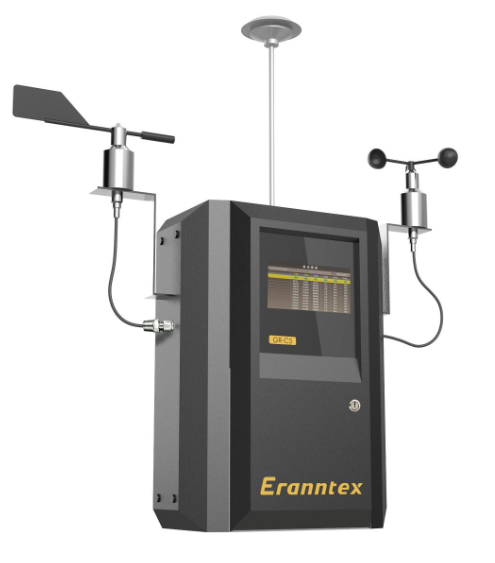

TH2000-W micro-environmental air monitoring system is mainly composed of gaseous pollutant detection module, particulate matter detection module, meteorological parameter sensor, wireless communication module, power supply and power supply management listComponents, etc., and the monitoring factors include VOCs, SO2, NO2, CO, O3, PM10, PM2.5, temperature, humidity, wind speed and wind direction.
