I. Solution Background

The end user is a shipyard in Shanghai that needs to detect gases in confined spaces.

The client, who inquired about pricing, stated they are an IoT system developer specializing in personnel positioning systems. They want to integrate our device into their personnel positioning system. The project requires five-in-one detection of CO2/O2/VOC/CH4/H2S, powered by a battery.

II. Parameter Requirements

Detection of CO2/O2/VOC/CH4/H2S, battery powered, data needs to be transmitted to the client's receiving device via 433MHz wireless transmission.

III. Solution

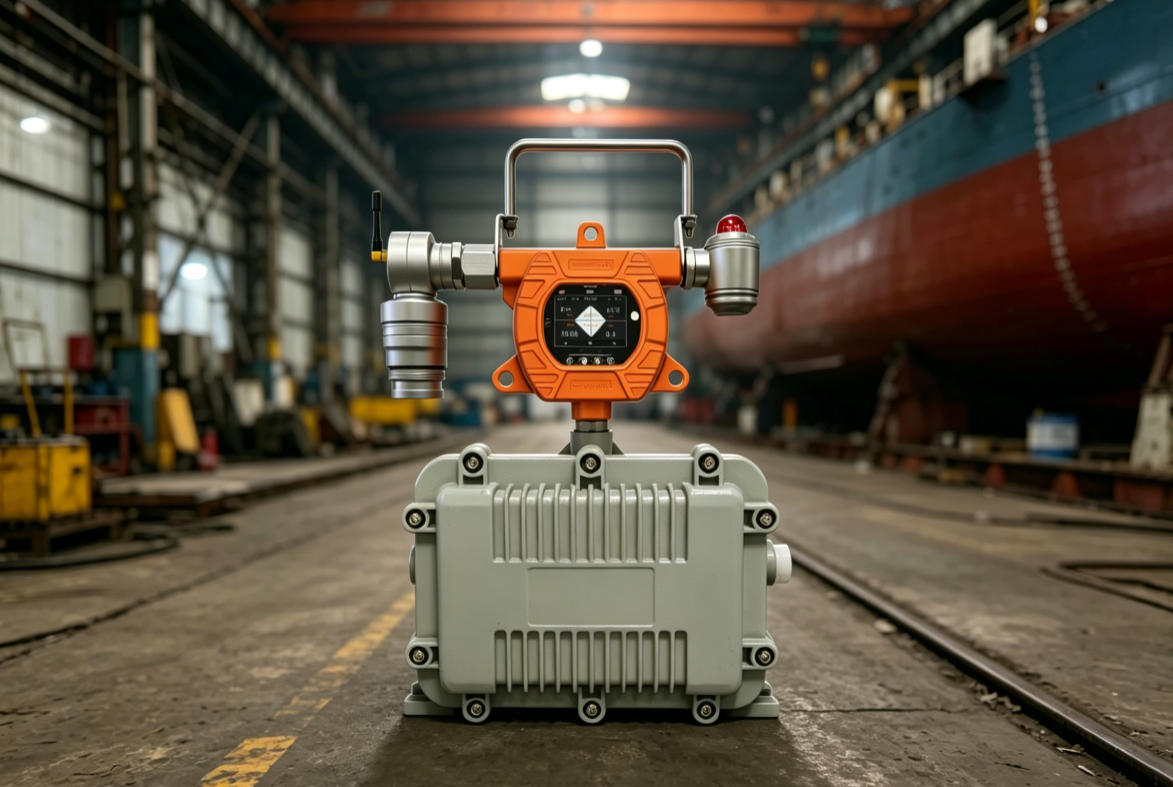

The solution utilizes the MIC-600-S-5 wireless portable five-in-one gas detector (CO2/O2/VOC/CH4/H2S) + 433MHz wireless module to achieve both detection and wireless transmission functions.

IV. Compatible Products

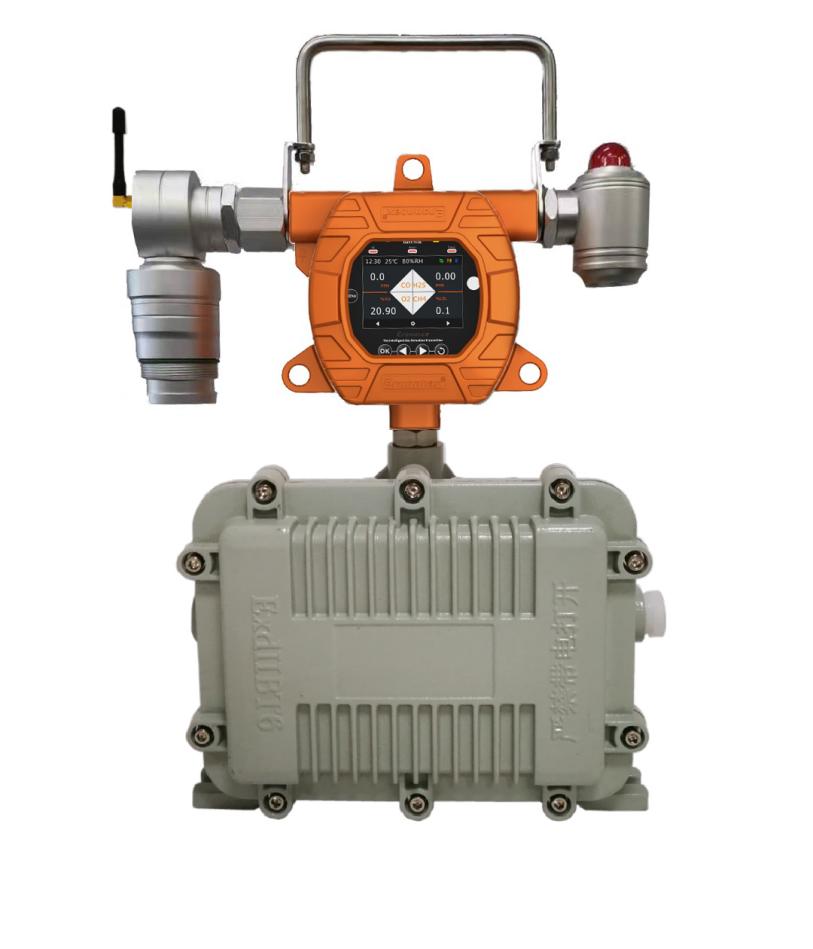

MIC-600-S-5 (CO2/O2/VOC/CH4/H2S) C/CH4/H2S) + 433 Wireless Module

Detection Range: CH4: 0-100% LEL, 0.1% LEL

Detection Range: H2S: 0-100ppm, resolution 0.01ppm

Detection Range: O2: 0-30%vol, resolution: 0.01%vol

Detection Range: CO2: 0-2000PPM, resolution 1PPM

Detection Range: VOC: 0-20000PPM, 1PPM

Includes 433 Wireless Data Transmission Module
