1. Background of the Solution

The requirement is to detect the gas concentration inside small food packaging bags and to save and archive the detection data to ensure that the gas concentration meets packaging requirements.

2. Solution

The gas volume inside small food packaging bags is relatively small. Using conventional pump-type detection, the gas inside the bag is evacuated before the detection data stabilizes, making accurate detection impossible. For this application scenario, our company has developed a sampling and detection method that combines the equipment with an inlet needle and an outlet needle, creating a gas circulation loop to ensure sufficient gas volume for detection.

3. Matched Products

Ensuring nitrogen concentration meets standards by measuring oxygen concentration.

BTYQ-MS104K-L-O2-AW + Inlet Needle + Outlet Needle

Oxygen O₂: Range 0-5%vol, imported electrochemical sensor

Other gases can also be detected according to customer requirements.

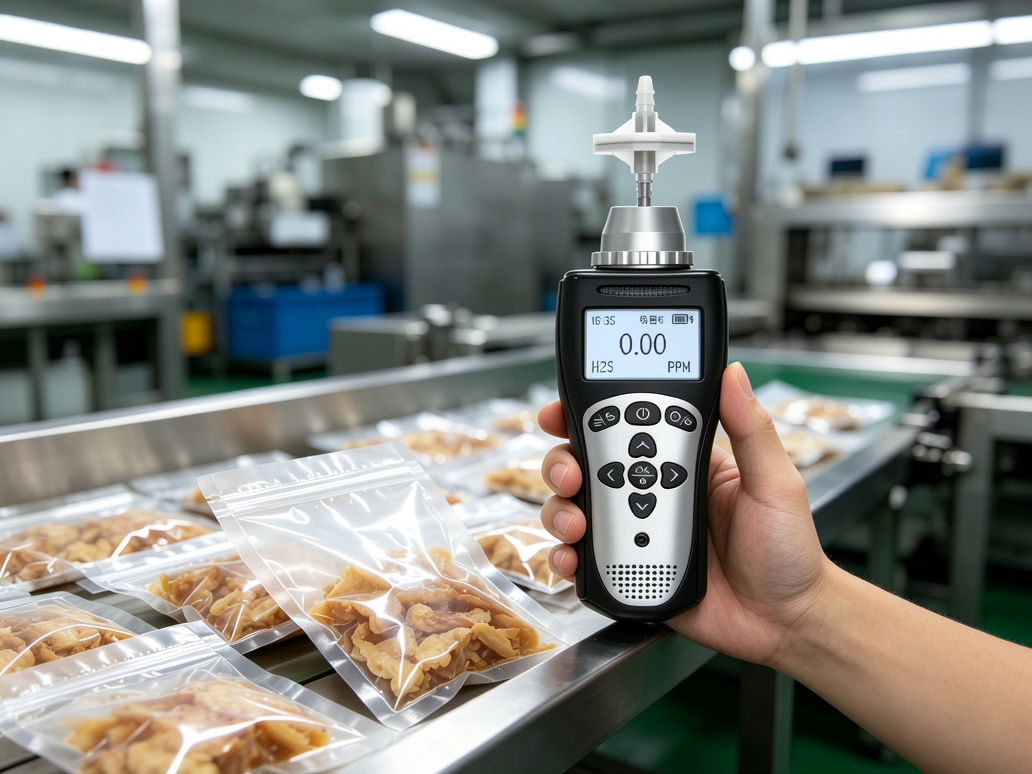

On-site Installation Diagram:
