Smart Community Biogas Online Monitoring System Solution Overview

Living in a city, everyone wants to breathe fresh air and want to have neat streets. This reflects the importance of environmental protection. In today's era of vigorously advocating green and environmentally friendly life, every link of social public infrastructure construction should be green, environmentally friendly and pollution-free.

We all know that septic tank is a basic sludge treatment facility and a pretreatment facility for domestic sewage. Its role can be manifested in the following aspects:

1. Ensure the environmental health of the living community and avoid the spread of domestic sewage and pollutants in the living environment.

2. Kill mosquito and fly eggs in the working environment of anaerobic decay in the septic tank.

3. Temporary storage of sludge, organic sludge is anaerobic decayed, and matured organic sludge can be used as agricultural fertilizer.

4. Pre-treatment of domestic sewage (first-level treatment), precipitate impurities, and hydrolyze macromolecular organic matter into small molecular organic matter such as acid and alcohol, so as to improve subsequent sewage treatment.

Therefore, if you want to have a good living environment and community environment, the role of septic tanks is still very important. However, because the cleaning of traditional septic tanks cannot be monitored in real time, there is a certain lag in cleaning.The biogas concentration and pollutant temperature and humidity data of the septic tank cannot be effectively sorted out and collected, which makes it impossible to clean up the septic tank in time to a certain extent, thus causing some trouble to the community environment. The serious consequences of not cleaning the septic tank can be imagined. First of all, the septic tank does not clean up the pollution to the environment. Due to the vibration caused by external forces on the ground, the pool body appears cracks, causing manure water to leak underground, polluting groundwater sources, and the long-term failure to clean the septic tank causes the biogas concentration to seriously exceed the standard, etc., which has a great potential Harm.

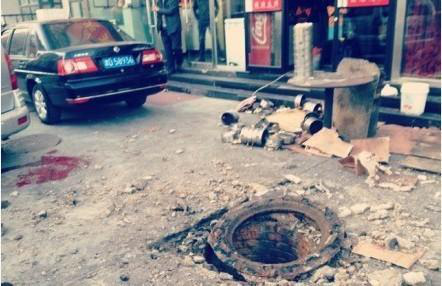

For example, septic tanks are a flammable gas produced by the fermentation of microorganisms under anaerobic conditions, that is, biogas. When the concentration of biogas accumulates to a certain extent, it will be very troublesome to clean up. If the human body inhales biogas, it will be poisoned. When it encounters an open flame, it will cause the explosion of the septic tank. In an instant, it is no less powerful than the explosion of a gas tank.

The intelligent biogas online monitoring system of Shenzhen Yiyuntian Electronics Co., Ltd. can avoid the occurrence of explosions very well. The principle of intelligent biogas online monitoring system is to use advanced intelligent monitoring technology, sensing technology, data acquisition technology, wireless communication technology, intelligent control technology, data storage technology and big data analysis and processing technology to realize the monitoring points of toxic, harmful and flammable gases and septic tanks.Real-time data collection, storage, processing, comparison, analysis of temperature and humidity conditions and remote intelligent control under abnormal gas exceeding the standard of monitoring points.

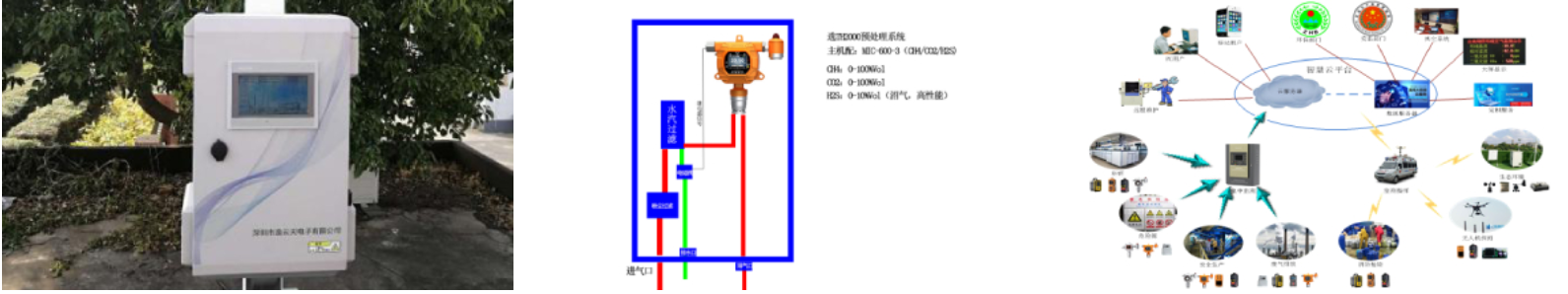

The whole smart community biogas online monitoring system consists of a power supply unit, a sampling unit, a sample gas processing unit, a sensor detection unit, a data processing unit, a display unit and a transmission unit. The power supply unit is responsible for providing electricity to the whole equipment; the sampling unit pumps the biogas sample into the sensor detection unit through the sampling pump for detection and analysis; the sample gas processing unit is responsible for filtering out the water and dust contained in the biogas sample; the sensor detection unit is responsible for the identification and analysis of different odor components in the biogas sample. ; After the detection data of each sensor, the data processing unit is conducive to the analysis and calculation of Yiyuntian's unique big data biogas model to obtain accurate internal engineering data;The internal engineering data of the display unit is presented in a simple and easy-to-understand way; the transmission unit remotely transmits the final data to the Environmental Protection Bureau, control room and cloud platform by wire or wireless.

Through this platform, the monitoring personnel can timely and efficiently monitor the changes in the concentration of toxic and harmful gases and flammable gases in the septic tank, and take corresponding treatment measures. When the biogas concentration of the septic tank exceeds the standard, the alarm is transmitted to the monitoring room through remote wireless transmission to achieve the effect of preventing the danger before it happens, so as not to cause more septic tank explosions, thus bringing sufficient safety and security to people's lives.
