Diffusion four-in-one gas detector MS104K

Detection Method: Diffusion type

Detection Gas: Two-in-one gas detector 4-in-one gas detector Four-in-one detector Four-in-one gas detector Multi-gas detector Multifunctional gas detector Compound gas detector Carbon dioxide detector (infrared) CO2 Flammable Gas Detector Ex Flammable Gas Detector (Infrared) Ex Methane detector CH4 Methane detector (infrared) CH4 Propane detector (infrared) C3H8 Non-methane total hydrocarbon detector CxHy Carbon monoxide detector CO Hydrogen sulfide detector H2S Oxygen detector O2 Nitrogen detector N2 Ammonia gas detector NH3 Chlorine gas detector CL2 Hydrogen detector H2 Formaldehyde detector CH2O Ozone detector O3 Nitric oxide detector NO Nitrogen dioxide detector NO2Nitrogen oxide detector NOX Sulfur dioxide detector SO2 Epoxy ethane detector ETO Hydrogen phosphide detector PH3 Hydrogen chloride detector HCL Hydrogen cyanide detector Light gas detector COCL2 Chlorine dioxide detector CLO2 Silane detector SiH4 Bromomethane Detector (PID) CH3Br Fluorine gas detector F2 Hydrogen fluoride detector HF Hydrogen bromide detector HBr Ethylborane Detector B2H6 Hydrogen arsenide detector AsH3 Germanium Detector GeH4 LAMINE DETECTOR N2H4 N2H4 Trimethylamine detector C3H9N Triethylamine detector C6H15N Aniline detector C6H7N Phenol detector C6H6O Partial dimethyl berbide detector C2H8N2 Nitrous oxide detector N2O4Nitrogen trichloride detector NCL3 Sulfuric acid fog detector H2SO4 Tert-butyl thiol detector TBM Phosphorus pentafluoride detector PF5 Boron trichloride detector BCL3 Phosphorus trichloride detector PCL3 Trichlorophosphorus detector POCL3 Phosphorus trifluoride detector PF3 Boron trifluoride detector BF3 Azide acid detector HN3 Methiosulfide detector C2H6S Dimethyl sulfate detector C2H6O4S Acetonitrile detector CH3CN Acetic acid detector C2H4O2 Acetic acid detector C2H4O2 Methyl acrylate detector MA Ethyl acrylate detector EA Dimethyl disulfur detector C2H6S2 Dimethyl ether detector C2H6O Dimethyl sulfide detector C2H6S2 Dichlorosilane detector SiH2Cl2Chlorosilane detector SiH3Cl Tetrahydrothiophene detector THT Bromine gas detector Br2 Acetylene detector C2H2 Carbon disulfide detector CS2 Acetaldehyde detector C2H4O Acrylonitrile detector C3H3N Butone detector MEK Acetone detector MDK Acetone detector (infrared) C3H6O Ethylene detector C2H4 Isopropyl alcohol detector C3H8O Ethanol detector C2H6O Methanol detector CH4O Methamine detector CH5N Methanol detector CH3SH Vinyl chloride detector C2H3CL Trichloroethylene detector C2HCL3 Tetrachloroethylene detector C2CL4 Chloromethane detector CH3CL Dichloroethane detector C2H4CL2 Dichloromethane detector CH2CL2Trichloromethane detector CHCL3 Nitrogen trifluoride detector NF3 Styrene detector C8H8 Styrene Detector (PID) C8H8 Dimethyl sulfide detector C2H6S2 Tetrahydrofuran detector THF Tetrahydrofuran Detector (PID) THF Dimethylformamide detector DMF TVOC Detector (PID) TVOC TVOC detector VOC detector (PID) VOC VOC detector VOC Benzene detector (PID) C6H6 Benzene detector C6H6 Toluene Detector (PID) C7H8 Toluene detector C7H8 Xylene Detector (PID) C8H10 Xylene detector C8H10 PID gas detector PID Odor detector OU Carbon dioxide (infrared) CO2Combustible instrument Ex Combustible (Infrared) Ex Methane CH4 Methane (infrared) CH4 Propane (infrared) C3H8 Non-methane total hydrocarbon CxHy Carbon monoxide CO Hydrogen sulfide H2S Oxygen O2 Nitrogen N2 Ammonia NH3 Chlorine CL2 Hydrogen H2 Formaldehyde CH2O Ozone O3 Nitric oxide NO Nitrogen dioxide NO2 Nitrogen oxide NOX Sulfur dioxide SO2 Epoxy ethane ETO Hydrogen phosphide PH3 Hydrogen chloride HCL Hydrogen cyanide HCN Light gas COCL2 CHLORINE DIOXIDE CLO2 Silane SiH4 Bromomethane (PID) CH3Br Fluorine gas F2 Hydrogen fluoride HF Hydrogen bromide HBr Ethylborane B2H6 Hydrogen arsenide AsH3 Germanium Alkane GeH4 Biamine N2H4 N2H4Trimethylamine C3H9N Triethylamine C6H15N Aniline C6H7N Phenol C6H6O C2H8N2 Nitrogen tetraoxide N2O4 Nitrogen trichloride NCL3 Sulfuric acid mist H2SO4 Tert-butyl thiol TBM Phosphorus pentafluoride PF5 Boron trichloride BCL3 Phosphorus trichloride PCL3 Trichlorophosphate POCL3 Phosphorus trifluoride PF3 Boron trifluoride BF3 Azaic acid HN3 Methyl sulfide C2H6S Dimethyl sulfate C2H6O4S Acetonitrile CH3CN Acetic acid C2H4O2 Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyldisulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2 Chlorosilane SiH3ClTetrahydrothiophene THT Bromine Br2 Acetylene C2H2 Carbon disulfide CS2 Acetaldehyde C2H4O Acrylonitrile C3H3N Butone MEK Acetone MDK Acetone (infrared) C3H6O Ethylene C2H4 Isopropyl alcohol C3H8O Ethanol C2H6O Methanol CH4O Methamine CH5N Methanol CH3SH Vinyl chloride C2H3CL Trichloroethylene C2HCL3 Tetrachloroethylene C2CL4 Chloromethane CH3CL Dichloroethane C2H4CL2 Dichloromethane CH2CL2 Trichloromethane CHCL3 Nitrogen trifluoride NF3 Styrene C8H8 Styrene (PID) C8H8 Dimethyl disulfide C2H6S2 Tetrahydrofuran THF Tetrahydrofuran (PID) THF Dimethylformamide DMFTVOC (PID) TVOC TVOC VOCPID) VOC Benzene (PID) C6H6 Benzene C6H6 Toluene (PID) C7H8 Toluene C7H8 Xylene (PID) C8H10 Xylene C8H10 PID gas STINKY OU

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range: 0～1, 10, 100, 1000, 5000, 50000ppm, 100MG/L, 100% LEL, 20%, 50%, 100%Vol optional, Other measurement ranges can be customized.

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Download Manual Back to List

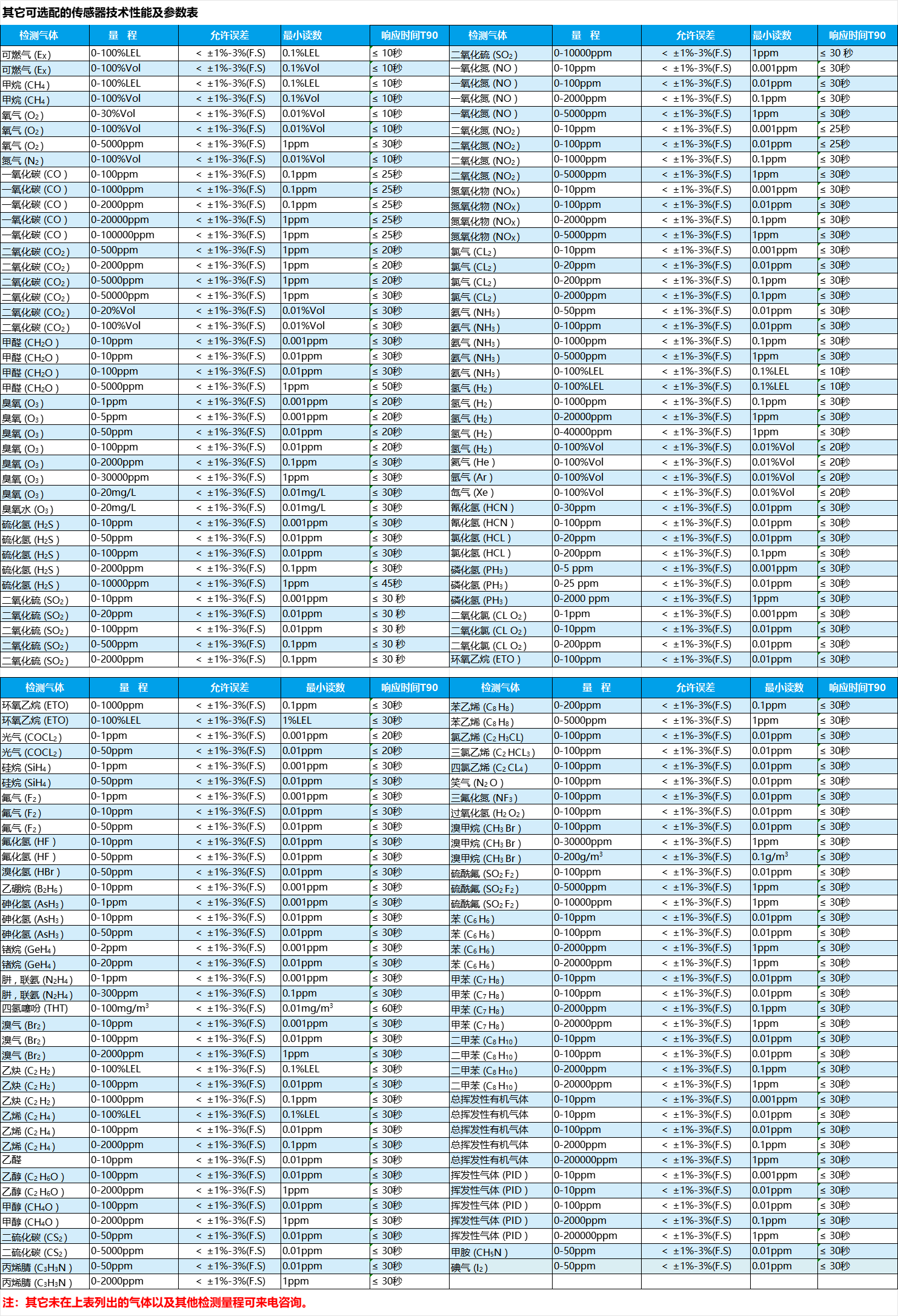

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	1～4 kinds
Product Features	1. 1-4 kinds of gas + temperature and humidity 2. Diffusion type 3. Cost-effective
Detection Range	0-1, 10, 100, 1000, 5000, 10000, 50000ppm, 0-100%LEL, 0-5%Vol, 30%Vol, 100%Vol, other measuring ranges are optional, and the measuring range is determined by the usage scenario and the purpose of testing.
Resolution	0.001ppm (0-10ppm high precision)/0.01ppm (0~10 ppm); 0.01ppm (0~100 ppm), 0.1ppm (0~1000 ppm), 1ppm (0~5000 ppm or more); 0.01 MG/L; 0.1%LEL; 0.01%, 0.001%Vol Other resolutions can be customized
Typical Accuracy	±3% (F.S)
Detection Method	Diffusion type
Display	2.31-inch high-definition color screen
Power Supply	3.7VDC, 2100mAh USB charging interface
Maximum Power Consumption	Not have
Operating Environment	Typical value: -20～+55℃ Limit value: -40℃～+70℃ Humidity: 10~95%RH (non-condensation occasion)
Data Storage	100,000 pieces as standard, and the larger capacity can be customized
Printing Function	Not supported for the time being
Signal Output	USB (charging and communication), optional RS485 communication interface, WIFI/LORA wireless transmission
Alarm Method	Sound and light, vibration, visual alarm
Fall Alarm	Optional
Wireless Transmission	Not supported for the time being
Dimensions: LWH	130×68×34mm(L×W×H)
Weight	200g (different gas combinations, slight differences)
Protection Level	IP66
Standard Accessories	Instruction manual, qualification certificate, warranty card, USB charger (including data cable), color box
Optional Accessories	1 External gas sampling pump 2 0.9 m retractable sampling handle (1-10m hose, standard length 1m) 30.4 meters stainless steel sampling handle, etc.

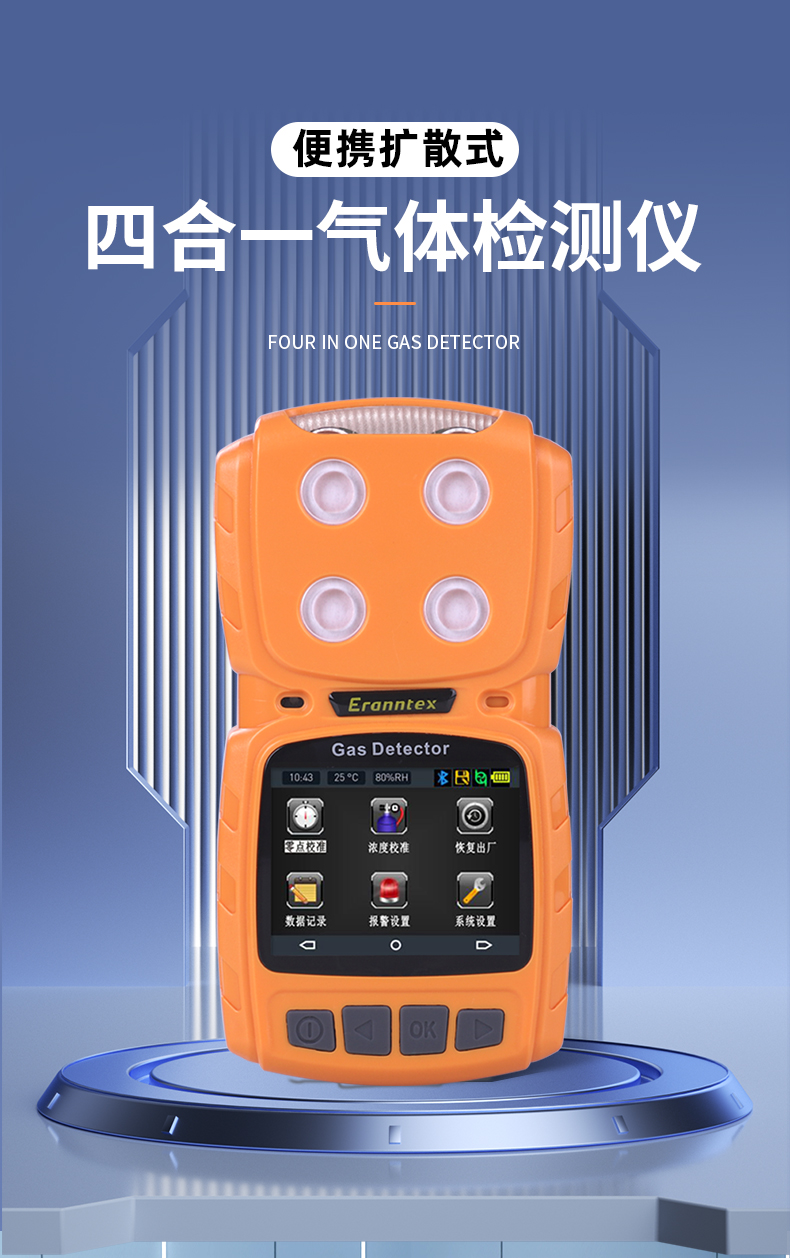

Diffusion four-in-one gas detector MS104K General description:

MS104K series portable composite gas detector The instrument is used for: quick detection of a variety of gas concentration, temperature and humidity measurement and over-standard alarm.

It adopts a 2.31-inch high-definition color screen for real-time display and selects gas sensors from imported well-known brands. The main detection principles are: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photoions, etc. With advanced circuit design, mature kernel algorithm processing, and unique appearance design, it has obtained a number of software patents and appearance patents.

MS104K can detect the concentration of gas in the pipeline or in the restricted space and atmospheric environment, detect gas leakage or high concentration of nitrogen or oxygen of various background gases, and detect more than 500 types of gases.

Diffusion four-in-one gas detector MS104K Functional features:

< Span> ★ 1 to 4 gases can be detected at the same time, and the unit can be switched freely (conventional gas does not need to input molecular weight, and special gas input molecular weight is automatically calculated and switched)Units can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/L.

★Diffusion measurement

★Rich human-computer interface

2.31-inch high-definition color screen, displaying real-time concentration and alarm , time, temperature, humidity, storage, communication, power, charging status, concentration unit, gas molecular formula, gas name and other information; the menu interface uses high-definition simulation graphics to display the function names of each menu.

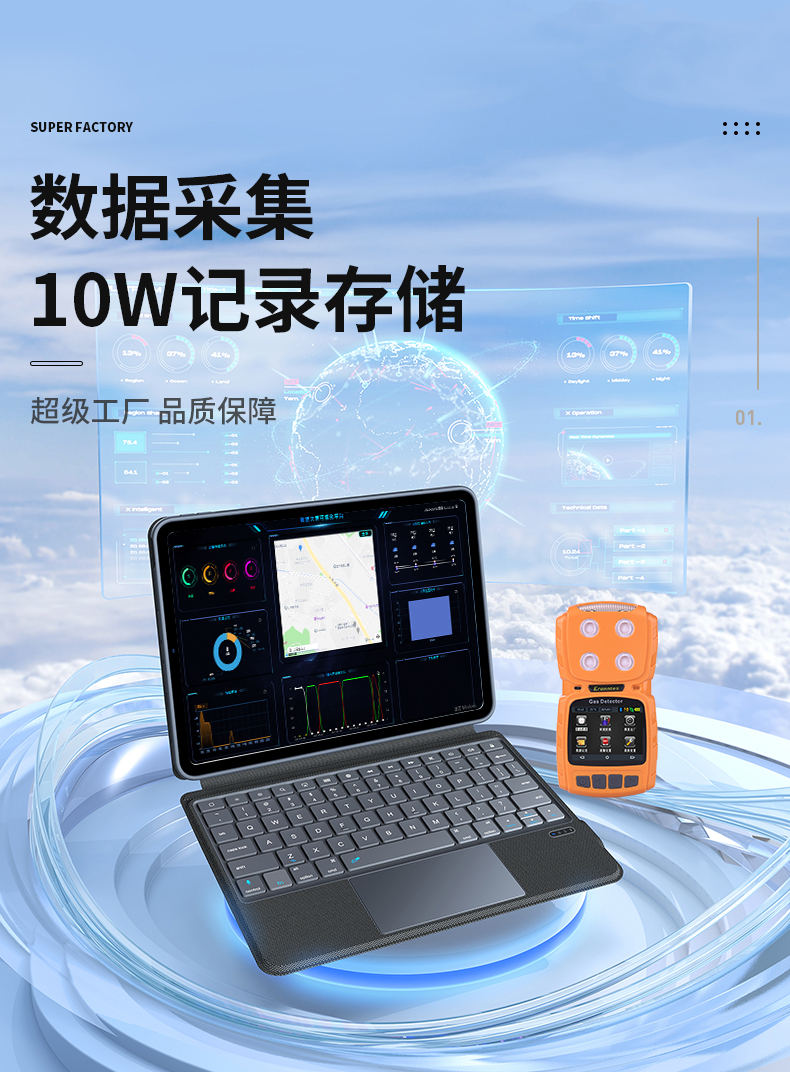

★Large-capacity data storage function, supporting multiple storage methods

Standardly equipped with 100,000 data storage capacity, larger capacity can be customized; support real-time storage, timed storage, or only store alarm concentration data and time;

Support local viewing and deletion of data, also through USB The interface uploads the data to the computer, and uses the upper computer software to analyze the data, store and print.

Optional RS485 communication.

★Three display modes can be switched

Display four gas concentrations at the same time, large font circular display of single-channel gas concentration, real-time curve. Automatic loop between channels orManual loops can be switched, you can set whether to display the maximum value, minimum value, gas name, and view the history curve.

★ Graphical display reflects the change trend of gas concentration over a period of time in the form of a curve.

● Data recovery function You can choose to recover part or all of it, avoiding the worries caused by misoperation.

● You can set whether to display the maximum value, minimum value and average value .

● USB charging interface, with charging protection function, supports USB hot-swappable . <

can be charged with a computer or power bank, compatible with mobile phone chargers; overcharge, overvoltage, short circuit, overheating protection; 5-level accurate power display;

The detector is charging It can work normally when it is electric.

● Adopting a 2100mAh large-capacity rechargeable polymer battery, it can work continuously for a long time .

● High-precision temperature and humidity measurement (optional) Temperature compensation for the sensor at the same time, and the temperature range of the instrument is -40 to 70 degrees.

● Support real-time detection or timed detection. When not detecting, you can turn off the pump to extend the power-on time.

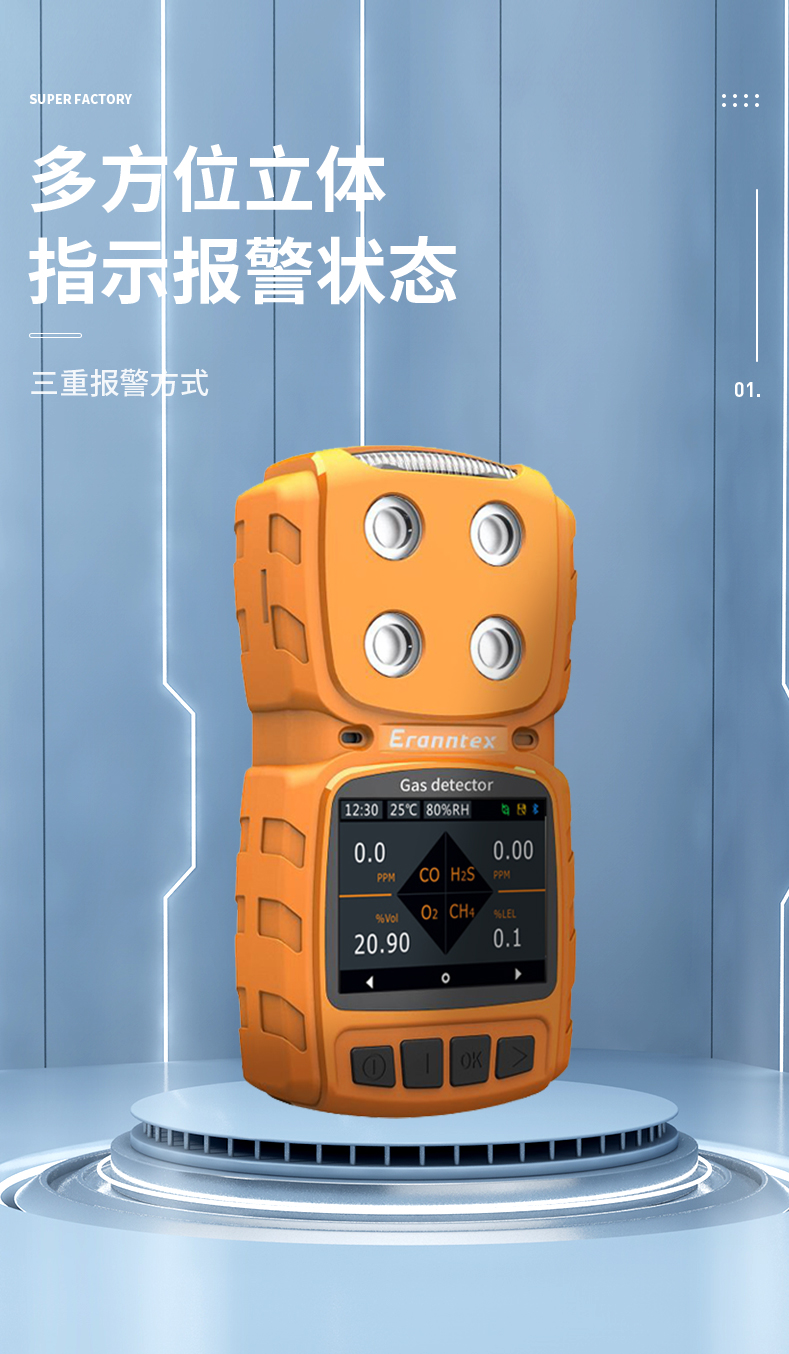

● Multiple alarm methods, multi-dimensional three-dimensional indication of alarm status when alarming.

includes sound and light alarm, vibration alarm, and visual alarm. Alarm types include: concentration alarm, undervoltage alarm, fault alarm.

● Alarm values can be set, and multiple alarm modes can be set

Low alarm, high alarm, interval alarm, weighted average alarm.

● Misoperation identification function Concentration calibration misoperation automatically identifies and blocks, which can avoid adverse effects caused by human factors.

● Zero point automatic tracking Long-term use is not affected by zero point drift .

● Target point multi-level calibration ensures the linearity and accuracy of measurement, which can meet the national standards and the standards of local metrology bureaus at the same time.

● The Chinese and English interface can choose the default Chinese interface, and the concise Chinese or English operation prompts .

●Log Record calibration log, repair log, troubleshooting countermeasures, sensor life expiration reminder, next concentration calibration time reminder function.

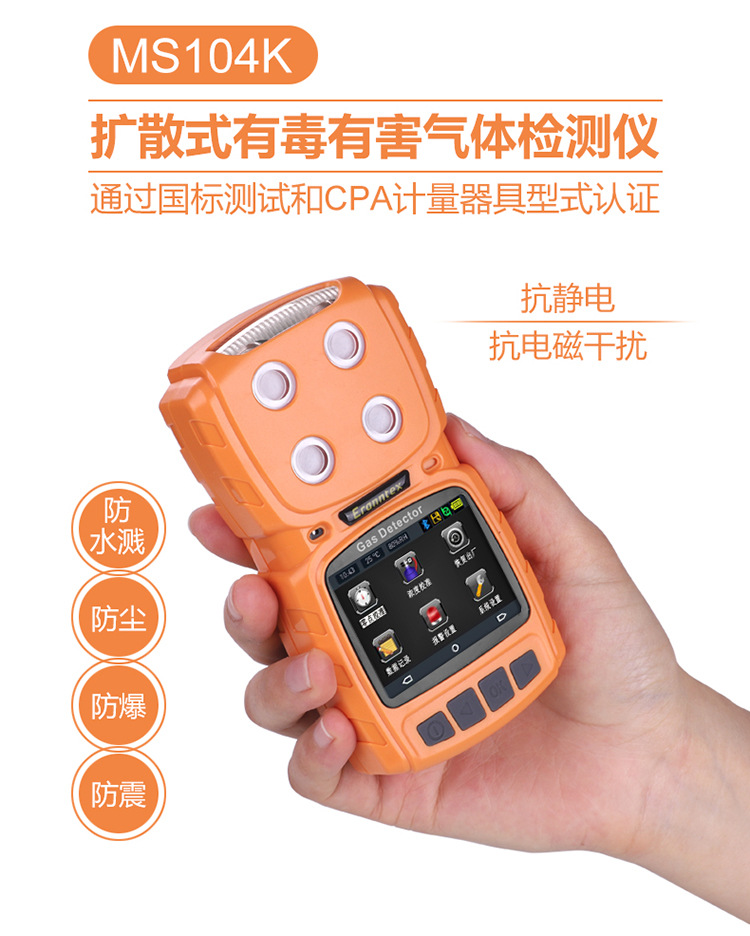

● Meet the requirements of Benan circuit design, anti-static, anti-electromagnetic interference, pass the national standard test and CMC measuring instrument production license certification .

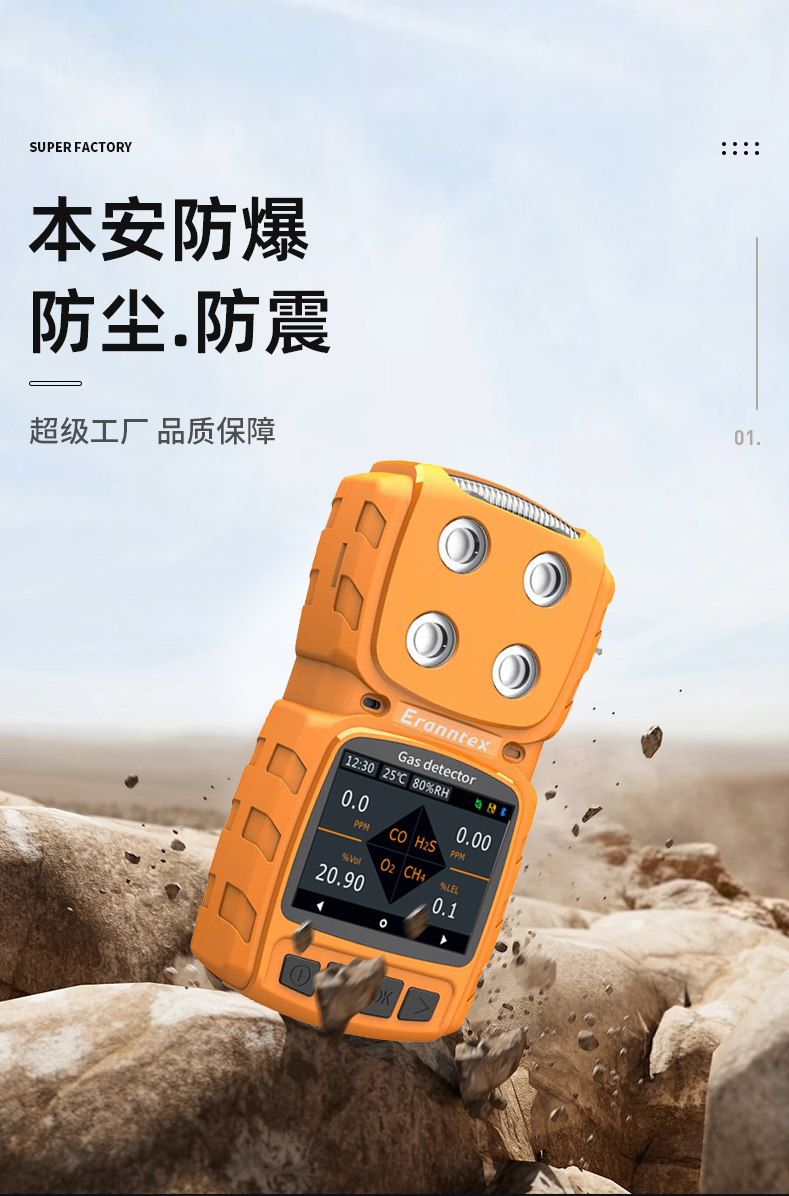

● The protection level reaches IP66 waterproof, dustproof, explosion-proof, shockproof.

●Applications: petroleum, chemical industry, medicine, environmental protection, flue gas analysis, air treatment and other occasions that need to detect gas concentration .

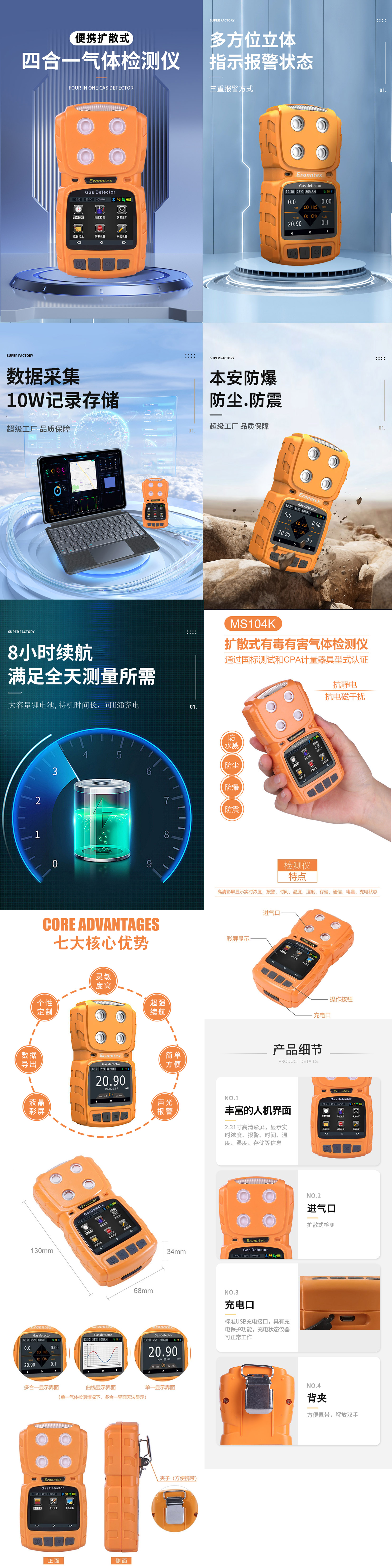

MS104K detector details page- New version (combined version).jpg

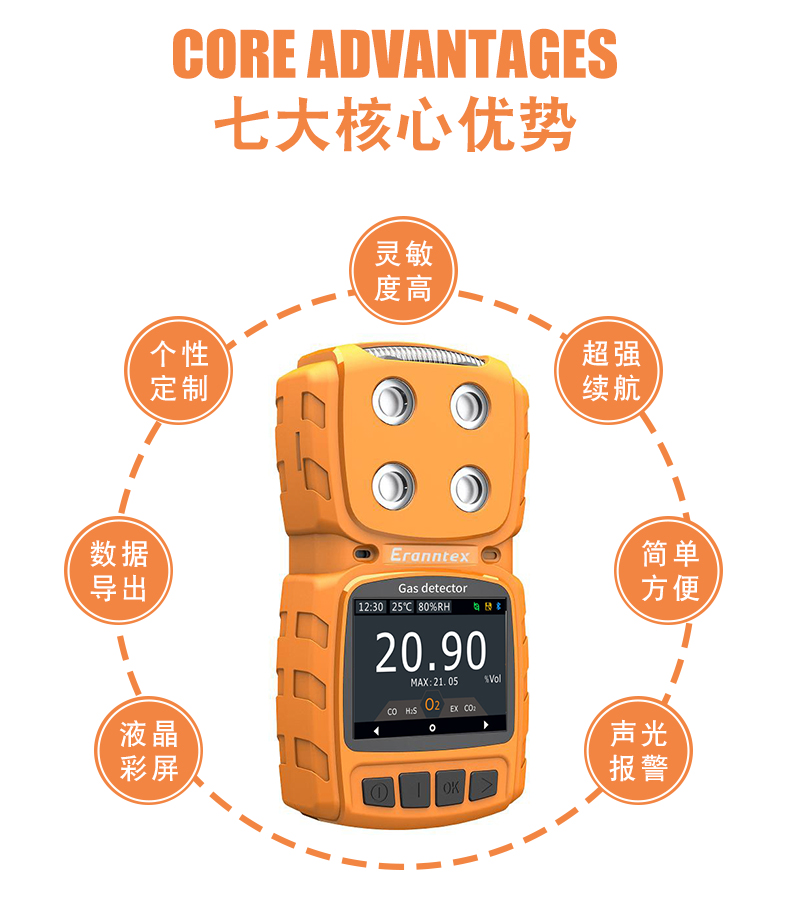

Product HighlightsNew process formula enhances performance to meet stricter application requirements

High PrecisionUp to ±0.1%FS (varies by gas type)
Wireless ConnectivityOptional wireless communication for real-time data monitoring
Advanced ProtectionIP67+ protection level
Explosion-proof DesignHigh shock and explosion resistance
Anti-interference DesignAnti-static and electromagnetic interference
HD Color DisplayComprehensive and clear information display
Large Capacity StorageMassive data storage
Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations
