Low-power gas detector MS104K-S

Detection Method: Diffusion type

Detection Gas: Carbon dioxide CO2 Combustible Ex Methane CH4 Non-methane total hydrocarbon CxHy Carbon monoxide CO Hydrogen sulfide H2S Oxygen O2 Ammonia NH3 Ammonia NH3 Chlorine CL2 Hydrogen H2 Formaldehyde CH2O Ozone O3 Nitric oxide NO Nitrogen dioxide NO2 Nitrogen oxide NOX Sulfur dioxide SO2 Epoxy ethane ETO Hydrogen phosphide PH3 Hydrogen chloride HCL Light gas COCL2 CHLORINE DIOXIDE CLO2 Silane SiH4 Fluorine F2 Hydrogen fluoride HF Hydrogen bromide HBr Ethylborane B2H6 Hydrogen arsenide AsH3Germanium Alkane GeH4 Biamine N2H4 N2H4 Triethylamine C6H15N Aniline C6H7N C2H8N2 Nitrogen tetraoxide N2O4 Nitrogen trichloride NCL3 Tert-butyl thiol TBM Phosphorus pentafluoride PF5 Boron trichloride BCL3 Boron trifluoride BF3 Azaic acid HN3 Methyl sulfide C2H6S Dimethyl sulfate C2H6O4S Acetonitrile CH3CN Acetic acid C2H4O2 Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyldisulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2 Chlorosilane SiH3Cl Silicon tetrafluoride SiF4 Tetrahydrothiophene THT Bromine Br2 Acetylene C2H2Carbon disulfide CS2 Acetaldehyde C2H4O Acrylonitrile C3H3N Ethylene C2H4 Isopropyl alcohol C3H8O Ethanol C2H6O Methanol CH4O Methamine CH5N Methanol CH3SH Trichloroethylene C2HCL3 Vinyl chloride C2H3CL Styrene C8H8 TVOC VOC

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range: 0～1, 10, 100, 1000, 5000, 50000, 100000ppm, 200mg/l, 100% LEL, 20%, 50%, 100%Vol optional, and other ranges can be customized.

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Download Manual Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	1 kind
Product Features	1. Single gas 2. Low power consumption 3. Small volume
Detection Range
Resolution
Typical Accuracy	±3% (F.S)
Detection Method	Diffusion type
Display	Wide viewing angle dot matrix display
Power Supply	3.7VDC, 1680mAh non-rechargeable power battery or lithium battery (optional 500mAh rechargeable lithium battery) USB charging interface
Maximum Power Consumption	Not have
Operating Environment	Typical value: -20～+55℃ Limit value: -40℃～+70℃ Relative humidity ≤95%RH (non-condensation occasion)
Data Storage	Standard configuration of 20,000 data capacity
Printing Function	Not supported for the time being
Signal Output	Infrared communication, optional LORA communication and other ways
Alarm Method	Sound and light, vibration, visual alarm
Fall Alarm	Not have
Wireless Transmission	Not have

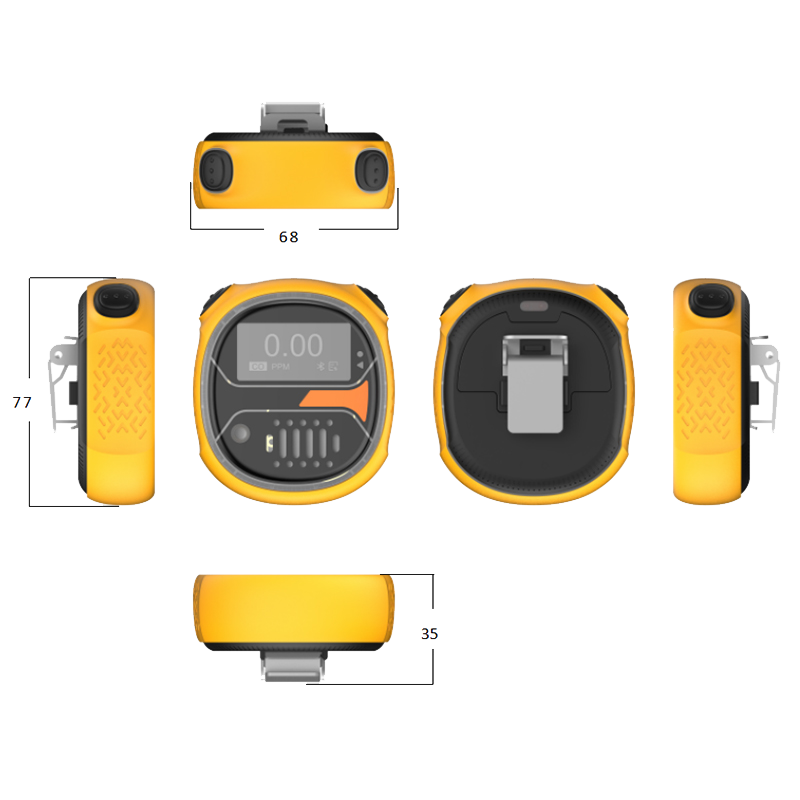

Dimensions: LWH	777028mm(H×L×T)
Weight	Less than 150g
Protection Level	IP67 rainproof and short-term soaking
Standard Accessories	Instruction manual, qualification certificate, warranty card, color packaging box
Optional Accessories	1 High-grade aluminum alloy instrument case 2 Watchband (arm band) 3 Rechargeable base, etc.

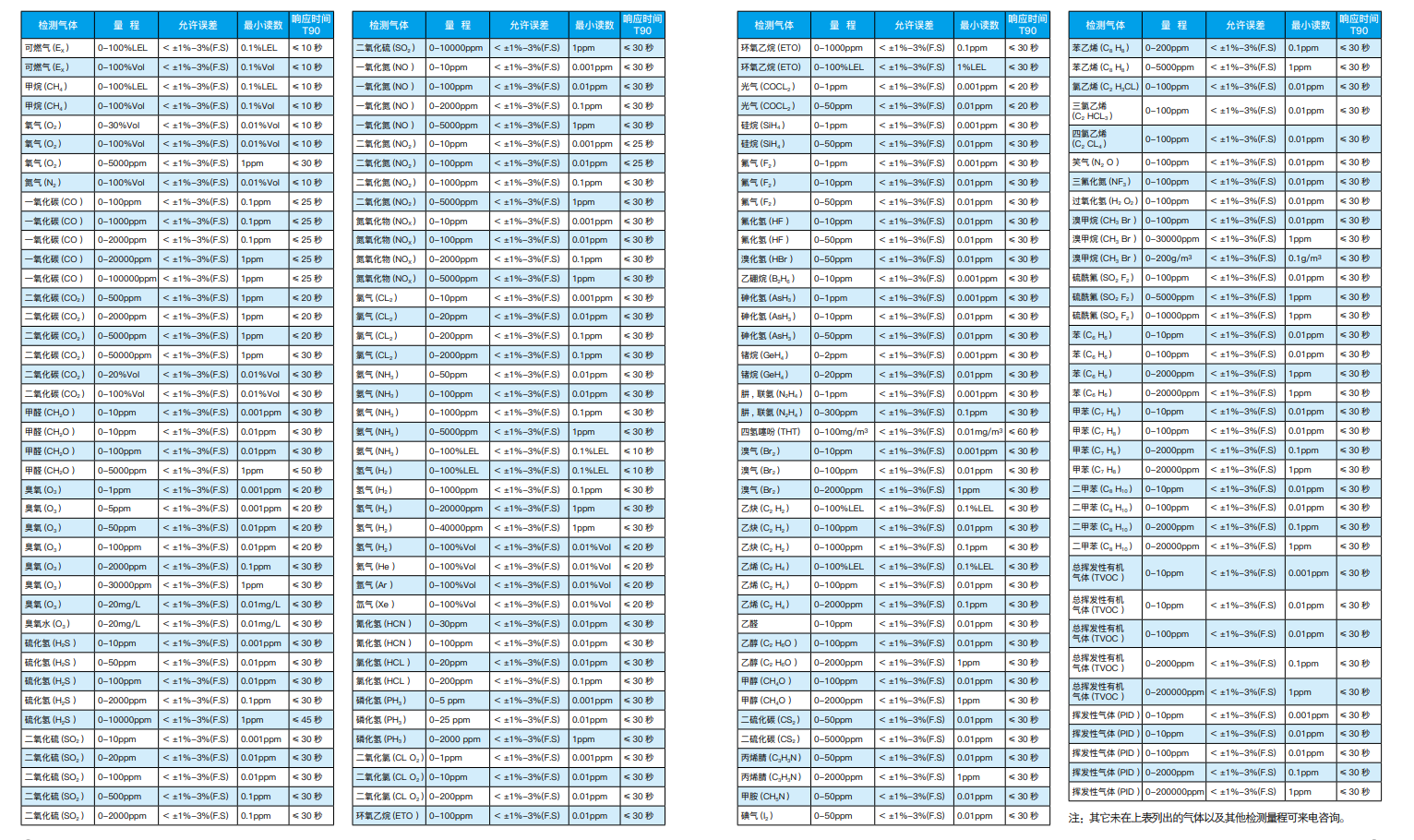

common gases.jpg

Introduction of low-power gas detector MS104K-S:

MS104K-S portable diffusion gas detector is a small, ultra-low power consumption, mobile fast detection of gas concentration detector, which can detect at the same time 1 to 4 kinds of gases, with large-capacity data storage function. MS104K-S portable diffusion gas detector adopts a wide-angle dot matrix display, which has real-time display of concentration, alarm status, battery power and other functions. Adopting gas sensors from well-known brands in the industry, the main detection principles are: electrochemistry, catalytic combustion, which are widely used in petroleum, chemical industry, pipeline inspection, medicine, environmental protection, warehousing and other occasions that need to detect gas concentration.

Low-power gas detector MS104K-S features:

●MS104K-S portable diffusion gas detector features:

● Anti-spray, dustproof, explosion-proof, anti-vibration, in-security circuit Design, anti-static, anti-electromagnetic radiation interference

● Passed the national standard test and CPA measuring instrument type certification

● Protection level IP66

● Small size, light weight, easy to carry

● Display real-time concentration, report Alarm status, power and other information

● Data recording storage, logging storage

●1680mAh non-rechargeable power battery or lithium battery, replaceable, standby time 1 year;Optional 500mAh rechargeable lithium battery

● Sound and light alarm, vibration alarm, visual alarm, undervoltage alarm, fault alarm, shutdown alarm

● Alarm value can be set, multiple alarm modes can be set: low alarm, high alarm, interval alarm, TWA/STEL alarm

● 1 to 4 gases can be detected at the same time, and the concentration unit can be selected: ppm, umol/mol, mg/m3, %vol, LEL%, pphm, ppb, etc.

● Chinese and English interfaces can be selected, and the default Chinese interface

● Factory settings can be restored

●Zero automatic tracking

●Multi-level calibration

●Concentration calibration misoperationAutomatically identify and block

● Standard infrared communication, optional: Bluetooth, lora and other wireless communication methods to realize regional wireless interconnection

● Support OEM or ODM customization

MS104K-S detector details Picture (combined version).jpg

Product HighlightsNew process formula enhances performance to meet stricter application requirements

High PrecisionUp to ±0.1%FS (varies by gas type)
Wireless ConnectivityOptional wireless communication for real-time data monitoring
Advanced ProtectionIP67+ protection level
Explosion-proof DesignHigh shock and explosion resistance
Anti-interference DesignAnti-static and electromagnetic interference
HD Color DisplayComprehensive and clear information display
Large Capacity StorageMassive data storage
Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations
