便携式四合一气体检测仪 BTYQ-MS104K-M

Detection Method: 外置泵吸式测量，可切换：扩散式、泵吸式

Detection Gas: Two-in-one gas detector Four-in-one gas detector Four-in-one detector Four-in-one gas detector Multi-gas detector Multi-in-one gas detector Multi-functional gas detector Carbon dioxide (infrared) CO2 Flammable gas detector Ex Flammable gas (infrared) Ex Methane CH4 Methane (infrared) CH4 Methane (Laser TDLAS) CH4 Ethane (Infrared) C2H6 Propane (Infrared) C3H8 Non-Methane Hydrocarbons CxHy Carbon Monoxide CO Hydrogen Sulfide H2S Oxygen O2 Nitrogen N2 Ammonia NH3 Chlorine CL2 Hydrogen H2 Formaldehyde CH2O Ozone O3 Nitrogen Oxide NO Nitrogen Dioxide NO2 Nitrogen Oxides NOX Sulfur Dioxide SO2 Ethylene Oxide ETO Ethylene Oxide (Infrared) C2H4O Phosphine PH3 Hydrogen Chloride HCL Hydrogen Cyanide HCN Phosgene COCL2 Chlorine dioxide (ClO₂) Silane (SiH₄) Methyl bromide (infrared) (CH₃Br) Methyl bromide (PID) (CH₃Br) Fluorine (F₂) Hydrogen fluoride (HF) Hydrogen bromide (HBr) Boron hydride (B₂H₆) Arsenic hydride (AsH₃) Germanium hydride (GeH₄) Hydrazine N2H4 Hydrazine N2H4 Dicyandiamide C2H8N2 Nitrous oxide N2O4 Nitrogen trichloride NCL3 tert-Butyl mercaptan TBM Phosphorus pentafluoride PF5 Boron trichloride BCL3 Phosphorus trichloride PCL3 Phosphorus oxychloride POCL3 Phosphorus trifluoride PF3 Boron trifluoride BF3 Azide HN3 Methyl sulfide C2H6S Dimethyl sulfate C2H6O4S Acetonitrile CH3CN Acetic acid C2H4O2 Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyl disulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2 Chlorosilane SiH3Cl Tetrahydrothiophene THT Bromine gas Br2 Acetylene (infrared) C2H2 Acetylene C2H2 Carbon disulfide CS2 Acrylonitrile C3H3N Methyl ethyl ketone MEK Methyl ketone MDK Methyl ketone (infrared) C3H6O Ethylene C2H4 Ethylene (infrared) C2H4 Isopropyl alcohol (infrared) C3H8O Ethanol C2H6O Ethanol (infrared) C2H6O Methanol CH4O Methanol (infrared) CH4O Methylamine CH5N Methyl mercaptan CH3SH Vinyl chloride C2H3Cl Vinyl chloride (infrared) C2H3Cl Trichloroethylene C2HCl3 Tetrachloroethylene C2Cl4 Nitrous oxide (infrared) N2O Nitrogen trifluoride NF3 Hydrogen peroxide H2O2 Styrene (PID) C8H8 Tetrahydrofuran (PID) THF TVOC (PID) TVOC VOC (PID) Benzene (PID) C6H6 Toluene (PID) C7H8 Toluene (infrared) C7H8 Xylene (PID) C8H10 Xylene (infrared) C8H10 PID gas Odor OU Diesel (infrared) diesel Jet fuel (infrared) JET Butane (infrared) C4H10 Isobutane (infrared) C4H10 Pentane (IR) C5H12 Cyclopentane (IR) C5H10 n-Hexane (IR) C6H14 Propylene (IR) C3H6 Methyl ethyl ketone (IR) C4H8O Carbonyl sulfide (IR) COS Freon CFC Refrigerant CFC

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range:

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	1-4种
Product Features	1、1-4种气体 2、扩散+泵吸式两种检测方式 3、IP66防护等级 4、可选配蓝牙打印机 5、工作100小时以上 6、Type-C快充
Detection Range	0-1、10、100、1000、5000、10000、50000ppm， 0-100%LEL，0-5%Vol、30%Vol、100%Vol，其他量程可选，量程由使用场景和检测目的决定
Resolution	0.001ppm（0-10ppm高精度）/0.01ppm（0～10 ppm）；0.01ppm（0～100 ppm），0.1ppm（0～1000 ppm），1ppm（0～5000 ppm以上）；0.1%LEL；0.01%Vol
Typical Accuracy	≤±3% FS（可选更高精度传感器）
Detection Method	外置泵吸式测量，可切换：扩散式、泵吸式
Display	2英寸LCD点阵屏
Power Supply	DC7.4V，1400mAh Type-C充电接口，座充，2小时充满
Maximum Power Consumption	无
Operating Environment	常规值：-20～+50℃ 可定制：-40℃～+70℃ 湿度：10-95%RH（非凝露场合）
Data Storage	标配20万条，更大容量可定制
Printing Function	可选配外置微型无线蓝牙打印机
Signal Output	标准Type-C
Alarm Method	声光报警、震动报警；
Fall Alarm	标配
Wireless Transmission	选配：LORA、蓝牙，NB-IOT，SOS一键呼救
Dimensions: LWH	90×70×38mm(L×W×H)
Weight	约380g
Protection Level	IP66，防雨淋和浸泡、防尘、防腐
Standard Accessories	座充底座、外置泵（标定罩）、过滤器1个、USB充电器（含数据线）、说明书、合格证、保修卡、彩色包装盒
Optional Accessories	① 过滤器多个 ②0.4米不锈钢采样手柄（含1米软管）

　　便携式四合一气体检测仪 BTYQ-MS104K-M介绍：

　　BTYQ-MS104K-M便携式四合一气体检测仪主要用于快速准确检测气体泄露或气体浓度超标报警。气体检测的主要检测原理有：电化学、红外、催化燃烧、热导、PID光致电离等。BTYQ-MS104K-M广泛应用于消防、应急救援、受限空间、石油、化工、煤矿、冶金、炼化、燃气、仓储、医药、环保、空气治理等场合。

　　便携式四合一气体检测仪 BTYQ-MS104K-M功能特点：

　　★可同时检测1~4种气体;

　　★扩散式/泵吸式测量，外置泵与仪器连接为嵌入一体式，流量可调;

　　★泵堵塞报警;

　　★防火防静电抗高频辐射;

　　★充电方式：座充，TYPE-C快充接口;

　　★单位切换，单位可选：umol/mol、ppm、mg/m3、%Vol、%LEL;

　　★4按键便捷操作;

　　★大容量数据存储功能，大于20万条数据存储容量;

　　★通讯接口：TYPE-C;

　　★无线传输(选配)：LORA、蓝牙(可连接外置蓝牙打印机、移动终端等)、NB-IOT;

　　★支持SOS一键呼救功能(选配);

　　★跌倒报警;

　　★数据恢复功能，可部分或全部恢复出厂数据;

　　★可显示最大值、最小值、加权平均值;

　　★多种报警方式报警模式设置，报警时多方位立体指示报警状态;

　　报警方式：声光报警、震动报警;

　　报警种类：浓度报警、欠压报警、故障报警、泵堵塞报警;

　　报警模式：低报警、高报警、区间报警、加权平均值报警;

　　★误操作识别功能，浓度校准误操作自动识别并阻止;

　　★零点自动跟踪，避免零点漂移;

　　★目标点多级校准，保证测量的线性度和精度;

　　★本安电路设计，防爆、防震;

　　★防护等级IP66，防雨淋和浸泡、防尘、防腐;

　　★执行标准：

　　GBT 3836.1—2021 《爆炸性气体环境用电气设备通用要求》

　　GBT 3836.4—2021 《爆炸性气体环境用电气设备本质安全型“i”》

　　GB T50493-2019 《石油化工可燃气体和有毒气体检测报警设计标准》

　　GB 15322.3-2019 《可燃气体探测器第3部分：工业及商业用途便携式可燃气体探测器》

　　便携式四合一气体检测仪 BTYQ-MS104K-M外形图：

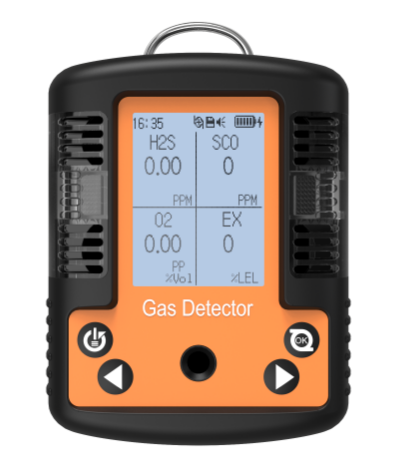

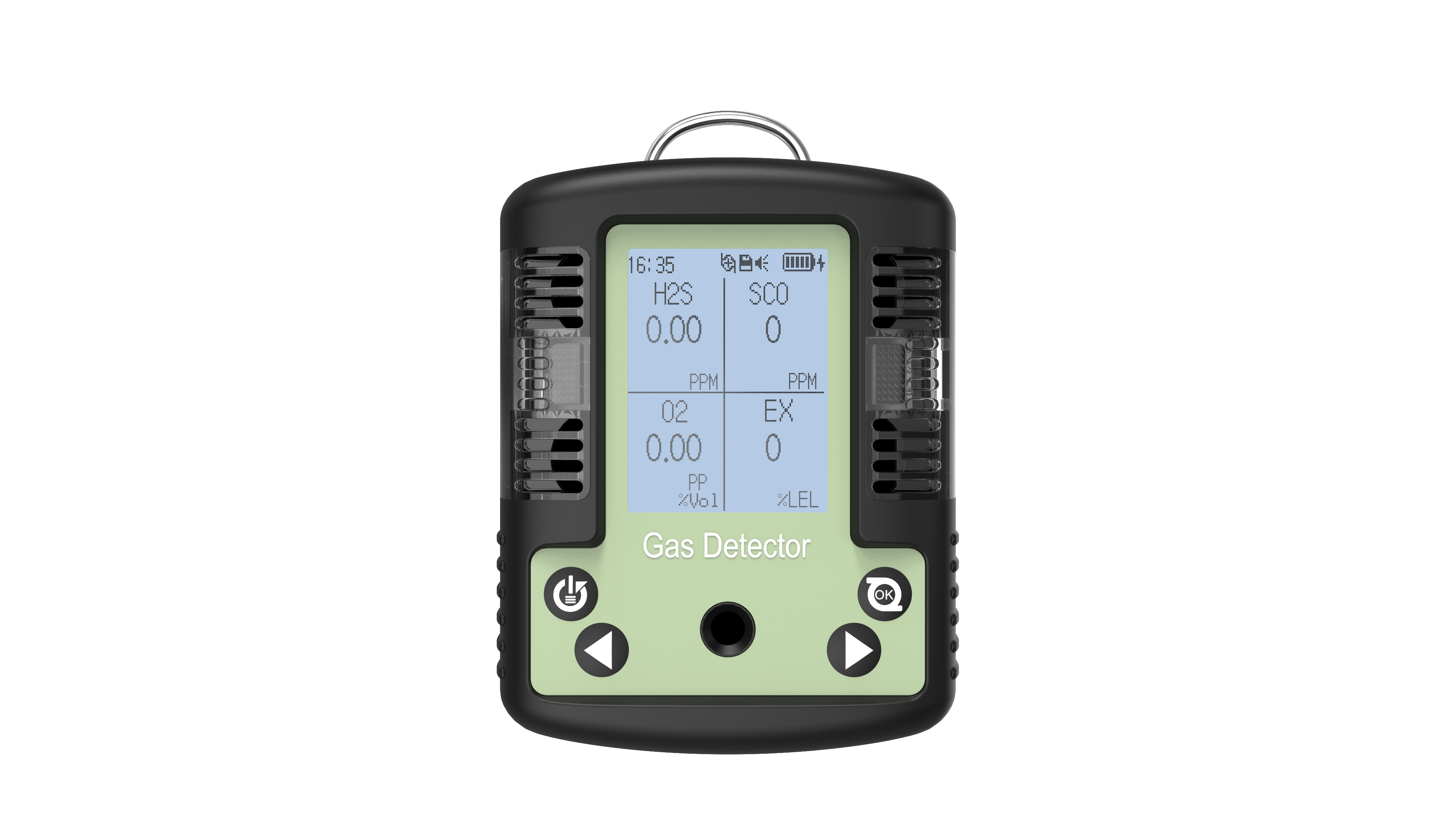

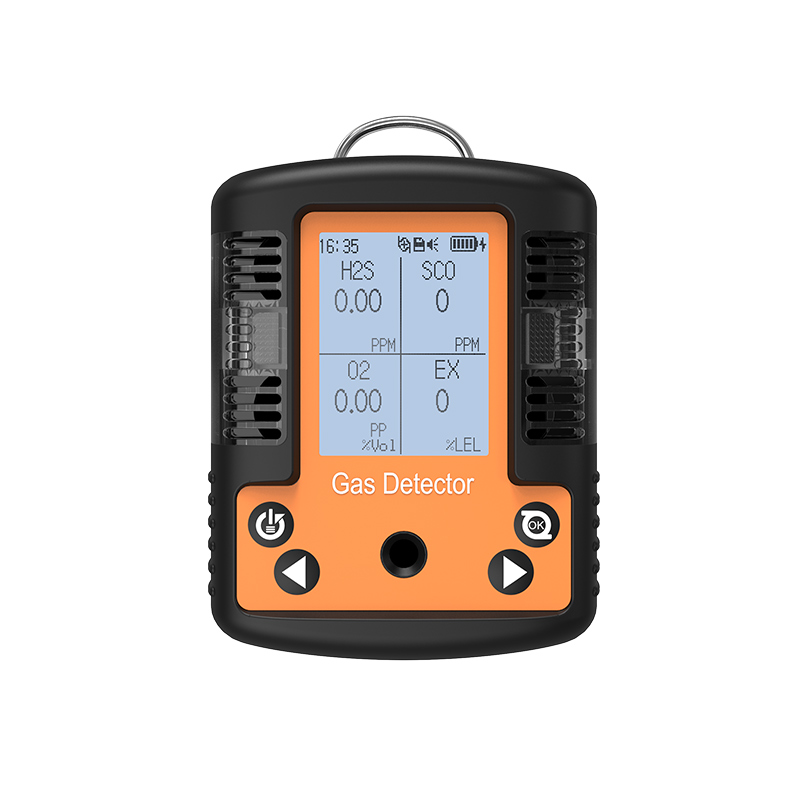

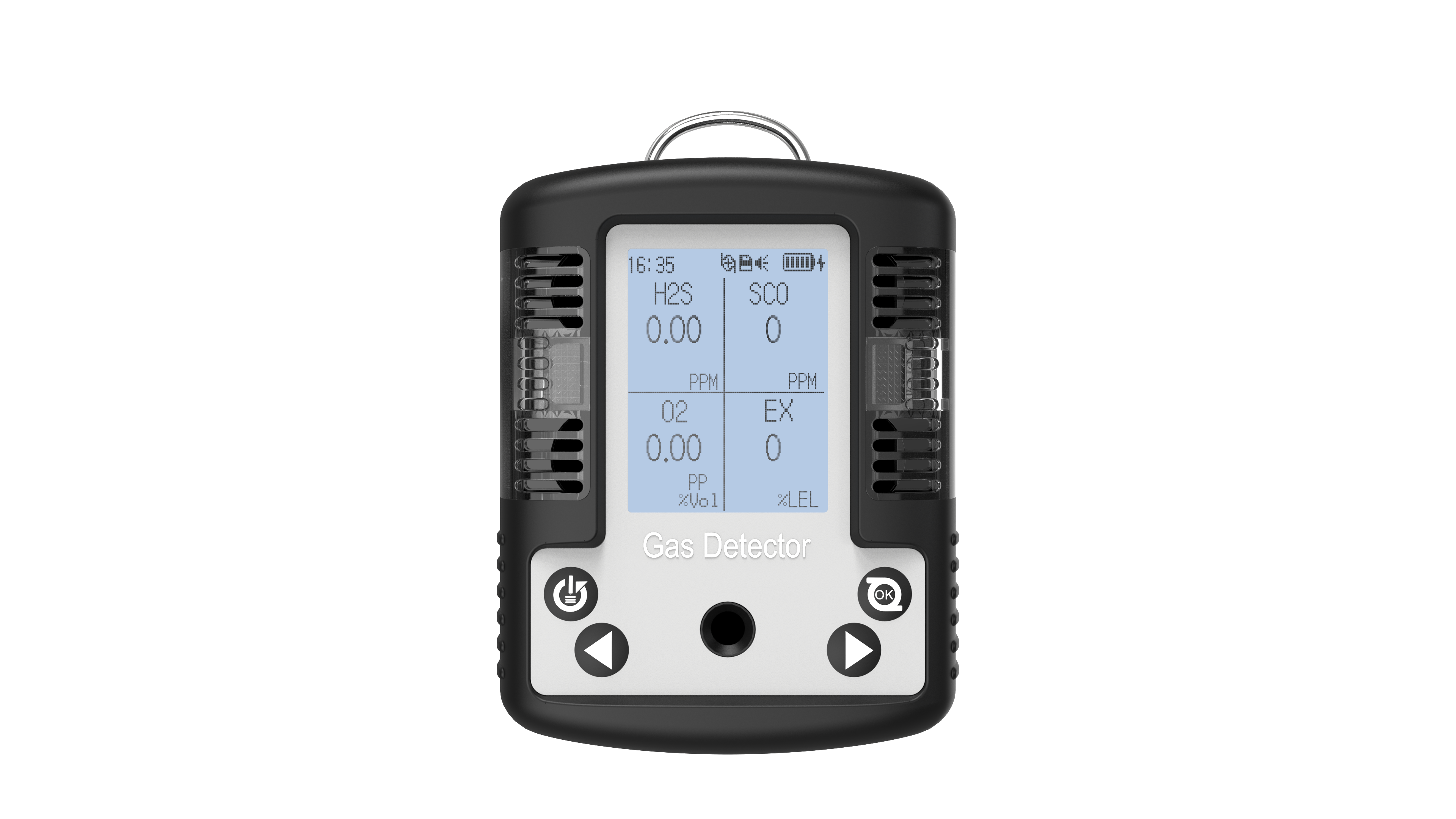

扩散式外观

图片2.png 图片3.png

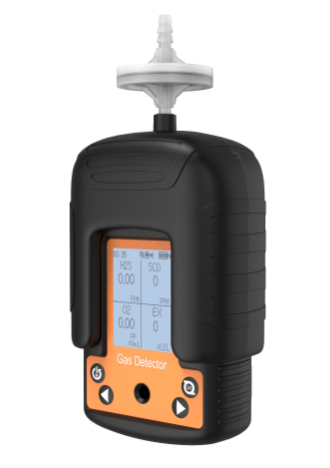

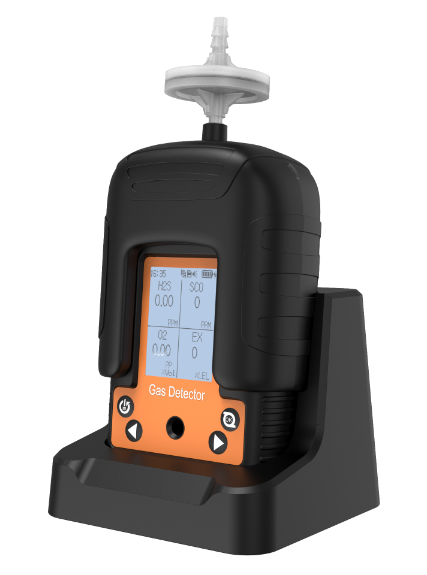

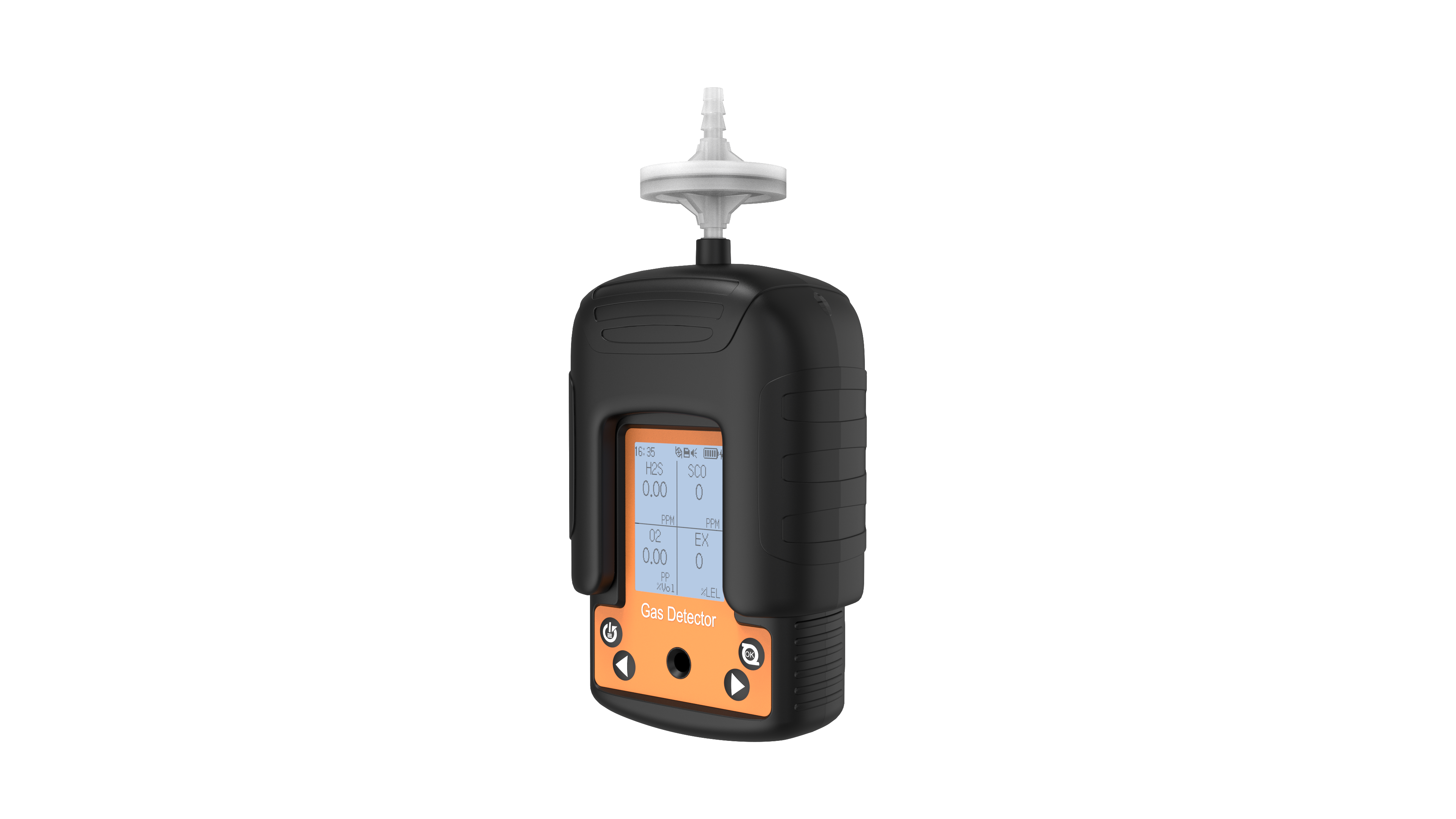

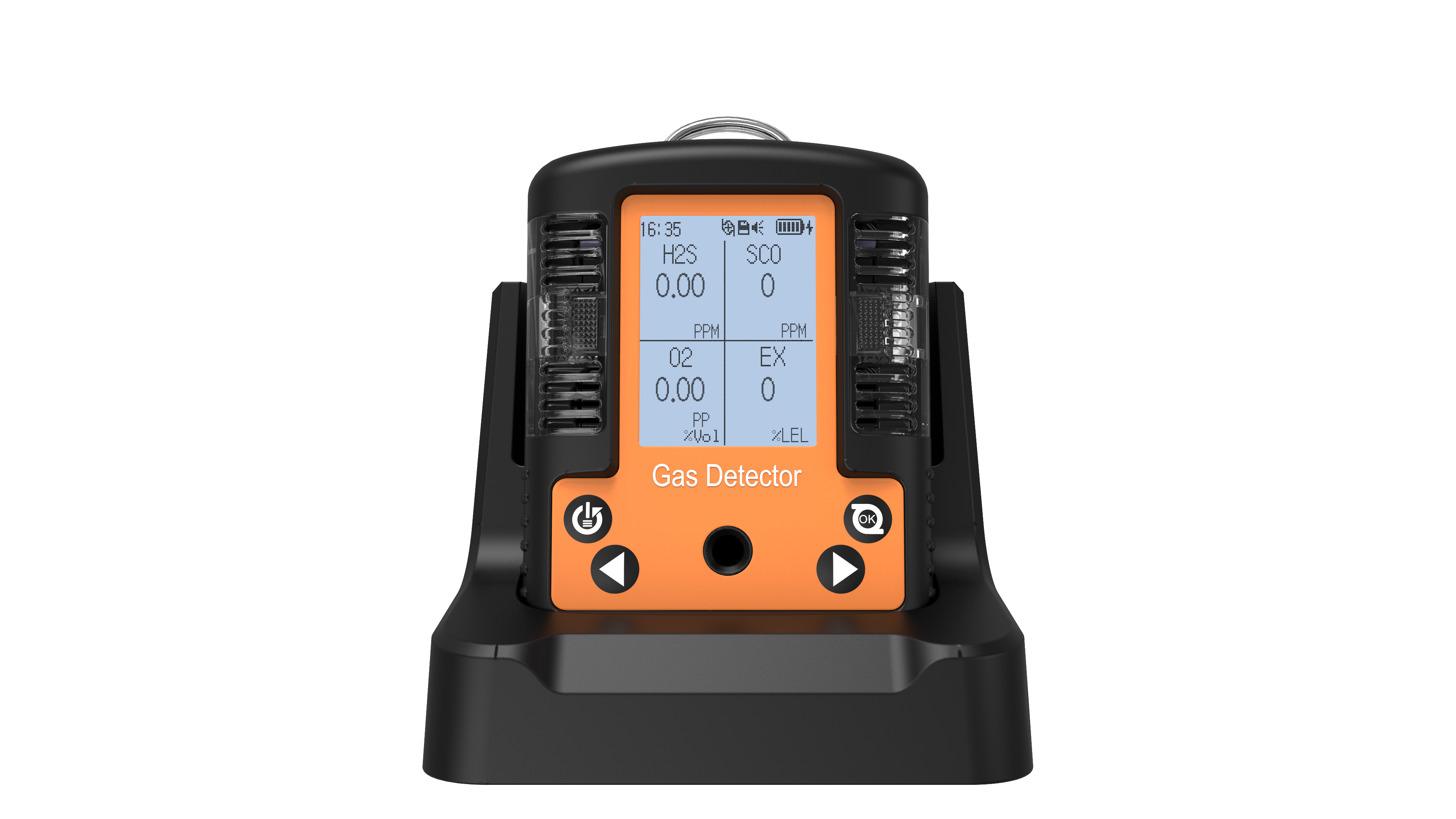

泵吸式外观（外置泵）充电底座
