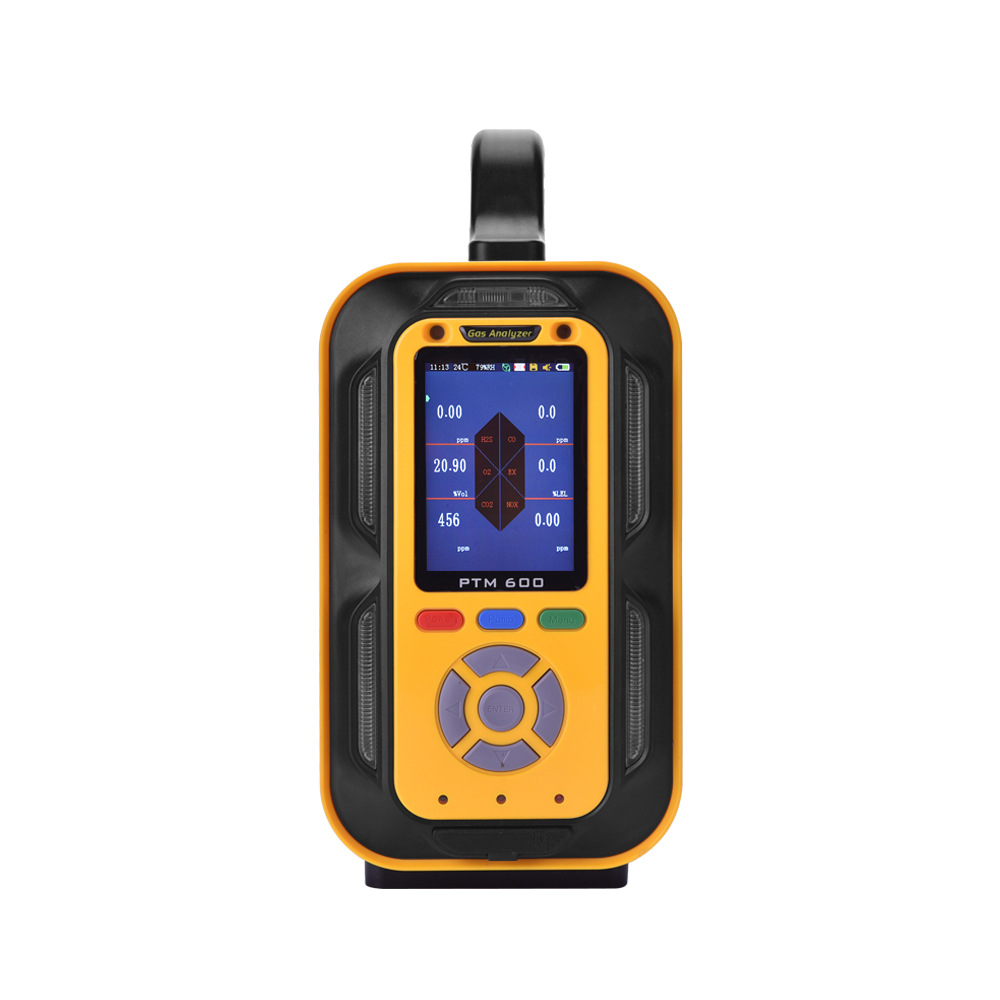

Portable Composite Gas Analyzer PTM600: (1-30 kinds of gases can be combined at will)
PTM600 series composite gas analyzer is used for: accurate detection and analysis of a variety of gas concentrations and environmental temperature and humidity measurement. PTM600 adopts a 3.5-inch high The clear color screen is displayed in real time, and the gas sensor of imported famous brands is adopted. The main detection principles are: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID light ions, etc. Adopt Swiss high-precision capacitive digital temperature and humidity sensor. Advanced circuit design, mature kernel algorithm processing, unique appearance design, have obtained a number of software works and appearance patents. PTM600 is suitable for detecting gas concentrations in pipelines or in confined spaces and atmospheric environments; gas leaks and high-concentration single gas purity of nitrogen or oxygen in various background gases.There are more than 500 types of testing.
Portable composite gas analyzer PTM600 functional features:
★ 1~6 gases can be detected at the same time, which can be expanded to 30 gases, and the unit can be switched freely
Units can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/L.
★ Built-in pump suction measurement, integrated water vapor and dust filter
Optional professional accessories for high temperature, high humidity and high dust environment, fast response; special road design, sampling distance of more than 10 meters.
★ Rich human-machine interface
3.5-inch high-definition color screen, displaying real-time concentration, alarm, time, temperature, humidity, storage, communication, power, charging status, concentration unit,
Gas molecular formula, gas name and other information; the menu interface uses high-definition simulation graphics to display the function names of each menu.
★Large-capacity data storage function, supporting multiple storage methods
Standardly equipped with 100,000 data storage capacity, larger capacity can be customized; optional USB disk storage or SD card storage function, support real-time storage, scheduled storage or only store alarm concentration data; support local viewing and deletion of data, and can also through USB, infrared Letter, RS232 The interface uploads the data to the computer,
uses the computer software to analyze data, store and print. Support remote wireless transmission (optional function).
★Multiple communication interfaces and printing functions
Infrared communication interface (optional), USB interface, RS232 interface automatic recognition, optional built-in printer or external wireless Bluetooth Printer.
Print content: company name, gas name, date and time, ambient temperature and humidity, concentration data, test results (whether qualified).
★ High-temperature gas detection (optional)
Optional high-temperature sampling cooling filter handle or high-temperature high-humidity pretreatment system can detect flue gas at a temperature of 1300 degrees. Gas detection at higher temperatures can be customized.
★ Three display modes can be switched
Display four gas concentrations at the same time, large font cycle display the concentration of single-channel gas, real-time curve display .
★Graphical display
Reflects the trend of gas concentration changes over a period of time in the form of curves.
● Data recovery function You can choose to recover part or all of it, avoiding the worries caused by misoperation.
● You can set whether to display the maximum value, minimum value and average value .
●Standard USB charging, with charging protection function, support USB hot plug//sPan>
can be charged with a computer or power bank, compatible with mobile phone chargers; overcharge, overvoltage, short circuit, overheating protection; level 5 accurate power display;
< Span> The detector can work normally when charging.
● Adopting a 10800mA large-capacity rechargeable polymer battery, it can work continuously for a long time .
● High-precision temperature and humidity measurement (optional) At the same time, the temperature compensation of the sensor is compensated, and the temperature range of the instrument is -40 to 70 degrees.
● Support real-time detection or timed detection When not detected, you can turn off the pump to extend the power-on time.
● Multiple alarm methods, multi-way three-dimensional indication alarm status
includes sound and light alarm, vibration alarm, display visual alarm. Alarm types include: concentration alarm, undervoltage alarm, fault alarm.
● Multiple alarm mode settings low alarm, high alarm, interval alarm, weighted average alarm.
● Misoperation identification function Concentration calibration misoperation automatically identifies and blocks, which can avoid the adverse effects caused by human factors.
● Zero-point automatic tracking Long-term use is not affected by zero drift.
● Target point multi-level calibration ensures the linearity and accuracy of the measurement, which can meet the national standards and the standards of the local metrology bureau at the same time.
● Chinese and English interface can be selected Default Chinese interface, concise Chinese or English operation prompts .
● Wide working temperature -40～+70℃, support temperature compensation .
●Logging Record calibration log, maintenance log, fault recording, fault resolution countermeasures, sensor life expiration reminder, the next concentration calibration Inter-reminder function.
●Meet the requirements of Benan circuit design Anti-static, anti-electromagnetic interference, passed the national standard test and CMC measuring instrument production license certification .
● Protection level up to IP66, waterproof, dustproof, explosion-proof, shockproof.
●Applications Petroleum, chemical industry, medicine, environmental protection, flue gas analysis, air treatment and other occasions that need to detect gas concentrations .
