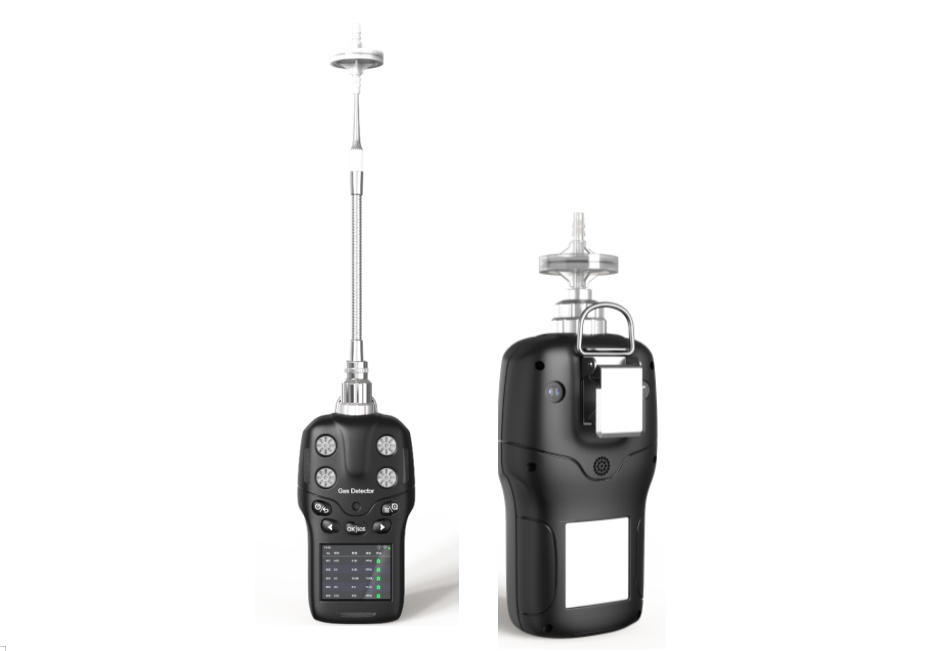

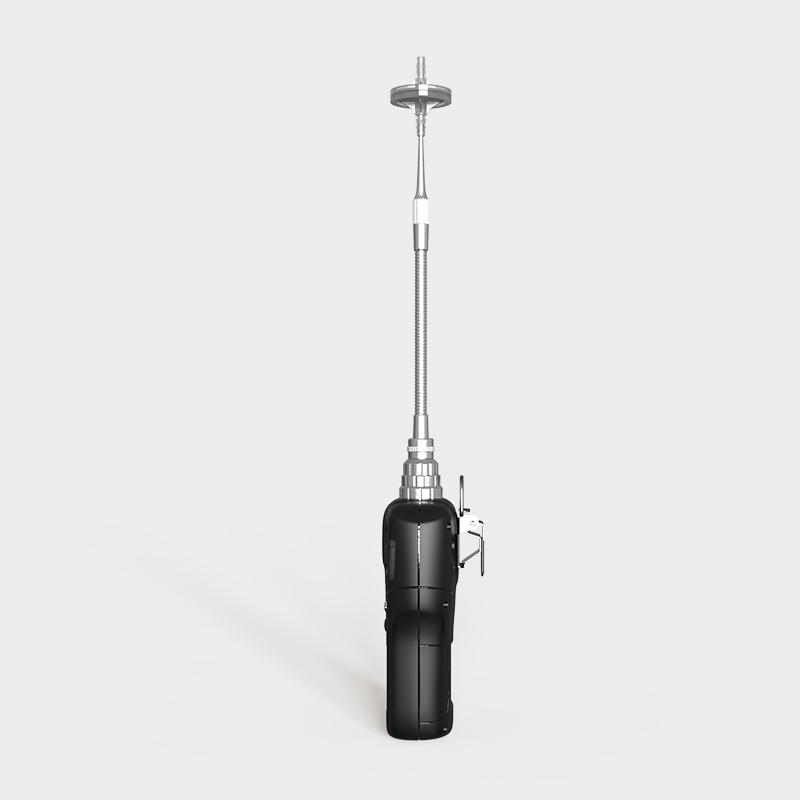

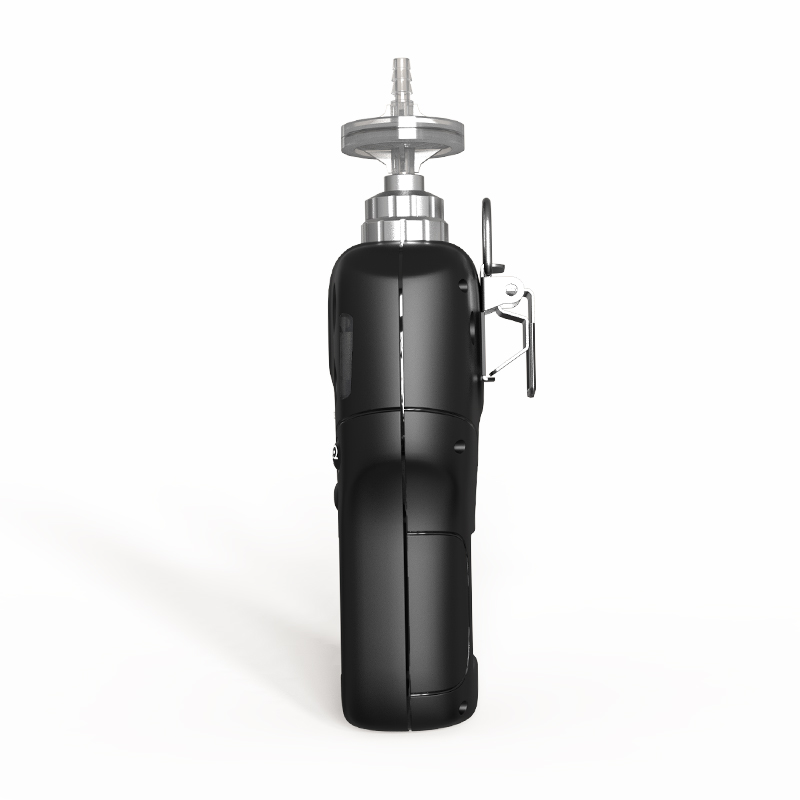

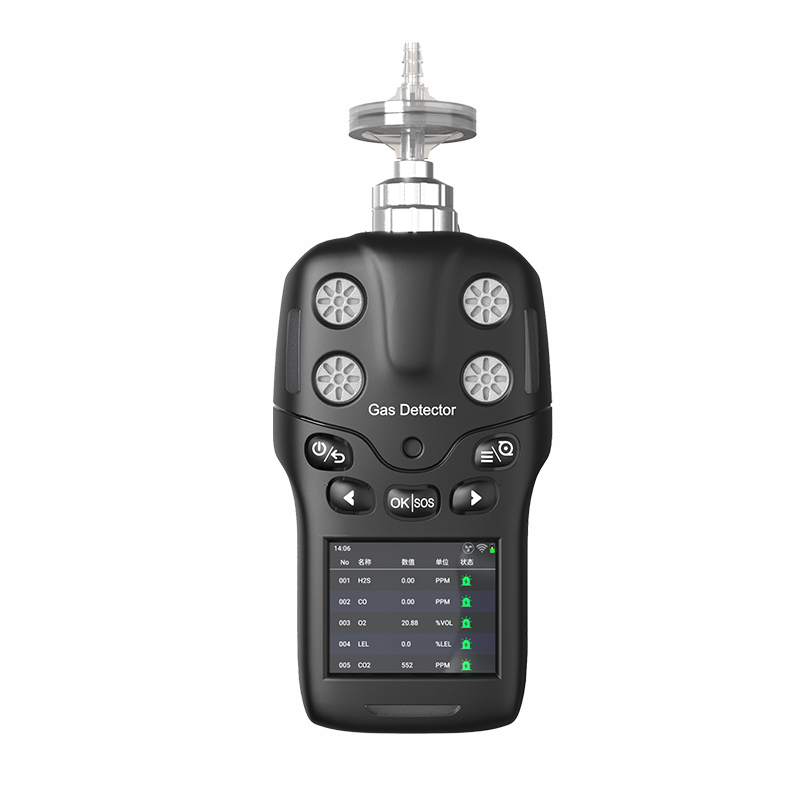

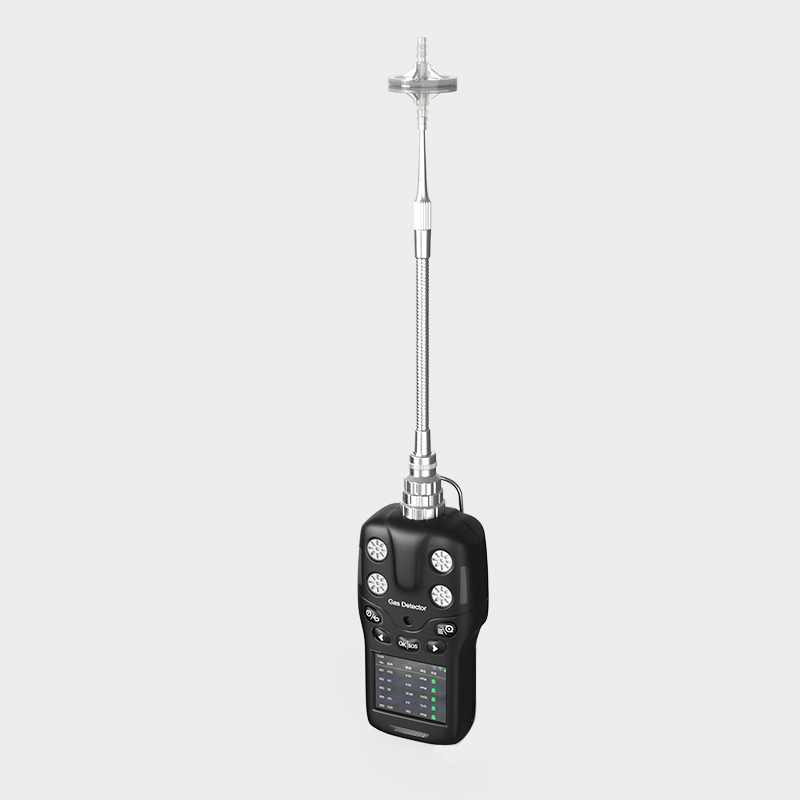

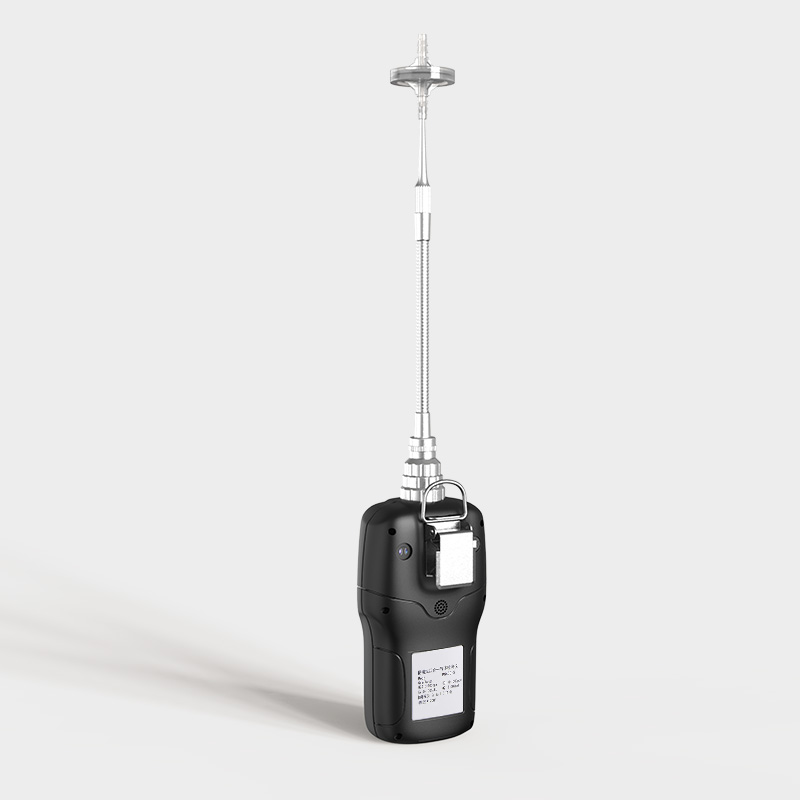

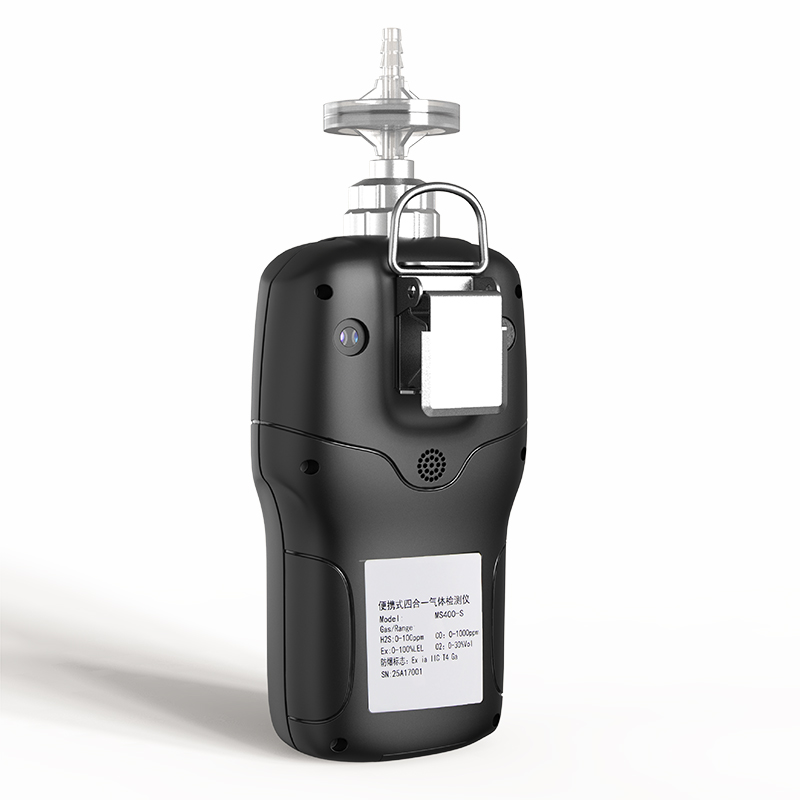

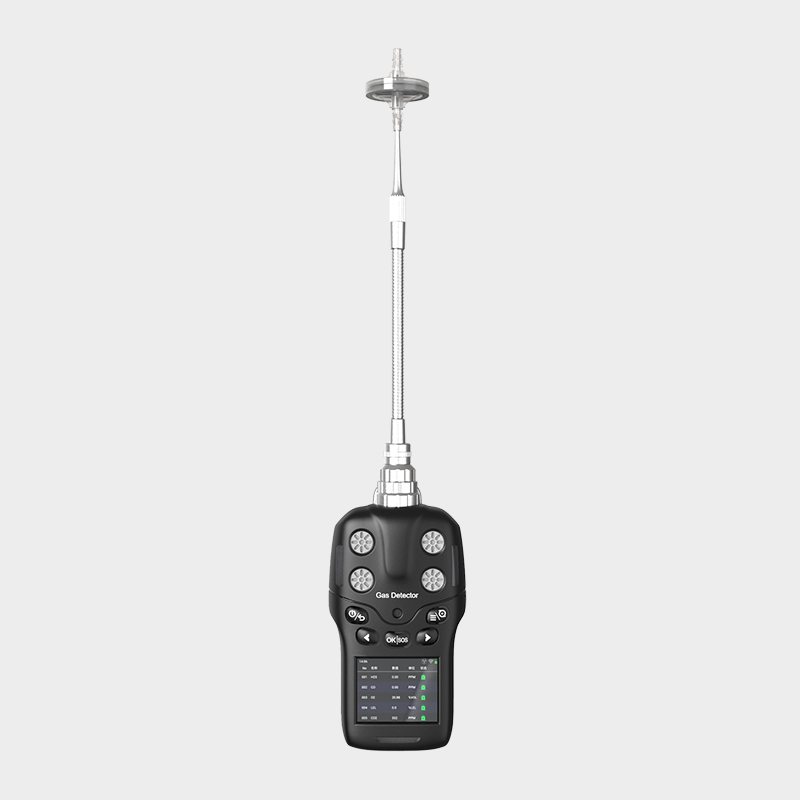

BTYQ-MS400-S Potable Gas Detector

Detection Method: Plug and play smart sensor module, support any gas detection; automatically reads each sensor’s parameters, calibration date and expiry date once connected.

Detection Gas: CO/CO2/NO2/O3/SO2/H2S/VOCs/CH4/HCHO/C6H6/C6H5CH3/C3H6O

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range:

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 15914124845

Get Quote Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	CO/CO2/NO2/O3/SO2/H2S/VOCs/CH4/HCHO/C6H6/C6H5CH3/C3H6O
Product Features	ISO,CE,ROSH, ATEX,SIL3 Approved Built-in pump, the flow is 500 ml/min. support diffusion and pumped sampling type Plug and play smart sensor module, support any gas detection; automatically reads each sensor’s parameters, calibration date and expiry date once connected. Free switch between Units of measurement:μmol/mol, ppm, pphm, ppb, mg/m³, μg/³, %Vol, %LEL Man-down alarm,pump-blocked alarm,faulty alarm, sensor missing alarm by default
Detection Range
Resolution
Typical Accuracy	≤±2% (F.S)
Detection Method	Plug and play smart sensor module, support any gas detection; automatically reads each sensor’s parameters, calibration date and expiry date once connected.
Display	2.4-inch LCD backlight display
Power Supply
Maximum Power Consumption
Operating Environment	-40℃～+70℃；10-95%RH
Data Storage
Printing Function
Signal Output
Alarm Method	LA, HA, STEL, TWA
Fall Alarm
Wireless Transmission
Dimensions: LWH	148×85×50 mm (L×W×H), without back clip thickness
Weight	430g
Protection Level
Standard Accessories
Optional Accessories

Common Gas List (Other ranges and corresponding resolutions in the table below can be customized):

Partial list of detectable gases:
Detect gases	Range	Maximum allowable error value	Minimum reading	Response time T90
Combustible Gas (EX)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Combustible Gas (EX)	0-100%Vol	＜±2%(F.S)	0.1%Vol	≤10 seconds
Methane (CH4)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Methane (CH4)	0-100%Vol	＜±2%(F.S)	0.1%Vol	≤10 seconds
Oxygen (O2)	0-30%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Oxygen (O2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Oxygen (O2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitrogen (N2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Carbon monoxide (CO)	0-100ppm	＜±2%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide (CO)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide (CO)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide (CO)	0-20000ppm	＜±2%(F.S)	1ppm	≤25 seconds
Carbon monoxide (CO)	0-100000ppm	＜±2%(F.S)	1ppm	≤25 seconds
Carbon dioxide (CO2)	0-500ppm	＜±2%(F.S)	1ppm	≤20 seconds
Carbon dioxide (CO2)	0-2000ppm	＜±2%(F.S)	1ppm	≤20 seconds
Carbon dioxide (CO2)	0-5000ppm	＜±2%(F.S)	1ppm	≤20 seconds
Carbon dioxide (CO2)	0-50000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Carbon dioxide (CO2)	0-20%Vol	＜±2%(F.S)	0.01%Vol	≤30 seconds
Carbon dioxide (CO2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤30 seconds
Formaldehyde (CH2O)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Formaldehyde (CH2O)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Formaldehyde (CH2O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Formaldehyde (CH2O)	0-5000ppm	＜±2%(F.S)	1ppm	≤50 seconds
Ozone (O3)	0-1ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Ozone (O3)	0-5ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Ozone (O3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤20 seconds
Ozone (O3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤20 seconds
Ozone (O3)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ozone (O3)	0-30000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-10000ppm	＜±2%(F.S)	1ppm	≤45 seconds
Sulfur dioxide (SO2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Sulfur dioxide (SO2)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide (SO2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide (SO2)	0-500ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Sulfur dioxide (SO2)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Sulfur dioxide (SO2)	0-10000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitric oxide (NO)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Nitric oxide (NO)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitric oxide (NO)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Nitric oxide (NO)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitrogen dioxide (NO2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤25 seconds
Nitrogen dioxide (NO2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤25 seconds
Nitrogen dioxide (NO2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Nitrogen dioxide (NO2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Nitrogen oxides (NOX)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Nitrogen oxides (NOX)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitrogen oxides (NOX)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Nitrogen oxides (NOX)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Chlorine (CL2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Chlorine (CL2)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Chlorine (CL2)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Chlorine (CL2)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ammonia (NH3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ammonia (NH3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ammonia (NH3)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ammonia (NH3)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Ammonia (NH3)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Hydrogen (H2)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Hydrogen (H2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Hydrogen (H2)	0-20000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Hydrogen (H2)	0-40000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Hydrogen (H2)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Helium (He)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Argon (Ar)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Xenon (Xe)	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤20 seconds
Hydrogen cyanide (HCN)	0-30ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen cyanide (HCN)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen chloride (HCL)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen chloride (HCL)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Phosphine (PH3)	0-5 ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Phosphine (PH3)	0-25 ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Phosphine (PH3)	0-2000 ppm	＜±2%(F.S)	1ppm	≤30 seconds
Chlorine dioxide (CLO2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Chlorine dioxide (CLO2)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Chlorine dioxide (CLO2)	0-200ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethylene oxide (ETO)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethylene oxide (ETO)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ethylene oxide (ETO)	0-100%LEL	＜±2%(F.S)	1%LEL	≤30 seconds
Phosgene (COCL2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Phosgene (COCL2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤20 seconds
Silane (SiH4)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Silane (SiH4)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Fluorine (F2)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Fluorine (F2)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Fluorine (F2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen fluoride (HF)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen fluoride (HF)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen bromide (HBr)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Diborane (B2H6)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Arsine (AsH3)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Arsine (AsH3)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Arsine (AsH3)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Germane (GeH4)	0-2ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Germane (GeH4)	0-20ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrazine (N2H4)	0-1ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Hydrazine (N2H4)	0-300ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Tetrahydrothiophene (THT)	0-100mg/m3	＜±2%(F.S)	0.01 mg/m3	≤60 seconds
Bromine (Br2)	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Bromine (Br2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Bromine (Br2)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Acetylene (C2H2)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤30 seconds
Acetylene (C2H2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Acetylene (C2H2)	0-1000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Ethylene (C2H4)	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤30 seconds
Ethylene (C2H4)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethylene (C2H4)	0-2000ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Acetaldehyde	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethanol (C2H6O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethanol (C2H6O)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Methanol (CH4O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Methanol (CH4O)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Carbon disulfide (CS2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Carbon disulfide (CS2)	0-5000ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Acrylonitrile (C3H3N)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Acrylonitrile (C3H3N)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Methylamine (CH5N)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Iodine (I2)	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Styrene (C8H8)	0-200ppm	＜±2%(F.S)	0.1ppm	≤30 seconds
Styrene (C8H8)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Vinyl chloride (C2H3Cl)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Trichloroethylene (C2HCl3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Tetrachloroethylene (C2Cl4)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitrous oxide (N2O)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitrogen trifluoride (NF3)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Hydrogen peroxide (H2O2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Methyl bromide (CH3Br)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Methyl bromide (CH3Br)	0-30000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Methyl bromide (CH3Br)	0-200g/m3	＜±2%(F.S)	0.1g/m3	≤30 seconds
Sulfuryl fluoride (SO2F2)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfuryl fluoride (SO2F2)	0-5000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Sulfuryl fluoride (SO2F2)	0-10000ppm	＜±2%(F.S)	1ppm	≤30 seconds
Benzene (C6H6)	0-10ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Benzene (C6H6)	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Benzene (C6H6)	0-2000ppm	＜±2%(F.S)	1ppm	≤30 seconds

Note: For other gases not listed in the table above, please call for consultation.

FEATURES:

ISO,CE,ROSH, ATEX,SIL3 Approved

Built-in pump, the flow is 500 ml/min. support diffusion and pumped sampling type

Plug and play smart sensor module, support any gas detection; automatically reads each sensor’s parameters, calibration date and expiry date once connected.

Free switch between Units of measurement:μmol/mol, ppm, pphm, ppb, mg/m³, μg/³, %Vol, %LEL

Man-down alarm,pump-blocked alarm,faulty alarm, sensor missing alarm by default

SOS alarm (optional)

1,000,000 pieces data recording function, built in 64GB memory card as a complete part

Ex ia IIC T4 Ga

95dB@30CM, >90dB@1m

Alarm mode: LA, HA, STEL, TWA

5-button for easy operation

2.4-inch LCD backlight display

Built-in sound, light, vibration alarm

Automatic calibration with calibration system or manual calibration

PC software for data acquisition and analysis (delivered by email, no physical media)

With 4G data transfer function

Support HTTP, MQTT, TCP, UDP protocol

Communication interface: TYPE-C fast charging and communication

SPECIFICATIONS

Gases: CO/CO2/NO2/O3/SO2/H2S/VOCs/CH4/HCHO/C6H6/C6H5CH3/C3H6O

Detection principle:

1.Electronic-chemical sensor for CO gas, range is 0-2500ppm, 1 ppm for resolution ,5% for accurary, LOD 1ppm

2.NDIR sensor for CO2 gas, the range is 0-5000ppm, 1ppm for resolution, 3%for accurary, LOD 1ppm

3.Electronic-chemical sensor for NO2 gas, range is 0-20ppm, 0.01ppm for resolution,5% for accurary, LOD 0.1ppm

4.Electronic-chemical sensor for O3 gas, range is 0-10ppm, 0.001ppm for resolution,5% for accurary, LOD 0.1ppm

5.Electronic-chemical sensor for SO2 gas, range is 0-20ppm, 0.01ppm for resolution ,5% for accurary, LOD 0.1ppm

6.Electronic-chemical sensor for H2S gas, range is 0-200ppm, 0.1ppm for resolution ,5% for accurary, LOD 0.03ppm

7.PID sensor for VOCs gas, range is 0-200ppm, 0.1ppm for resolution, 1% for accurary, LOD 0.1ppm

8.Semiconductor sensor for CH4 gas, range is 0-150ppm, 0.1ppm for resolution, 5 % for accurary, LOD 0.3ppm

9.Electronic-chemical sensor for HCHO gas, the range is 0-1ppm, 0.001ppm for resolution, 3% for accurary, LOD 1ppb

10.High precision PID sensor for VOC gas database(including C6H6/C6H5CH3/C3H6O), range is 0-2ppm, 0.001ppm for resolution, 1% for accurary, LOD for C6H6 and C6H5CH3 is 1ppb, LOD for C3H6O is 8ppb

Product HighlightsNew process formula enhances performance to meet stricter application requirements

High PrecisionUp to ±0.1%FS (varies by gas type)
Wireless ConnectivityOptional wireless communication for real-time data monitoring
Advanced ProtectionIP67+ protection level
Explosion-proof DesignHigh shock and explosion resistance
Anti-interference DesignAnti-static and electromagnetic interference
HD Color DisplayComprehensive and clear information display
Large Capacity StorageMassive data storage
Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations

← Swipe left/right to view full content →

Complete Certifications, Reliable Quality

Trusted Manufacturer

Wide Applications Across 20+ Industries

Trusted by 5000+ Industry Leaders

Service Guarantee

Selection Guidance

Recommend suitable products based on extensive technical experience
Customization

Provide customized solutions based on specific requirements
Quality Guarantee

1-year warranty and lifetime maintenance for all products
Application Support

Professional engineers provide installation, training and expansion support

19+ Years of Industry-leading Brand

Eranntian, founded in 2006, is a national high-tech enterprise integrating design, R&D, production and sales. Our R&D team includes over 30 senior engineers with strong development capabilities, investing over 17% of annual revenue in technological innovation. We maintain long-term collaborations with 14 universities including Tsinghua University, Sichuan University, Xi'an Jiaotong University, Qingdao University of Technology, and Central South University.
