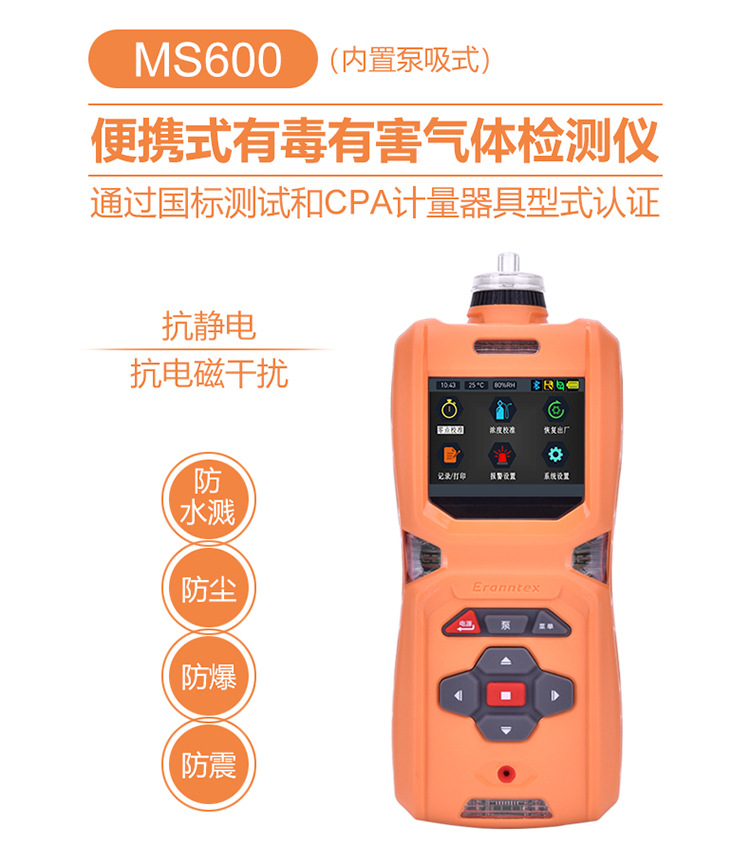

Portable composite gas detector MS600General description: (1-6 gases can be combined at will)< /P>
Portable composite gas detector is used for: quick and accurate detection of a variety of gas concentrations, temperature and humidity measurement and over-standard alarms.
MS600 adopts 2.5-inch high-definition color screen real-time display, selects the best imported brands in the industry, electrochemical, infrared, catalytic combustion, thermal conductivity, PID light ion and other gas sensors, Swiss high-precision capacitive digital temperature and humidity Degree sensor. With advanced circuit design, mature kernel algorithm processing, and unique appearance design, it has obtained a number of software patents and appearance patents.
MS600 can detect the concentration of gases in pipelines or in confined spaces and atmospheric environments. It can detect gas leaks or high-concentration single gas purity of nitrogen or oxygen in various background gases, and detects more than 500 types of gases.
Portable composite gas detector MS600 functional features:< /P>
★ 1 to 6 gases can be detected at the same time, and the unit can be switched freely
Units can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/L.
(Conventional gas does not need to input molecular weight, and special gas input molecular weight automatically calculates and switches). <
★ Built-in pump suction measurement, integrated water vapor and dust filter
Optional professional accessories for high temperature, high humidity, high dust environment, fast response; special road design, The sampling distance is more than 10 meters high.

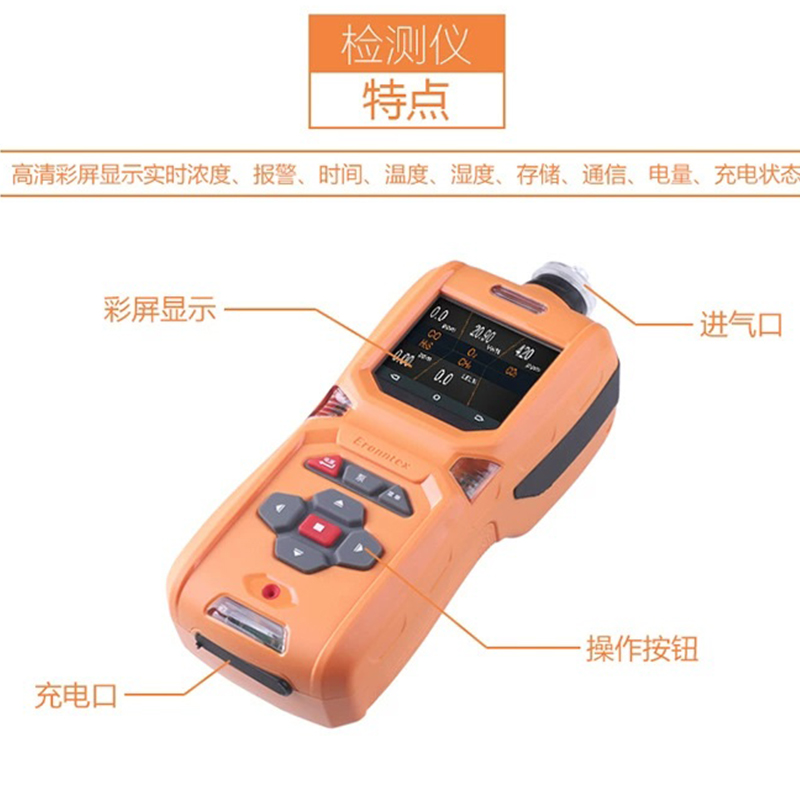

★Rich human-computer interface
2.5-inch high-definition color screen, displaying real-time concentration, alarm, time, temperature, humidity, storage, communication, printing, power, charging status, concentration Unit, gas molecular formula, gas name and other information; the menu interface uses high-definition simulation graphics to display the function names of each menu.
★ Large-capacity data storage function, supporting a variety of storage methods
Standard 100,000 data storage capacity, larger capacity can be customized; optional SD card storage function, support real-time storage, timed storage Store or only store alarm concentration data; support local machine to view and delete data, and can also upload data to the computer through USB, infrared communication and RS232 interfaces, and use the upper computer software to analyze data and store and print. Support remote wireless transmission (optional function).

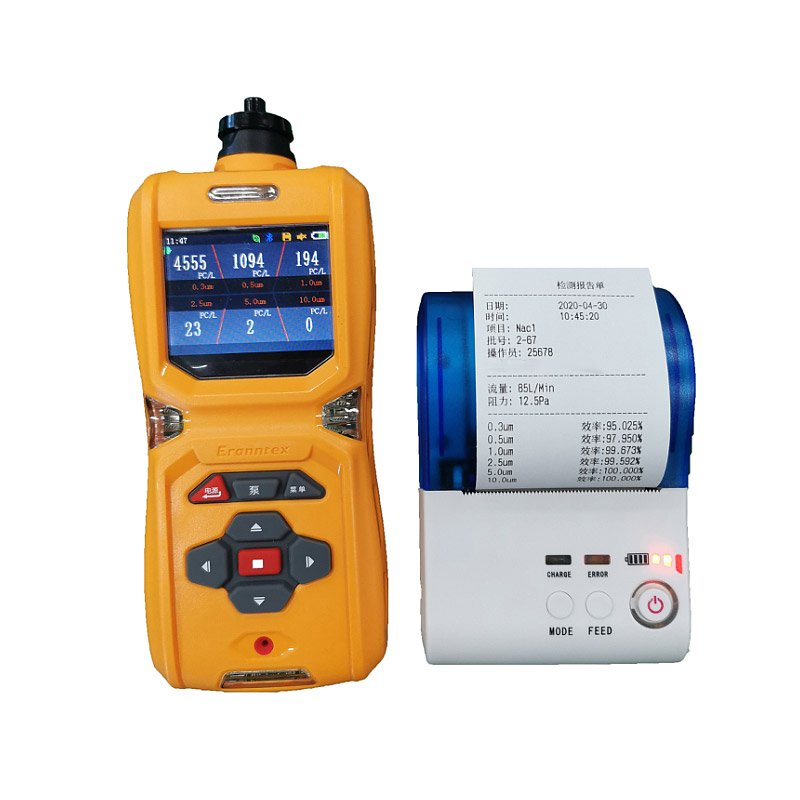

★Multiple communication interfaces and printing functions

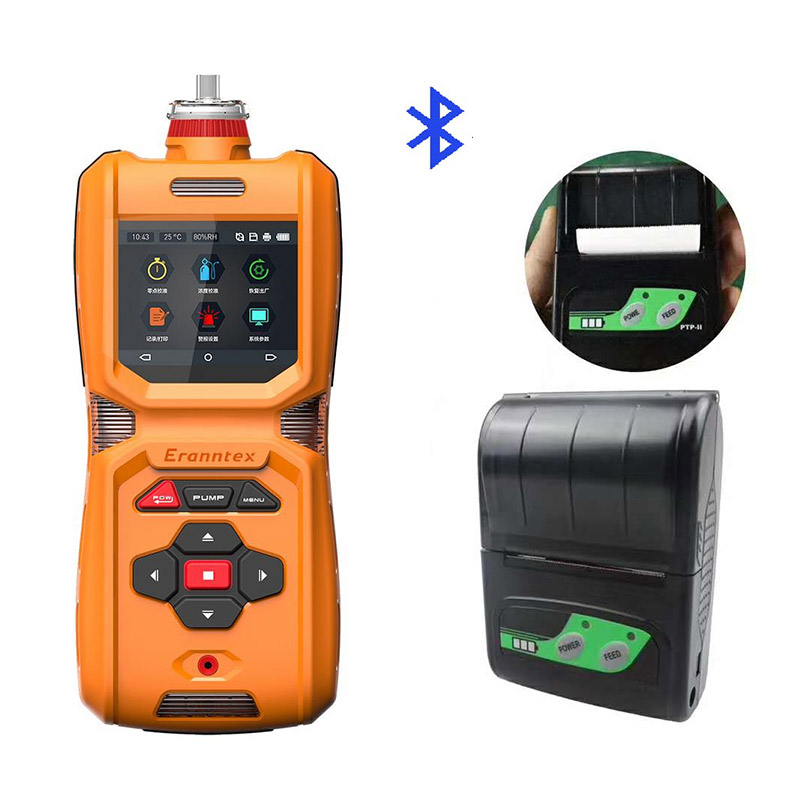

USB interface, RS232 interface automatic recognition, infrared communication interface (optional), optional external micro wireless Bluetooth printer.
Print content: company name, gas name, date and time, ambient temperature and humidity, concentration data, test results (whether qualified).
★ High-temperature gas detection (optional)
Optional high-temperature sampling cooling filter handle or high-temperature high-humidity pretreatment system can detect flue gas at a temperature of 1300 degrees. Gas detection at higher temperatures can be customized.
★ Three display modes can be switched
Four gas concentrations are displayed at the same time, and the concentration of single-channel gas is displayed in large fonts, and real-time curves and historical curves are displayed.
★ Graphical display
Reflects the trend of gas concentration changes over a period of time in the form of curves.
● Data recovery function: You can choose to recover part or all of it, avoiding the worries caused by misoperation.
● You can set whether to display maximum, minimum and average values
● Standard USB charging, with charging protection function, support USB hot-swapping
It can be charged by computer or power bank, compatible with mobile phone charger;There is overcharge, overdischarge, overvoltage, short circuit, overheating protection; level 5 accurate power display;
The detector can work normally when charging.
● Adopting 6000mA large-capacity rechargeable high-molecular polymer battery, it can work continuously for a long time
● High-precision temperature and humidity measurement (optional) to supplement the temperature of the sensor at the same time Compensation, the temperature range of the instrument is -40 to 70 degrees
● Multiple alarm methods, multi-dimensional three-dimensional indication alarm status
including sound and light alarm, vibration alarm, display vision Call the police.Alarm types include: concentration alarm, undervoltage alarm, fault alarm.
● Multiple alarm mode settings: low alarm, high alarm, interval alarm, weighted average alarm.
● Misoperation identification function: Concentration calibration misoperation is automatically identified and blocked, which can avoid the adverse causes caused by human factors.
● Zero point automatic tracking Long-term use is not affected by zero point drift
● Target point multi-level calibration Ensure the linearity and accuracy of measurement, which can simultaneously It meets the national standards and the standards of local metrology bureaus.
●Chinese and English interfaces can be selected Default Chinese interface, concise Chinese or English operation tips
● Air pump switch can be detected in real time or timed (for cases where the measured gas volume is small), and the pump can be turned off to extend the power-on time.
● Logging Record calibration log, repair log, fault recording, troubleshooting countermeasures, sensor life expiration reminder, next concentration calibration time reminder function.
● Meet the requirements of Benan circuit design, anti-static, anti-electromagnetic interference, pass the national standard test and CMC measuring instrument production license certification
● The protection level reaches IP66, which can prevent rain and short-term immersion, waterproof, dustproof, explosion-proof, shock-proof
Application: petroleum, chemical industry, medicine, environmental protection, flue gas analysis, air treatment and other occasions that need to detect gas concentration
