Pump suction five-in-one gas detector MS500 General description: (1-5 kinds of gas can be combined at will)
●MS500 series portable composite gas physical examination The measuring instrument is used for: quick detection of a variety of gas concentrations, temperature and humidity measurement and over-standard alarms.
MS500 adopts a 2.5-inch high-definition color screen for real-time display and selects gas sensors from imported well-known brands. The main detection principles are: electrochemical, infrared, catalytic combustion, thermal conductivity, PID light ion, etc. With advanced circuit design, mature kernel algorithm processing, and unique appearance design, it has obtained a number of software patents and appearance patents.

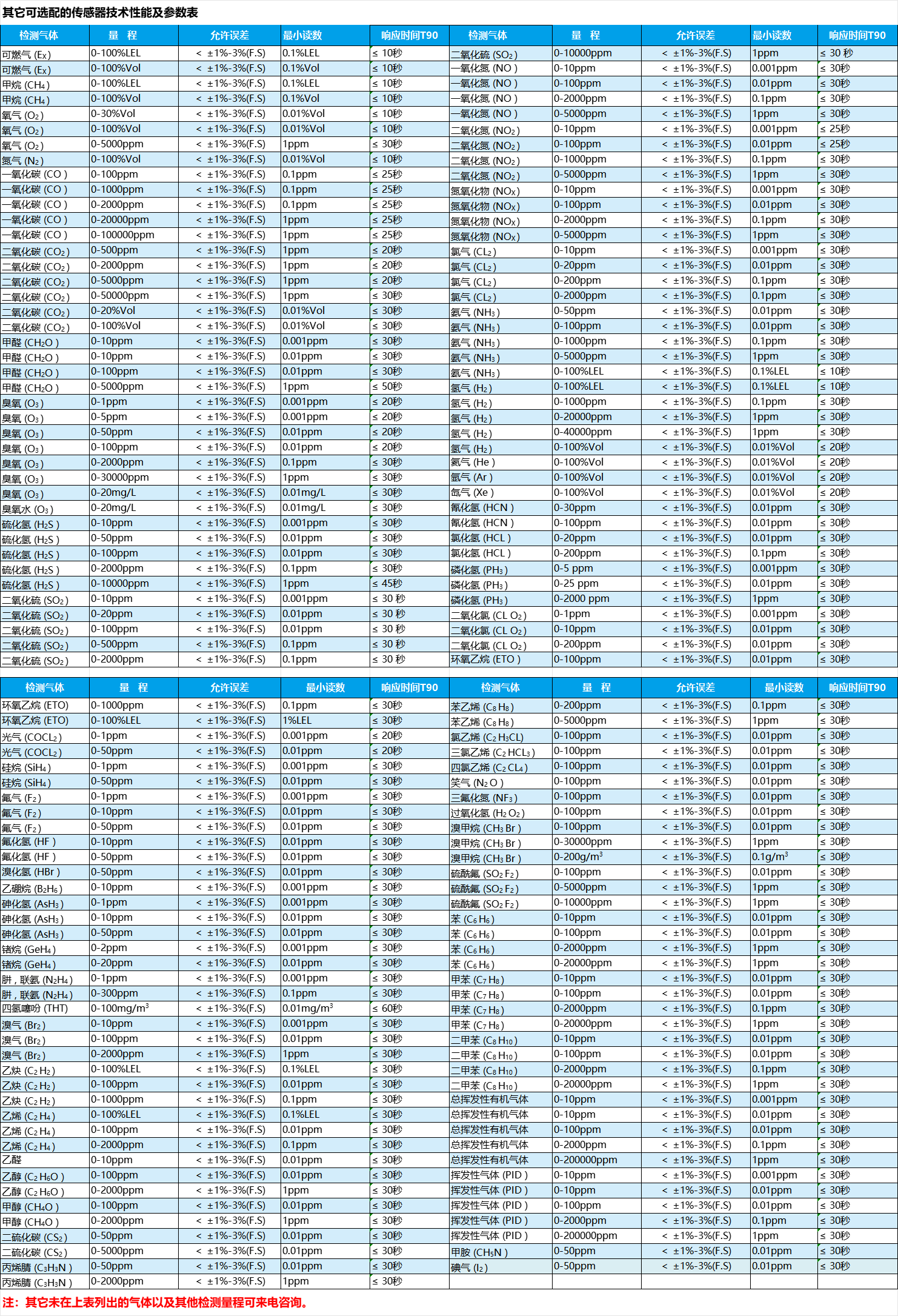

● MS500 can detect gas concentrations in pipelines or in confined spaces and atmospheric environments. It can detect gas leakage or high-concentration single gas purity of various background gases of nitrogen or oxygen, and detect more than 500 types of gases.
Pump suction five-in-one gas detector MS500 functional features:
★ 1 to 5 gases can be detected at the same time, and the unit can be switched freely (conventional gas does not need to input molecular weight, and special gas input molecular weight is automatically calculated and switched)
Units can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/L.

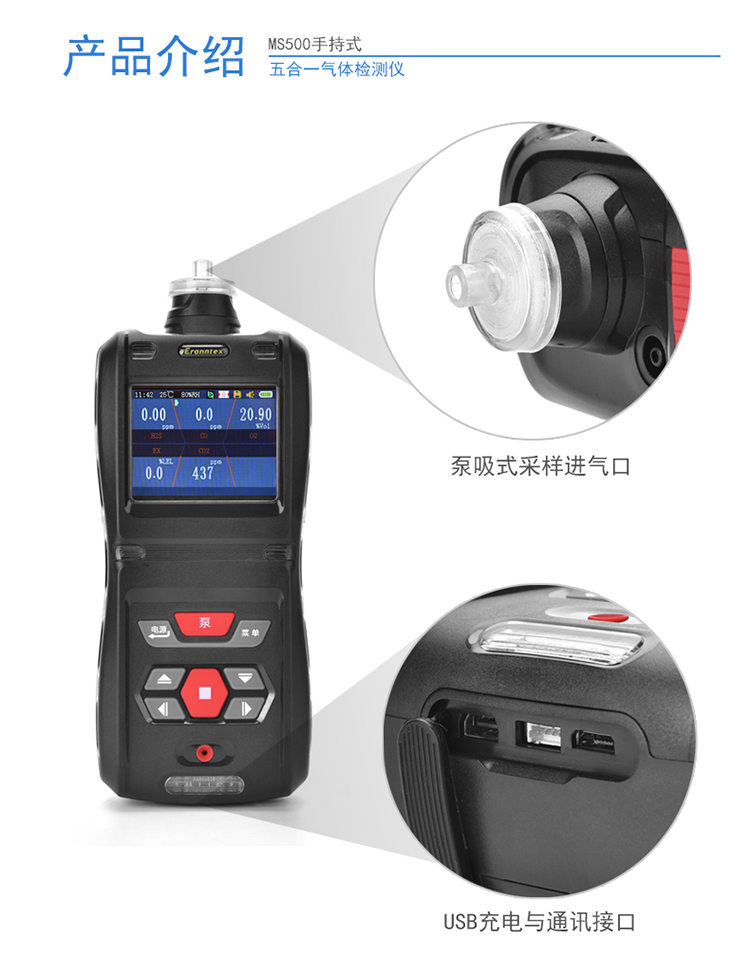

★ Built-in pump suction measurement, integrated water vapor and dust filters, fast response, support long-distance sampling
Built-in water vapor and dust filters prevent damage to sensors and The instrument can be used in high humidity and high dust environments;
The sampling distance is more than 10 meters, and the special gas line design can be directly detected; negative pressure or positive pressure -0.5 to 2 kg of gas has no effect on the measurement results.
★Rich human-computer interface

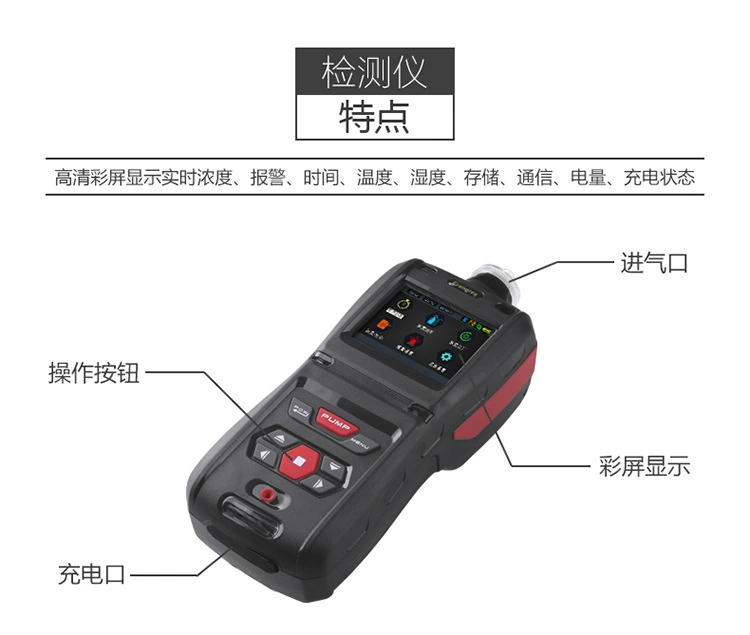

2.5-inch high-definition color screen, displaying real-time concentration, alarm, time, temperature, humidity, storage, communication, printing, power, charging status, concentration Unit, gas molecular formula, gas name and other information; the menu interface uses high-definition simulation graphics to display the function names of each menu.
★ Large-capacity data storage function, supports multiple storage methods
Standard 100,000 data storage capacity, larger capacity can be customized; support real-time storage, timed storage, or only storage Warning concentration data;
Supports local machine to view and delete data, and can also upload data to the computer through USB or RS232 interface, and use the upper computer software to analyze data, store and print.
★Multiple communication interfaces and printing functions

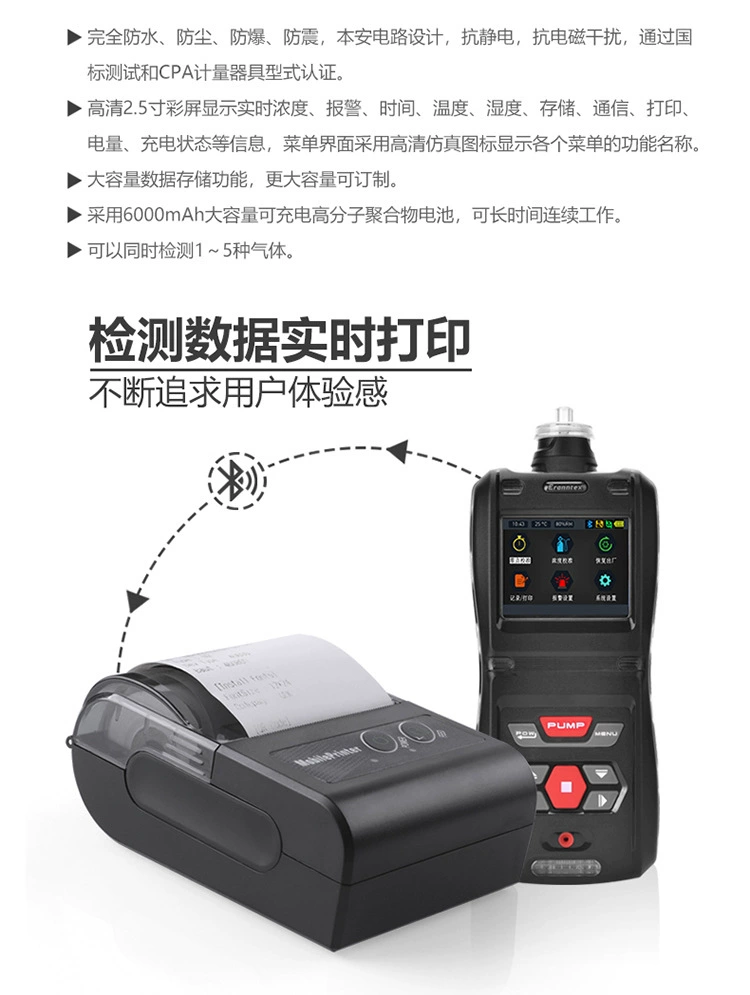

USB interface, RS232 interface, infrared communication interface (optional), optional external micro wireless Bluetooth printer.
Print content: company name, gas name, date and time, ambient temperature and humidity, concentration data, test results (whether qualified).
★ High-temperature gas detection (Optional)
Optional high-temperature sampling cooling filter handle or high-temperature high-humidity pretreatment system can detect flue gas at a temperature of 800 degrees. Gas detection at higher temperatures can be customized.

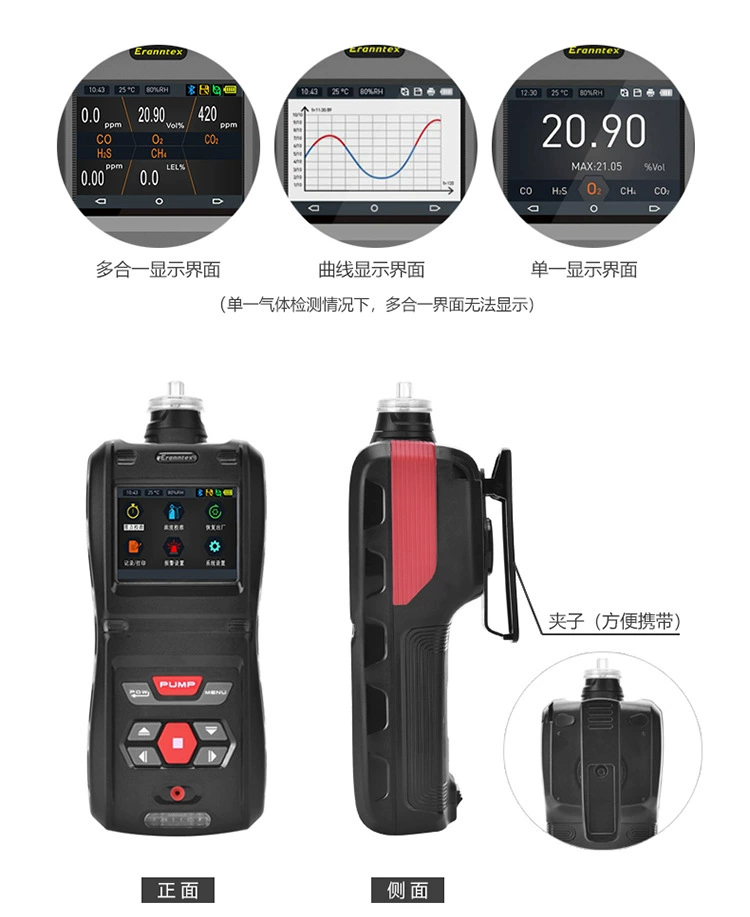

★ Three display modes can be switched
Four gas concentrations are displayed at the same time, and the concentration of single-channel gas is displayed in large fonts, and real-time curves and historical curves are displayed.
★ Graphical display
reflects the trend of gas concentration changes over a period of time in the form of curves.
● Data recovery function can choose to recover part or all of it to avoid the worries caused by misoperation.
● You can set whether to display maximum, minimum and average values
● Standard USB charging, with charging protection function, support USB hot-swapping
It can be charged with a computer or rechargeable treasure, compatible with mobile phone chargers; it has overcharge, overdischarge, overvoltage, short circuit, overheating protection; level 5 accurate power display;
The detector can work normally when charging.
● Adopting 6000mA large-capacity rechargeable high-molecular polymer battery, it can work continuously for a long time
● High-precision temperature and humidity measurement (optional) to supplement the temperature of the sensor at the same time Compensation, the temperature range of the instrument is -40 to 70 degrees
● Multiple alarm methods, multi-dimensional three-dimensional indication alarm status
including sound and light alarm, vibration alarm, display vision Call the police. Alarm types include: concentration alarm, undervoltage alarm, fault alarm.
●Multiple alarm mode settings Low alarm, high alarm, interval alarm, weighted average alarm.
● Misoperation identification function Concentration calibration misoperation automatically identifies and prevents, which can avoid the adverse caused by human factors.
●Zero-point automatic tracking Long-term use is not affected by zero-point drift
●Target point multi-level calibration Ensure the linearity and accuracy of the measurement, which can meet the national standards and the standards of the local metrology bureau at the same time.
● Chinese and English interface can be selected default Chinese interface, concise Chinese or English operation tips
● Air pump open Off can be detected in real time or timed (for the case of small gas measured), and the pump can be turned off to extend the power-on time.
● Logging Record calibration log, repair log, fault recording, troubleshooting countermeasures, sensor life expiration reminder, next concentration calibration time reminder function.
●Meet the requirements of Benan circuit design, anti-static, anti-electromagnetic interference, pass the national standard test and CMC measuring instrument production license certification
● Protection level up to IP66, waterproof, dustproof, explosion-proof, shockproof< /Span>

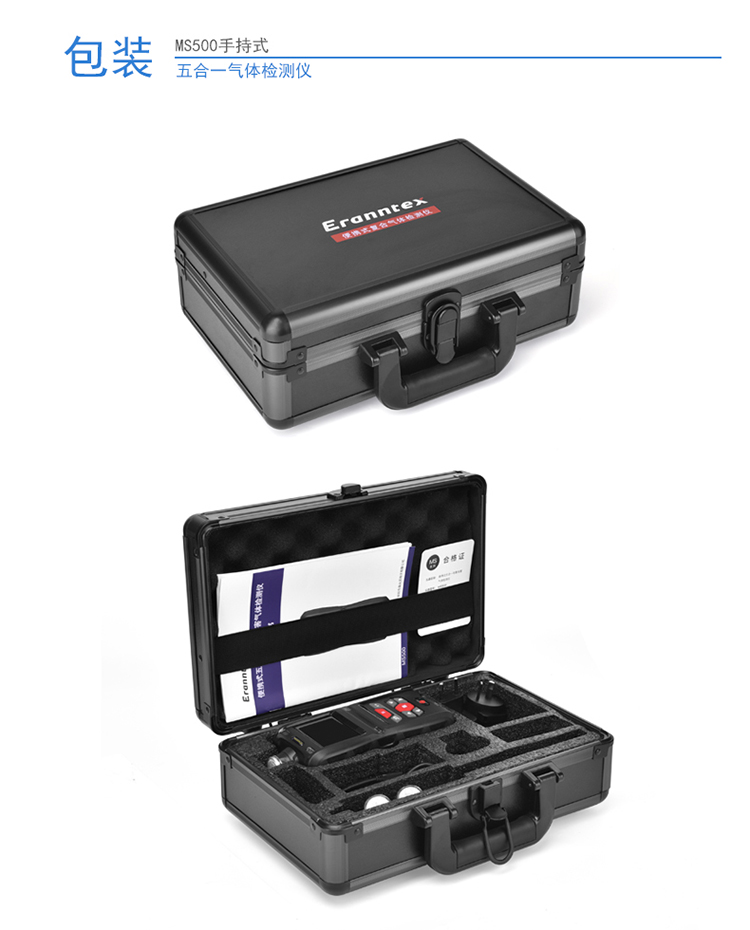

●Standard accessories: instruction manual, qualification certificate, USB charger (including data cable), back clip, 1 humidity dust filter, high-grade aluminum alloy instrument case
● Optional accessories: 0. 9 m retractable sampling handle (1-10m hose, standard length 1m), temperature and humidity measurement function, CD-ROM (upper computer communication software), lanyard, high-temperature sampling reductionTemperature filtration handle, high-temperature and high-humidity pretreatment system humidity dust filter multiple, external micro Bluetooth printer
● Applications: petroleum, chemical industry, medicine, environmental protection, flue gas analysis, air treatment and other occasions that need to detect gas concentration
