Interconnected mobile MIC-600-S description:

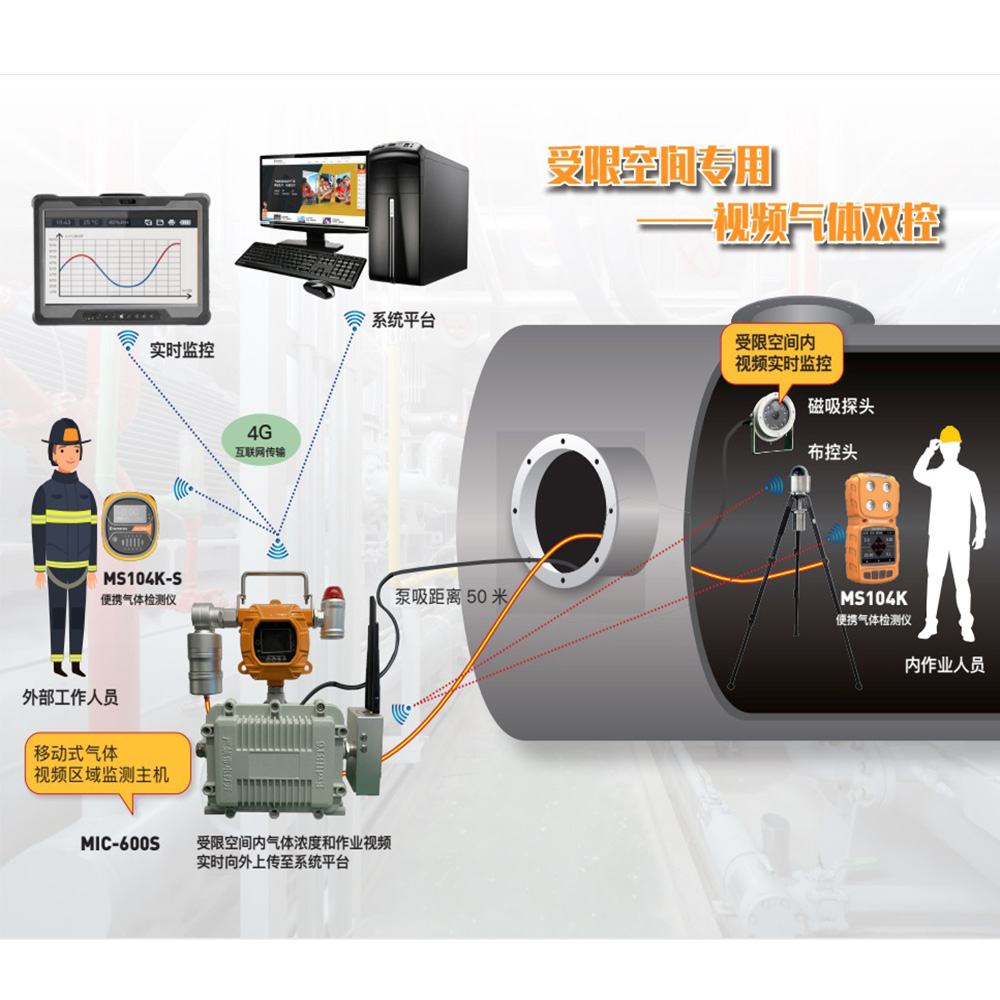

Applied to on-site methane gas concentration monitoring and temperature and humidity measurement, on-site display concentration and over-standard sound and light Alarm, remote data real-time transmission, video real-time monitoring, voice intercom. It adopts a 2.5-inch high-definition color screen to display the concentration in real time. According to different detection gases, the best brands in the industry are selected for laser, electrochemical, infrared, catalytic combustion, thermal conductivity, PID light ion principle gas sensors, Swiss high-precision capacitive digital temperature and humidity sensors, MIC-600S advanced Circuit design and mature kernel algorithm processing have obtained a number of software.Patents and appearance patents have given birth to the industry-leading new generation of multi-functional interconnected mobile composite gas detection alarm. MIC-600S can detect gas concentration in confined space and atmospheric environment, gas leakage, and purity of high concentration of single gas. The robust and durable explosion-proof shell and fluorocarbon paint surface treatment process are suitable for all kinds of dangerous places and corrosive environments with strong acids and alkalis. It is wear-resistant and will not fade and lose paint for 10 years.
Interconnected mobile MIC-600-S Features:
● Benan circuit design, explosion-proof certification, secondary lightning protection, Anti-static, lightning protection and anti-static ability exceed the national standard, and resist high-intensity pulse surge current impact.High reliability and stability.
Anti-reverse connection design, any form of reverse connection will not damage the instrument.
● Comply with EMI and EMC standards, and pass the national standard test and CMC measuring instrument license certification.
Executive Standard: GB15322.1-2003
GB 3836.1-2010 General Requirements for Electrical Equipment for Explosive Gas Environments
GB 3836.2-2010 Explosive Gas Physical Environmental Electrical Equipment Explosion-proof Type "d"
GB 3836.4-2010 "Explosive Gas Environmental Electrical Equipment Intrinsic Safety Type "i""
● High-resolution explosion-proof gimbal camera, real-time video monitoring, horizontal 360°, vertical 90° area without dead angle scanning.
● Voice intercom can be made with the monitoring background.

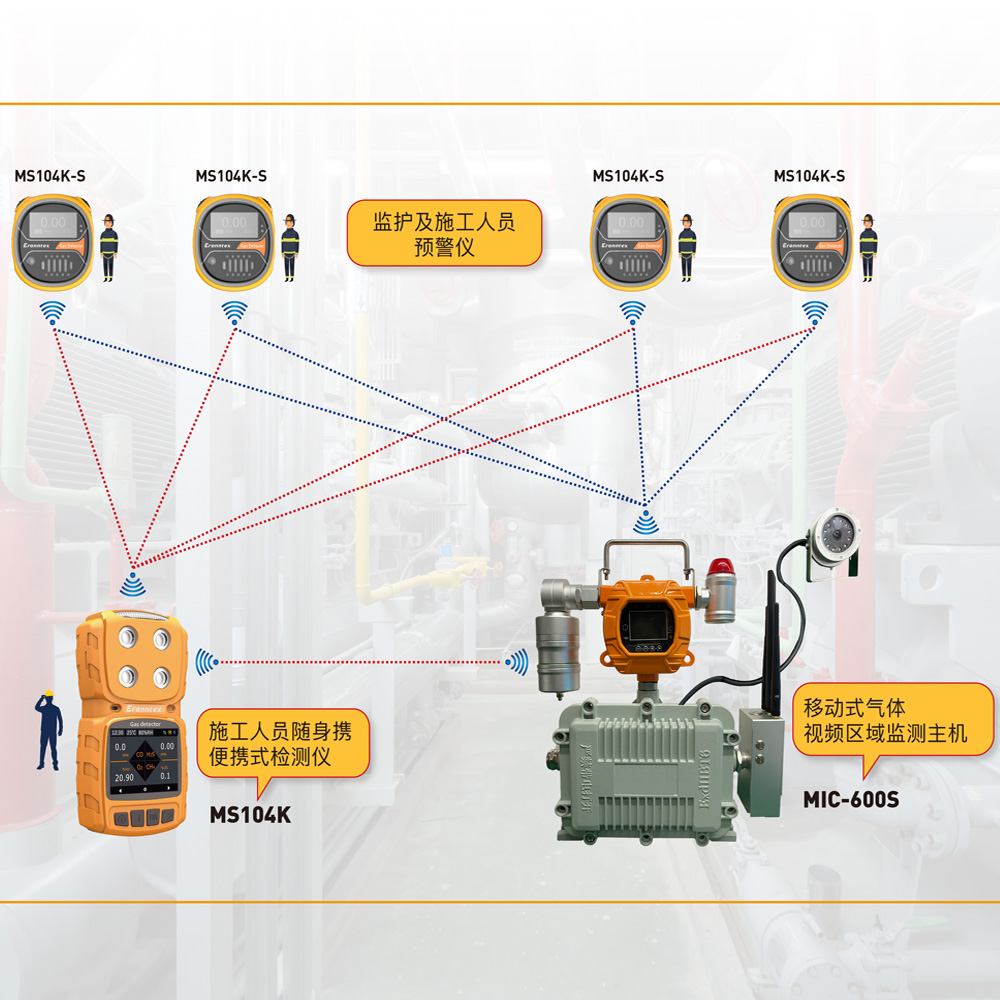

● Alarm interconnection, after any device alarms, other surrounding devices receive alarm information and alarm.
● One-click call for help (SOS), when the device operator is in danger, press the SOS button, and other devices around receive the call message and alarm.
● Track tracking, support GPS and Beidou positioning, and realize accurate positioning of equipment.
● It has a power display and a low battery alarm. When the battery is low, a power alarm is issued to prompt the user to charge.
● Standard bus RS485(RTU) and 4~20mA standard signals are output at the same time, 3 groups of relay switching output, on-site sound and light alarm.
It can be monitored remotely in real time by wire or wireless, uploading data to the cloud platform, mobile phone, IPAD or transmitted to the Environmental Protection Bureau, other monitoring centers, monitoring equipment and monitoring computers through the local area network and the Internet, and monitoring the concentration of the site in real time through free computer software or gas alarm controller. .
● Support wireless transmission such as GPRS/WIFI/LoRa/433M/Bluetooth.
● Compatible with various quadratic tables, data acquisition modules, PLC and DCS systems. The optional MIC3000 controller can monitor 1000 detectors at the same time.
● The large-capacity data storage function can record the real-time concentration value, temperature and humidity, or only record the alarm value and time.
Supports local storage or SD card storage. The standard capacity of local storage is 100,000 records, which should be indicated when ordering a larger capacity.
The capacity of SD card storage can be customized. Data export and analysis through free upper computer software, which supports viewing or deleting data on this machine. It can be set to automatically overwrite or not overwrite data when the capacity is insufficient, and automatically stop the recording function.
● Standard infrared remote control can realize the operation without opening the cover in dangerous situations, such as: modifying the alarm point, concentration calibration, zero calibration, muting, restoring the factory, entering the menu, viewing the record, 4mA output, 20mA output (this function is required to calibrate other acquisition equipment).
