在线式可燃气体检测仪 MIC-500S

Detection Method: 扩散式测量，可选管道式、流通式、泵吸式

Detection Gas: Two-in-one detector Four-in-one gas detector Four-in-one detector Four-in-one gas detector Multi-gas detector Multi-in-one gas detector Multi-functional gas detector Laser dust PM2.5 Carbon dioxide (infrared) CO2 Flammable detector Ex Flammable (infrared) Ex Methane CH4 Methane (infrared) CH4 Methane (Laser TDLAS) CH4 Ethane (Infrared) C2H6 Propane (Infrared) C3H8 Non-Methane Hydrocarbons CxHy Carbon Monoxide CO Carbon Monoxide (Infrared) CO Hydrogen Sulfide H2S Oxygen O2 Nitrogen N2 Ammonia NH3 Chlorine CL2 Hydrogen H₂ Helium He Argon Ar Formaldehyde CH₂O Ozone O₃ Nitrogen Oxide NO Nitrogen Dioxide NO₂ Nitrogen Oxides NO_x Sulfur Dioxide SO₂ Ethylene Oxide ETO Ethylene Oxide (Infrared) C₂H₄O Phosphine PH₃ Hydrogen Chloride HCl Hydrogen cyanide HCN Phosgene COCl₂ Chlorine dioxide ClO₂ Silane SiH₄ Bromomethane (infrared) CH₃Br Bromomethane (PID) CH₃Br Sulphuryl fluoride (infrared) SO₂F₂ Fluorine F₂ Hydrogen fluoride HF Hydrogen bromide HBr Boron hydride B2H6 Arsenic hydride AsH3 Germanium hydride GeH4 Hydrazine N2H4 Hydrazine N2H4 Dicyandiamide C2H8N2 Nitrous oxide N2O4 Nitrogen trichloride NCL3 Tert-butyl mercaptan TBM Phosphorus pentafluoride PF5 Boron trichloride BCl₃ Phosphorus trichloride PCl₃ Phosphorus oxychloride POCl₃ Phosphorus trifluoride PF₃ Boron trifluoride BF₃ Azide HN₃ Methyl sulfide C₂H₆S Dimethyl sulfate C₂H₆O₄S Acetonitrile CH₃CN Acetic acid C2H4O2 Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyl disulfide C2H6S2 Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2 Chlorosilane SiH3Cl Tetrahydrothiophene THT Bromine gas Br2 Acetylene (infrared) C2H2 Acetylene C2H2 Carbon disulfide CS2 Carbon disulfide (infrared) CS2 Acrylonitrile C3H3N Methyl ethyl ketone MEK Methyl ketone MDK Methyl ketone (infrared) C3H6O Sulfur hexafluoride (infrared) SF6 Ethylene C2H4 Ethylene (infrared) C2H4 Isopropyl alcohol (infrared) C3H8O Ethanol C2H6O Ethanol (infrared) C2H6O Methanol CH4O Methanol (infrared) CH4O Methylamine CH5N Methyl mercaptan CH3SH Vinyl chloride C2H3Cl Vinyl chloride (infrared) C2H3Cl Trichloroethylene C2HCl3 Tetrachloroethylene C2Cl4 Chloromethane (infrared) CH3Cl Dichloroethane (infrared) C2H4Cl2 Dichloromethane (IR) CH₂Cl₂ Trichloromethane (IR) CHCl₃ Nitrous oxide (IR) N₂O Nitrogen trifluoride NF₃ Nitrogen trifluoride (IR) NF₃ Hydrogen peroxide H₂O₂ Styrene (PID) C₈H₈ Tetrahydrofuran (PID) THF TVOC (PID) TVOC VOC (PID) Benzene (PID) C6H6 Toluene (PID) C7H8 Toluene (Infrared) C7H8 Xylene (PID) C8H10 Xylene (infrared) C8H10 PID gas Odor OU Diesel (infrared) diesel Jet fuel (infrared) JET Butane (infrared) C4H10 Isobutane (infrared) C4H10 Pentane (infrared) C5H12 Cyclopentane (IR) C5H10 n-Hexane (IR) C6H14 Propylene (IR) C3H6 Methyl ethyl ketone (IR) C4H8O Carbonyl sulfide (IR) COS Refrigerant (IR) R134a Freon CFC Refrigerant CFC

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range: 0～100%LEL、100%Vol，其他量程可订制

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Download Manual Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	1种
Product Features	1、单一气体 2、1.7英寸LCD彩屏显示 3、性价比高 4、三线制4-20mA输出 5、RS485输出 6、防爆等级：Ex db IIC T6、Ex ia IIC T6
Detection Range	0-1、10、100、1000、5000、10000、50000ppm， 0-100%LEL，0-5%Vol、30%Vol、100%Vol，其他量程可选，量程由使用场景和检测目的决定
Resolution	0.01%LEL、0.01%Vol
Typical Accuracy	±3%（F.S）
Detection Method	扩散式测量，可选管道式、流通式、泵吸式
Display	1.7英寸高清彩屏
Power Supply	DC24V，可选220VAC
Maximum Power Consumption	无
Operating Environment	典型值：-20～+55℃ 极限值：-40℃～+70℃ 湿度：10～95%RH
Data Storage	暂没有
Printing Function	暂不支持
Signal Output	总线制RS485（RTU）、三线制4～20mA
Alarm Method	声光报警、1-2组继电器干接点输出，声光报警灯为选配
Fall Alarm	无
Wireless Transmission	选配：LoRa/433M/4G/NB-IOT
Dimensions: LWH	238×210×90mm(L×H×W)带灯 238×152×90mm(L×H×W)不带灯
Weight	不带灯1.4Kg 带灯 1.6Kg
Protection Level	IP67
Standard Accessories	说明书、合格证、保修卡、红外遥控器、外箱包装盒
Optional Accessories	1. 一体式声光报警器、分体式声光报警器、220V-24V直流稳压电源、连电脑监控的配件：上位机监控软件（同时视频监控）、RS485/RS232转换器、USB/RS232 转换连接线、TCP/IP转换器。 2. 选配：常温高湿预处理系统、高温高湿度预处理系统、高温高湿高粉尘预处理系统

　　在线式可燃气体检测仪 MIC-500S描述：

　　固定式乙醇检测仪(红外)MIC-500S应用于现场气体的浓度检测及气体浓度超标报警，可以精确检测各种有毒有害可燃性气体的浓度。并在现场显示实时浓度值、标准信号输出。选用进口品牌(霍尼韦尔、日本根本、英国CITY、英国阿尔法、英国Dynament、瑞士Membrapor等)气体传感器，主要检测原理有：电化学、红外、催化燃烧、热导、PID光离子。具有信号稳定，灵敏度及精度高等优点。隔爆接线方式适用于各种危险场所。

　　在线式可燃气体检测仪 MIC-500S产品特点：

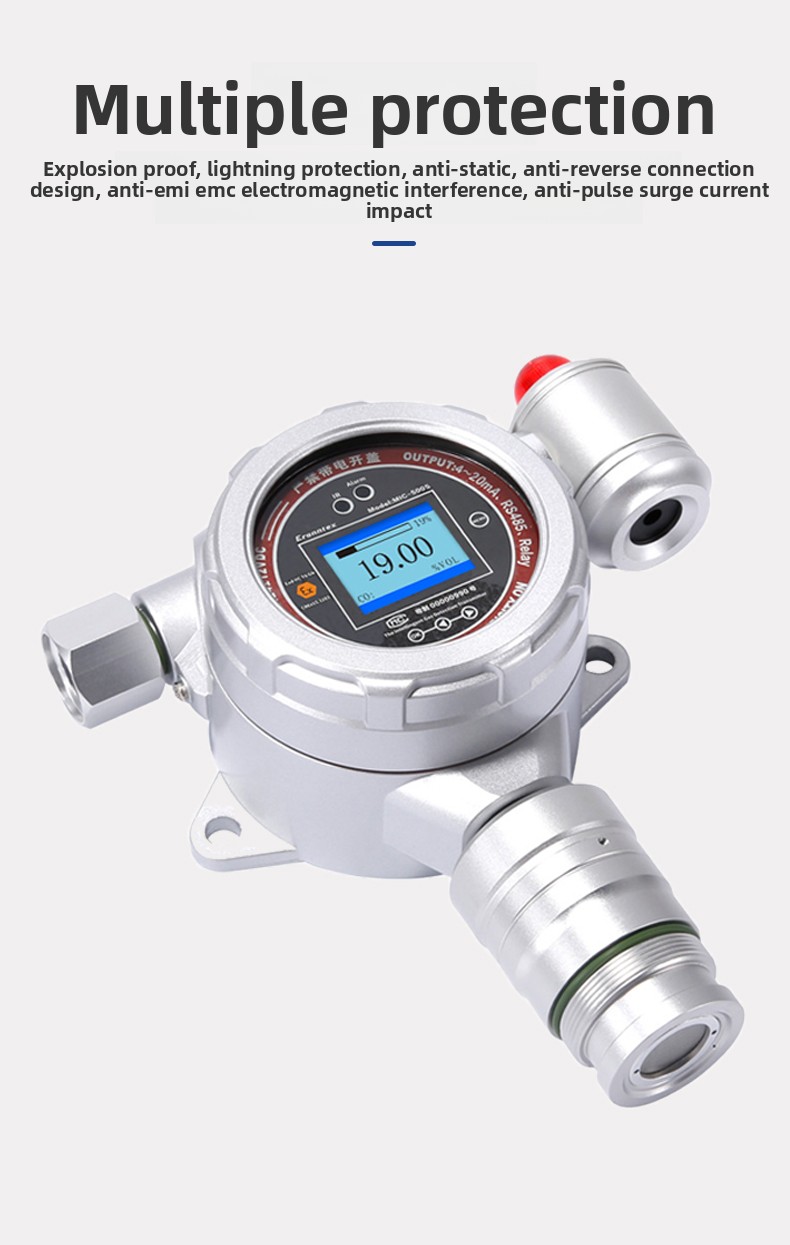

　　●防爆、防雷、防静电、放反接，抗EMI、EMC电磁干扰，抗脉冲浪涌电流冲击

　　●符合最新国标并取得CPA计量器具型式批准证书、防爆认证等资质

　　●三线制或四线制4-20mA标准信号输出、电压输出、2组继电器开关量

　　●同时具有标准总线制RS485输出(RTU格式)，可选配一体式声光报警器。

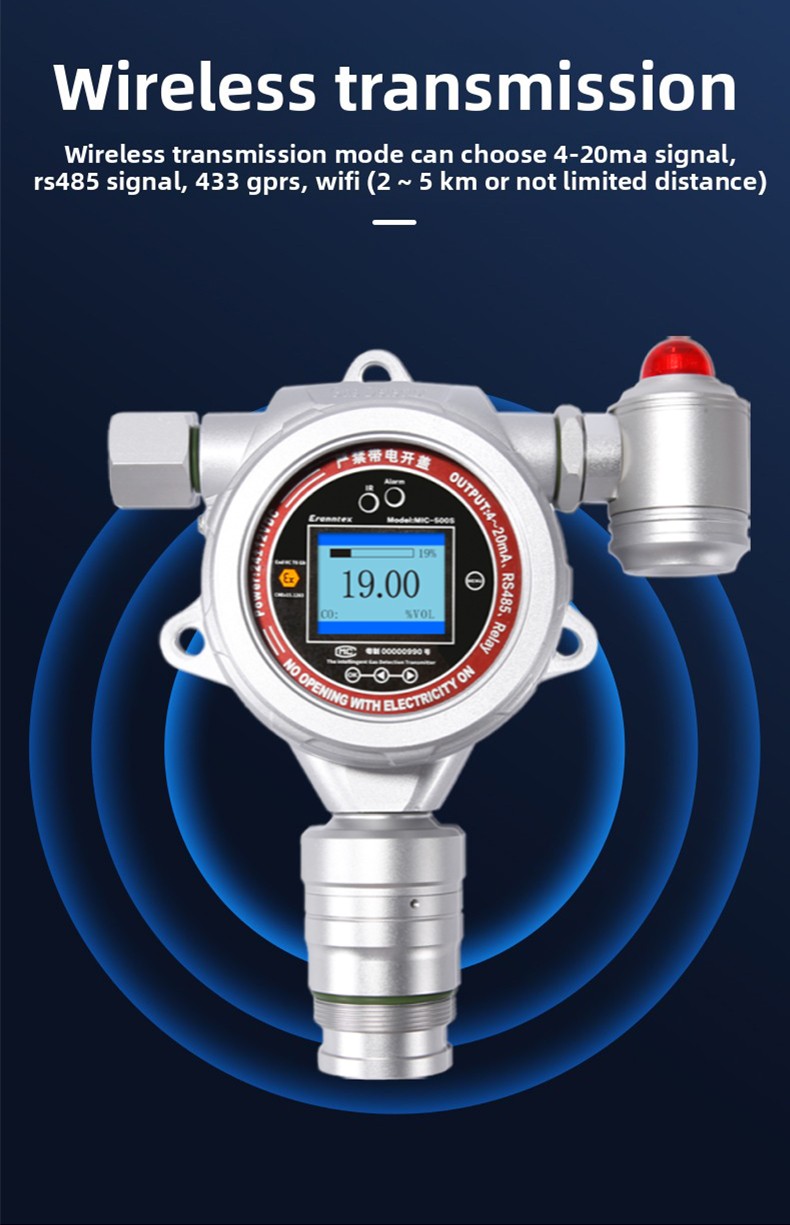

　　●可选有线传输、局域网、互联网、无线传输(2公里、5公里、不限距离)

　　●无线传输方式可选433、GPRS、WIFI、其它方式

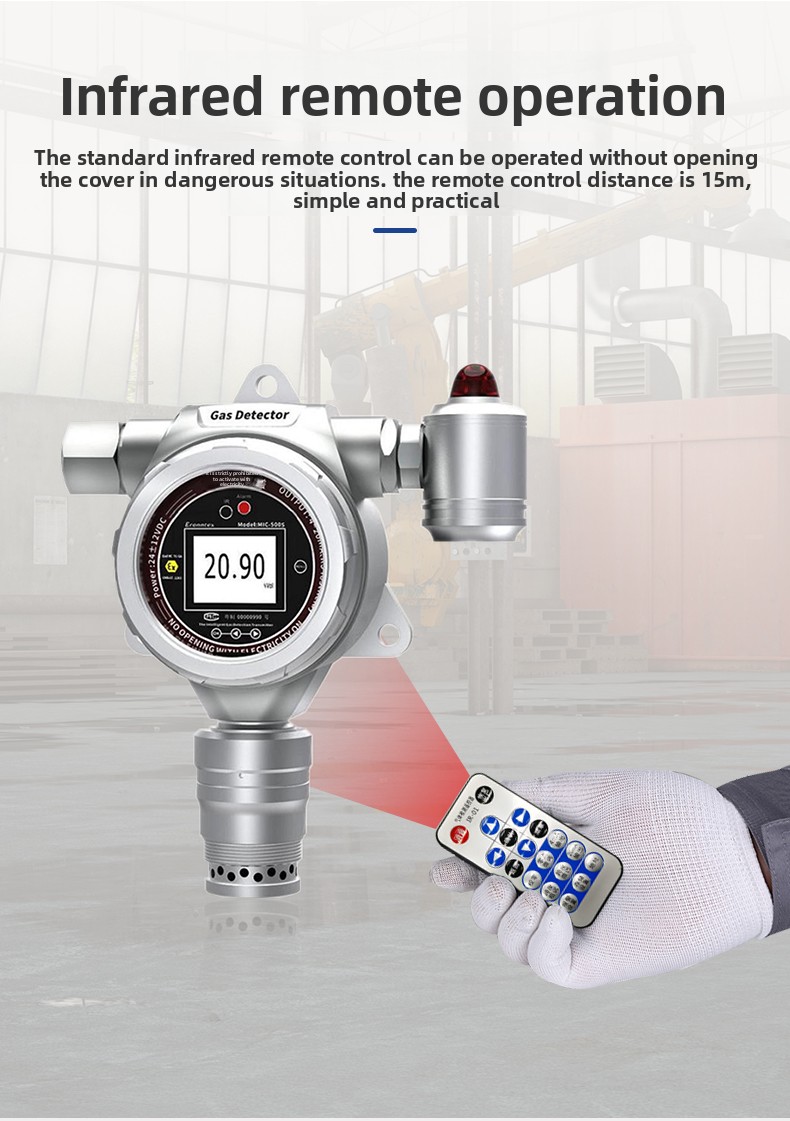

　　●标配红外遥控器可在危险场合免开盖操作，遥控距离15米，简单实用

　　●各单位可互相切换，自动跟踪零点防止漂移，多级校准。支持OEM或ODM定制

　　●可与计算机通讯，在电脑上通过上位机进行实时监控现场探头的浓度并在电脑上存储和分析、打印数据。

　　●应用场合：石油、化工、医药、环保、烟气分析、空气治理等所有需要检测气体浓度的场合

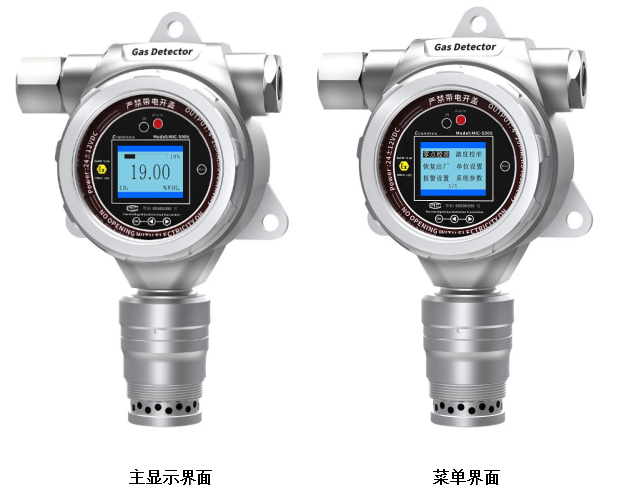

　　在线式可燃气体检测仪 MIC-500S显示界面：

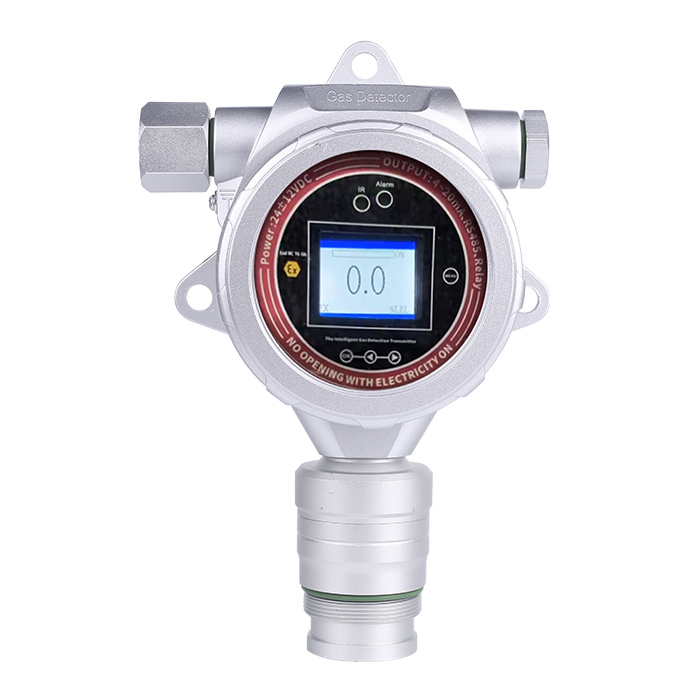

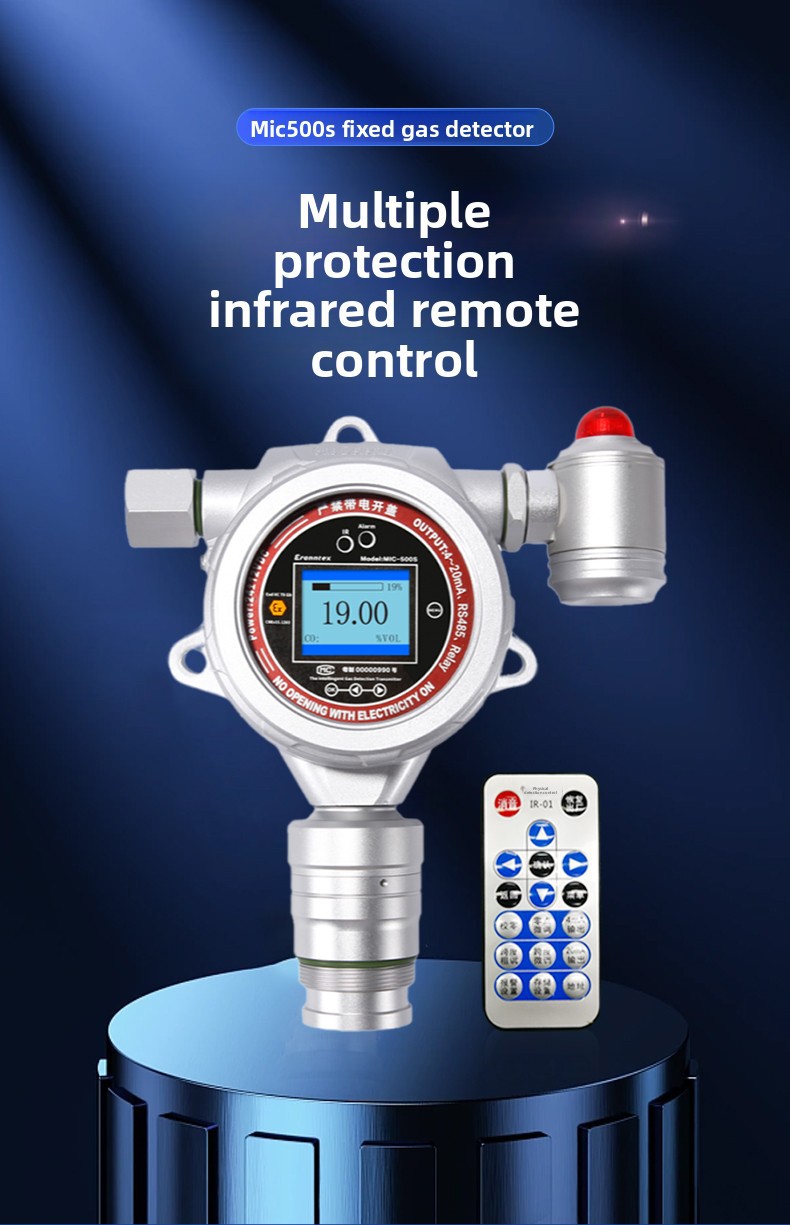

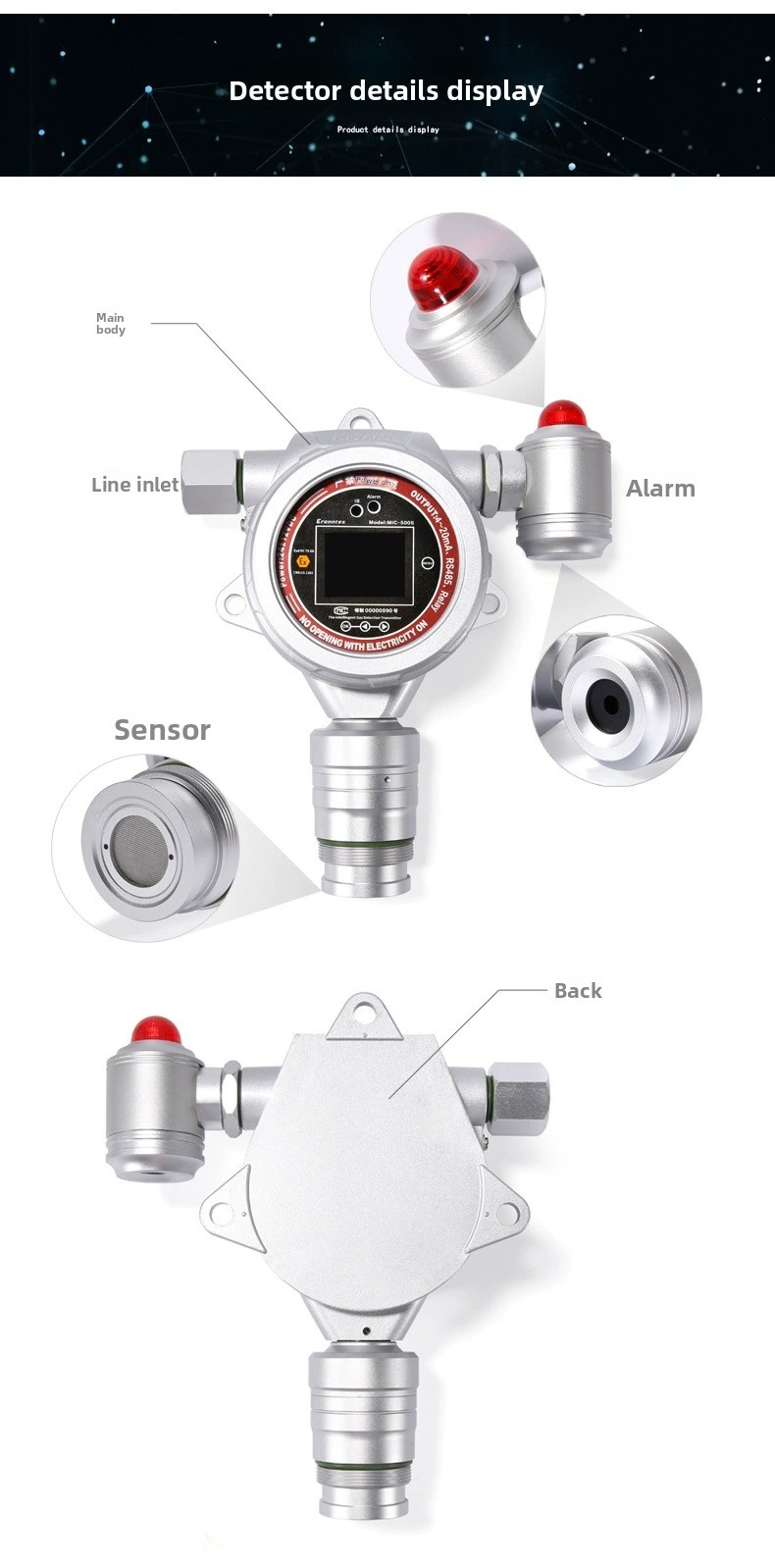

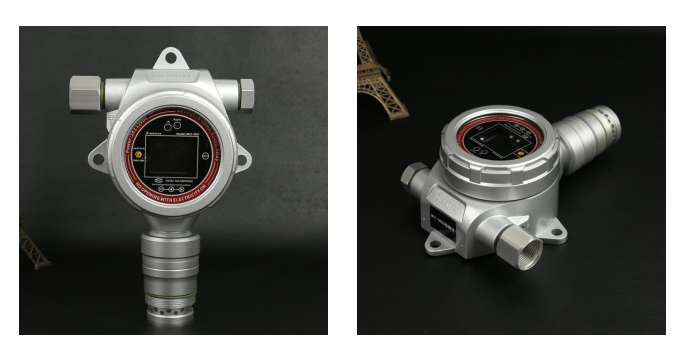

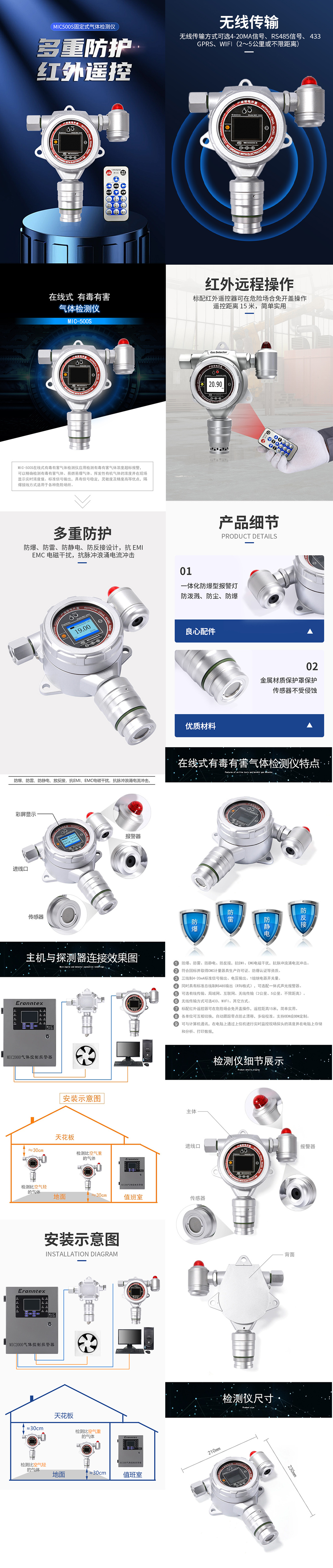

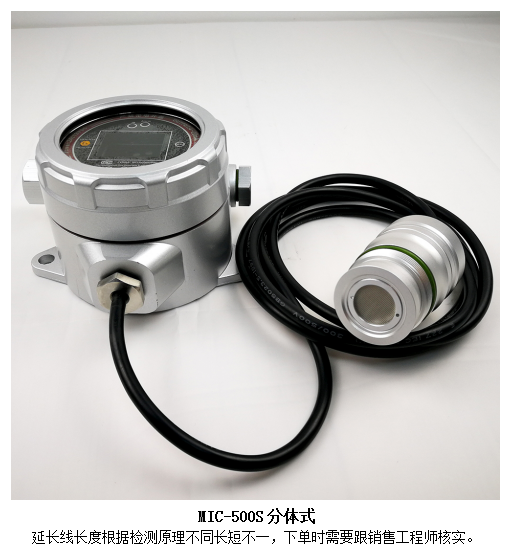

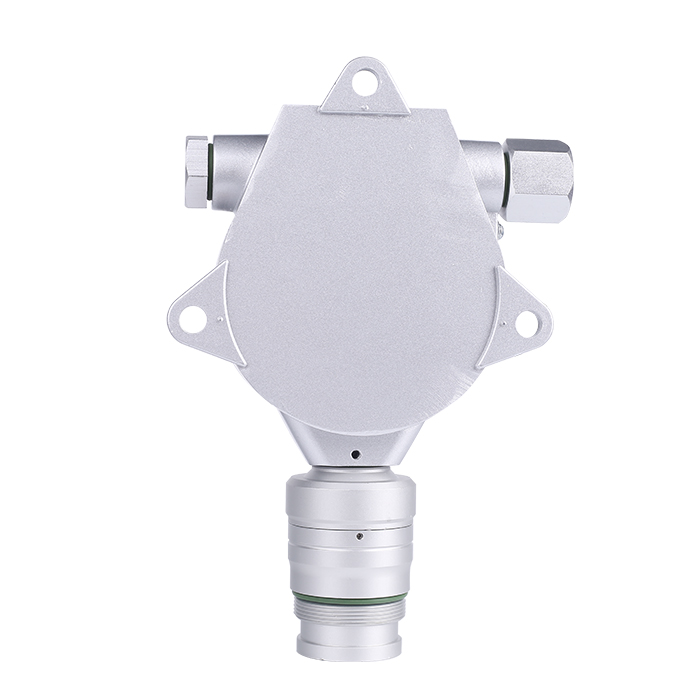

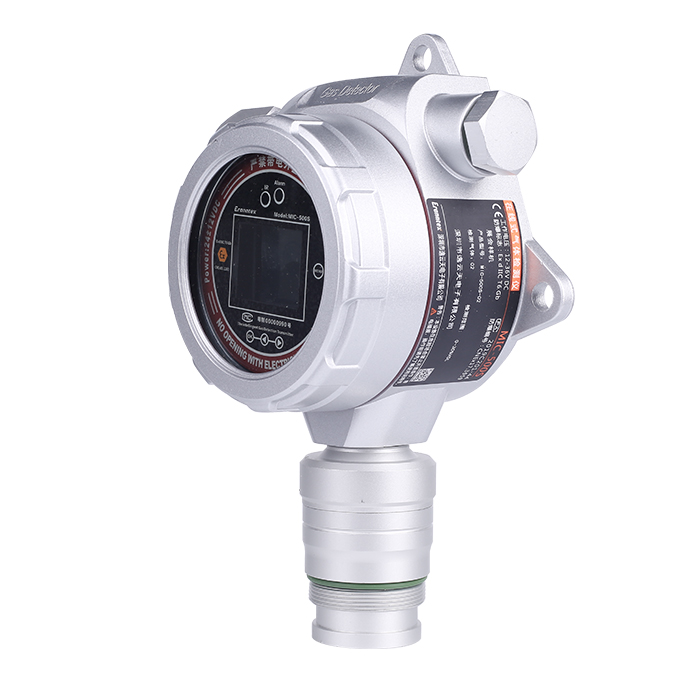

　　在线式可燃气体检测仪 MIC-500S实物图片：

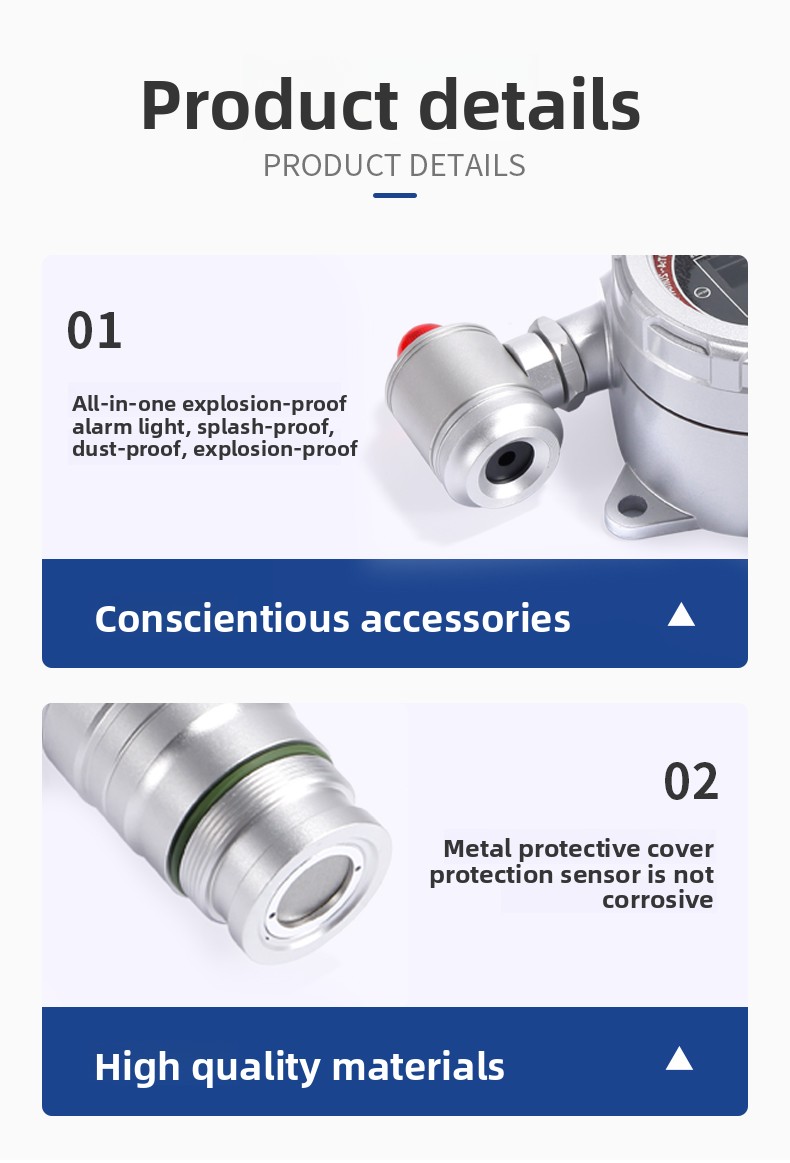

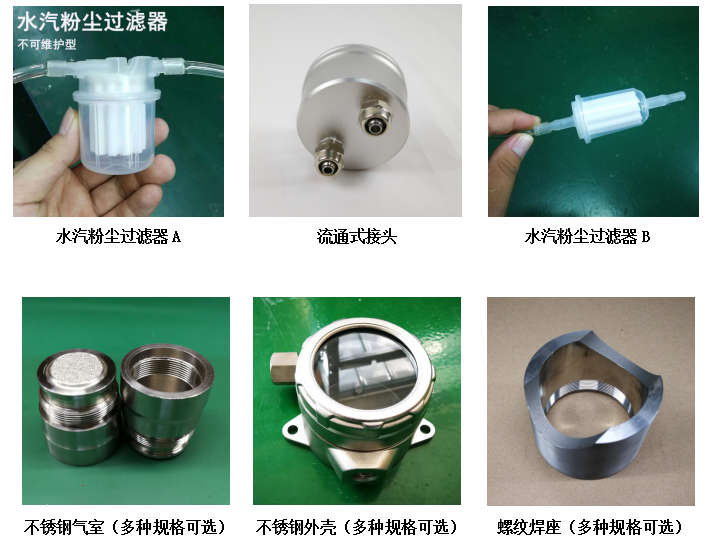

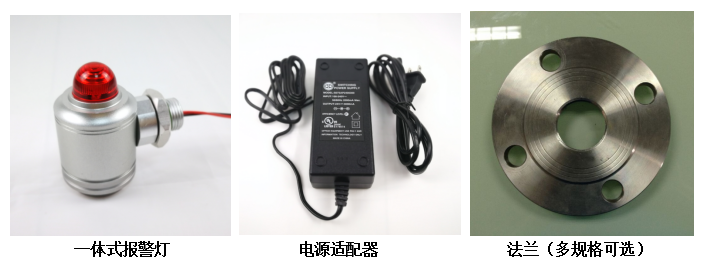

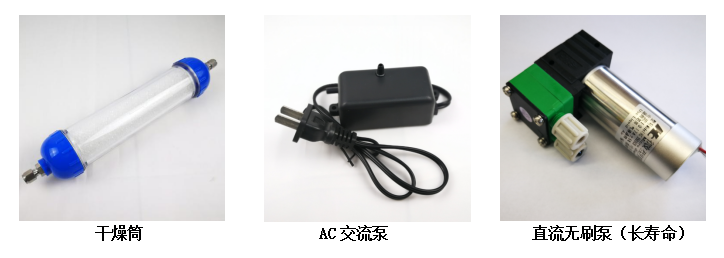

　　在线式可燃气体检测仪 MIC-500S可选配件：


　　部分资质证书：

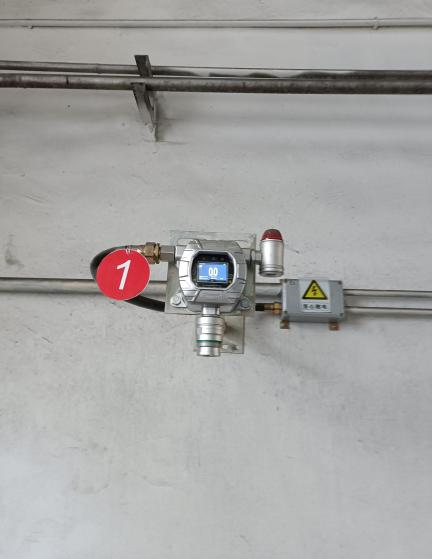

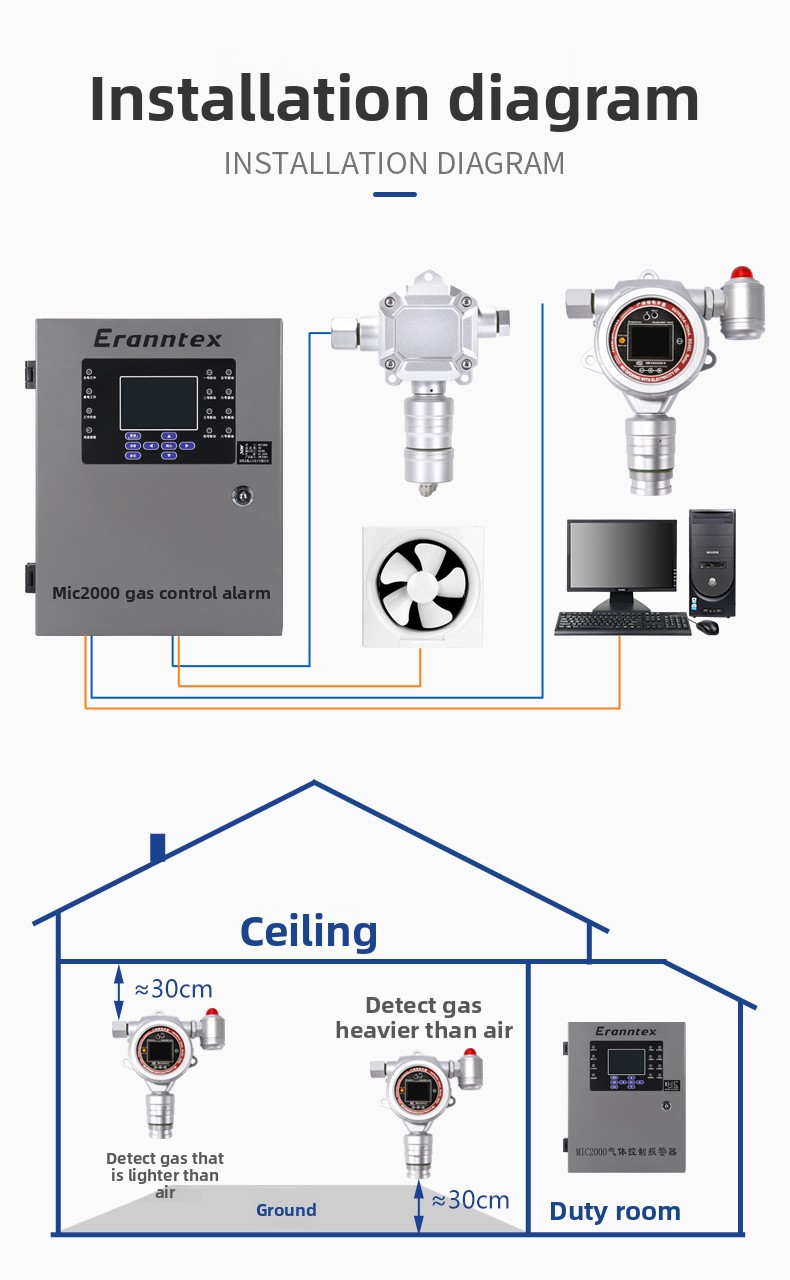

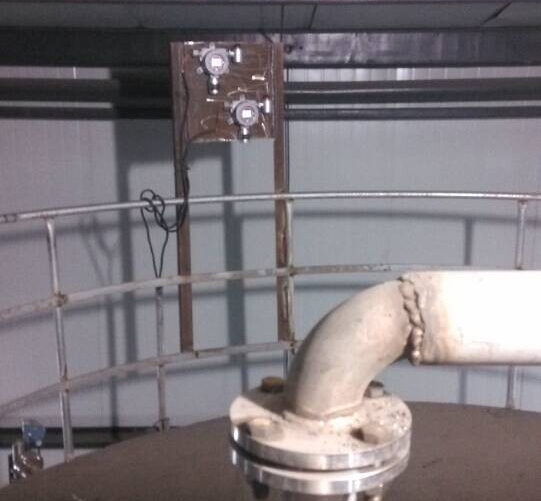

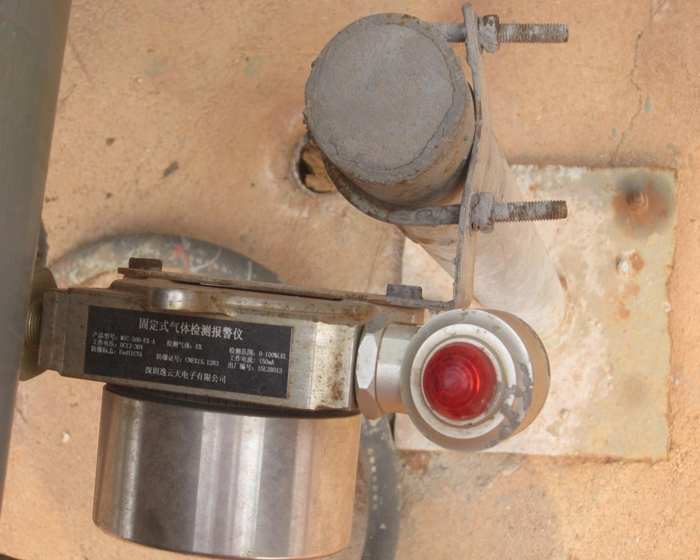

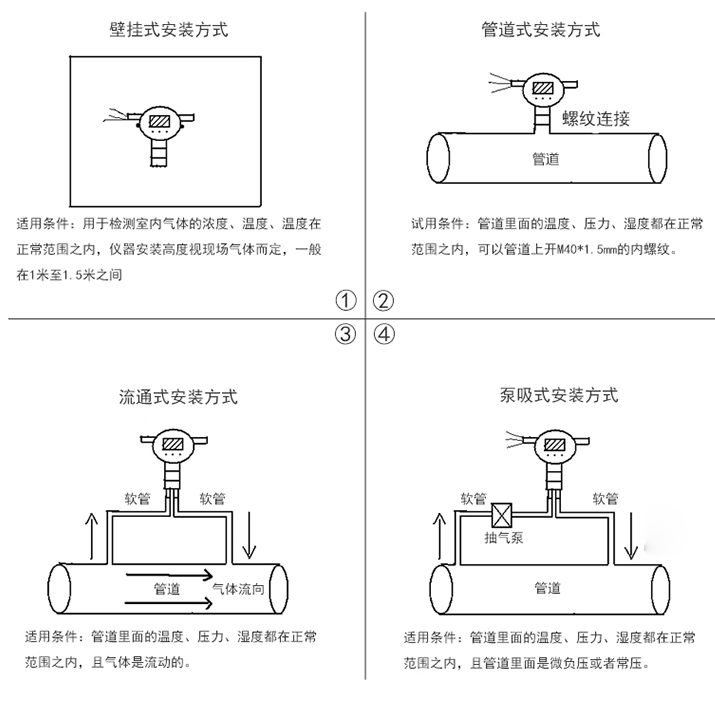

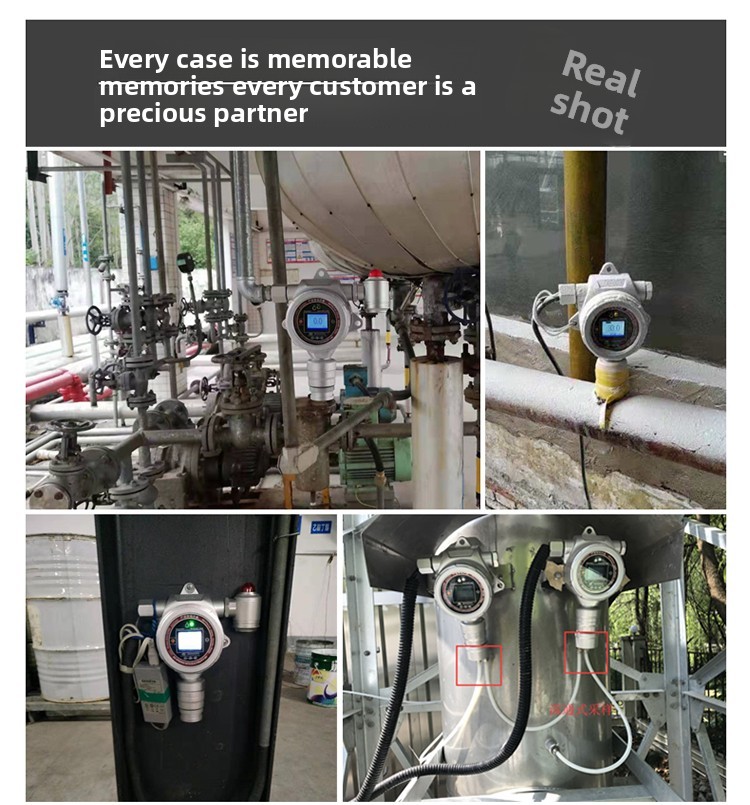

　　常见安装方式：
