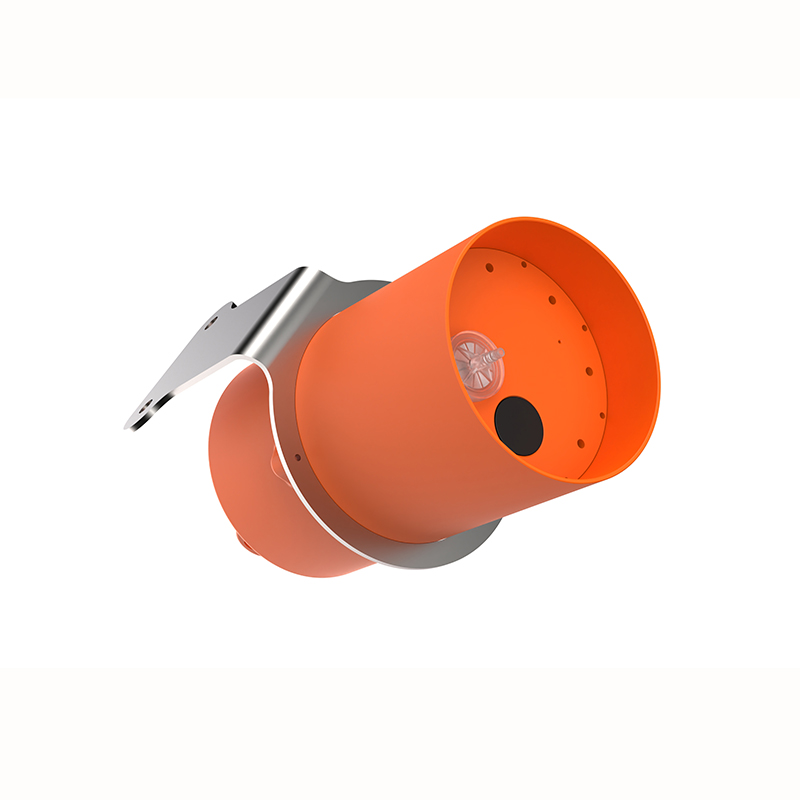

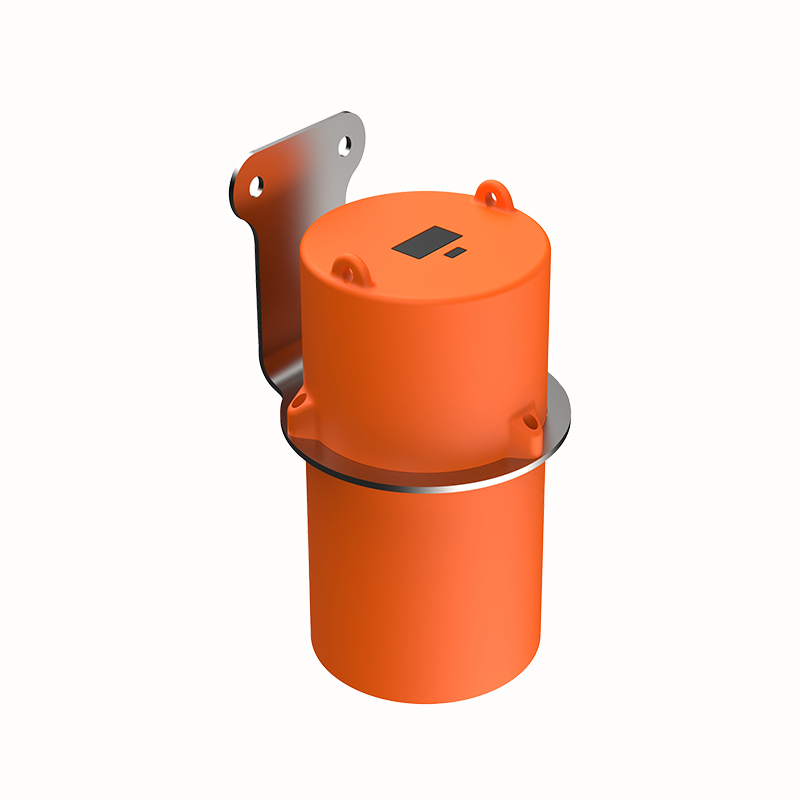

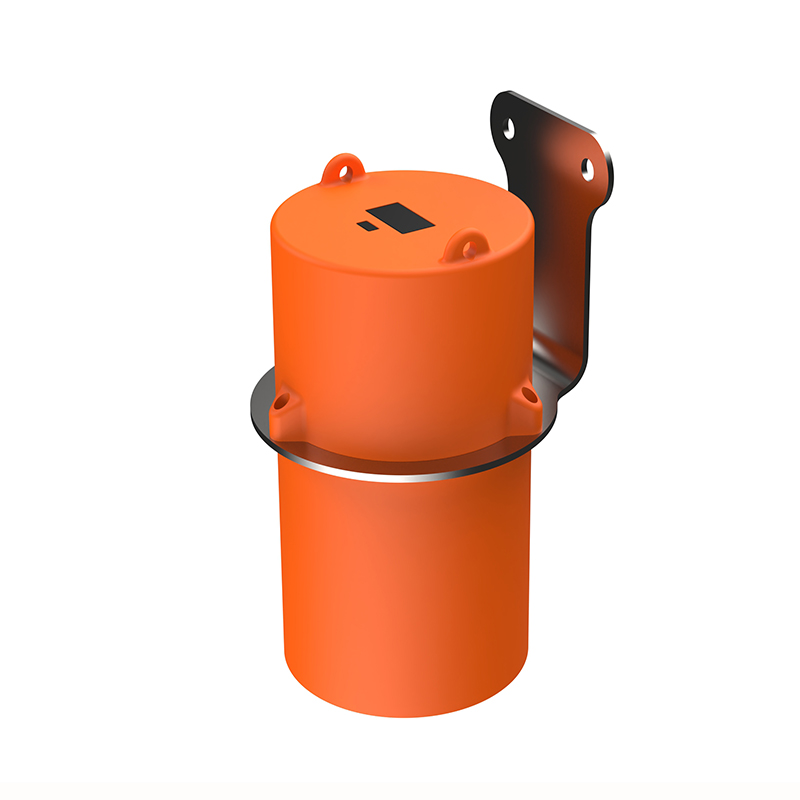

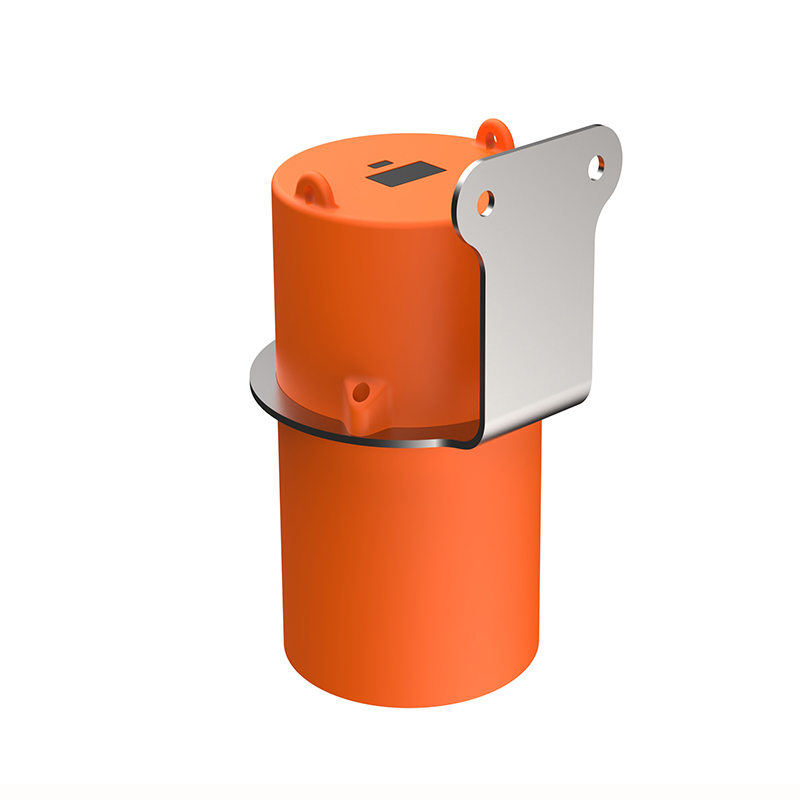

Valve well laser methane gas monitor MIC-600-L

Detection Method: Built-in pump suction measurement (diffusion type is optional)

Detection Gas: Detect gas Flammable gas EX Methane CH4 Oxygen O2 Nitrogen N2 Carbon monoxide CO Carbon dioxide CO2 Formaldehyde CH2O Ozone O3 Hydrogen sulfide H2S Sulfur dioxide SO2 Nitric oxide NO Nitrogen dioxide NO2 Nitrogen oxide NOX Chlorine CL2 Ammonia NH3 Hydrogen H2 Helium He Argon Ar Xenon Xe Hydrogen cyanide HCN Hydrogen phosphide PH3 CHLORINE DIOXIDE CLO2 Epoxy ethane ETOLight gas COCL2 Silane SiH4 Fluorine gas F2 Hydrogen fluoride HF Hydrogen bromide HBr Ethylborane B2H6 Hydrogen arsenide AsH3 Germanium Alkane GeH4 Ammonium, ammonia N2H4 Tetrahydrothiophene THT Bromine Br2 Acetylene C2H2 Ethylene C2H4 Acetaldehyde C2H4O Ethanol C2H6O Methanol CH4O Carbon disulfide CS2 Acrylonitrile C3H3N Methamine CH5N Dian Qi I2 Styrene C8H8 Vinyl chloride C2H3CL Trichloroethylene C2HCL3 Tetrachloroethylene C2CL4 Laughing N2O Nitrogen trifluoride NF3 Hydrogen peroxide H2O2 Bromomethane CH3Br Thioyl fluorine SO2F2 Benzene C6H6

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range: 0~100% LEL, 20%, 50%, 100%Vol optional, other ranges can be customized

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item	Parameter
Detection Gas	Combustible gases, oxygen, toxic gases, carbon dioxide, etc. can be selected, and can be expanded to 6 kinds of gases at will.
Product Features	The flammable gas monitoring alarm is used to detect the gathering of flammable gas and the leakage of over-standard alarm. It is suitable for urban pipelines, confined spaces, sewage pipelines, valve wells, septic tanks and other applications.
Detection Range	0~100% LEL, 20%, 50%, 100%Vol optional, other ranges can be customized
Resolution	0.1%LEL, 0.01%VOL
Typical Accuracy
Detection Method	Built-in pump suction measurement (diffusion type is optional)
Display
Power Supply	Large-capacity rechargeable 4.2V polymer lithium battery, optional 3.6V lithium battery
Maximum Power Consumption
Operating Environment	Temperature: -20℃～+70℃, humidity: ≤0～99%RH
Data Storage	Large-capacity data storage
Printing Function
Signal Output
Alarm Method	You can choose low alarm, high alarm, interval alarm, weighted average alarm
Fall Alarm
Wireless Transmission	Support wireless communication such as GPRS/4G/NB-IOT/LoRa/Bluetooth
Dimensions: LWH	Outer diameter 180mm
Weight	3 kilograms (different gas combinations, slight differences)
Protection Level	IP68
Standard Accessories	Instruction manual, qualification certificate, warranty card
Optional Accessories

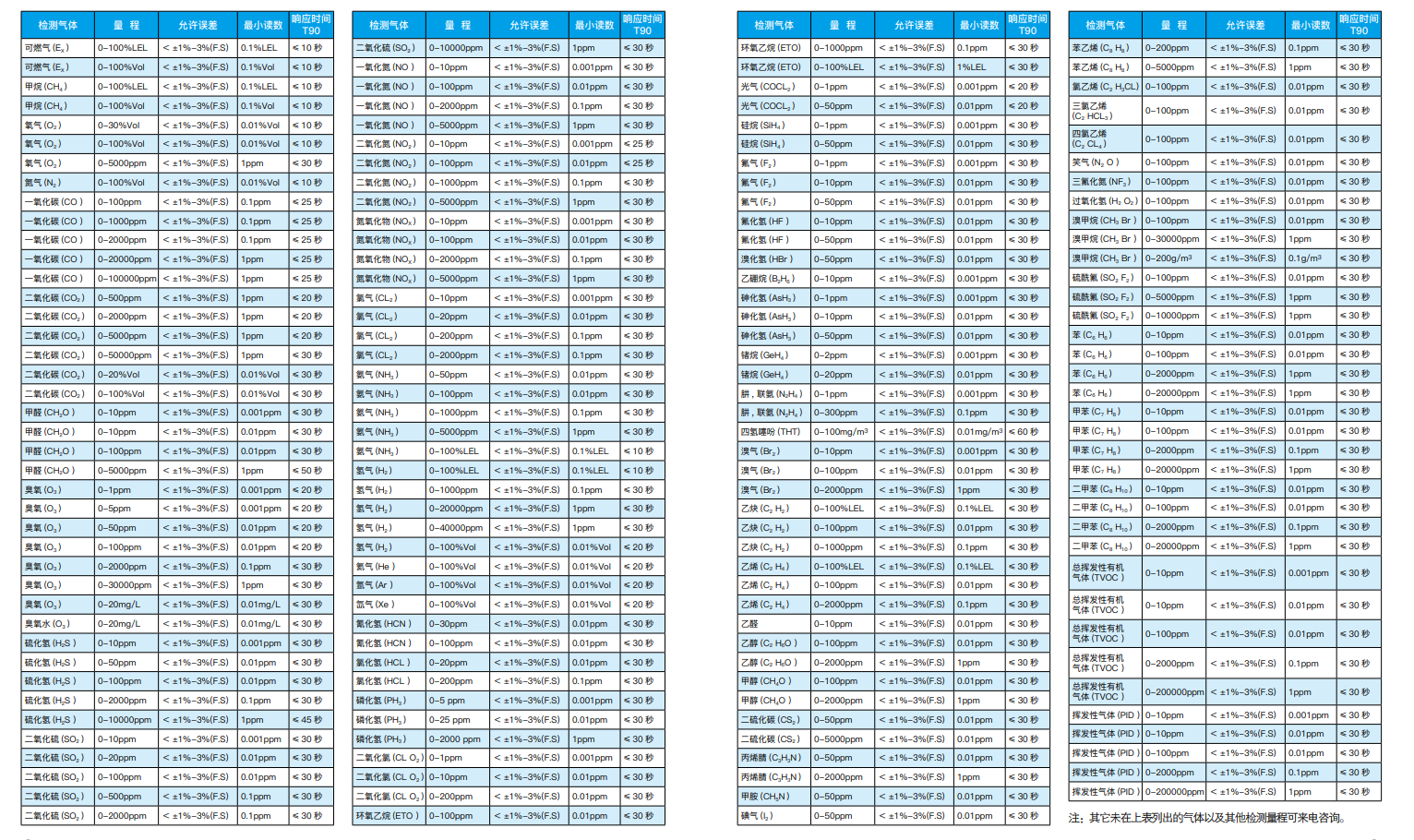

gas list

Introduction of valve well laser methane gas monitor MIC-600-L:

MIC-600-L valve well flammable gas monitor is used to detect flammable gas aggregation and leakage over-standard alarm. The main detection principles are : Laser TDLAS, infrared, catalytic combustion, etc. Advanced circuit design and mature kernel algorithm processing have obtained a number of software patents. It is suitable for urban pipeline networks, confined spaces, sewage pipelines, valve wells, septic tanks and other applications.

MIC-600-L combustible gas monitor

< Strong> Valve well laser methane gas monitor MIC-600-L features:

● Waterproof, dustproof, explosion-proof, anti-vibration, anti-corrosion, in-safe design, anti-static, anti-electromagnetic interference

● Protection level IP 68

●Ultra-low power consumption design, battery-powered, standby time of more than 5 years

●Closed waterproof structure, completely avoid floodingDamaged instrument

● Built-in pump suction measurement (diffusion type optional)

● Data storage function

● Alarm value can be set, and the alarm mode can be selected as low alarm, high alarm, interval alarm, weighted average alarm

● Support GP RS/4G/NB-IOT/LoRa/Bluetooth and other wireless communication

●Support liquid level sensors to realize intelligent switching when encountering water, flooded alarm

● Support GPS/Beidou positioning, mobile alarm, tilt alarm, positioning tracking

● Power display

●Support pump blockage detection function, realize intelligent switching, and prevent gas line blockage

●High-precision temperature and humidity measurement(Optional)

● Supports the simultaneous detection of 1 to 6 gases, and other functions can be customized. The unit can be selected: PPM, mg/m3, Vol%, LEL%

● Zero point automatic tracking, target point multi-level calibration

< P> MIC-600-L valve well combustible gas monitor technical parameters:

< Tbody>

Detection gas	Combustible gas, oxygen, toxic gas, carbon dioxide, etc. can be selected, can be expanded to 6 kinds of gases at will
testing range	0~100%LEL, 20% , 50%, 100%Vol optional, other ranges can be customized
score 辨 rate	0.1%LEL,0.01%VOL
Detection principle	Laser TDLAS
Detection Frequency< /Span>	can be set, standard status 30 points Clock test once
allowable error	≤±3%F.S (Other accuracy can be customized)
line Sex degree	≤±2%	heavy comple sex	≤±2%	Uncertainty< /Strong>	≤±2%
Response time	T90≤20 seconds			recovery time	≤20 seconds
~~working environment~~	warm Degree: -20℃～+70℃, humidity: ≤0～99%RH
temperature and humidity measurement	optional: temperature-40℃~+70℃; humidity 0~100%RH
workpower	Large capacity rechargeable 4.2V polymer lithium battery, optional 3.6V lithium battery
test method	Built-in pump suction
communication interface	GPRS/4G/NB-IOT/LoRa/Bluetooth etc
communication frequency	Can be set, once every 24 hours when the data is normal, once a minute when the data is abnormal
Data storage< /P>	large-capacity data storage
protection level	IP68
Explosion-proof Type	Intrinsic safety
Executive standards	GBT 3836.1—2021 《Explosive GasGeneral Requirements for Environmental Electrical Equipment GBT 3836.4—2021 Electrical Equipment for Explosive Gas Environment Intrinsic Safety "i" GB T50493-2019 Petrochemical Flammable Gas and Toxic Gas Detection Alarm Design Standards GB 15322.1-2019 Combustible Gas Detector Part 1: Industrial and Commercial Point Flammable Gas Detector
external size	outer diameter 180mm
heavy quantity	3kg (different gas groups Yes, slight difference)
Standard Annex	Instruction manual, qualification certificate, warranty card
Other functions	Support liquid level detection, pump blockage detection, anti-theft alarm, shift alarm, tilt alarm and other functions

Installation diagram:

Scene application and monitoring principle:

The monitor is mainly used for urban pipe networks, restricted spaces, sewage pipes, valves In wells, septic tanks and other places, the equipment gathers sensor data and contact signals to the motherboard. After processing and packaging, the data is sent to the monitoring center through the GPRS/4G/NB-IOT wireless module. When the monitoring value is abnormal, the monitoring device will immediately upload alarm information.

series Unified group network topology diagram :

The system is composed of front-end monitoring equipment, transmission network, back-end emergency management platform, etc., to realize online real-time monitoring. Users can use mobile terminals and computers to view the data of the monitoring center.

Product HighlightsNew process formula enhances performance to meet stricter application requirements

High PrecisionUp to ±0.1%FS (varies by gas type)
Wireless ConnectivityOptional wireless communication for real-time data monitoring
Advanced ProtectionIP67+ protection level
Explosion-proof DesignHigh shock and explosion resistance
Anti-interference DesignAnti-static and electromagnetic interference
HD Color DisplayComprehensive and clear information display
Large Capacity StorageMassive data storage
Multiple Transmission MethodsUSB, infrared, RS232, Bluetooth, WiFi

500+ Detectable Gases

Customize according to requirements 1-18 typesDetecting gas combinations
