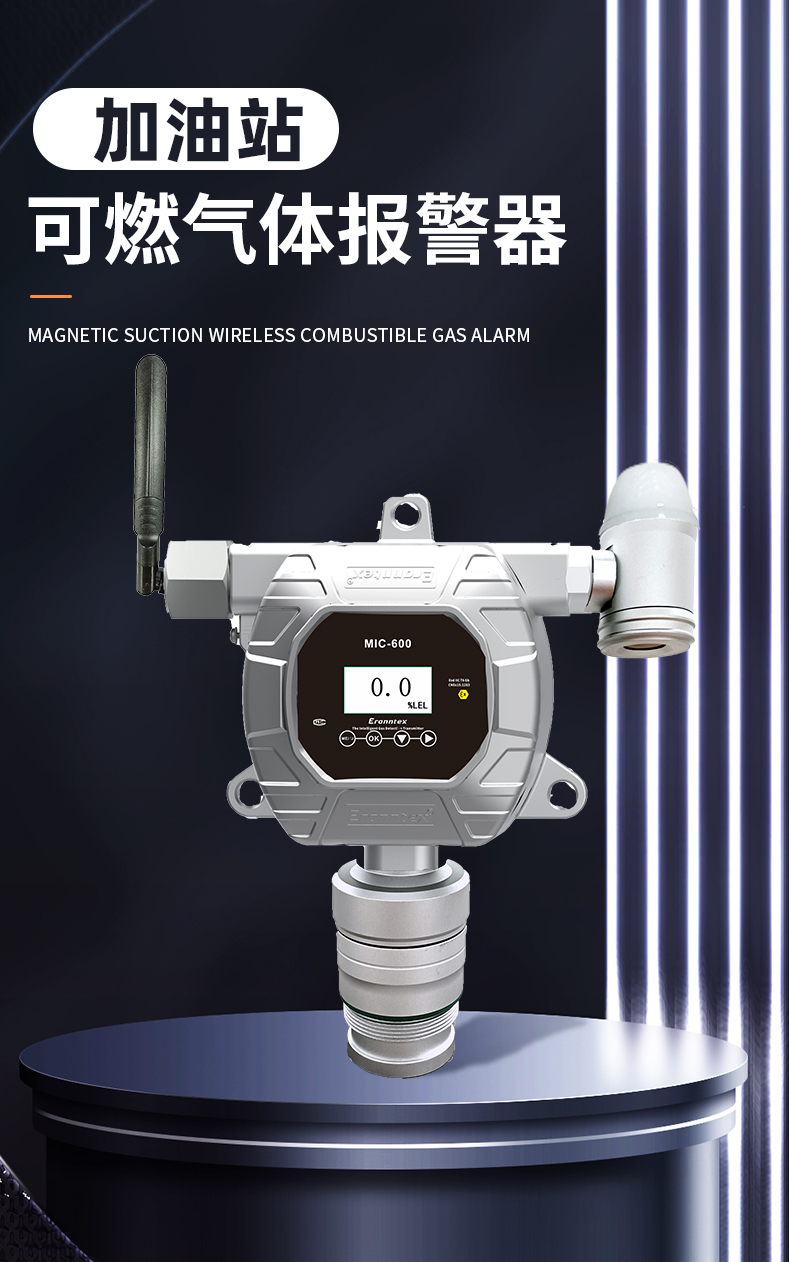

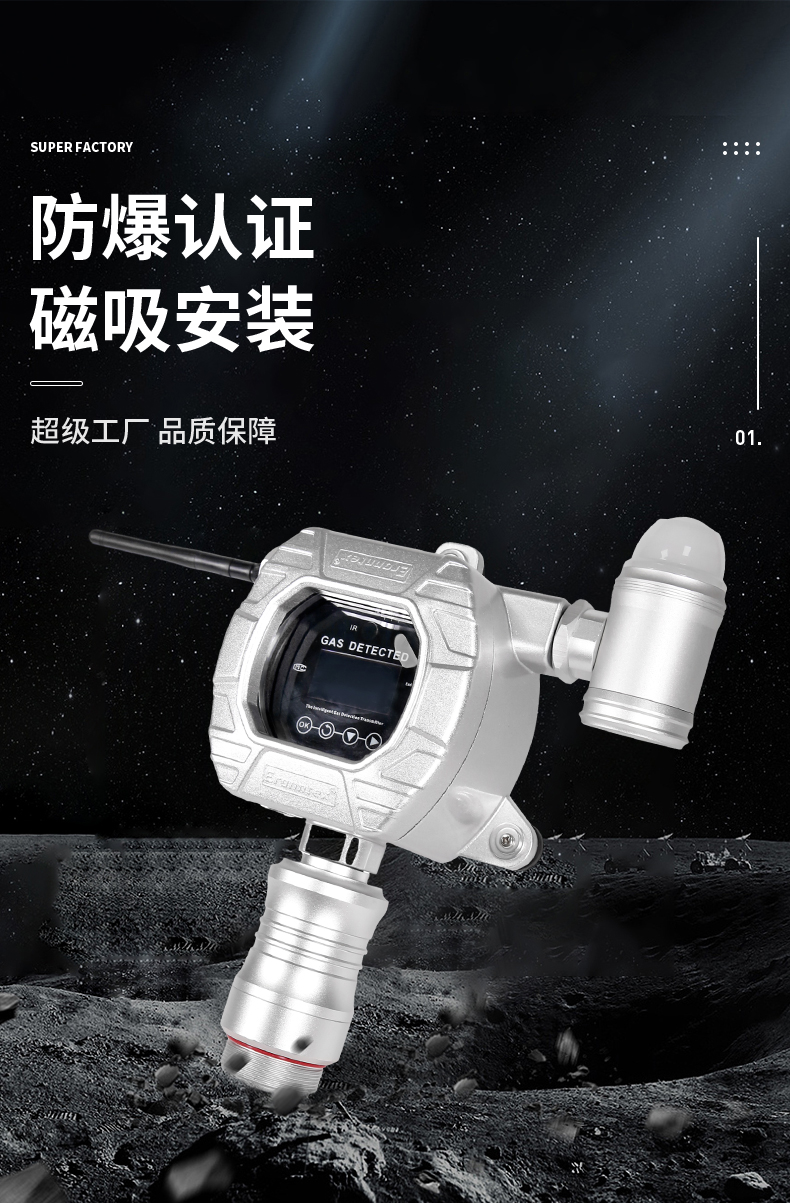

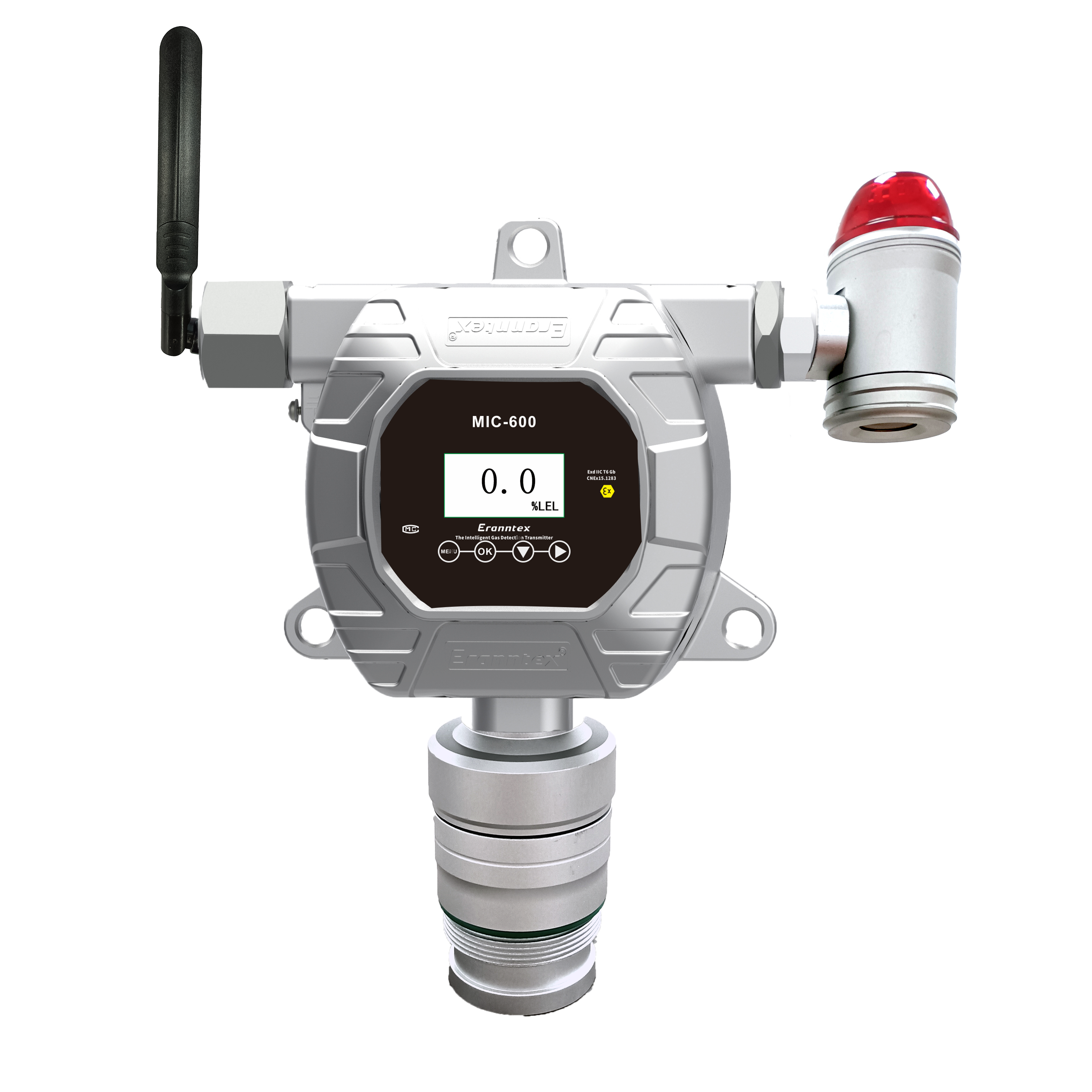

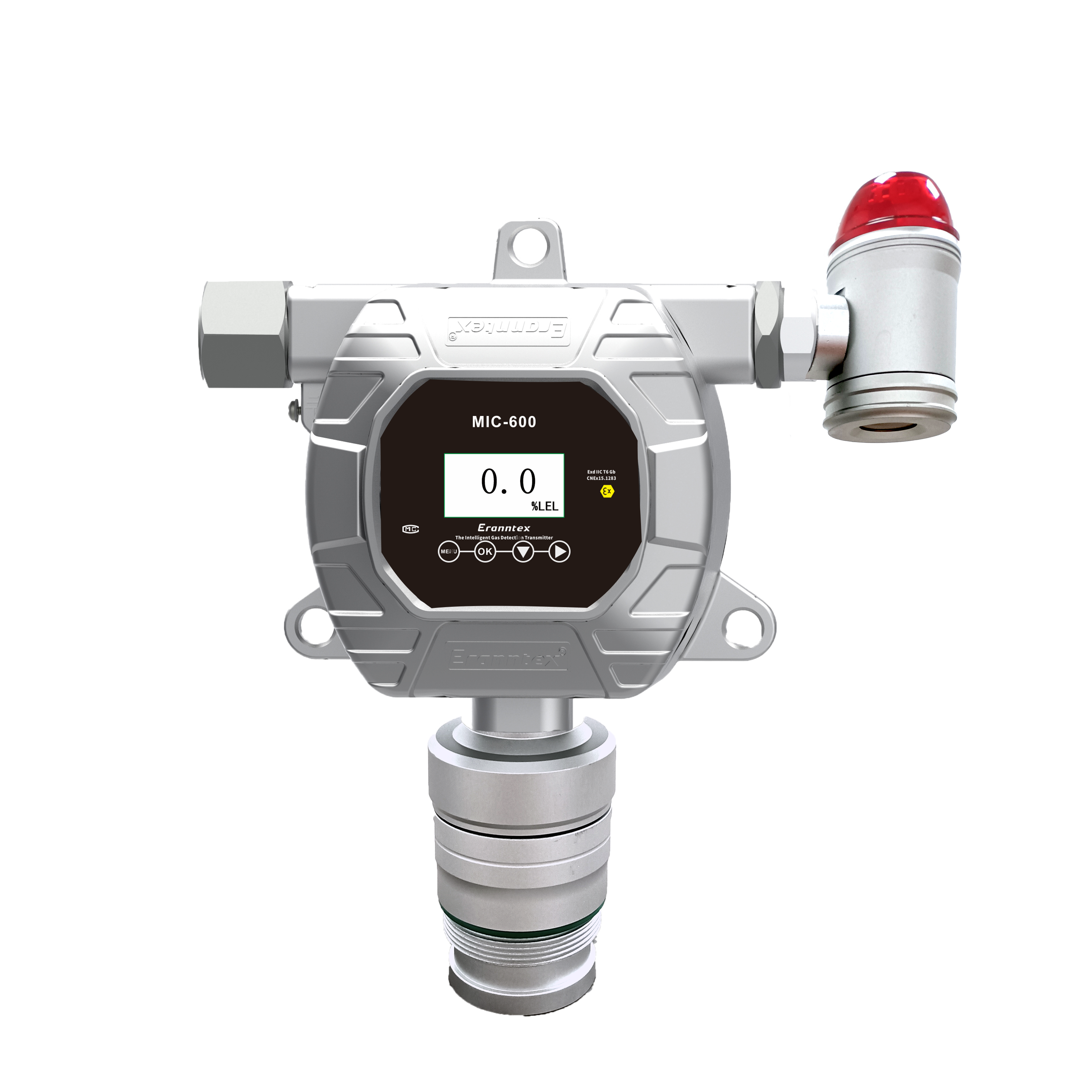

Magnetic suction flammable gas alarm MIC-600-L-Ex-A

Detection Method: Diffusion measurement

Detection Gas: Two-in-one gas detector 4-in-one gas detector Four-in-one detector Four-in-one gas detector Multi-gas detector Multi-in-one gas detectorMultifunctional gas detector Compound gas detector Carbon dioxide detector (infrared) CO2 Flammable Gas Detector (Infrared) Ex Methane detector (infrared) CH4 Methane detector (laser TDLAS) CH4 Propane detector (infrared) C3H8 Non-methane total hydrocarbon detector CxHy Carbon monoxide detector CO Hydrogen sulfide detector H2S Oxygen detector O2 Nitrogen detector N2 Ammonia gas detector NH3 Chlorine gas detector CL2 Hydrogen detector H2 Formaldehyde detector CH2O Ozone detector O3 Nitric oxide detector NO Nitrogen dioxide detector NO2 Nitrogen oxide detector NOX Sulfur dioxide detector SO2 Epoxy ethane detector ETO Hydrogen phosphide detector PH3 Hydrogen chloride detector HCLHydrogen cyanide detector Light gas detector COCL2 Chlorine dioxide detector CLO2 Silane detector SiH4 Fluorine gas detector F2 Hydrogen fluoride detector HF Hydrogen bromide detector HBr Ethylborane Detector B2H6 Hydrogen arsenide detector AsH3 Germanium Detector GeH4 LAMINE DETECTOR N2H4 N2H4 Trimethylamine detector C3H9N Triethylamine detector C6H15N Aniline detector C6H7N Phenol detector C6H6O Partial dimethyl berbide detector C2H8N2 Nitrous oxide detector N2O4 Nitrogen trichloride detector NCL3 Sulfuric acid fog detector H2SO4 Tert-butyl thiol detector TBM Phosphorus pentafluoride detector PF5 Boron trichloride detector BCL3 Phosphorus trichloride detector PCL3Trichlorophosphorus detector POCL3 Phosphorus trifluoride detector PF3 Boron trifluoride detector BF3 Azide acid detector HN3 Methiosulfide detector C2H6S Dimethyl sulfate detector C2H6O4S Acetonitrile detector CH3CN Acetic acid detector C2H4O2 Acetic acid detector C2H4O2 Methyl acrylate detector MA Ethyl acrylate detector EA Dimethyl disulfur detector C2H6S2 Dimethyl ether detector C2H6O Dimethyl sulfide detector C2H6S2 Dichlorosilane detector SiH2Cl2 Chlorosilane detector SiH3Cl Tetrahydrothiophene detector THT Bromine gas detector Br2 Acetylene detector C2H2 Carbon disulfide detector CS2 Acetaldehyde detector C2H4O Acrylonitrile detector C3H3NButone detector MEK Acetone detector MDK Ethylene detector C2H4 Isopropyl alcohol detector C3H8O Ethanol detector C2H6O Methanol detector CH4O Methamine detector CH5N Methanol detector CH3SH Vinyl chloride detector C2H3CL Trichloroethylene detector C2HCL3 Tetrachloroethylene detector C2CL4 Chloromethane detector CH3CL Dichloroethane detector C2H4CL2 Dichloromethane detector CH2CL2 Trichloromethane detector CHCL3 Nitrogen trifluoride detector NF3 Hydrogen peroxide detector H2O2 Styrene detector C8H8 Dimethyl sulfide detector C2H6S2 Tetrahydrofuran detector THF Dimethylformamide detector DMF TVOC detectorVOC detector VOC Benzene detector C6H6 Toluene detector C7H8 Xylene detector C8H10 Odor detector OU Carbon dioxide (infrared) CO2 Combustible (Infrared) Ex Methane (infrared) CH4 Methane (laser TDLAS) CH4 Propane (infrared) C3H8 Non-methane total hydrocarbon CxHy Carbon monoxide CO Hydrogen sulfide H2S Oxygen O2 Nitrogen N2 Ammonia NH3 Chlorine CL2 Hydrogen H2 Formaldehyde CH2O Ozone O3 Nitric oxide NO Nitrogen dioxide NO2 Nitrogen oxide NOX Sulfur dioxide SO2 Epoxy ethane ETO Hydrogen phosphide PH3 Hydrogen chloride HCL Hydrogen cyanide HCN Light gas COCL2 CHLORINE DIOXIDE CLO2 Silane SiH4 Fluorine gas F2Hydrogen fluoride HF Hydrogen bromide HBr Ethylborane B2H6 Hydrogen arsenide AsH3 Germanium Alkane GeH4 Biamine N2H4 N2H4 Trimethylamine C3H9N Triethylamine C6H15N Aniline C6H7N Phenol C6H6O C2H8N2 Nitrogen tetraoxide N2O4 Nitrogen trichloride NCL3 Sulfuric acid mist H2SO4 Tert-butyl thiol TBM Phosphorus pentafluoride PF5 Boron trichloride BCL3 Phosphorus trichloride PCL3 Trichlorophosphate POCL3 Phosphorus trifluoride PF3 Boron trifluoride BF3 Azaic acid HN3 Methyl sulfide C2H6S Dimethyl sulfate C2H6O4S Acetonitrile CH3CN Acetic acid C2H4O2 Acetic acid C2H4O2 Methyl acrylate MA Ethyl acrylate EA Dimethyldisulfide C2H6S2Dimethyl ether C2H6O Dimethyl disulfide C2H6S2 Dichlorosilane SiH2Cl2 Chlorosilane SiH3Cl Tetrahydrothiophene THT Bromine Br2 Acetylene C2H2 Carbon disulfide CS2 Acetaldehyde C2H4O Acrylonitrile C3H3N Butone MEK Acetone MDK Ethylene C2H4 Isopropyl alcohol C3H8O Ethanol C2H6O Methanol CH4O Methamine CH5N Methanol CH3SH Vinyl chloride C2H3CL Trichloroethylene C2HCL3 Tetrachloroethylene C2CL4 Chloromethane CH3CL Dichloroethane C2H4CL2 Dichloromethane CH2CL2 Trichloromethane CHCL3 Nitrogen trifluoride NF3 Hydrogen peroxide H2O2 Styrene C8H8 Dimethyl disulfide C2H6S2Tetrahydrofuran THF Dimethylformamide DMF TVOC VOC Benzene C6H6 Toluene C7H8 Xylene C8H10 STINKY OU

(Over 500 detectable gas types available, please consult our customer service)

Measurement Range: 0~100% LEL, 0~20% VOL, 0~100% VOL (range optional)

(Customizable measurement ranges available, please consult our customer service)

Customization: Supports on-demand customization

Hotline: 13480931872

Get Quote Back to List

Product ParametersCommon Gas ListProduct IntroductionProduct Details

Item Parameter
Detection Gas 1 kind
Product Features 1. 1-4 gases, including: flammable gases, toxic gases, oxygen, etc.
2. Composite gas detection
3. Gas station applications or wiring-free occasions
4. Magnetic suction installation, wireless transmission
5. With anti-theft alarm function
6. Low power consumption, standby for 2-5 years
7. Battery-powered, charging-free
8. Explosion-proof level: Ex db IIC T6, Ex ia IIC T6
Detection Range 0-1, 10, 100, 1000, 5000, 10000, 50000ppm, 0-100%LEL, 0-5%Vol, 30%Vol, 100%Vol, other measuring ranges are optional, and the measuring range is determined by the usage scenario and the purpose of testing.
Resolution 0.1%LEL or 0.01%VOL
Typical Accuracy ±2% (F.S)
Detection Method Diffusion measurement
Display 1.5-inch black and white dot matrix display
Power Supply DC3.6V, 38Ah, 57Ah, the capacity can be customized
Maximum Power Consumption 0.01ppm (0 to 100 ppm); 0.1ppm (0 to 1000 ppm); 1ppm (0 to 1000ppm or more); 0.1% LEL, 0.01%Vol
Operating Environment Typical value: -20~+55℃
Limit value: -40℃~+70℃
Humidity: 10~95%RH
Data Storage Not have
Printing Function Not supported for the time being
Signal Output Wireless LORA, NB-IOT
Alarm Method Sound and light alarm
Fall Alarm Not have
Wireless Transmission LoRa wireless transmission, optional: NB-IOT 4G

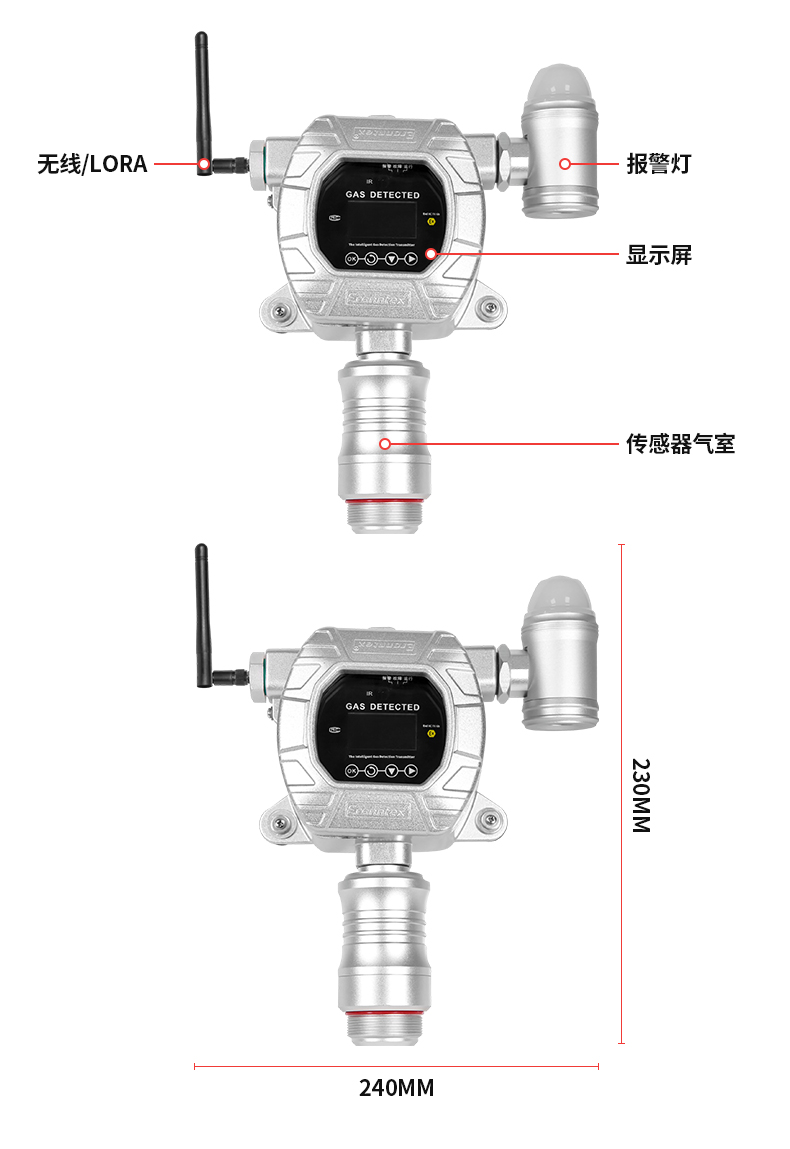

Dimensions: L*W*H 240×180×90mm(H×L×W) Conventional air chamber
240×230×90mm(H×L×W) Conventional with light
Weight About 2.5Kg
Protection Level IP 67
Standard Accessories Instruction manual, qualification certificate, warranty card, infrared remote control, outer box
Optional Accessories Install the bracket



Magnetic suction combustible gas alarm MIC-600-L-Ex-A Overview:

MIC-600-L online low-power combustible gas alarm magnetic suction installation, can be quickly deployed and applied to on-site combustible gas Concentration monitoring, on-site display of concentration and over-standard sound and light alarm, remote data transmission in real time. Using a low-power liquid crystal display and a flammable gas sensor with a low-power infrared principle, the MIC-600-L battery-powered magnetic combustible gas sound and light alarm adopts ultra-low-power circuit design and mature kernel algorithm processing, and has obtained a number of software patents and appearance patents, thus giving birth to the current The industry's leading new generation of online low-power gas detection and alarm.MIC-600-L can detect gas concentration in confined spaces and atmospheric environments and gas leaks. It is especially suitable for occasions that do not require wiring. It is used for the detection and alarm of flammable gas near the refueling machine with mobile phone payment function in the gas station. Only when the flammable gas sound and light alarm device is installed can mobile phone payment be allowed.


Magnetic suction flammable gas alarm MIC-600-L-Ex-A features:

● Benan circuit design, Benan explosion-proof and explosion-proof certification, high reliability and stability Qualitative;

● Lithium battery power supply, ultra-low power circuit design and intelligent power consumption management, ultra-long standby equipment, can support continuous operation for 2-5 years, and can be customized for a longer time;

● High-definition LCD screen display, real-time data viewing on the spot;

● 24-hour uninterrupted real-time monitoring, when the concentration exceeds the standard, the alarm will be called immediately;

● Meets EMI and EMC standards, pass the national standard test and CPA measuring instrument license Certificate.

Executive Standard: GB15322.1-2019

GB 3836.1-2010 General Requirements for Electrical Equipment for Explosive Gas Environments

GB 3836.2-2010 Explosive Gas Electrical Equipment for Body Environment Explosion-proof "d"

GB 3836.4-2010 Electrical Equipment for Explosive Gas EnvironmentIntrinsic safety "i"

● It has a power display and a low battery alarm. When the battery is low, it will remotely issue a power alarm to prompt the user to charge.

● Support wireless transmission such as LoRa/NB-IOT/4G.

● The optional MIC3000 controller can monitor 1000 detectors at the same time.

● Support record storage and read records through data acquisition software.

● Automatic tracking zero point to prevent drift, temperature compensation, multi-level calibration

● Concentration calibration misoperation is automatically identified and prevented.

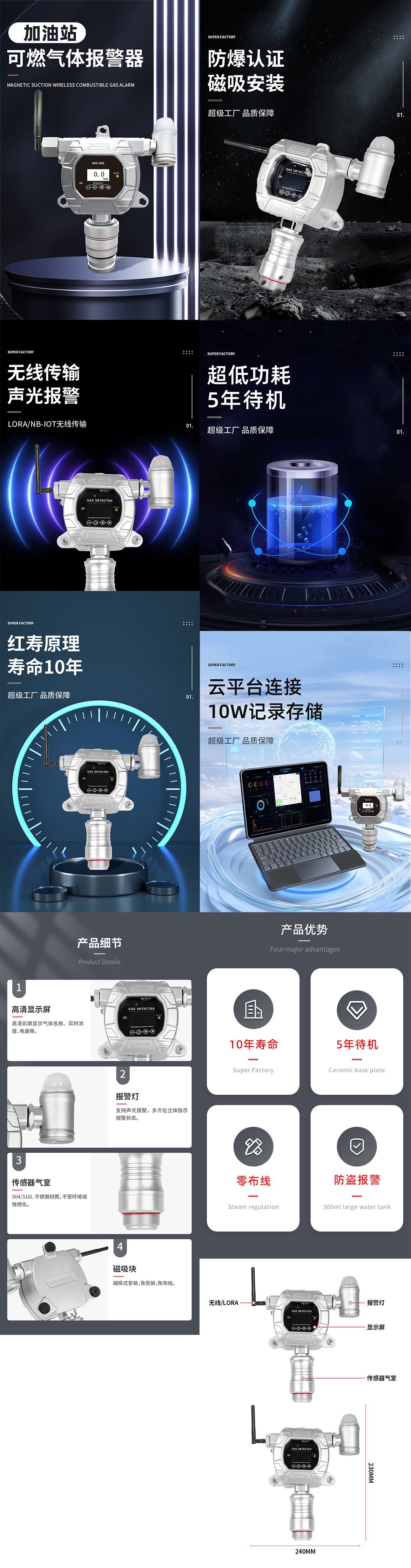

MIC-600-L-EX magnetic suction combustible (colled version).jpg
