Solutions

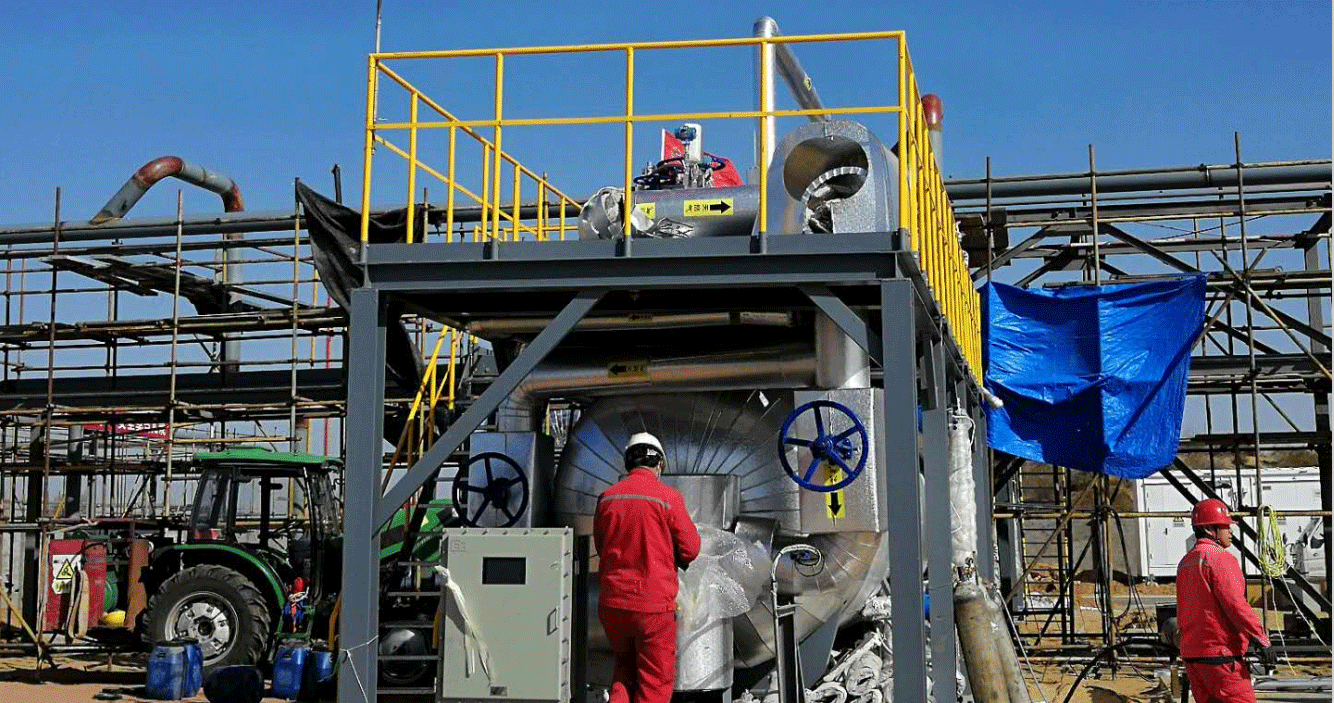

The overall equipment is outdoor and can be placed in the open air. The system is equipped with power management and protection system, detector, pumping pump, high-efficiency condensation system, drainage system and other equipment for power supply; it is equipped with an automatic cooling, dehumidification and constant temperature drainage system. The system is equipped with a dust filtration treatment device, which can filter the dust of the measured gas. And the purpose of tar;The maximum pressure of the detection point is 3.3 MPa, the minimum is 2.8 Mpa, and the specifications of the customized sampling valve are: with/Class600 DN40RJ HG/T 20615-2009; Considering the freezing of the pipeline at the detection point in winter, the power distribution heat tracing constant temperature control system and the 10-meter electric heat tracing pipe Line;

What products are matched

Online carbon dioxide analyzer, TH2000-C-CO2-A-H

Two-stage electric Sub-condensation dehumidification system, power management and protection system, fine dust filtration sampling head (flange installation), long-life DC brushless pump sampling distance of 40 meters, automatic cooling, peristaltic pump drainage, tar filtering, reserved manual back-blowing interface, sample gas temperature within 600 degrees;It is suitable for high water vapor and high temperature, and the requirements of the detection and analysis unit for water vapor are not very high; pump-suction detection; equipped with explosion-proof outer box;

Detection gas: carbon dioxide CO2; detection range/distribution rate/detection principle:

CO2:0-100PP M, 0.01PPM; imported long-life high-precision and high-performance long-performance optical range infrared principle sensor;

Concentration unit, display mode, Chinese and English operation interface free switching, 7-inch touch screen operation, using imported sensors; three-wire/four-wire system 4-20ma signal + RS485 + relay Electrical output;

Large-capacity data storage function (100,000 as standard, larger can be customized); multi-mode alarm function, logging function; detector explosion-proof level: ExdIICT6;Sampling valve specifications: with/Class600 DN40RJ HG/T 20615-2009; contact medium part is 316/304 stainless steel; power distribution heat tracing system and 10-meter electric heat tracing pipeline;
