Solutions

Because it detects the high temperature of the environment and detects that the gas contains water and dust, it is necessary to cool down first, remove water, and remove dust before testing.

Configure a 1.5-meter fine dust filter sample head to cool the gas, and then configure the back-blowing system to remove dust from the gas, and then through the electronic The condensation and water vapor filter dehumidifies the gas, and then detects the carbon monoxide data through the carbon monoxide detector with the long-range infrared detection principle.

What products are matched

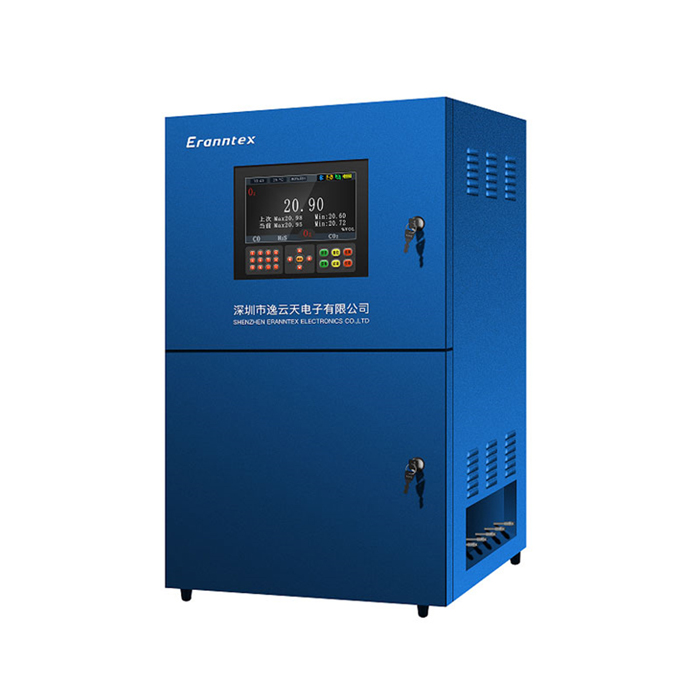

Gas pretreatment system, TH2000-C (explosion-proof display window)

< P> Explosion-proof type, 7-inch touch screen, electronic condensation, 0.5-meter fine dust filter sampling head, the sample gas temperature is within 600 degrees.

It is suitable for low dust, high water vapor, high temperature, and the requirements of the detection and analysis unit for water vapor are not particularly high.

Optional: 1.5-meter fine dust filter sampling head (flange installation), including high-temperature resistant fine dust filter (ceramic), flue gas temperature 1300 Within the degree

Optional: automatic back-blowing system (high-dust occasions), the customer provides air source: automatic timed back-blowing " " explosion-proof type, 7-inch touch screen, power management and protection system, 24V DC brushless pump, peristaltic pump, automatic drainage, manual back-blowing interface. Electronic condensation dehumidification, filter tar, 0.5-meter fine dust filtration sampling head, 2 water vapor filters, gas line switching switch.

Explosion-proof level: ExdIIBT6, square: 800X600X260, with explosion-proof button and indicator light.

Pretreatment + ceramic sampling head + reverse blowing

Carbon monoxide detector (infrared) MIC-600 CO 0-5%Vol, long optical range infrared
