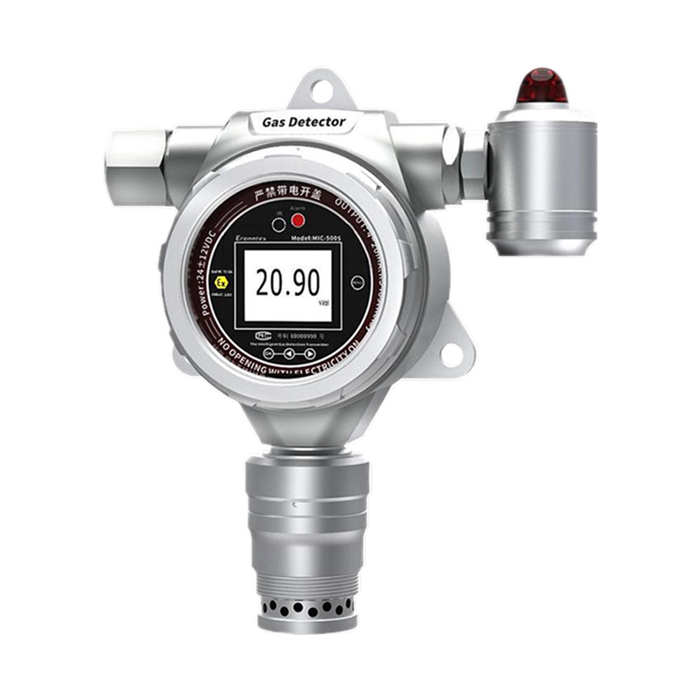

As we all know, the zero point correction step of the oxygen detector is an important link to ensure the accuracy of the instrument measurement. The zero point correction of the oxygen detector, in short, is to make the instrument display the oxygen concentration of 0% in the absence of oxygen in the environment (or close to this condition). Due to various factors such as sensor aging and environmental interference, the reading of the oxygen detector may deviate. Therefore, regular zero correction can eliminate these deviations and make the measurement more accurate. So do you know what steps are involved in oxygen detector zero point calibration? The following is a brief introduction to yiyuntian electronics:

Detailed steps for zero calibration of oxygen detector:

1. Preparation

Close and disconnect power: before starting calibration, make sure that the oxygen tester is switched off and disconnected from all external power sources.

Prepare an oxygen-free environment: Prepare an environment with a known oxygen concentration of 0%. Nitrogen or other oxygen-free gases can usually be used to create an oxygen-free environment. Ensure that the gas used is of high purity to avoid interference with the calibration results.

Check the equipment: check whether the appearance of the oxygen detector is intact, whether it is damaged or contaminated, To ensure the accuracy and safety of the correction.

2. enter calibration mode

Boot up: according to the requirements of the instrument manual, turn on the oxygen detector and warm it up for a period of time to reach a stable state.

Enter the calibration mode: According to the model and manual of the oxygen detector, enter the calibration mode according to the specific key combination or operation sequence. Different brands and models of instruments may have different access methods, so it is important to carefully read and follow the instructions in the instrument manual.

3. Set Zero

Zero

: in calibration mode, the prepared nitrogen or other oxygen-free gas is supplied to the oxygen detector through the appropriate line.

Adjust the flow rate: ensure that the gas flow rate meets the requirements of the instructions of the oxygen detector, so as to avoid affecting the calibration result due to too large or too small flow rate.

Set the zero point: Wait for a period of time. After the reading of the oxygen detector is stable, use the tool or button attached to the instrument to set the oxygen concentration displayed by the instrument to 0%. Some instruments may require the user to manually enter a value, while others may automatically recognize and set the zero point.

4. validation calibration results

recheck the display values: after the zero point setting is completed, re-check the oxygen detector display to ensure that it shows 0%. If the displayed value is not 0%, repeat the above steps until the exact zero point is reached.

Record correction information: It is recommended to record the correction time, environmental conditions and correction results every time the zero point correction is performed. This helps to track the performance of the oxygen detector and troubleshoot when needed.

5. Exit Calibration Mode

After the zero calibration is completed, follow the instructions in the oxygen tester user manual to exit calibration mode and restart the oxygen tester to apply the new zero setting.

6. Notes

Follow the instructions: always follow the instructions in the instrument user's manual when performing zero correction. Incorrect operation can cause calibration failure or damage to the oxygen tester.

Keep the environment stable: When performing the zero calibration of the oxygen detector, ensure that the surrounding environment is stable and avoid any interference factors that may affect the measurement results.

Regular calibration: In order to ensure the accuracy of the oxygen detector, it is recommended to perform regular zero correction. The specific time interval depends on the frequency of use of the instrument and environmental conditions.

In summary, we can see that the zero point correction steps of the oxygen detector include preparations, Enter the correction mode, set the zero point, verify the correction result, exit the correction mode and precautions. By following the correct calibration methods and precautions, users can ensure that the oxygen detector is always in good working condition, thereby providing reliable oxygen concentration measurement data.
