Garbage pile gas monitoring solution Overview

Program background

On the garbage heap monitoring well gas discharge summary pipe;Garbage gas automatic monitoring system CH4, CO2, H2S, O2, four-component gas analysis instrument; methane range 0-15%vol, oxygen 0-30%vol, carbon dioxide 0-30%vol, hydrogen sulfide 0-500ppm.

The three units are two to detect 5 points and one to detect 6 points, with its own gas line switching system, which can realize gas line control and detection data display in the remote plc cabinet, and transmit the signal 4-20ma.

It can meet the distance of the detection point 150 meters from the farthest pipeline of the detector, and it is required to indicate the flow rate of the sampling pump.

With compressed air back-blow cleaning, give the pressure required for the compressed air source. ;

Solutions

Solution

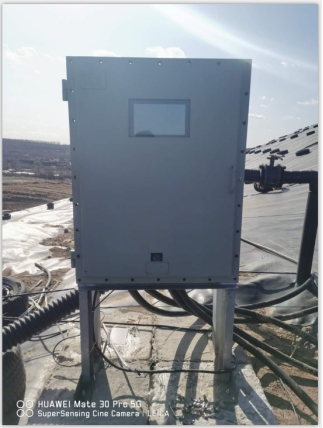

The overall equipment is outdoor type and can be placed in the open air. One set of the three sets of systems is for six-point detection, and the other two sets are five-point inspection. The equipment is equipped with a touch screen (open cover touch operation), which can display inspection on the equipment. Measure the data and operate to switch the detection point. The system is equipped with power management protection system, detector, pumping pump, high-efficiency condensation system, drainage system and other equipment power supply; the sampling pump flow rate of the vacuum pump used is 4L/minute, which can meet the needs of the on-site 150-meter pipeline sampling distance; including two-stage high-efficiency compressor water-cooled dehumidification system and water vapor filtration. Equipped with an automatic cooling and dehumidification constant temperature drainage system, the working temperature of the whole system is between minus 30°C and above zero40°C; the system is equipped with dustThe filtration treatment device can achieve the purpose of filtering the dust and tar of the measured gas. It is equipped with a gas line back-blowing system. When the dust content is high, the back-blowing system can be manually started to clean the dust filter sampling head. The back-blowing system needs an external compressed air source, the gas source pressure is 0.8Mpa, and it is equipped with a 6 kg compressed air source; the gas distribution line sampling is automatic Switching system;

What products are matched

TH3000-4 (outdoor explosion-proof type)

Detection gas: methane CH4, carbon dioxide C O2, hydrogen sulfide H2S, oxygen O2

Detection range/disparation rate/detection principle:

CH4:0-15%VOL, 0.01%VOL, original imported high-precision infrared principle sensor;

CO2: 0-30%VOL,0.01%VOL, original imported high-precision infrared principle sensor;

H2S: 0-500PPM, 0.1PPM, original High-performance electrochemical principle sensor;

O2: 0-30%VOL, 0.01%VOL, original imported industrial-grade anti-interference electrochemical principle sensor;
