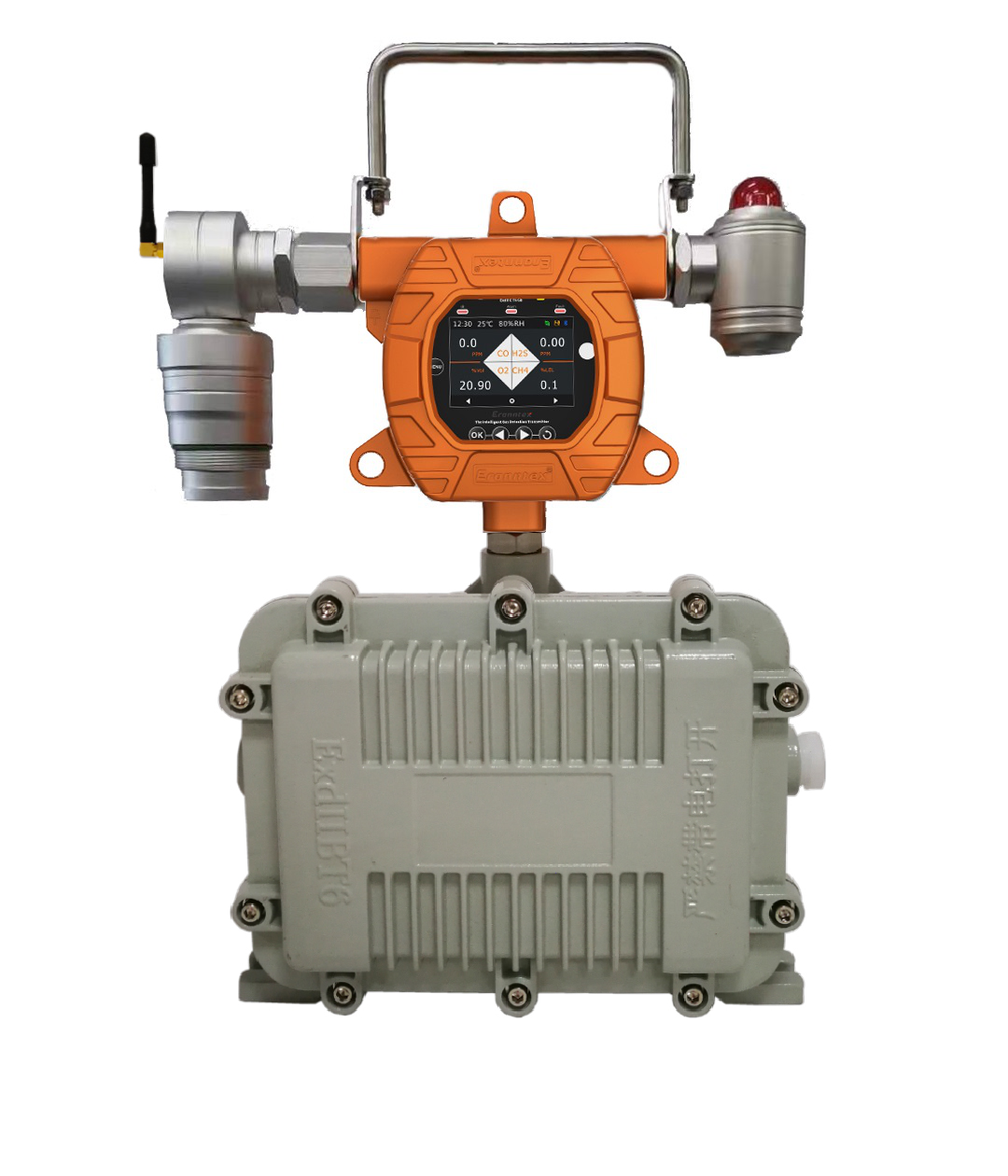

In recent years, with the increasing popularity of gas in our lives and industries, gas is now used in many families, restaurants and some industrial places. But while we are experiencing the convenience of gas, we are also suffering from the danger of gas leakage and explosion. In order to detect whether the gas leak in time, the gas alarm is actually installed in the place where the gas is produced, used and stored, and the alarm equipment should be installed correctly to ensure that the equipment can correctly detect the gas concentration in the field environment, so as to reduce the occurrence of gas leakage and explosion accidents. So where does the combustible gas alarm fit? The following is a brief introduction by yi yun Tian:

combustible gas alarm installation location:

1. first find out the possible leakage points of the device or workshop you want to monitor, calculate their leakage pressure, possible leakage amount per unit time, leakage direction, etc., and infer their severity.

2. when the detection point is located on the upwind side of the annual small frequency wind direction of the release source, the distance between the combustible gas detection point and the release source should not be greater than 15m; When the detection point is located on the downwind side of the annual small frequency direction of the release source, the distance between the combustible gas detection point and the release source should not be greater than 5m.

3. according to the dominant wind direction of the place, the possible circulation phenomenon of the air, the upward trend of the air flow and the habitual passage of the natural air flow in the workshop, the natural diffusion trend wind direction diagram of combustible gas on the plane when a large amount of leakage occurs is comprehensively inferred.

4, In the study of the leakage point of the situation, the leakage point is a point leakage state micro leakage or jet-like leakage. If it is a micro leak, the location of the set point should be a little closer to the leak point. If it is in the form of jet, it is slightly away from a point of leakage. Based on these conditions, the subsequent design scheme of combustible gas alarm is drawn up.

5. if the measured gas is liquefied gas with a large air proportion and is deposited downward after leakage, the combustible gas alarm should be installed at a height of 0.3-0.6m from the ground.If the gas on the north side is natural gas, its air proportion is small, and it floats upward after leakage, the combustible gas alarm should be installed 0.5 m-2m higher than the release source. The inspection shall be installed in a place without impact, vibration, strong electromagnetic field interference and easy maintenance. A clearance of not less than 0.5m shall be left between the place where the probe is installed and the surrounding pipelines or settings.

6. if it is between the open flame heating furnace and the combustible gas release source, a combustible gas alarm shall be set up 5m away from the side of the heating furnace. When there is a solid wall of non-combustible material between the open flame heating furnace and the combustible gas release source, the side of the solid wall close to the release source shall be provided with a combustible gas alarm. When the air conditioner of the control room, cabinet room and substation enters the opening of the building due to air outlet, cable trench and cable tray, and combustible gas may enter, combustible gas alarm shall be installed here. Combustible gas alarms shall be set up in places where combustible gas is easily gathered, such as gas wells, pits and even sewage pipes. When the gas alarm is set, the output signal should be digital signal, contact signal, milliampere signal or millivolt signal.

In summary, we know that the combustible gas alarm is suitable for installation. Although the installation of the combustible gas alarm is very simple, it only requires ordinary operators to route, connect, and test after power on. The main point lies in the correct selection and standard design of the gas alarm system, ensuring that the relevant safety inspection is passed, and the role of safety protection is expected in the true sense.
