Urban gas pipeline networks serve as critical infrastructure for energy distribution, providing essential power to households, businesses, and industrial operations. However, as cities expand and pipeline networks age, safety hazards become increasingly prominent. Valve chambers, as key nodes within these networks, operate in long-term underground enclosed environments. They are prone to methane leaks due to factors such as pipeline deterioration, loose connections, and external corrosion. As a highly flammable and explosive gas, even trace amounts of methane can accumulate in confined spaces if leaks go undetected. Exposure to ignition sources can trigger explosions and fires, threatening the lives and property of nearby residents while causing severe damage to urban transportation and public facilities.

　　More critically, traditional gas pipeline monitoring methods face significant limitations: On one hand, reliance on manual inspections is inefficient, making 24/7 coverage impractical. Additionally, the experience of inspectors and the precision of detection equipment can lead to overlooking hidden leak points. On the other hand, early monitoring devices predominantly used local data storage models, preventing real-time uploads to management platforms. This hinders staff from promptly grasping pipeline network dynamics, often leading to reactive responses only after accidents occur, thereby missing the optimal window for prevention and control. Against the backdrop of accelerating smart city development, traditional monitoring methods can no longer meet the demands for refined, intelligent safety management of urban gas pipelines. Establishing an efficient, real-time, and precise methane leak detection system has become an urgent priority for safeguarding the safety of urban lifelines.

　　To address this industry challenge in urban gas pipeline methane monitoring, Yiyun Tian Electronics leverages its deep technical expertise in industrial safety monitoring. The company has developed a specialized methane detection solution tailored for urban lifeline gas pipelines, providing comprehensive protection for city gas systems.

　　1. Solution Background

　　Urban lifeline gas pipeline methane detection. Data transmission to monitoring platforms.

　　2. Solution

　　Industry Application Solution: Valve Well Leak Detection Device GTYQ-MIC-600-L + 4G Wireless Transmission

　　3. Product Specifications

　　Valve Well Leak Detection Device GTYQ-MIC-600-L + 4G Wireless Transmission, IP68 Protection Rating

　　IP68 Protection Rating

　　Ultra-low power consumption design, battery-powered, diffusion-type operation lasts 4+ years, pump-suction type lasts 3+ years

　　Water immersion alarm, anti-theft alarm, displacement alarm, low battery alarm (battery level viewable on cloud platform)

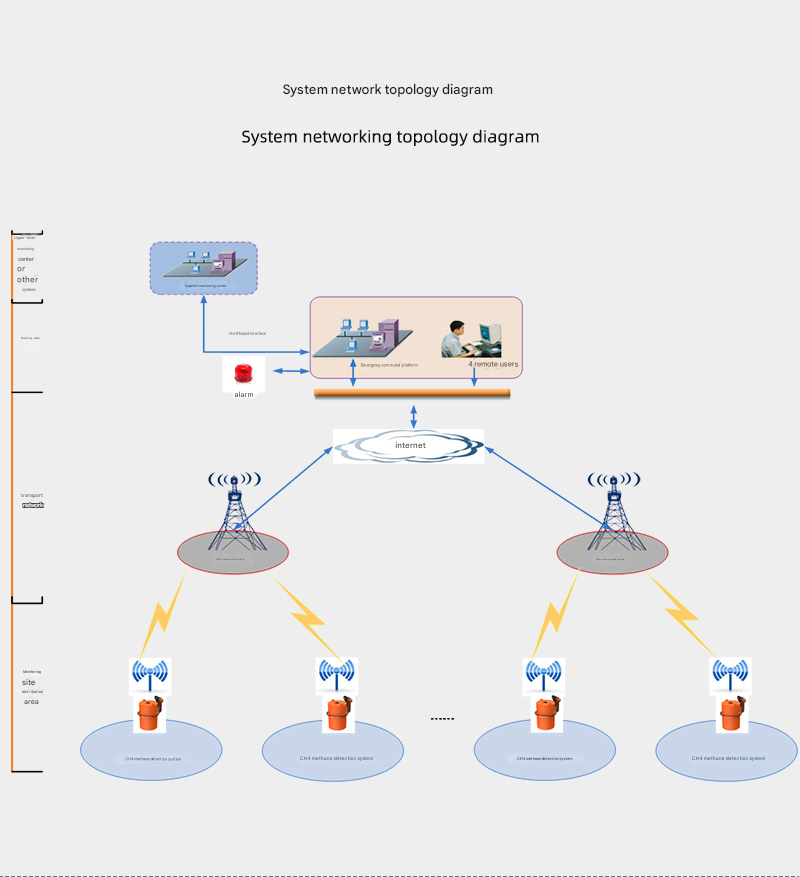

　　Standard 4G communication, remote data viewing

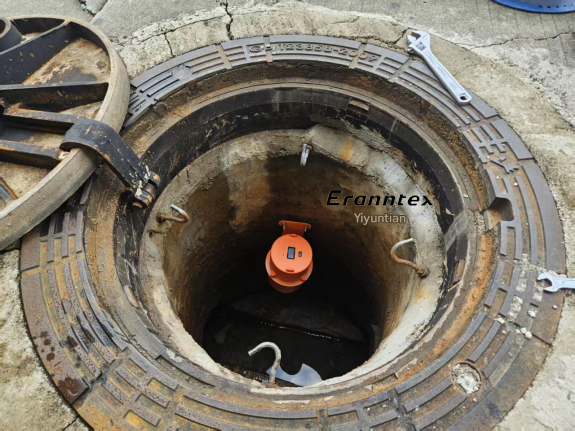

　　Field installation diagram:

　　The combination of Yiyun Tian's GTYQ-MIC-600-L electronic valve well leakage monitoring device with 4G wireless transmission technology is not merely a simple device integration. It represents a comprehensive, full-cycle safety monitoring solution developed based on the actual operating conditions of urban gas pipeline networks. Since its implementation, this solution has played a crucial role in gas pipeline renovation projects across multiple cities nationwide, delivering outstanding safety performance.

　　From a device adaptability perspective, the IP68 rating—the highest protection level—provides reliable assurance for stable operation in underground valve chambers. Urban underground valve chambers feature complex environments prone to water accumulation during rainy summers and condensation in cold winters, with long-term buildup of dust and silt. Conventional monitoring devices often fail due to water ingress, moisture exposure, or sensor clogging from dust. The GTYQ-MIC-600-L valve chamber leak monitoring device, equipped with IP68 protection, can function normally even when fully submerged in water and effectively resists dust erosion. It maintains stable detection performance under extreme conditions such as the southern rainy season or northern harsh winters, ensuring uninterrupted and accurate monitoring data.

　　Its ultra-low power consumption design completely resolves the operational challenge of frequent battery replacement common in traditional devices. Conventional monitoring devices typically rely on external power sources or short-life batteries, requiring personnel to periodically descend into wells for replacements. This not only increases operational costs but also poses safety risks associated with well entry. The GTYQ-MIC-600-L employs advanced low-power chips and energy-saving algorithms paired with high-capacity, long-life batteries. In diffusion detection mode, it achieves over 4 years of operation, while pump-suction mode maintains 3 years of endurance. This means that once installed, the device requires no manual battery replacement for years, significantly reducing maintenance workload and costs. It also eliminates monitoring gaps caused by battery changes, enabling long-term protection of gas pipeline networks.

　　Regarding risk alerts and device security, the solution's multi-dimensional alarm functions play a crucial role. Beyond core methane concentration threshold alerts, the device integrates water immersion, anti-theft, displacement, and low-battery alarms: When water accumulation in valve chambers exceeds preset safety thresholds, the water immersion alarm triggers immediately, notifying personnel to promptly investigate and address flooding issues. If the device faces malicious damage or theft, the anti-theft and displacement alarms swiftly upload alerts to the management platform, facilitating rapid tracking and response. Simultaneously, the low-battery alarm function displays remaining battery power in real time via the cloud platform, enabling staff to schedule battery replacements in advance. This ensures continuous, stable device operation and prevents monitoring interruptions due to depleted power. This multi-dimensional alarm system achieves precise methane leak early warning while effectively safeguarding the monitoring equipment itself, jointly establishing dual security protection for both the devices and the pipeline network.

　　The adoption of 4G wireless transmission technology propels gas pipeline monitoring into the “intelligent era.” Previously, monitoring data required manual on-site readings, resulting in significant information transmission delays. The valve well leak detection device GTYQ-MIC-600-L comes standard with a 4G communication module, enabling real-time methane concentration data and device operational status to be synchronously uploaded to the city gas pipeline management cloud platform. Staff can log into the platform from their offices to view monitoring data from each valve well at any time. Should methane concentrations exceed thresholds, the platform immediately triggers an alarm notification, precisely locates the leaking valve well, and directs emergency crews to swiftly respond on-site.

　　Additionally, this solution offers excellent scalability and compatibility, seamlessly integrating with urban smart emergency management platforms to incorporate gas pipeline monitoring data into the city's overall safety management system. Through big data analysis, management departments can predict pipeline aging trends based on historical leak data, enabling proactive pipeline maintenance planning and shifting from “reactive emergency response” to “proactive prevention and control.”

　　From a long-term urban development perspective, Yiyun Tian Electronics' valve chamber leak monitoring solution not only addresses current pain points in methane monitoring for gas pipelines but also aligns with the “safe, efficient, and intelligent” development philosophy of smart city construction. It uses technology to connect dispersed valve chamber monitoring points into a network, forming a citywide gas pipeline safety monitoring system that provides robust assurance for the stable operation of the city's lifeline. Looking ahead, as IoT technologies continue to integrate, Yiyun Tian Electronics will further refine its solutions and introduce smarter, more efficient monitoring devices. This will empower more cities to build “safer, smarter” gas pipeline management systems, transforming urban lifelines into true “safety lines” and “reassurance lines.”
