At present, as an important pillar of economic development, the environmental security challenges of chemical industry parks are becoming more and more serious, especially the disorderly discharge of toxic and harmful gases such as HCl, HF, H2S and NH3, which not only causes serious pollution to the environment, but also poses a serious threat to the lives and health of surrounding residents. In the face of these 1 major problems that need to be solved urgently, the traditional artificial gas detection methods are stretched, and their inefficiency and high-risk characteristics obviously cannot match the stringent requirements of modern chemical parks for safety management.

It is against this background that Yiyuntian gas detector, together with robot technology, is like a 1 stream, bringing 1 disruptive innovation to the environmental monitoring field of the chemical park. Yiyuntian gas detector, with its excellent high precision and extensive gas detection capability, realizes deep integration with the automation and intelligent characteristics of robots, and jointly builds an indestructible environmental protection Great Wall to protect the environmental safety of the chemical park.

1, scheme background

The background of the robot carrying the gas detector mainly involves the following aspects:

Environmental pollution problems in chemical industrial parks:

Environmental pollution in chemical industrial parks is serious, there are toxic and harmful gases such as HCl, HF, H2S, NH3 and other unorganized emissions, causing environmental pollution and human injury.

The chemical industry park is densely populated. Once an environmental emergency occurs, especially an environmental emergency of toxic and harmful gases, it will pose a serious threat to the safety of people's lives and property.

Limitations of traditional gas detection methods:

Traditional gas detection methods require manual equipment to enter the site, which is inefficient and has high safety risks.

Advantages of the robot navigation monitoring system:

The robot navigation monitoring system provides a 1 innovative monitoring method by combining advanced gas detection technology with a mobile robot platform.

The robot can automatically plan the path, avoid obstacles, continuously collect and analyze gas data, and reduce the workload and potential hazards of personnel.

The gas sensor equipped with the robot can detect a variety of gases and transmit the data back to the control center in real time.

2. Solution

Gas detector small size, light weight, power supply 12-24V, can output 485 or serial signal, suitable for detecting a variety of gases; explosion-proof gas probe : Suitable for environments requiring explosion-proof protection, with high sensitivity, capable of detecting a variety of dangerous gases, such as gas, chlorine, hydrogen sulfide, etc.The probe is designed as a gas cup type, which increases the contact area, improves the detection speed and accuracy, supports diffusion sampling and pumping sampling, and the sampling frequency can reach 3 times per second. Automatic Path Planning : The robot can move autonomously, avoid obstacles, and continuously collect and analyze gas data. It is suitable for areas that are difficult to reach manually, such as chemical plants, oil and gas pipelines, mines, etc. The robot is equipped with gas sensors that can detect a variety of harmful gases and transmit the data back to the control center in real time. The system also includes special processing and analysis software for processing and analyzing data to find safety hazards or environmental problems in time. Robot equipped with gas alarm , intelligent detection : Using advanced sensing technology, it can detect methane, oxygen, ammonia, hydrogen sulfide and other gases. The robot operates autonomously and performs gas detection according to a preset path, reducing manual operation costs and risks. It has fast response ability, can detect gas concentration changes in a short time, and issue an alarm in time. At the same time, remote monitoring and data analysis are realized through the Internet of Things and big data technology.

3. What products are matched:

Model: Portable compound gas detection and alarm MS600-8(CO/H2S/O2/CH4/CO2/NH3/T/H )-I/MS600-10-H(CO2/CH4/CO/H2S/CL2/NH3/O2/H2/T/H)/MS600-9-H(VOC/O3/SO2/H2S/NO/CO/CH4/T/H)+ MS600-PM2.5-H.

custom circuit board; Power supply: DC5V direct power supply, non-charging type; Output type: RS485-MODBUS RTU; Communication parameters: 9600,1,8, no parity, address: 2 .

When the external device is DC5V powered, the sensor is powered on. The sensor does not work when the external device is powered off.

Communication port: external communication 485 port, the outlet is equipped with a certain anti-loosening fixing device, which is sealed and fixed. The protocol uses an answering modbus-rtu.Eight parameters are read at one time (non-polling) to clarify the alarm values of various gases. The robot manufacturer is responsible for high and low alarm analysis, and the alarm of the gas sensor itself is still needed.

Waterproof grade IP67, sensor fixed reliable and waterproof grade standard. Pump suction type; at least 20cm of suction hose shall be added to each unit. External 3 m cable.

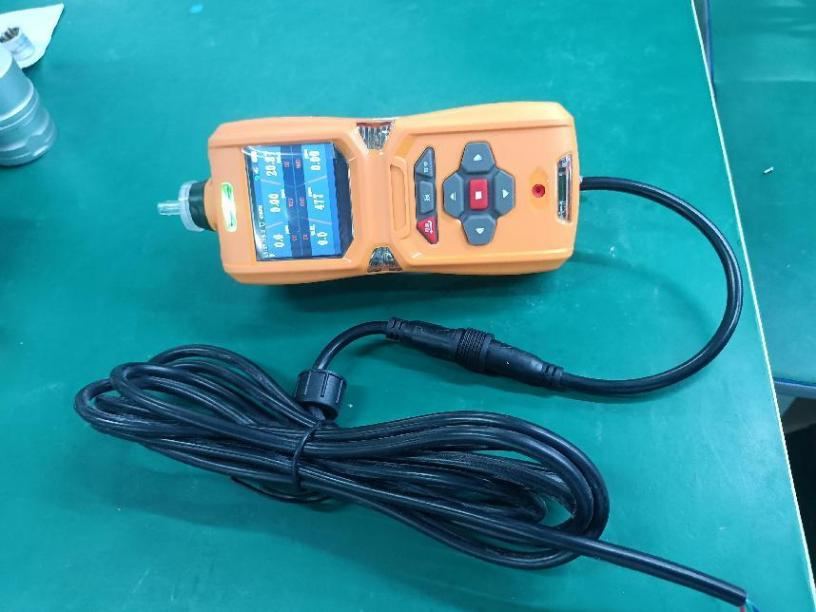

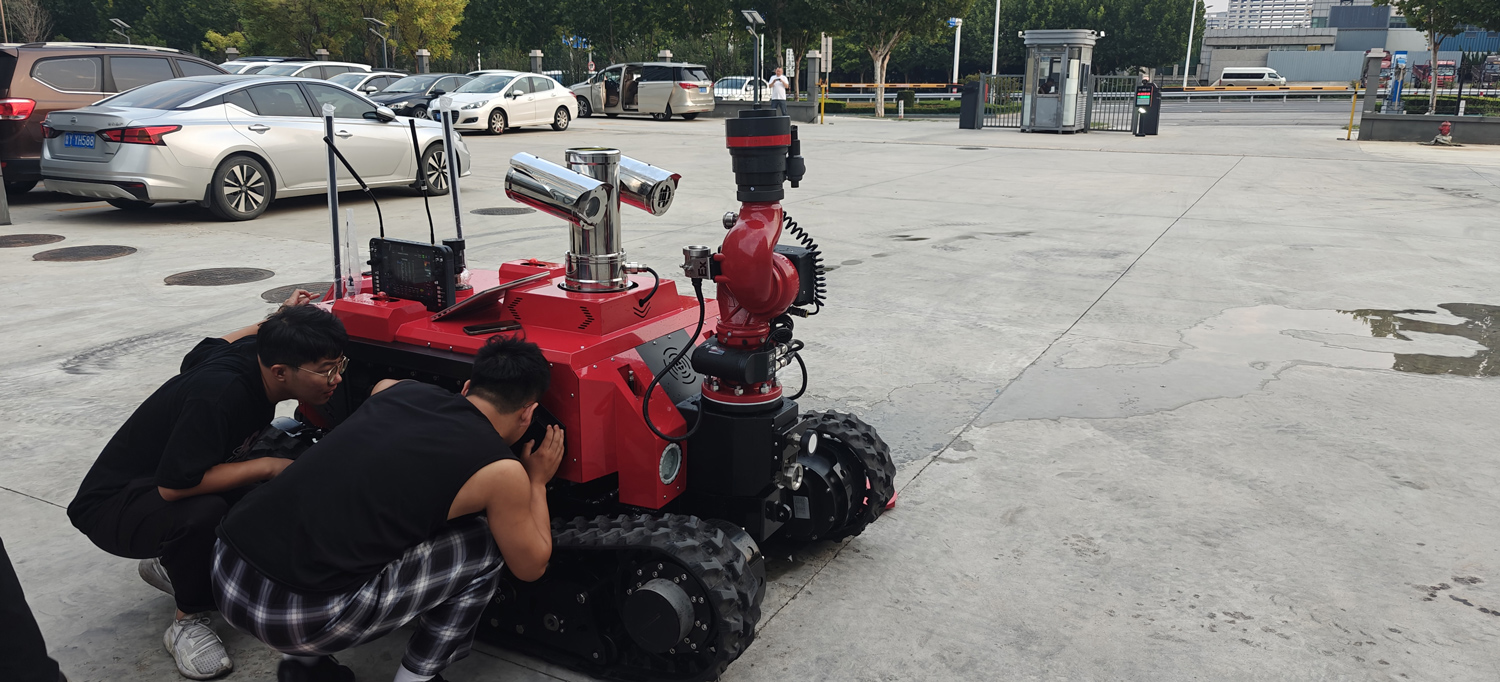

The product site image is as follows:

409/>

the strong combination of Yiyuntian gas detector and robot, it is the concrete practice of science and technology enabling environmental protection. They have proved the importance of technological innovation to protect the blue sky, white clouds, green water and green mountains in the chemical park. They not only effectively break through the limitations of traditional detection methods, but also contribute indispensable wisdom and strength to the construction of green and safe industrial ecology.

br > Looking to the future, yiyuntian will continue to cultivate environmental monitoring technology, continue to pursue innovation and breakthroughs, and is committed to bringing more advanced and intelligent gas detection solutions into the chemical industry to help the park achieve more efficient and accurate environmental management. We believe that through continuous technological iteration and optimization, Yiyuntian will achieve deep integration with robot technology, jointly create a new era of environmental monitoring, and contribute our strength and wisdom to protect the purity and beauty of the earth's home. Let us work together to create a greener, smarter and more sustainable future.
